◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#32416) — 23 parça
çizim 119425
10 46 578
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
12V 80A 		8-97173-951-0 01 1 0609-
46 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0609-
578 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0609-

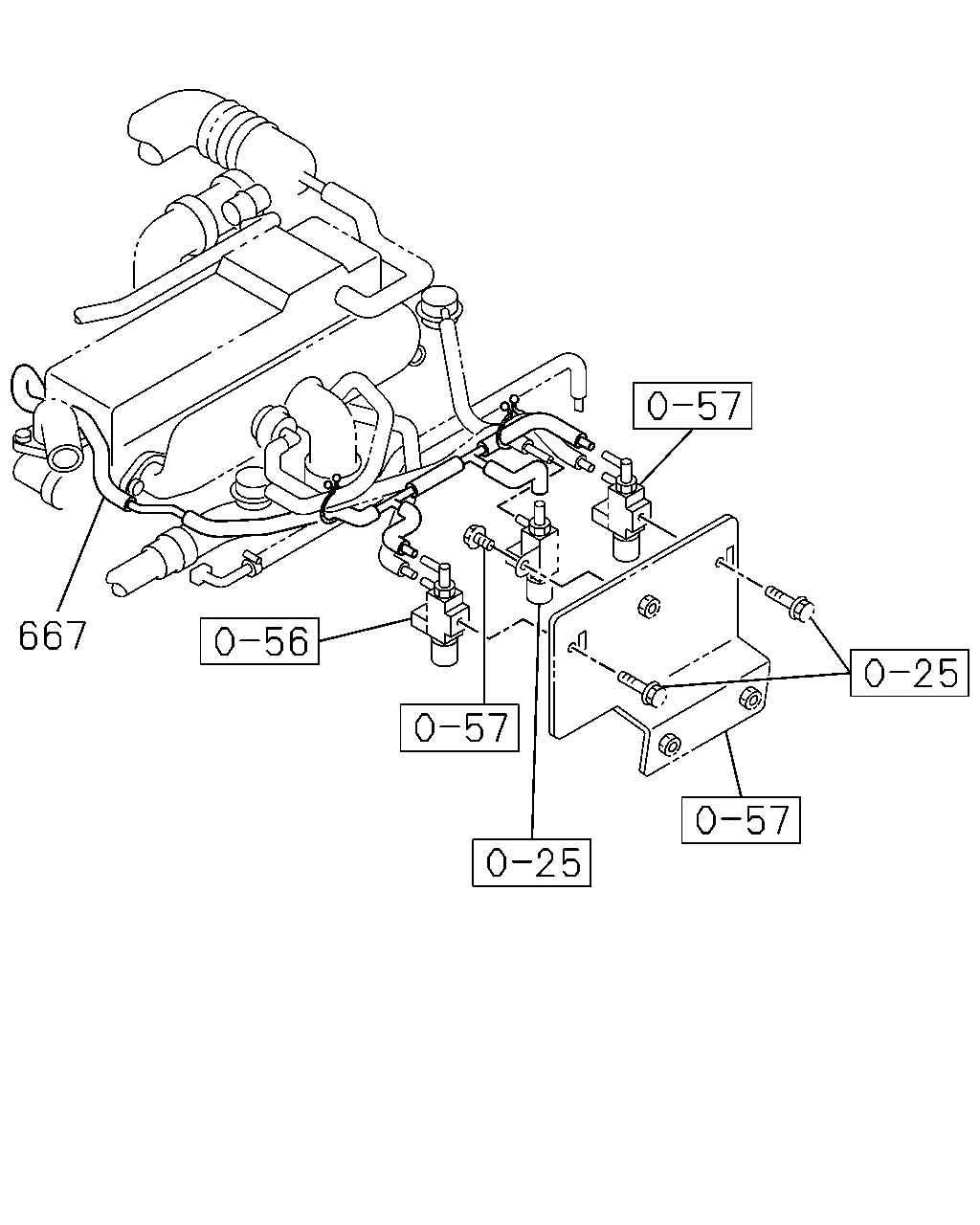

çizim 119430
667
BalonParca AdiParca NoAdetTipApplied Date
667 HOSE; VAC,PUMP TO VSV 8-97228-358-1 01 1 0609-

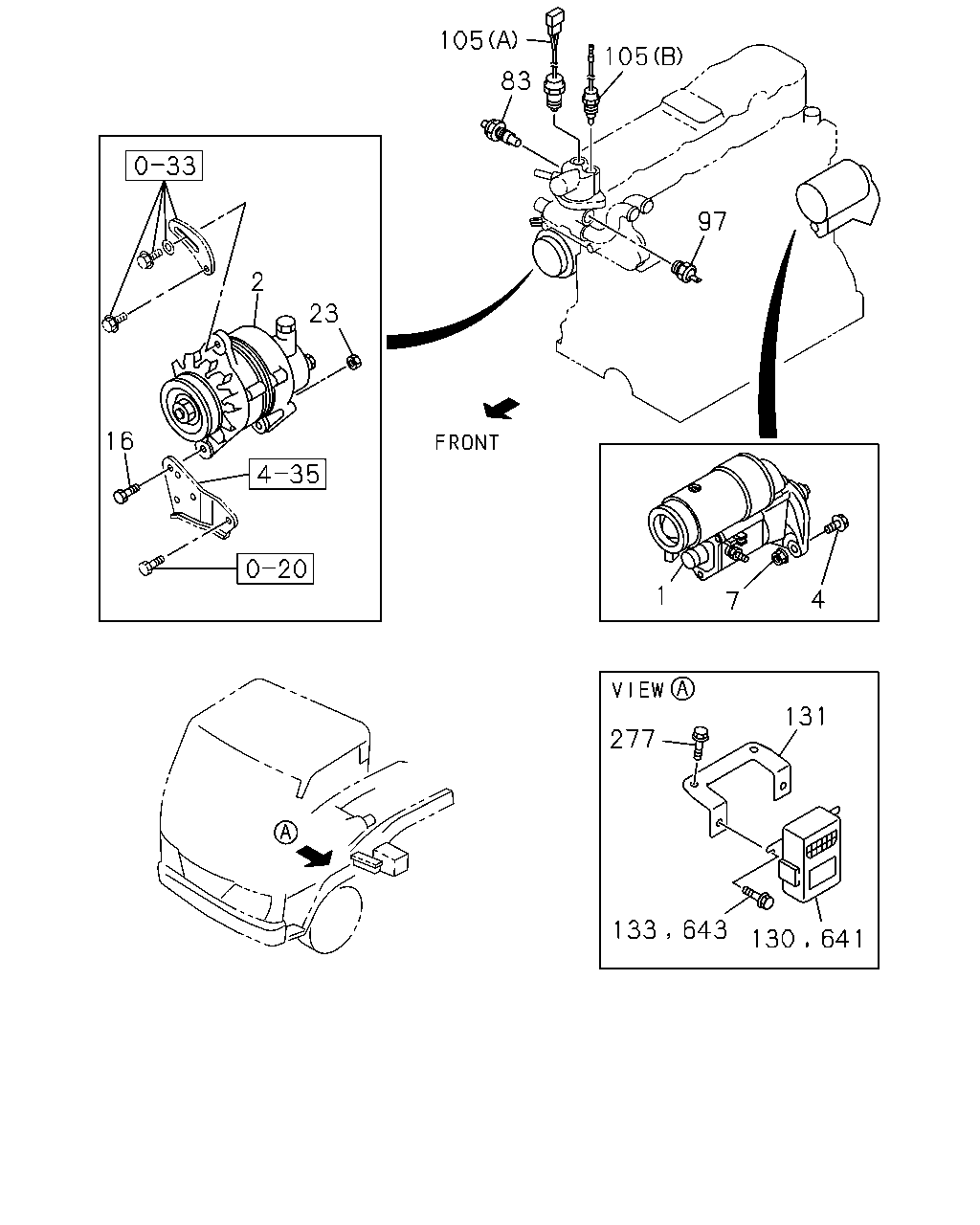

çizim 119439
105 105 83 97 2 23 16 1 4 7 131 277 133 643 130 641
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0609-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0609-1408
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506-
4 BOLT; STARTER
M12X80 FLANGE 		0-28051-280-0 02 1 0609-
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0609-
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0609-
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 0609-
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0609-
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0609-
97 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0609-
105 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 0609-
105 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0609-
130 CONTROLLER; EGR 8-97201-734-3 01 1 0609-
131 BRACKET; EGR 8-97217-813-1 01 1 0609-
133 BOLT; EGR CONTROLLER
M6X20 FLANGE 		0-28650-620-0 02 1 0609-
277 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 02 1 0609-
641 TIMER; QOS 8-97361-317-3 01 1 0609-
643 NUT; TIMER,QOS
M6 FLANGE 		0-91180-106-0 02 1 0609-
