0-52 — OIL AND VACUUM PIPING; ENGINE (#32413) — 46 parça

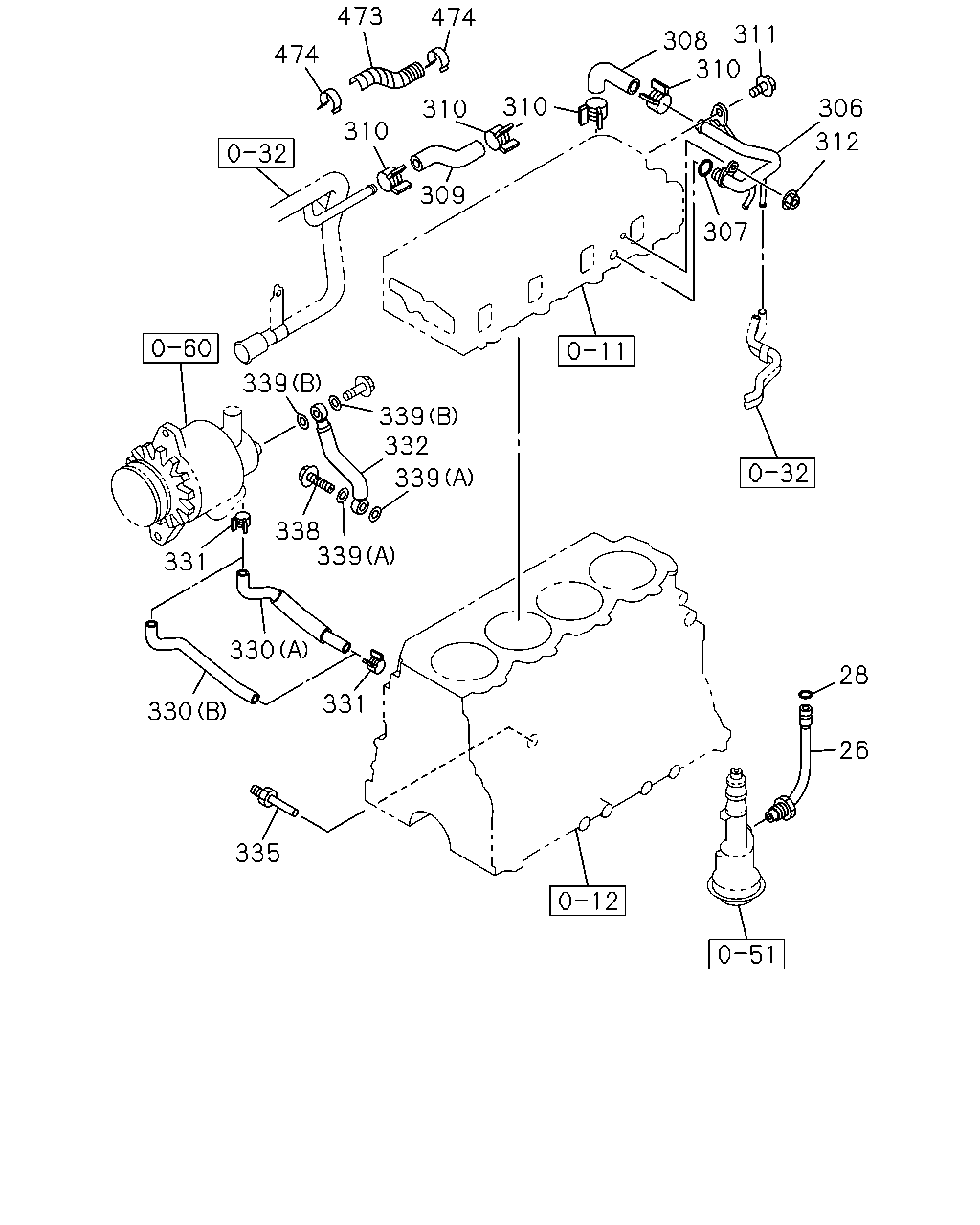

çizim 119415
473 474 311 308 310 474 310 306 310 310 312 309 307 339 339 332 339 338 339 331 330 28 331 330 26 335
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0609-0801
26 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802-
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0609-
306 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0609-
307 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0609-
308 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0609-
309 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 0609-
310 CLIP; WATER HOSE FIX
ID=20.8 		8-94125-862-1 04 1 0609-
311 BOLT; PIPE FIX
M8X14 FLANGE 		0-28080-814-0 01 1 0609-
312 NUT; PIPE FIX
M8 FLANGE 		5-09440-005-0 01 1 0609-0805
312 NUT; PIPE FIX
M8 FLANGE 		8-97581-233-0 01 1 0806-
330 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 0609-1111
330 HOSE; VAC PUMP,RETURN
(B) 		8-98204-694-0 01 1 1112-
331 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0609-
332 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0609-
335 STOPPER; OIL PIPE 8-97203-568-0 01 1 0609-
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0609-
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0609-
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0609-
473 INSULATOR; HOSE 8-97101-331-0 02 1 0609-
474 CLIP; INSULATOR 8-97101-337-0 04 1 0609-

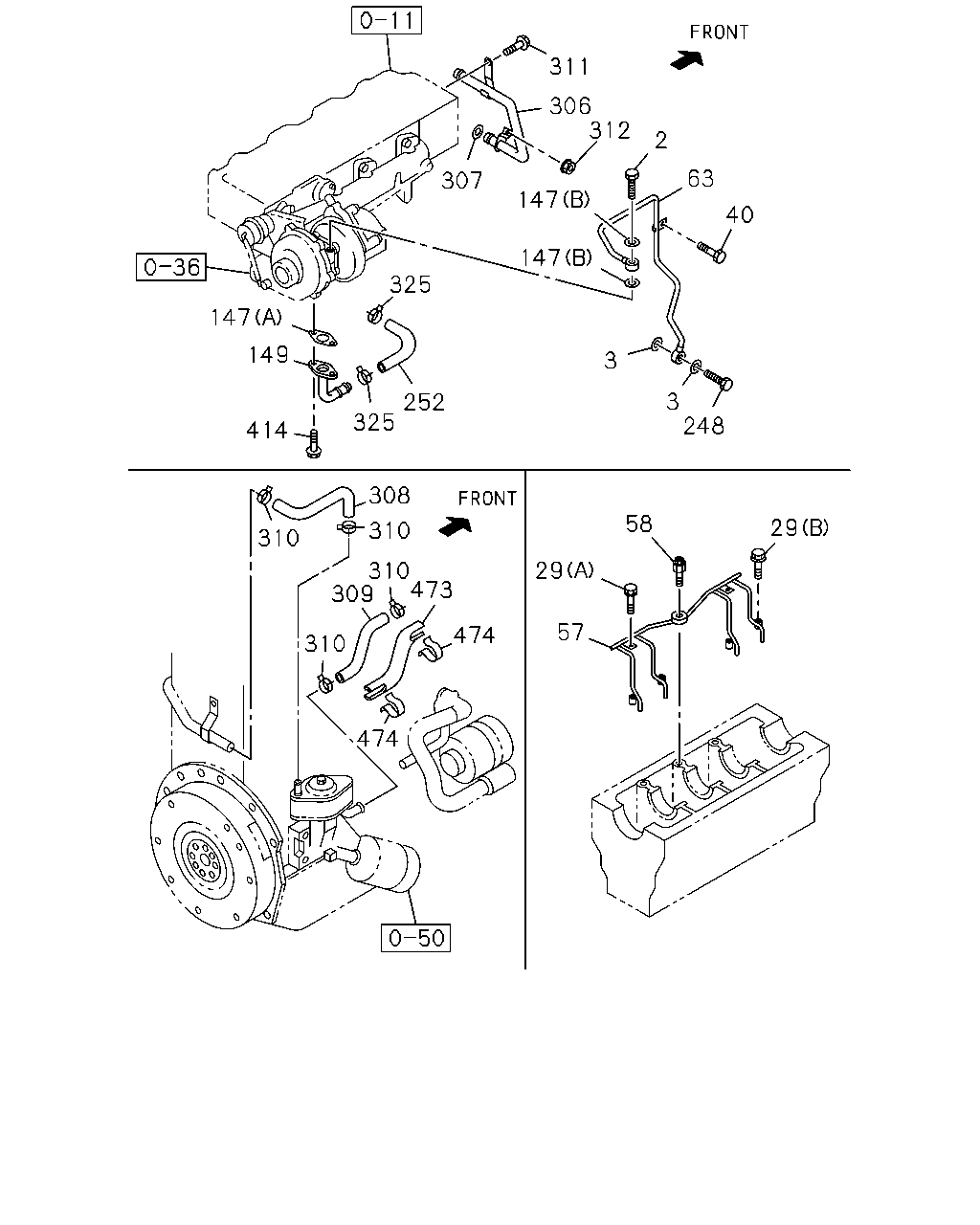

çizim 119436
311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414 308 58 29 310 310 29 310 309 473 57 474 310 474
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
M10X23 FLANGE 		8-94332-831-1 01 1 0609-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 		9-09571-414-0 02 1 0609-
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0609-
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0609-
40 BOLT; OIL PIPE
M6X10 FLANGE 		0-28050-610-0 01 1 0609-
57 PIPE; OIL,OIL JET 8-94469-709-3 01 1 0609-
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97311-976-1 01 1 0609-
63 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 0609-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94362-672-1 01 1 0609-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0609-
149 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 0609-
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0609-
252 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 0609-
306 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0609-
307 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0609-
308 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0609-
309 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 0609-
310 CLIP; WATER HOSE FIX
ID=20.8 		8-94125-862-1 04 1 0609-
311 BOLT; PIPE FIX
M8X14 FLANGE 		0-28080-814-0 01 1 0609-
312 NUT; PIPE FIX
M8 FLANGE 		5-09440-005-0 01 1 0609-0805
312 NUT; PIPE FIX
M8 FLANGE 		8-97581-233-0 01 1 0806-
325 CLIP; RUBBER HOSE,OIL RETURN
ID=20.8 		8-94125-862-1 02 1 0609-
414 BOLT; OIL PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0609-
473 INSULATOR; HOSE 8-97101-331-0 02 1 0609-
474 CLIP; INSULATOR 8-97101-337-0 04 1 0609-
