Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

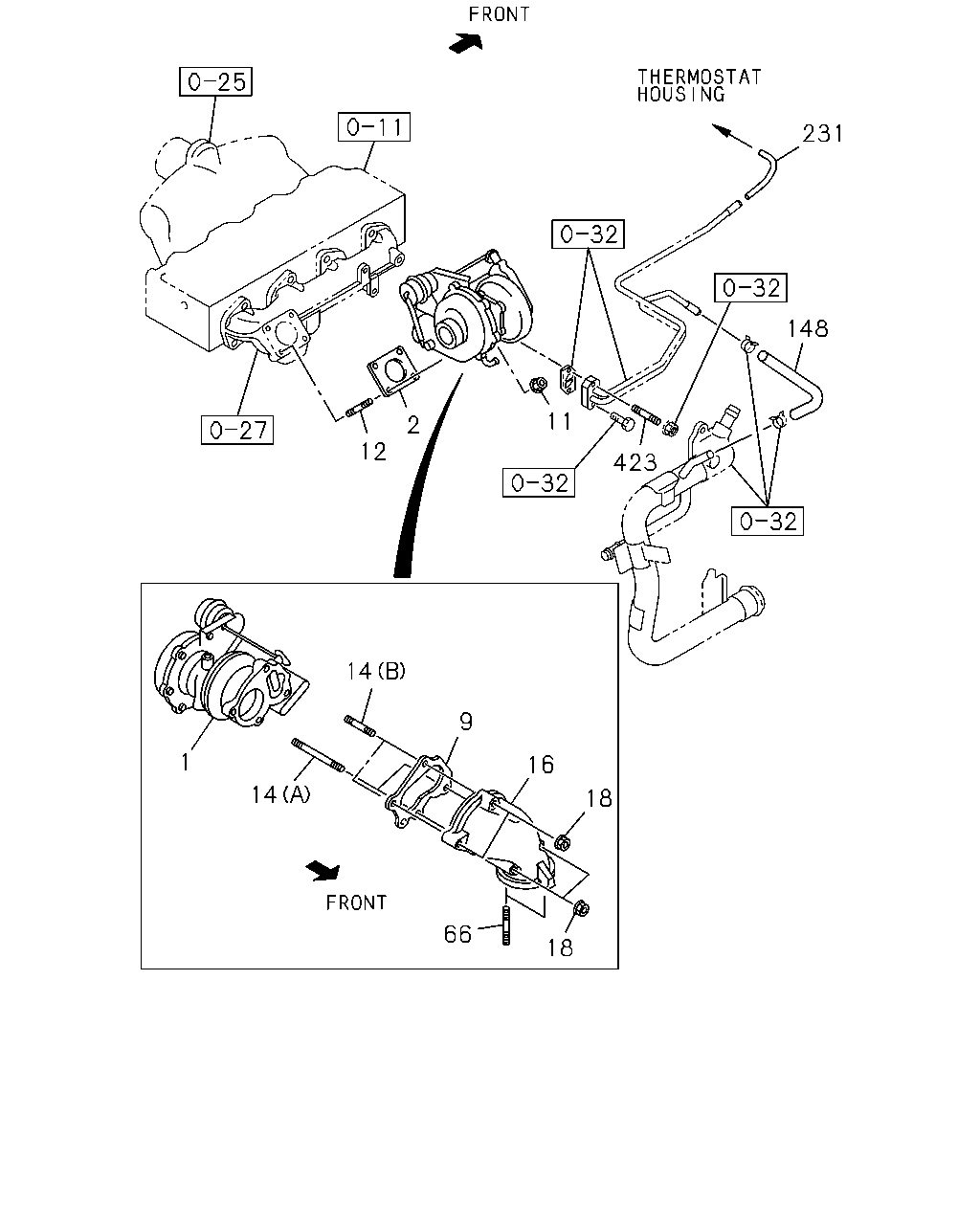

0-36 — TURBOCHARGER SYSTEM
(#32407) — 13 parça
231
148
11
2
12
423
14
9
1
16
14
18
66
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97331-185-1
01
1
0609-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97315-266-0
01
1
0609-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97139-726-0
01
1
0609-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
0609-
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
0609-
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X43 L=54
8-97378-067-0
02
1
0609-
14
STUD; TURBOCHARGER TO EXH PIPE
(A) M8X126 L=137
8-97378-069-0
02
1
0609-
16
ADAPTER; EXH PIPE
8-97192-332-0
01
1
0609-
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
0609-
66
STUD; EXH PIPE
M10X45 L=60 PLATING
5-09302-008-1
02
1
0609-
148
HOSE; TURBOCHARGER,INL
L=180 SERVICED BY L=3000
0-03559-300-0
01
1
0609-
231
HOSE; RUBBER,TURBOCHARGER OUT
8-97212-155-0
01
1
0609-
423
STUD; WATER PIPE
M6X20 L=28
0-41010-620-0
01
1
0609-
