Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

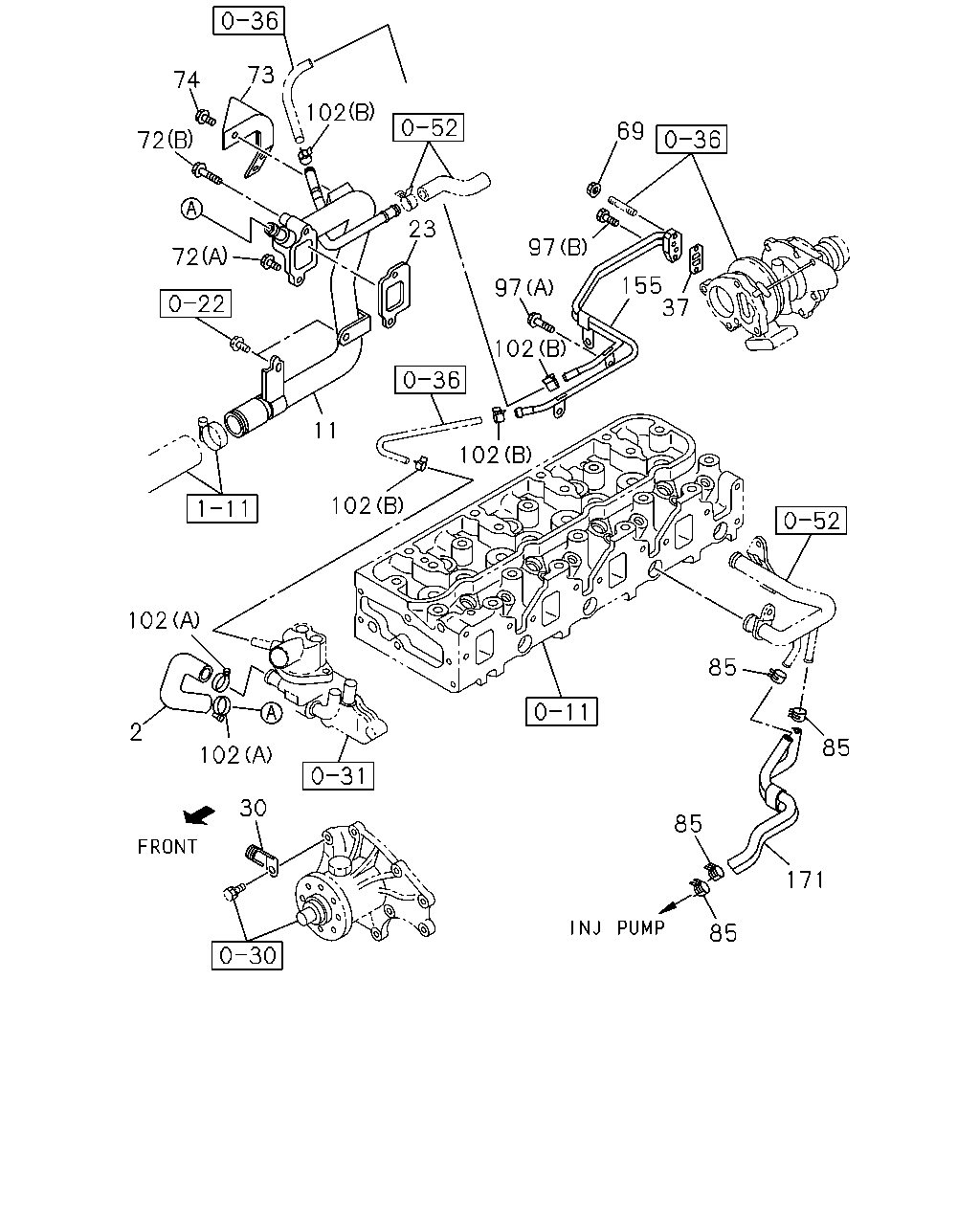

0-32 — WATER PIPING; ENGINE
(#32404) — 21 parça
73
74
102
69
72
23
97
72
155
37
97
102
11
102
102
102
85
2
85
102
30
85
171
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
0609-
11
PIPE; INL,WATER PUMP
8-97213-400-2
01
1
0609-
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
0609-
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
0609-
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94321-135-1
01
1
0609-
69
NUT; WATER PIPE
M6 FLANGE
0-91180-106-0
01
1
0609-
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28050-820-0
01
1
0609-
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50040-845-0
01
1
0609-0909
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50540-845-0
01
1
0910-
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
0609-1403
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
0609-
85
CLIP; RUBBER,WAX CSD
ID=12.8
8-94367-943-0
04
1
0609-
97
BOLT; WATER PIPE
(A) M6X12 FLANGE
0-28050-612-0
01
1
0609-
97
BOLT; WATER PIPE
(B) M6X20 FLANGE
0-28650-620-0
01
1
0609-1010
97
BOLT; WATER PIPE
(B) M6X16 FLANGE
0-28050-616-0
01
1
1011-
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
0609-
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
0609-
155
PIPE ASM; WATER
8-97207-954-0
01
1
0609-1010
155
PIPE ASM; WATER
8-98169-766-0
01
1
1011-
171
HOSE; RUBBER,WAX CSD
8-97225-605-0
01
1
0609-
