◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#32403) — 12 parça

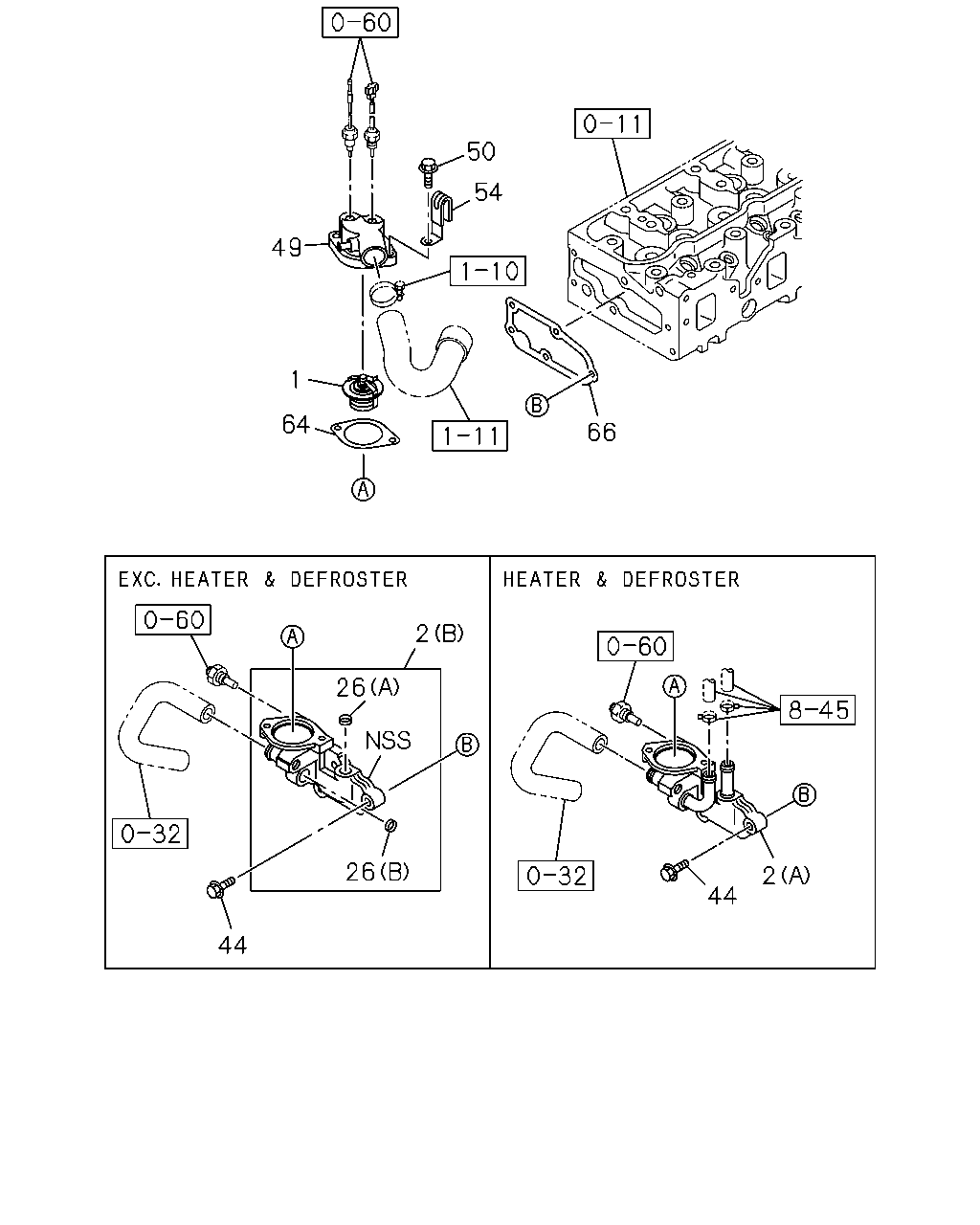

çizim 119469
50 54 49 1 64 66 2 26 26 2 44 44
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
82 CELSIUS 		8-97254-816-1 01 1 0609-
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 0609-
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 0609-
26 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) (B) OD=18 		5-11219-008-0 01 1 0609-
26 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) (A) OD=18 		9-11129-082-0 02 1 0609-0802
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50540-830-0 05 1 0609-
49 PIPE; WATER OUTLET 8-97204-199-0 01 1 0609-
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0609-
54 CLIP; THERMO SWITCH,OUTLET PIPE
ID=13 H=50 L=27 		8-94130-076-0 01 1 0609-
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-674-2 01 1 0609-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0609-0905
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906-
