0-12 — CYLINDER BLOCK (#3240) — 89 parça

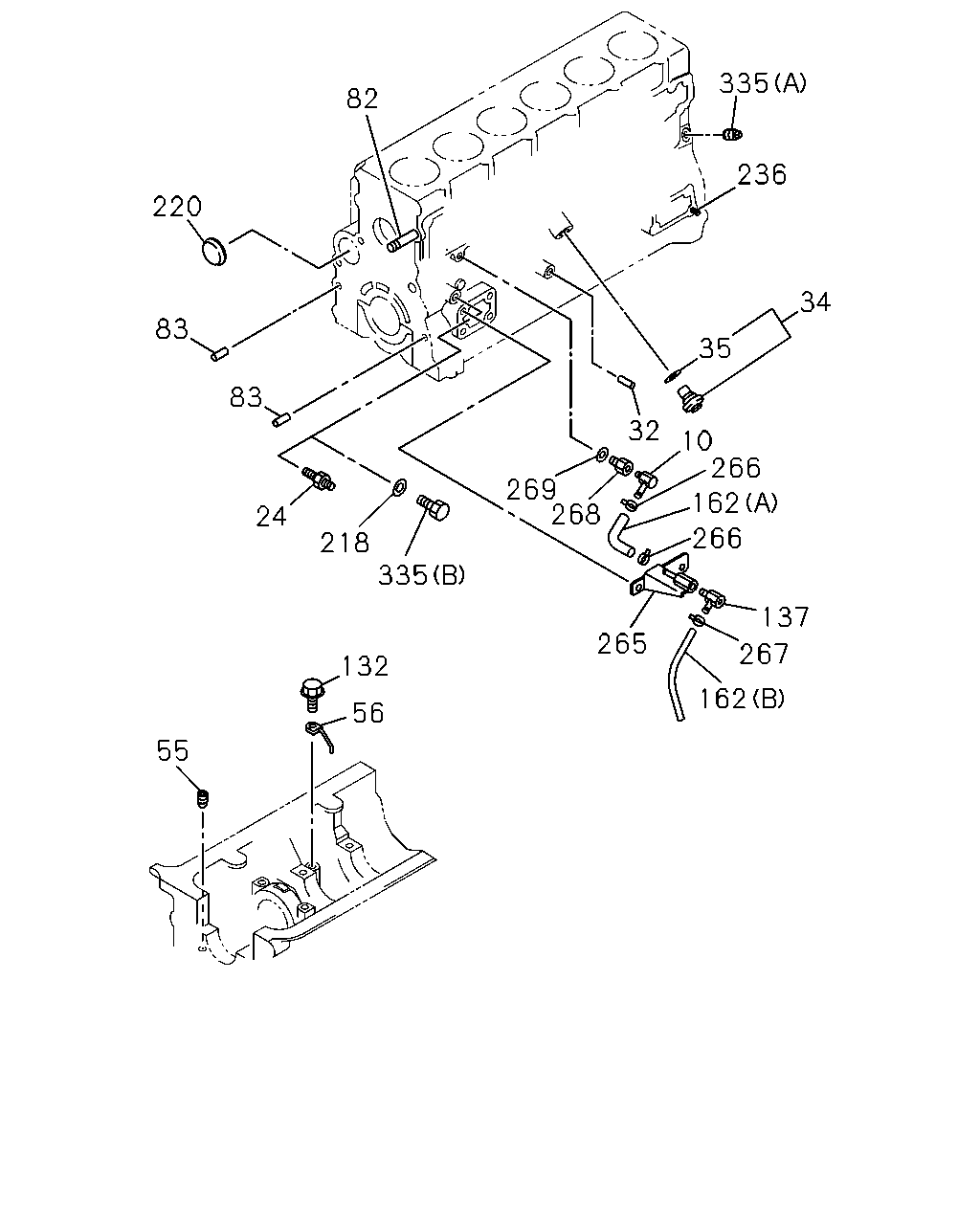

335 82 236 220 34 83 35 83 32 10 266 269 268 162 24 266 218 335 137 265 267 132 162 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; WATER DRAIN	1-09660-174-2	01	1	9101-	●	●
24	NIPPLE; OIL FEED,VAC PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	5-09654-013-0	01	1	9101-	●	●
32	PIN; INJ PUMP BRKT	9-08150-816-0	02	1	9101-	●	●
34	VALVE; OIL RELIEF	1-13160-019-1	01	1	9101-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9101-	●	●
55	PLUG; OIL GALLERY	1-09605-066-0	01	1	9101-	●	●
56	JET; OIL,PISTON COOLING	1-13342-110-0	06	1	9101-	●
82	STUD; FLYWHEEL HSG	5-09300-023-1	01	1	9101-	●	●
83	PIN; FLYWHEEL HSG	9-08151-018-0	02	1	9101-	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9101-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9101-	●	●
162	HOSE; WATER DRAIN,C/BL (A) L=120	8-94235-652-1	01	1	9101-	●	●
162	HOSE; WATER DRAIN,C/BL (B)	9-09914-701-0	01	1	9101-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	01	1	9101-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	01	1	9804-	●	●
220	PLUG; PLATE,CM/SHF,RR	9-09860-019-0	01	1	9101-	●	●
236	STUD; ENG FOOT	1-09300-053-0	01	1	9101-	●	●
265	PIPE ASM; WATER DRAIN	1-13721-255-0	01	1	9101-	●	●
266	CLIP; HOSE	8-94123-526-1	02	1	9101-	●	●
267	CLIP; DRAIN HOSE ID=13.5	8-97015-754-1	01	1	9101-	●	●
268	NIPPLE; WATER DRAIN PIPE	1-09666-036-0	01	1	9101-	●	●
269	GASKET; NIPPLE,C/BL	1-09630-115-0	01	1	9101-	●	●
335	PLUG; C/BL,SIDE (B) M14X9	9-99202-314-0	01	1	9101-	●	●
335	PLUG; C/BL,SIDE (A) PT1/8 T=8.0	1-09605-079-1	01	1	9101-	●	●
335	PLUG; C/BL,SIDE (A) PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	09	1	9101-	●	●
335	PLUG; C/BL,SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	02	1	9101-	●	●
335	PLUG; C/BL,SIDE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	01	1	9101-	●	●

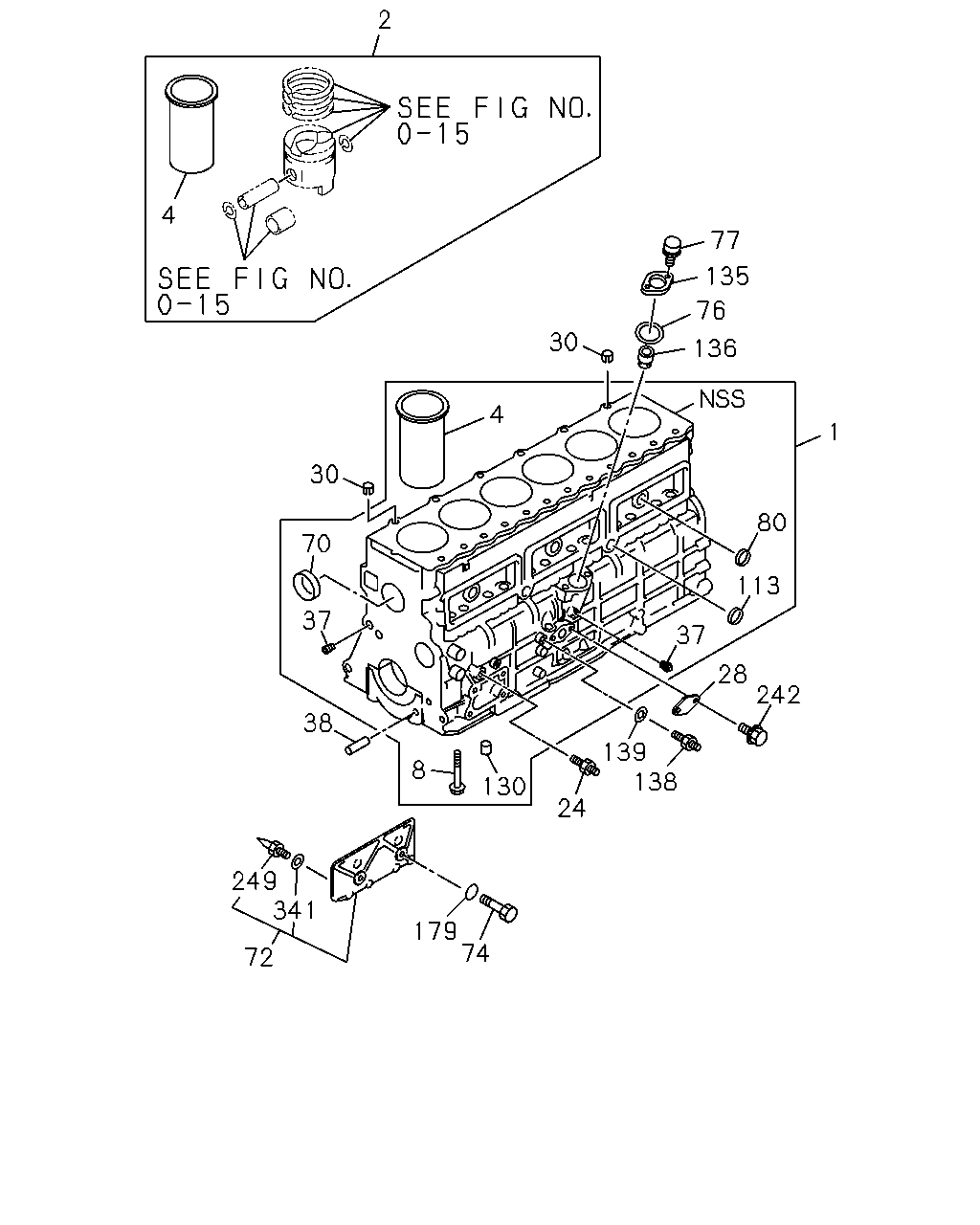

2 4 77 135 76 30 136 4 1 30 80 70 113 37 37 28 242 38 139 138 8 130 24 249 341 179 74 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-444-7	01	1	9101-	●
1	BLOCK ASM; CYL	1-11210-448-3	01	1	9101-		●
2	LINER SET; ENG CYL GRADE=1	1-87811-418-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=1	1-87811-932-1	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=2	1-87811-419-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=2	1-87811-933-1	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=3	1-87811-420-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=3	1-87811-934-1	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=4	1-87811-421-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=4	1-87811-935-1	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=1	1-87811-353-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-354-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=3	1-87811-355-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=4	1-87811-356-1	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-248-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-382-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-249-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-383-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-250-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-384-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-251-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-385-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-252-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-386-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-253-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-387-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-254-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-388-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-255-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-389-0	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	06	1	9101-		●
8	BOLT; BRG CAP	1-09000-469-2	14	1	9101-	●	●
24	NIPPLE; OIL FEED,VAC PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	5-09654-013-0	01	1	9101-	●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9101-	●	●
30	PIN; CYL HD GASKET SETTING	8-94148-079-0	02	1	9101-	●	●
37	PLUG; OIL GALLERY	1-09605-068-1	02	1	9101-	●	●
38	PIN; TIMING GEAR CASE	9-08151-050-0	01	1	9101-9104	●	●
38	PIN; TIMING GEAR CASE	1-09740-078-0	01	1	9105-	●	●
70	CUP; SEALING,FRT & RR	1-09600-052-0	02	1	9101-	●	●
72	COVER; TAPPET CHAMBER	1-11290-240-1	03	1	9101-	●	●
74	BOLT; COVER TO C/BL	1-09052-031-0	06	1	9101-	●	●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7	1-09623-465-0	01	1	9101-	●	●
77	BOLT; COVER TO C/BL	0-50140-822-0	02	1	9101-	●	●
80	CUP; SEALING,TAPPET CHAMBER	1-09600-012-1	03	1	9101-	●	●
113	CUP; SEALING	5-11219-014-0	02	1	9101-	●	●
130	DOWEL; BRG CAP	5-11257-001-1	01	1	9101-	●	●
135	COVER; OIL PUMP	1-11219-129-1	01	1	9101-	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9101-	●	●
138	NIPPLE; OIL RETURN,VAC PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	5-09744-015-2	01	1	9101-	●	●
139	GASKET; NIPPLE,VAC PUMP OIL RETURN BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09571-614-0	01	1	9101-	●	●
179	GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	9-09572-008-0	06	1	9101-	●	●
242	BOLT; COVER,OIL PORT	0-50140-820-0	02	1	9101-9701	●	●
242	BOLT; COVER,OIL PORT M8X20 FLANGE	0-28680-820-0	02	1	9702-	●	●
249	BOLT; TAPPET GUIDE	1-09009-154-0	12	1	9101-	●	●
341	WASHER; PL,TAPPET GUIDE BOLT	9-09160-508-0	12	1	9101-	●	●
