Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

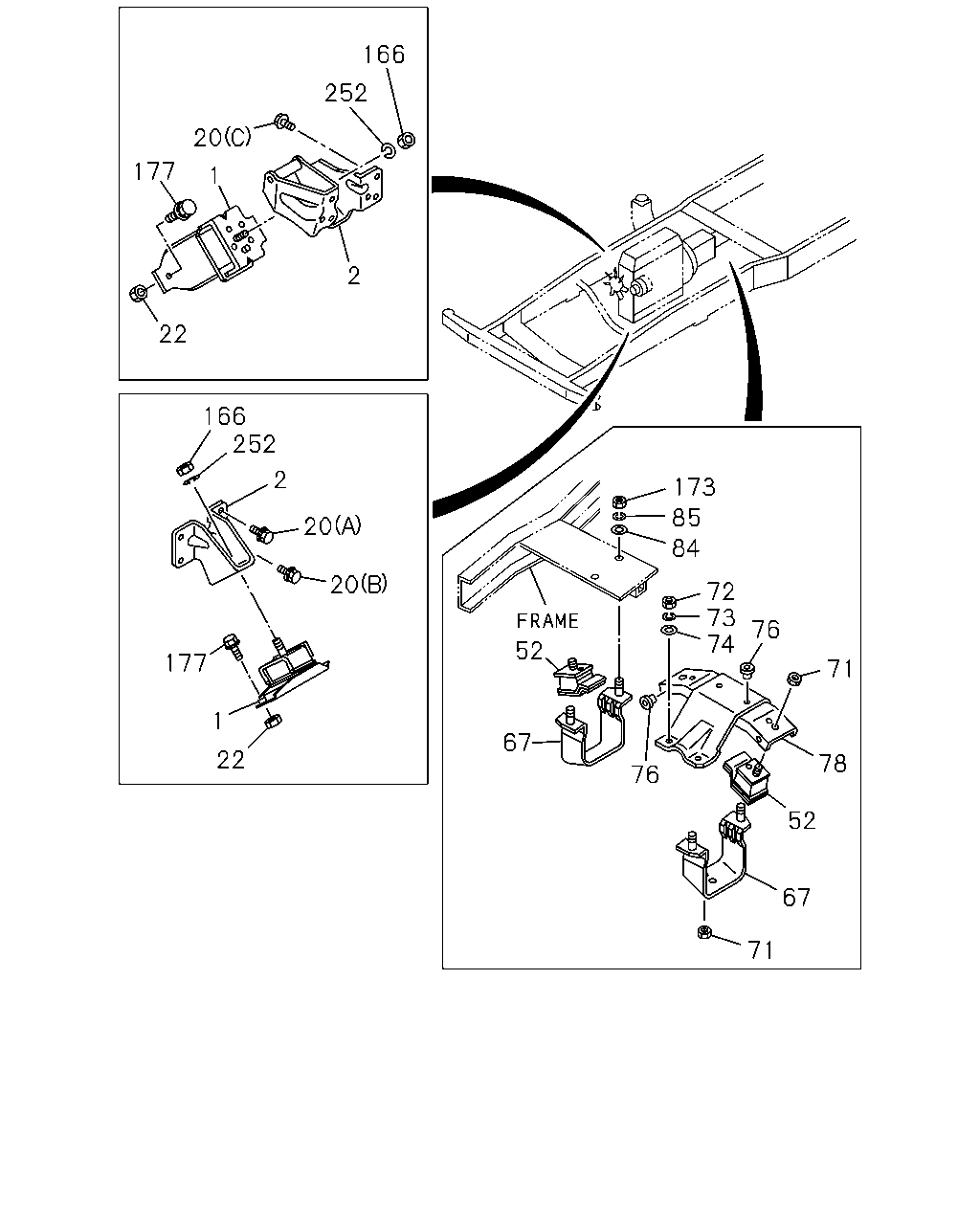

0-22 — ENGINE MOUNTING
(#32398) — 25 parça
166
252
20
177
1
2
22
166
252
2
173
85
20
84
20
72
73
74
76
52
177
71
1
67
22
78
76
52
67
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-97080-621-0
01
1
0609-
1
RUBBER; ENG FOOT,FRT
8-97080-620-0
01
1
0609-
2
FOOT; ENG
8-97300-156-0
01
1
0609-
2
FOOT; ENG
8-97287-639-2
01
1
0609-
20
BOLT; ENG FOOT
(A) M10X22 W/LK WASHER
0-50041-022-0
05
1
0609-0909
20
BOLT; ENG FOOT
(A) M10X22 W/LK WASHER
0-50541-022-0
05
1
0910-
20
BOLT; ENG FOOT
(B) M14X25 W/LK WASHER
0-50541-425-0
01
1
0609-
20
BOLT; ENG FOOT
(C) M10X28
8-94329-952-1
02
1
0609-
22
NUT; CUSHION RUBBER TO BRKT
M10 FLANGE
0-91180-210-0
04
1
0609-
52
RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
0609-
67
BRACKET; SUPPORT,ENG MTG,RR
8-94111-908-2
01
1
0609-
67
BRACKET; SUPPORT,ENG MTG,RR
8-94111-909-2
01
1
0609-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
04
1
0609-
72
NUT; SUPPORT RUBBER TO TRANS
M10
0-91110-510-0
04
1
0609-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2
0-91510-610-0
04
1
0609-
74
WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22
0-91614-610-0
02
1
0609-
76
STOPPER; ENG MTG RUBBER
8-94111-904-0
02
1
0609-
78
BRACKET; ENG MTG,RR
8-94133-393-2
01
1
0609-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0609-
85
WASHER; LK,ENG MTG RR TO FRAME
ID=10.2
0-91510-610-0
04
1
0609-0610
166
NUT; SUPPORT RUBBER
M12
0-91110-512-0
02
1
0609-
173
NUT; ENG MTG RR TO FRAME
M10
0-91110-510-0
04
1
0609-0610
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-110-0
04
1
0611-
177
BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0609-
252
WASHER; LK,SUPPORT RUBBER
ID=12.2
0-91510-612-0
02
1
0609-
