Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶

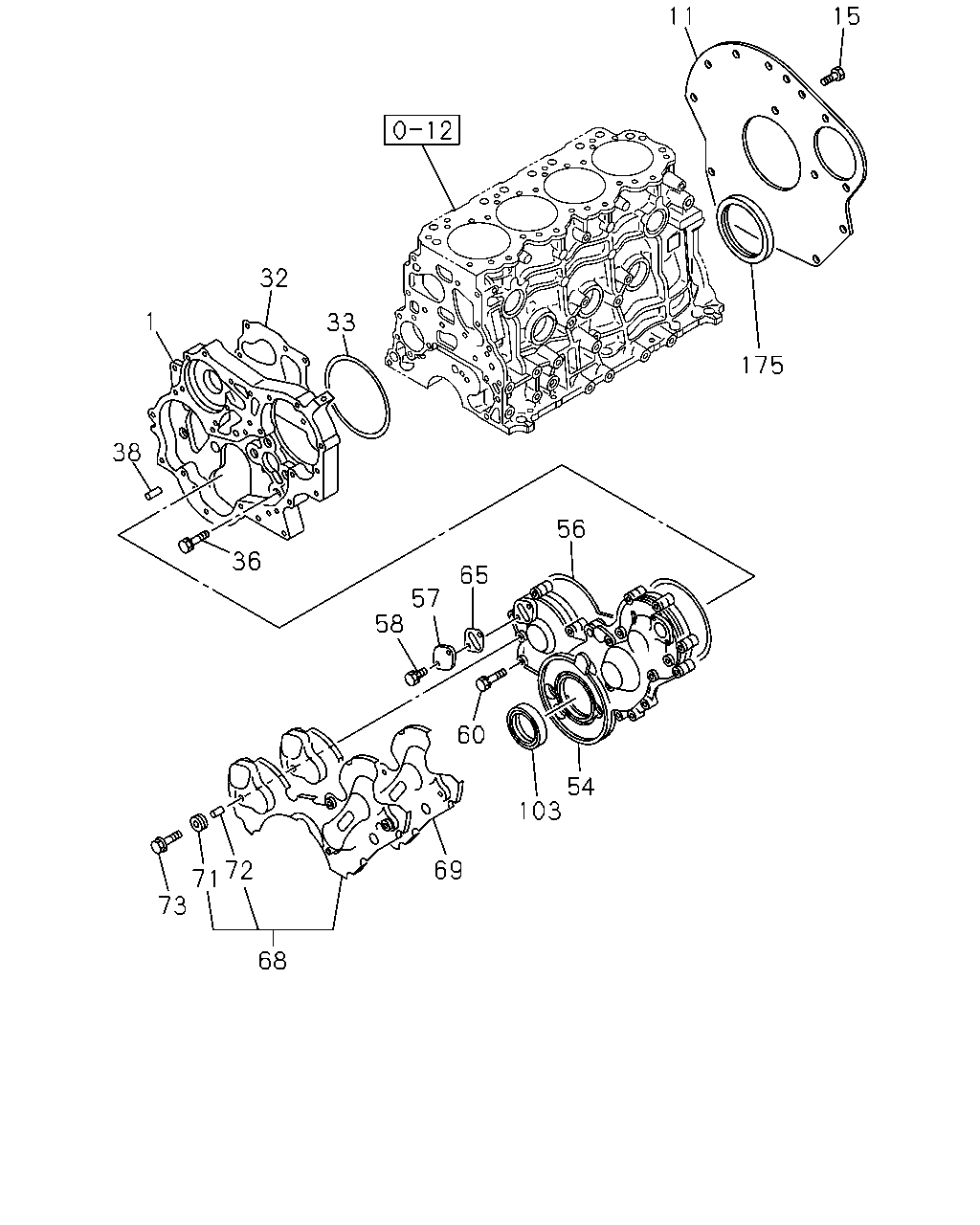

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#32397) — 26 parça
15
11
32
1
33
175
38
56
36
65
57
58
60
54
103
72
71
73
69
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-97219-001-4
01
1
0609-
11
PLATE; RR,C/BL
8-94437-923-2
01
1
0609-
15
BOLT; RR PLATE TO C/BL
M12X25
5-09000-227-0
03
1
0609-
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97129-427-1
01
1
0609-
33
GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94109-707-0
01
1
0609-
36
BOLT; GEAR CASE
M8X20 W/LK WASHER
0-50040-820-0
06
1
0609-0909
36
BOLT; GEAR CASE
M8X20 W/LK WASHER
0-50540-820-0
06
1
0910-
36
BOLT; GEAR CASE
M8X45 W/LK WASHER
0-50040-845-0
02
1
0609-0909
36
BOLT; GEAR CASE
M8X45 W/LK WASHER
0-50540-845-0
02
1
0910-
38
PIN; GEAR CASE COVER
OD=10 L=20
8-97135-423-0
02
1
0609-
54
COVER; GEAR CASE
8-97231-214-1
01
1
0609-
56
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97287-694-0
01
1
0609-
57
COVER; TIMING CHECK HOLE
5-11321-009-0
02
1
0609-
58
BOLT; CHECK HOLE COVER
M6X12 FLANGE
0-28050-612-0
04
1
0609-
60
BOLT; COVER TO CASE
M8X30 FLANGE
0-28050-830-0
08
1
0609-
60
BOLT; COVER TO CASE
M8X70 W/LK WASHER
0-50540-870-0
06
1
0609-
60
BOLT; COVER TO CASE
M12X55 HEX SOCKET
0-58331-255-0
01
1
0609-
60
BOLT; COVER TO CASE
M8X58 FLANGE
8-94130-055-1
01
1
0609-
65
GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97118-698-1
02
1
0609-
68
COVER ASM; GEAR CASE COVER
8-94155-721-1
01
1
0609-
69
SEAL; RUBBER,COVER TO COVER
8-94155-722-3
01
1
0609-
71
RUBBER; MTG,COVER
5-19389-002-0
04
1
0609-
72
BUSHING; SPACER,COVER TO COVER
5-19389-009-0
04
1
0609-
73
BOLT; COVER FIX
M6X16 FLANGE
0-28050-616-0
04
1
0609-
103
SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97351-704-0
01
1
0609-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118
8-97071-561-1
01
1
0609-
