Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

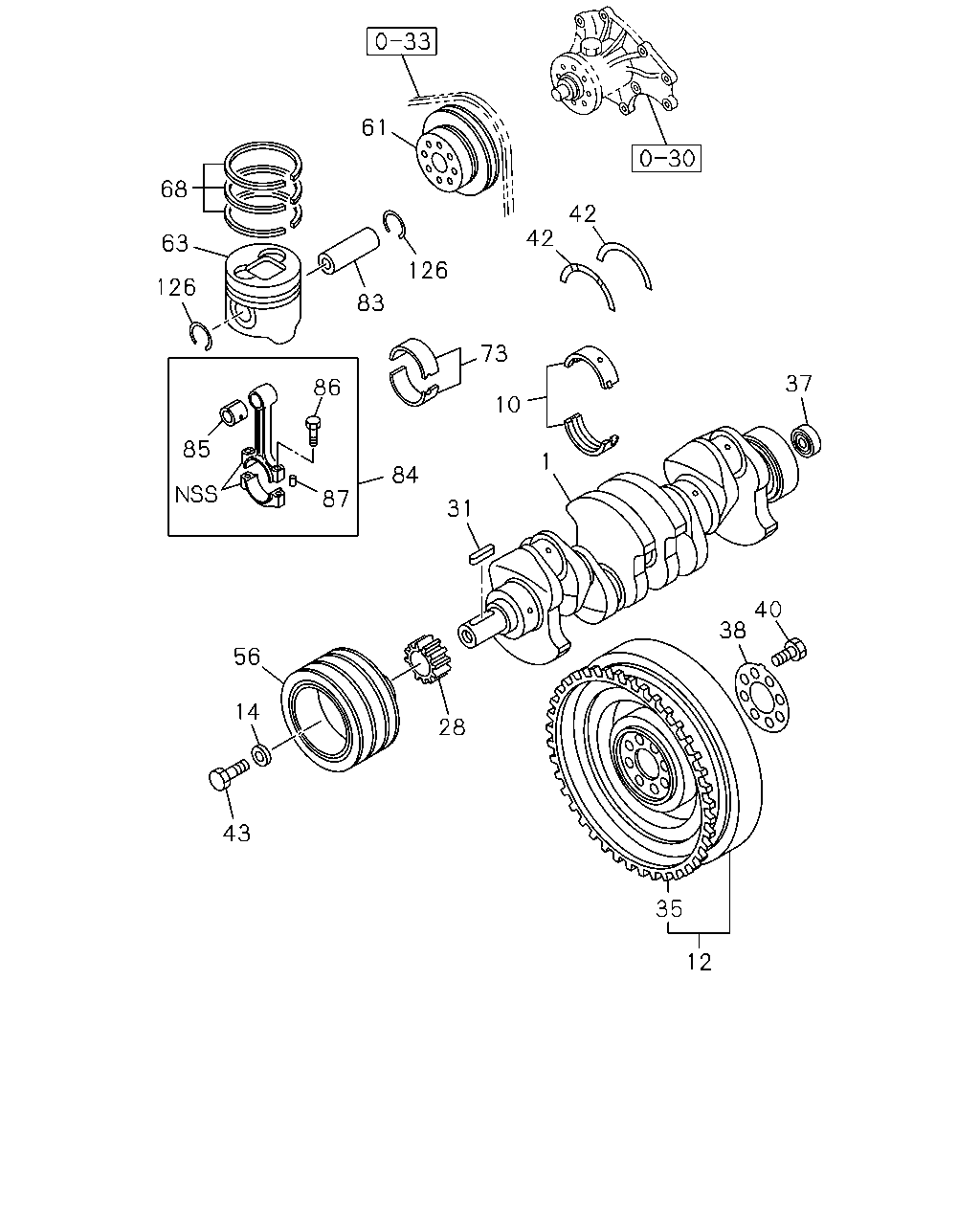

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#32396) — 34 parça
61
68
42
42
63
126
126
83
73
37
86
10
85
1
84
87
31
40
38
56
14
28
43
35
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97331-853-1
01
1
0609-
10
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
8-97387-964-0
05
1
0609-
10
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
8-97387-965-0
05
1
0609-
10
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
8-97387-966-0
05
1
0609-
10
METAL SET; CRANKSHAFT,STANDARD
GRADE 4
8-97387-967-0
05
1
0609-
10
METAL SET; CRANKSHAFT,STANDARD
GRADE 5
8-97387-968-0
05
1
0609-
12
FLYWHEEL
8-97034-430-2
01
1
0609-
14
WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
5-09503-127-1
01
1
0609-
28
GEAR; CR/SHF
Z=21
8-97229-593-1
01
1
0609-
31
KEY; FEATHER,CR/SHF
8-94201-641-0
01
1
0609-
35
GEAR; RING
Z=108
8-94419-602-1
01
1
0609-
37
BEARING; PILOT,TOP GEAR SHAFT
NSK
9-00090-679-0
01
1
0609-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
5-87610-165-0
01
1
0609-
38
WASHER; FLYWHEEL
8-94133-970-1
01
1
0609-1005
38
WASHER; FLYWHEEL
8-98171-700-0
01
1
1006-
40
BOLT; FLYWHEEL
M13X36
8-97065-984-1
08
1
0609-
42
WASHER; THRUST,CR/SHF
8-97383-740-0
02
1
0609-1108
42
WASHER; THRUST,CR/SHF
8-98040-704-0
02
1
1109-
43
BOLT; CR/SHF PULLEY
M16X43
5-09000-273-2
01
1
0609-
56
PULLEY; CR/SHF DAMPER
4-GROOVE
8-97204-204-0
01
1
0609-
61
PULLEY; FAN DRIVE
1-GROOVE OD=120
8-94459-815-4
01
1
0609-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
8-97176-610-0
04
1
0609-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
8-97176-611-0
04
1
0609-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-94247-867-2
04
1
0609-
73
METAL SET; CONN ROD,STANDARD
8-97358-234-0
04
1
0609-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94457-008-1
04
1
0609-
84
ROD ASM; CONN
8-98013-290-2
04
1
0609-0705
84
ROD ASM; CONN
8-98013-962-4
04
1
0706-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94457-158-0
04
1
0609-0705
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-97289-264-1
04
1
0706-
86
BOLT; CONNROD
M11X44.5
8-97062-086-0
08
1
0609-0701
86
BOLT; CONNROD
M11X44.5
8-98048-538-0
08
1
0702-
87
PIN; CONNROD BIG END
OD=5 L=8
9-08160-508-0
08
1
0609-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=37.5
8-94460-687-0
08
1
0609-
