Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

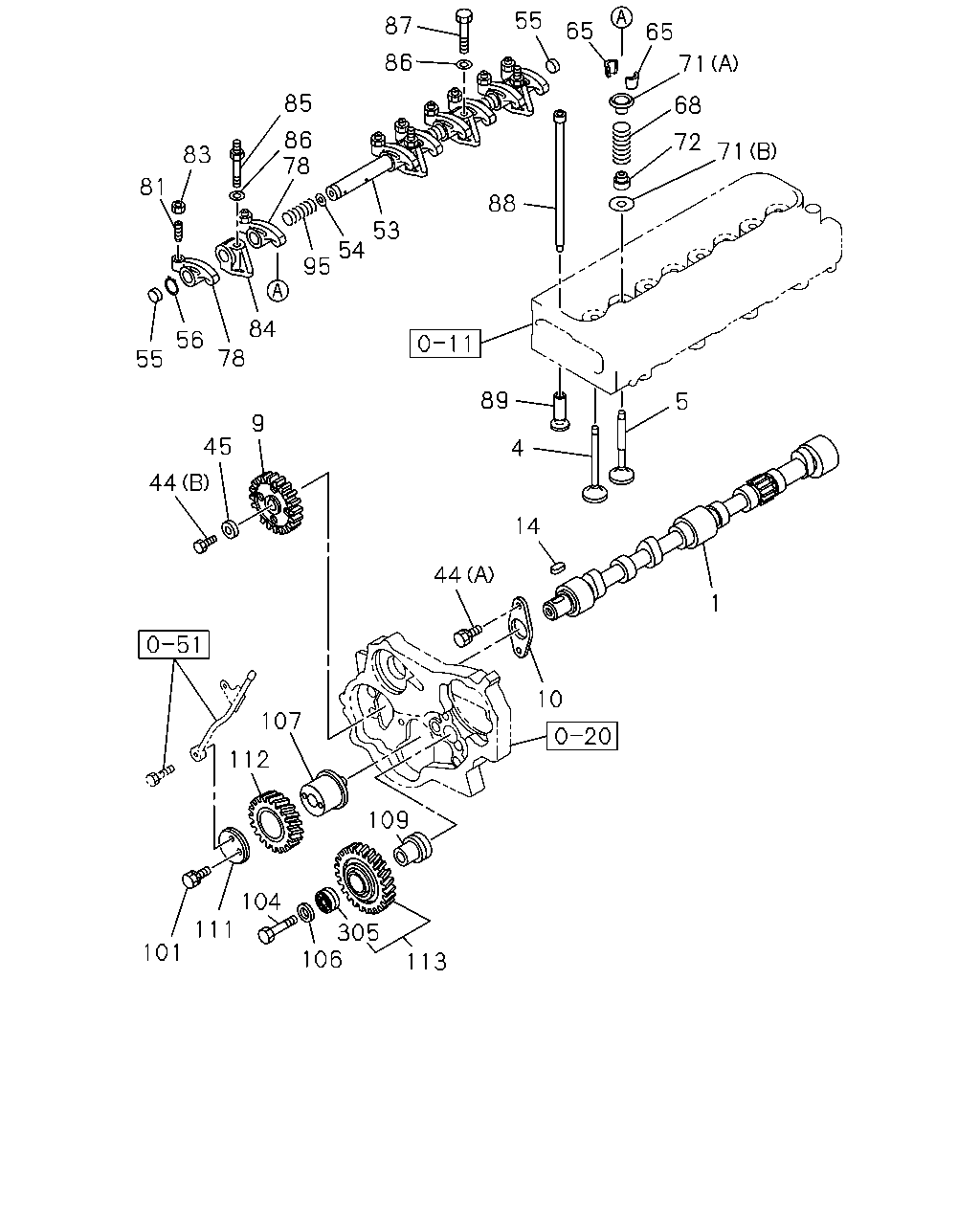

0-14 — CAMSHAFT AND VALVE
(#32395) — 41 parça
55
87
65
65
86
71
85
68
86
78
72
71
83
81
88
53
54
95
84
56
78
55
89
5
9
45
4
44
14
44
1
10
107
112
109
104
111
305
106
101
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97287-657-1
01
1
0609-
4
VALVE; INL
8-94464-921-2
04
1
0609-
5
VALVE; EXH
8-94433-245-1
04
1
0609-1405
5
VALVE; EXH
8-98277-383-0
04
1
1406-
9
GEAR; CM/SHF
Z=42
8-97079-212-1
01
1
0609-0911
9
GEAR; CM/SHF
Z=42
8-97229-594-2
01
1
0912-
10
PLATE; THRUST
8-94110-480-1
01
1
0609-
14
KEY; CM/SHF
9-08000-718-0
01
1
0609-
44
BOLT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0609-
44
BOLT
(B) M12X47
8-94433-407-0
01
1
0609-
45
WASHER; GEAR CAM
ID=13 OD=36
5-12519-002-1
01
1
0609-
53
SHAFT; ROCKER ARM
8-97036-197-0
01
1
0609-
54
WASHER; ROCKER SPR
ID=19.1 OD=23
8-94341-906-0
06
1
0609-
55
PLUG; ROCKER SHAFT END
9-12626-005-0
02
1
0609-
56
RING; SNAP,ROCKER ARM
ID=17.5
9-09180-019-0
02
1
0609-
65
COLLAR; SPLIT
5-12565-004-0
16
1
0609-
68
SPRING; VLV
ID=26.25
8-94433-247-0
08
1
0609-
71
SEAT; SPR
(B) OD=34
5-12563-001-0
08
1
0609-
71
SEAT; SPR
(A) OD=32.8
8-94133-731-2
08
1
0609-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97120-307-0
08
1
0609-
78
ARM; ROCKER
8-94152-344-0
08
1
0609-
81
SCREW; ADJ,ROCKER ARM
M8 L=30
8-94152-283-1
08
1
0609-
83
NUT; ADJ SCREW,LK
M8
0-91111-508-0
08
1
0609-
84
BRACKET; ROCKER SHAFT,INTER
8-94152-345-1
04
1
0609-
85
BOLT; BRKT
M8X15,M10X60 L=82
8-94433-304-0
03
1
0609-
86
WASHER; ROCKER ARM FIX
ID=10.5
9-09164-010-0
04
1
0609-
87
BOLT; ROCKER SHAFT
M10X60
8-94433-302-0
01
1
0609-
88
ROD; PUSH
8-97071-673-0
08
1
0609-
89
TAPPET; VLV
8-94438-305-1
08
1
0609-
95
SPRING; ROCKER SHAFT
8-94341-905-0
03
1
0609-
101
BOLT; THRUST COLLAR
M8X53 FLANGE
8-97223-999-0
02
1
0609-
104
BOLT; SHAFT IDLE
8-94109-706-1
01
1
0609-
106
WASHER; IDLE GEAR SHAFT
ID=13 OD=36
5-12519-002-1
01
1
0609-
107
SHAFT; IDLE GEAR
8-97920-007-0
01
1
0609-
109
SHAFT; IDLE GEAR
8-97218-780-0
01
1
0609-
111
COLLAR; THRUST,IDLE GEAR
8-94141-937-1
01
1
0609-
112
GEAR; IDLE
Z=31
8-97229-601-0
01
1
0609-
113
GEAR; IDLE
Z=37
8-97229-602-0
01
1
0609-0908
113
GEAR; IDLE
Z=37
8-98140-217-0
01
1
0909-
305
BEARING; IDLE GEAR
8-97218-947-1
01
1
0609-0908
305
BEARING; IDLE GEAR
8-98140-110-0
01
1
0909-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
