Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

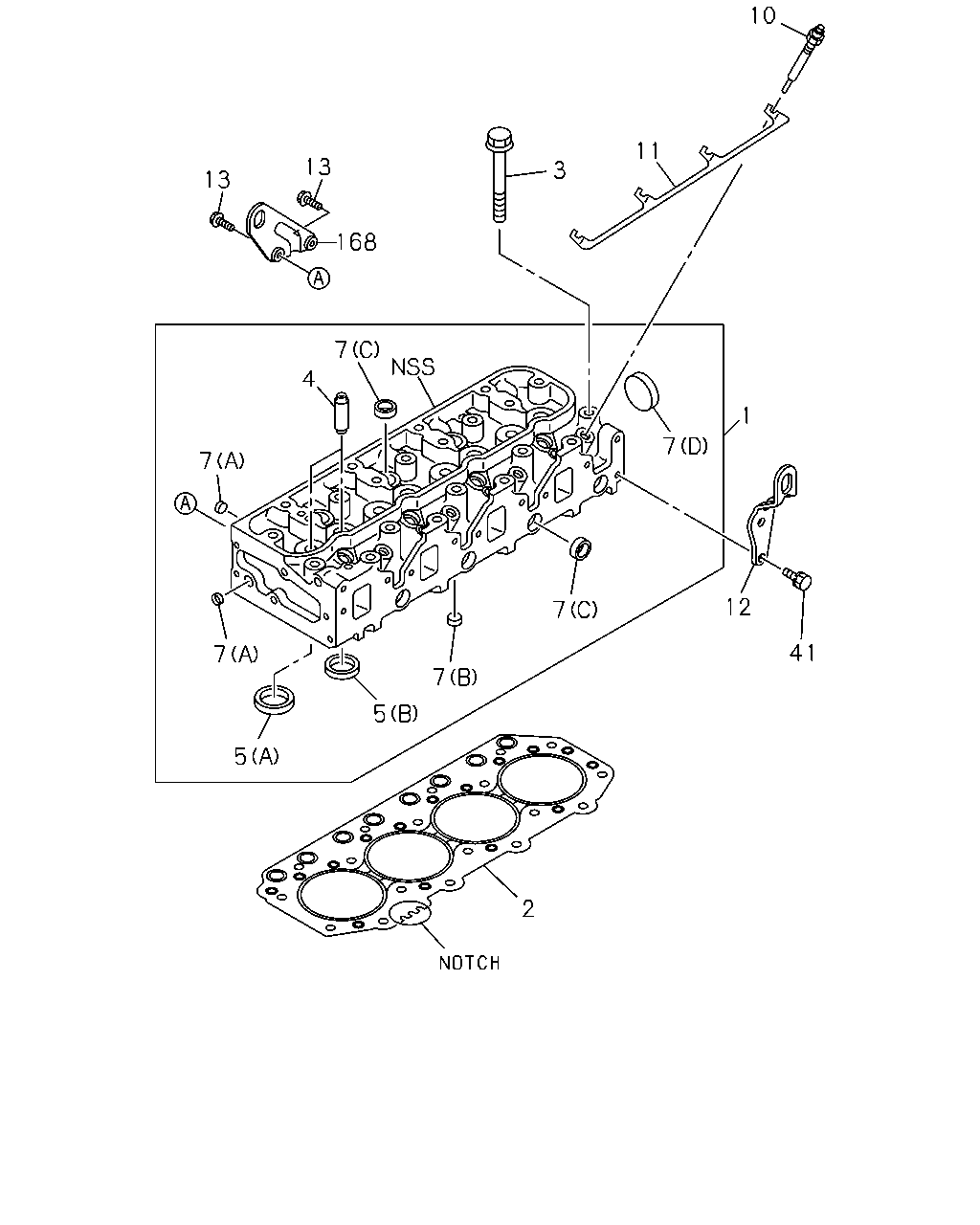

0-11 — CYLINDER HEAD
(#32392) — 20 parça
10
11
13
3
13
168
7
4
1
7
7
12
7
41
7
7
5
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97204-376-6
01
1
0609-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH
8-97350-318-0
01
1
0609-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH
8-97350-319-0
01
1
0609-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH
8-97350-320-0
01
1
0609-
3
BOLT; CYL HD TO BLOCK
M11X122
8-97133-416-1
18
1
0609-
4
GUIDE; VLV
L=50
5-11721-016-0
08
1
0609-
5
SEAT; VLV INSERT
(A) INLET
8-97231-228-0
04
1
0609-
5
SEAT; VLV INSERT
(B) EXHAUST OD=36.7
8-97231-229-0
04
1
0609-
7
CUP; SEALING,CYL HEAD
(D) OD=45
1-09600-005-2
01
1
0609-
7
CUP; SEALING,CYL HEAD
(A) OD=12.3
5-09600-013-0
05
1
0609-
7
CUP; SEALING,CYL HEAD
(B) OD=16
5-11129-006-0
03
1
0609-
7
CUP; SEALING,CYL HEAD
(C) OD=22
8-97209-609-0
06
1
0609-
10
PLUG; GLOW
BOSCH
8-94133-759-9
04
1
0609-
10
PLUG; GLOW
NGK
8-94175-158-2
04
1
0609-
11
CONNECTOR; GLOW PLUG
8-97146-517-0
01
1
0609-
12
HANGER; ENG,RR
8-97107-739-0
01
1
0609-
13
BOLT; HANGER
M10X25 FLANGE
0-28051-025-0
01
1
0609-
13
BOLT; HANGER
M8X25 W/LK WASHER
0-50540-825-0
01
1
0609-
41
BOLT; ENG HANGER
M8X16 FLANGE
0-28050-816-0
02
1
0609-
168
HANGER; ENG,FRT
8-94379-714-1
01
1
0609-
