0-11 — CYLINDER HEAD (#3239) — 45 parça

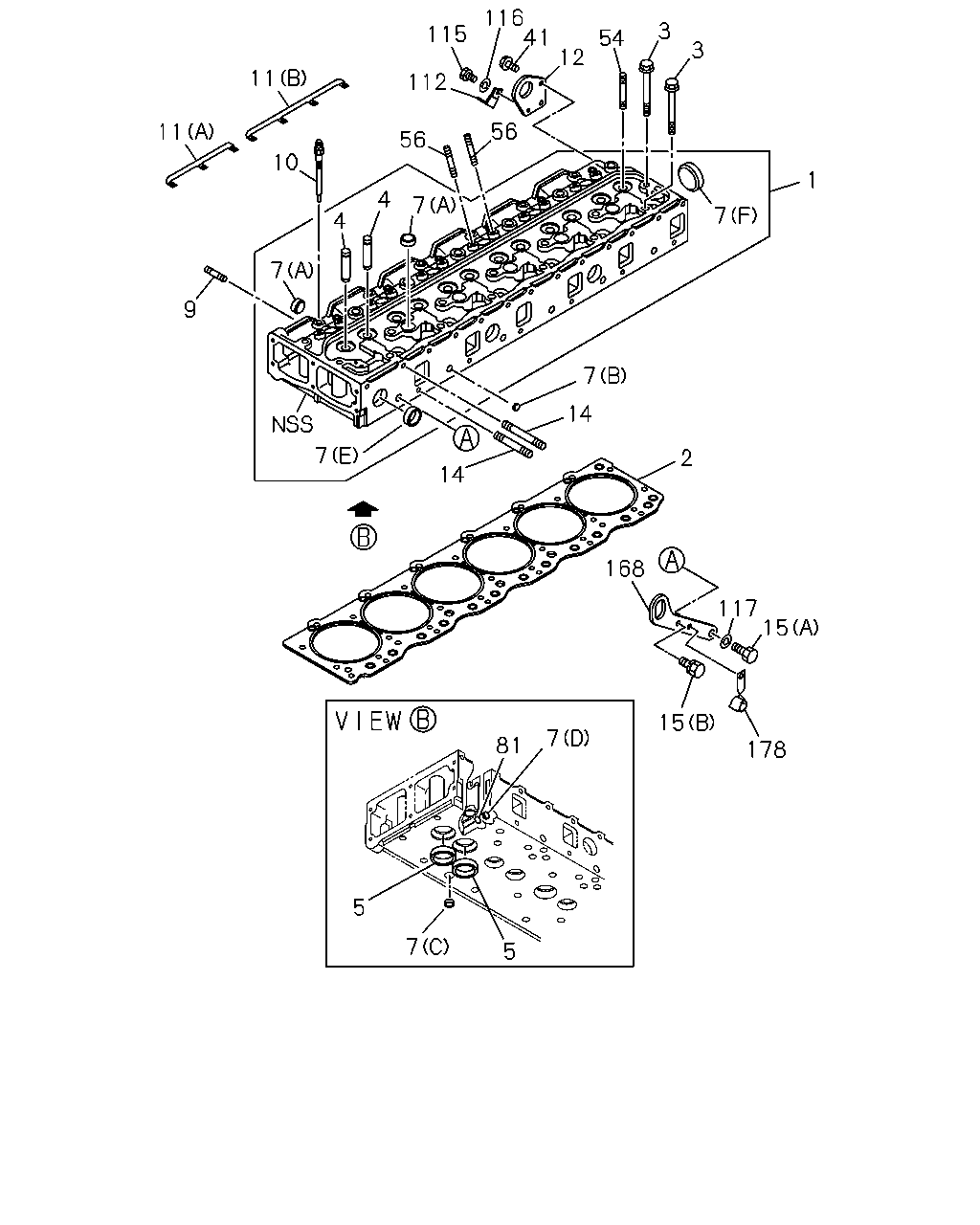

çizim 4718
116 41 3 115 54 3 12 11 112 56 11 56 10 1 4 7 7 4 7 9 7 14 7 2 14 168 117 15 15 7 81 178 5 7 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-600-2 01 1 9101- ●
1 HEAD ASM; CYL 1-11110-614-2 01 1 9101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-196-0 01 1 9101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-195-0 01 1 9101- ●
3 BOLT; CYL HD TO BLOCK 1-09070-100-0 06 1 9101- ● ●
3 BOLT; CYL HD TO BLOCK 1-09070-101-0 20 1 9101- ● ●
4 GUIDE; VLV 5-11721-001-0 12 1 9101- ● ●
5 SEAT; VLV INSERT
EXHAUST 		1-11711-043-0 06 1 9101- ● ●
5 SEAT; VLV INSERT
INLET 		1-11715-054-0 06 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(F) 		1-09600-005-1 01 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(A) 		1-09600-016-0 11 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(D) 		5-09600-013-0 06 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(E) 		5-11219-015-0 03 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(C) 		9-11129-128-0 03 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(B) 		9-11129-601-0 05 1 9101- ● ●
9 STUD; INL MANIF 9-04110-825-0 03 1 9101- ● ●
10 PLUG; GLOW
RIGHT HAND DRIVE(MRR5FB) 		9-82513-928-9 06 1 9101-9809 ● ●
10 PLUG; GLOW
LEFT HAND DRIVE(MRR6FB) EXC. GENERATOR DENSO 12V-65A 800W(K91) 		9-82513-928-9 06 1 9101-9809 ● ●
10 PLUG; GLOW
RIGHT HAND DRIVE(MRR5FB) 		1-82513-043-0 06 1 9810- ● ●
10 PLUG; GLOW
LEFT HAND DRIVE(MRR6FB) EXC. GENERATOR DENSO 12V-65A 800W(K91) 		1-82513-043-0 06 1 9810- ● ●
10 PLUG; GLOW
LEFT HAND DRIVE(MRR6FB) GENERATOR DENSO 12V-65A 800W(K91) 		5-81410-023-5 06 1 9101- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		5-19732-001-1 01 1 9101- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		5-19732-002-1 01 1 9101- ● ●
12 HANGER; ENG,RR 1-11777-084-0 01 1 9101- ● ●
14 STUD; EXH MANIF
M8X50 L=61 		8-94109-890-0 11 1 9101- ● ●
14 STUD; EXH MANIF
M8X60 L=72 		8-94156-940-0 01 1 9101- ● ●
15 BOLT; HANGER,FRT
(A) 		0-20801-425-0 01 1 9101-9111 ● ●
15 BOLT; HANGER,FRT
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		0-20801-425-0 01 1 9112- ● ●
15 BOLT; HANGER,FRT
(B) 		0-50041-022-0 01 1 9101-9111 ● ●
15 BOLT; HANGER,FRT
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 		0-50041-022-0 01 1 9112- ● ●
15 BOLT; HANGER,FRT
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		0-20801-440-0 01 1 9112- ● ●
15 BOLT; HANGER,FRT
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 		0-50041-040-0 01 1 9112- ● ●
41 BOLT; ENG HANGER 0-50041-022-0 01 1 9101-9701 ● ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28681-020-0 01 1 9702- ● ●
54 STUD; ROCKER ARM 9-09830-163-0 04 1 9101- ● ●
56 STUD; NOZZLE HOLDER 1-09300-018-0 12 1 9101- ● ●
81 PLUG; PLATE,DRILLED PASSAGE 9-09660-034-0 06 1 9101- ● ●
112 CLIP; HANGER,GLOW HARNESS 9-09916-755-0 01 1 9101- ● ●
115 BOLT; BRKT,ENG CONT 9-02040-610-0 01 1 9101-9204 ● ●
115 BOLT; BRKT,ENG CONT 0-20800-610-0 01 1 9205- ● ●
116 WASHER; LK,BRKT,ENG CONT 9-09150-506-0 01 1 9101-9703 ● ●
117 WASHER; LK,HANGER 9-09150-514-0 01 1 9101-9606 ● ●
117 WASHER; LK,HANGER
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) ID=14.2 		9-09150-514-0 01 1 9607- ● ●
168 HANGER; ENG,FRT 5-11777-055-1 01 1 9101- ● ●
178 CLIP; ENG HARNESS 1-09700-522-0 01 1 9101- ● ●
