◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#32388) — 34 parça

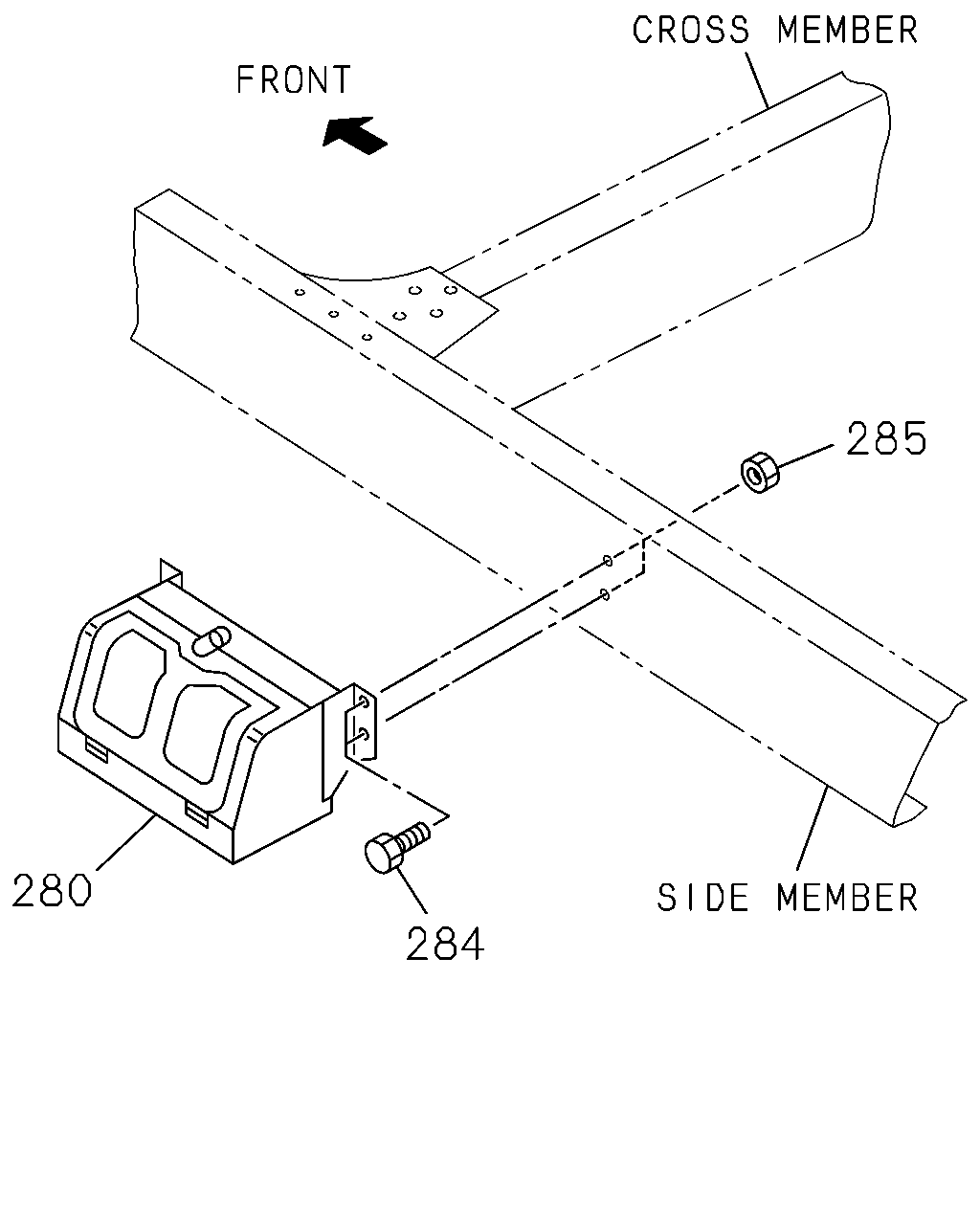

çizim 13655
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0608- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0608- ● ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0608- ●
285 08.821 NUT; TOOL BOX
01.062 M8 FLANGE 		0-91180-108-0 04 1 0608- ●

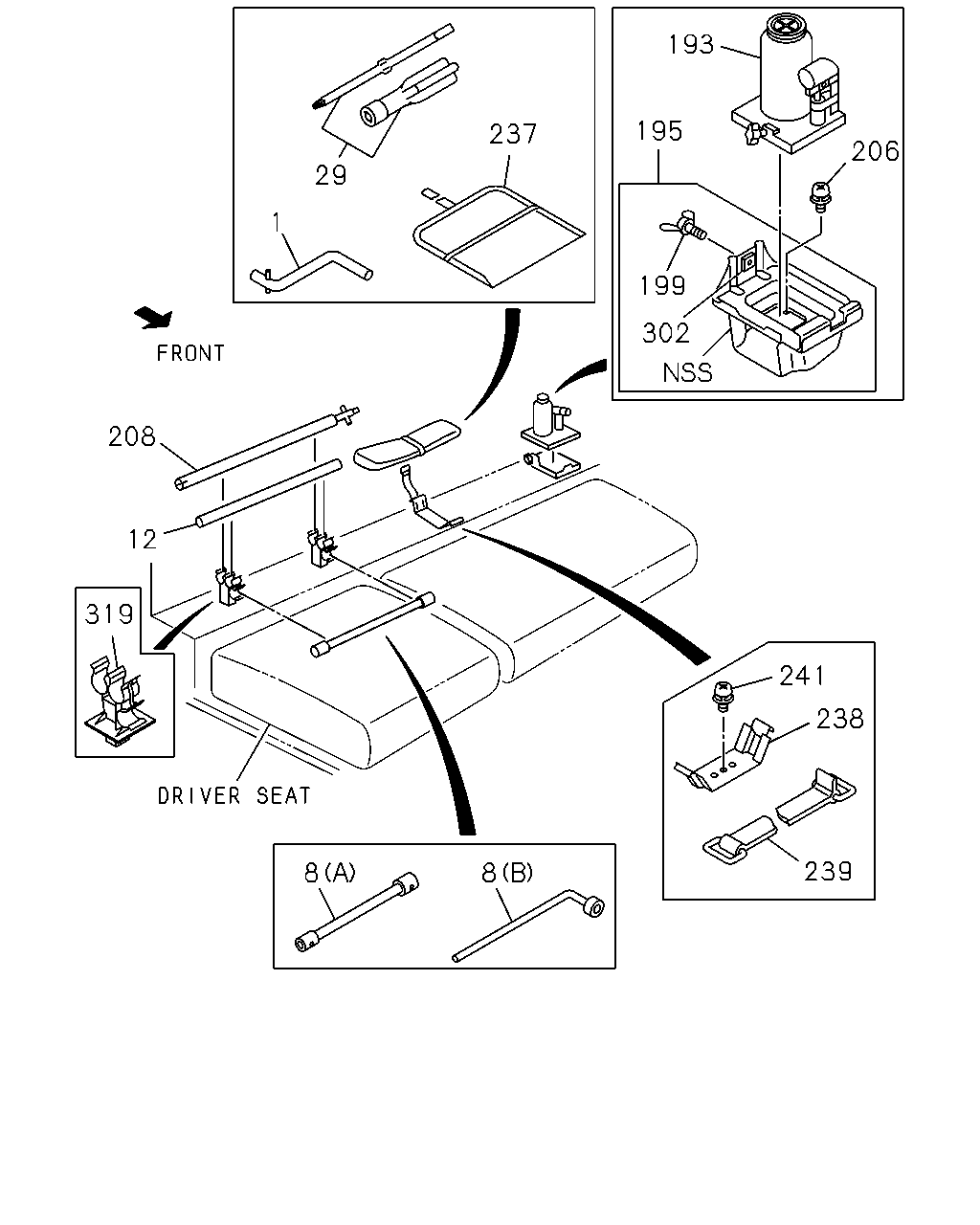

çizim 57273
193 195 237 206 29 1 199 302 208 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0608- ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 0608- ● ●
8 08.821 WRENCH; WHEEL
(B) B=35X17 L=300 		8-94341-283-1 01 1 0608- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0608-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0608- ● ●
193 08.820 JACK ASM
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 5TON 		8-97371-124-0 01 1 0608-0805 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 5TON 		8-98114-047-0 01 1 0806- ●
193 08.820 JACK ASM
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) 4TON 		8-98012-285-0 01 1 0608- ●
193 08.820 JACK ASM
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) 4TON 		8-98012-285-0 01 1 0608- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 		8-94273-287-7 01 1 0806- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0608-0805 ● ●
195 08.820 BRACKET; JACK
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) 		8-94262-068-3 01 1 0806- ●
195 08.820 BRACKET; JACK
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) 		8-94262-068-3 01 1 0806- ●
199 08.820 BOLT; JACK
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M8X30 WING 		8-94279-018-1 01 1 0806- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0608-0805 ● ●
199 08.820 BOLT; JACK
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) M8X50 WING 		8-94279-136-0 01 1 0806- ●
199 08.820 BOLT; JACK
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) M8X50 WING 		8-94279-136-0 01 1 0806- ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0608-0612 ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0608-1108 ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0608- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0608- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0608- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0608-0612 ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0608-0805 ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0806- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0608- ● ●
