Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

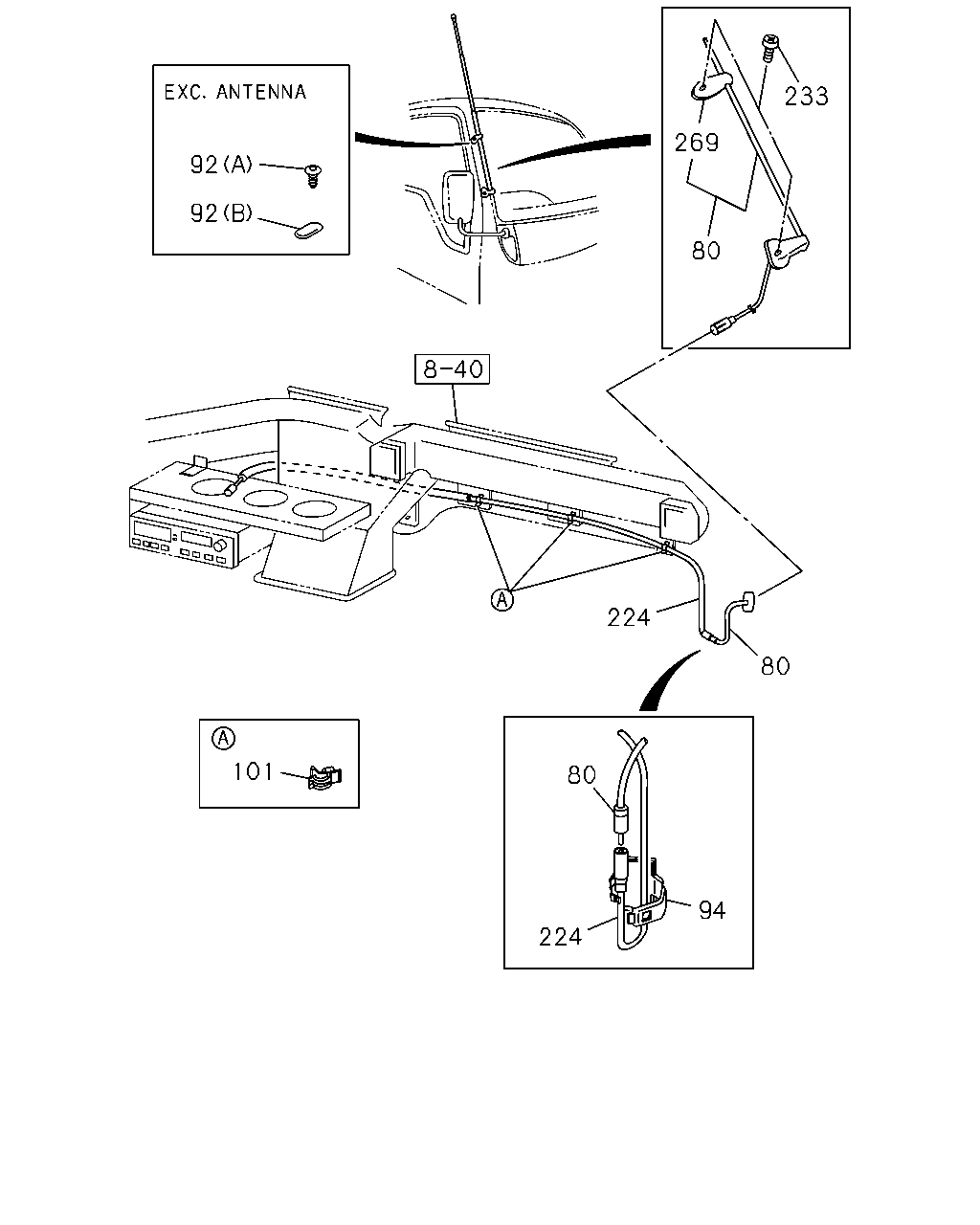

8-90 — RADIO AND TV
(#32387) — 38 parça
Tümü
A - NPC5SF
B - NPN5SF
◀
[890A] (NO.3) (16 parça)
[890A] (NO.2) (13 parça)
[890A] (NO.1) (9 parça)
▶
7
226
6
7
268
1
6
226
7
226
6
7
268
2
6
226
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM
8-97376-745-0
01
1
0608-
●
●
2
09.645 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION
1-84122-032-3
01
1
0608-
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-97853-615-2
01
1
0608-
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ)
8-97853-615-2
01
1
0608-
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-97853-614-2
01
1
0608-
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ)
8-97853-614-2
01
1
0608-
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 03.680 M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0608-0612
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 03.680 M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0608-0612
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X7 W/PL WASHER&TORQUES
8-98063-767-0
04
1
0701-
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X7 W/PL WASHER&TORQUES
8-98063-767-0
04
1
0701-
●
34
09.650 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-97856-203-3
01
1
0608-
●
34
09.650 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ)
8-97856-203-3
01
1
0608-
●
226
09.647 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0608-
●
226
09.647 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0608-
●
268
09.649 KNOB; VOL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-97386-201-0
01
1
0608-
●
268
09.649 KNOB; VOL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION
8-97375-820-0
01
1
0608-
●
●
222
116
222
171
222
5
48
117
221
221
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
09.647 HARNESS; EXT
ANTENNA<U73>
8-97131-327-0
02
1
0608-
●
●
48
09.650 SPEAKER; AUDIO
ANTENNA<U73>
8-97317-001-1
02
1
0608-
●
●
49
09.655 SCREW; SPEAKER
ANTENNA<U73> 16.067 M5X14
8-94279-325-0
06
1
0608-0612
●
●
49
09.655 SCREW; SPEAKER
ANTENNA<U73> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0701-
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73>
8-97852-325-3
01
1
0608-
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73>
8-97852-324-3
01
1
0608-
●
●
117
16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> 16.067 M5X14
8-94279-325-0
06
1
0608-0612
●
●
117
16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> 16.570 M5X16 HEX SOCKET
0-72380-516-0
06
1
0701-
●
●
171
09.650 COVER; SPEAKER
ANTENNA<U73>
8-97852-331-4
02
1
0608-
●
●
221
16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> (A)
8-97852-327-5
02
1
0608-
●
●
221
16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> (B)
8-97852-601-2
02
1
0608-
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> 09.264 (A)
1-09987-144-0
02
1
0608-
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> 01.269 (B) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0608-
●
●
233
269
92
92
80
224
80
101
80
94
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
80
09.645 ANTENNA
ANTENNA<U73>
8-97211-564-0
01
1
0608-
●
●
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8
8-94279-921-0
01
1
0608-
●
●
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B)
8-97088-275-3
01
1
0608-
●
●
94
09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73>
1-09987-155-3
01
1
0608-
●
●
101
09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7
5-09707-053-0
03
1
0608-
●
●
224
09.647 CABLE; EXT,FEEDER
ANTENNA<U73>
8-97213-766-0
01
1
0608-
●
●
233
09.647 SCREW
ANTENNA<U73> LOWER M6X20
8-97120-686-0
01
1
0608-
●
●
233
09.647 SCREW
ANTENNA<U73> UPPER M6X16
8-97123-696-0
01
1
0608-
●
●
269
09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73>
8-97219-079-0
01
1
0608-
●
●
