1-11 — RADIATOR HOSE AND SUB TANK (#32377) — 18 parça

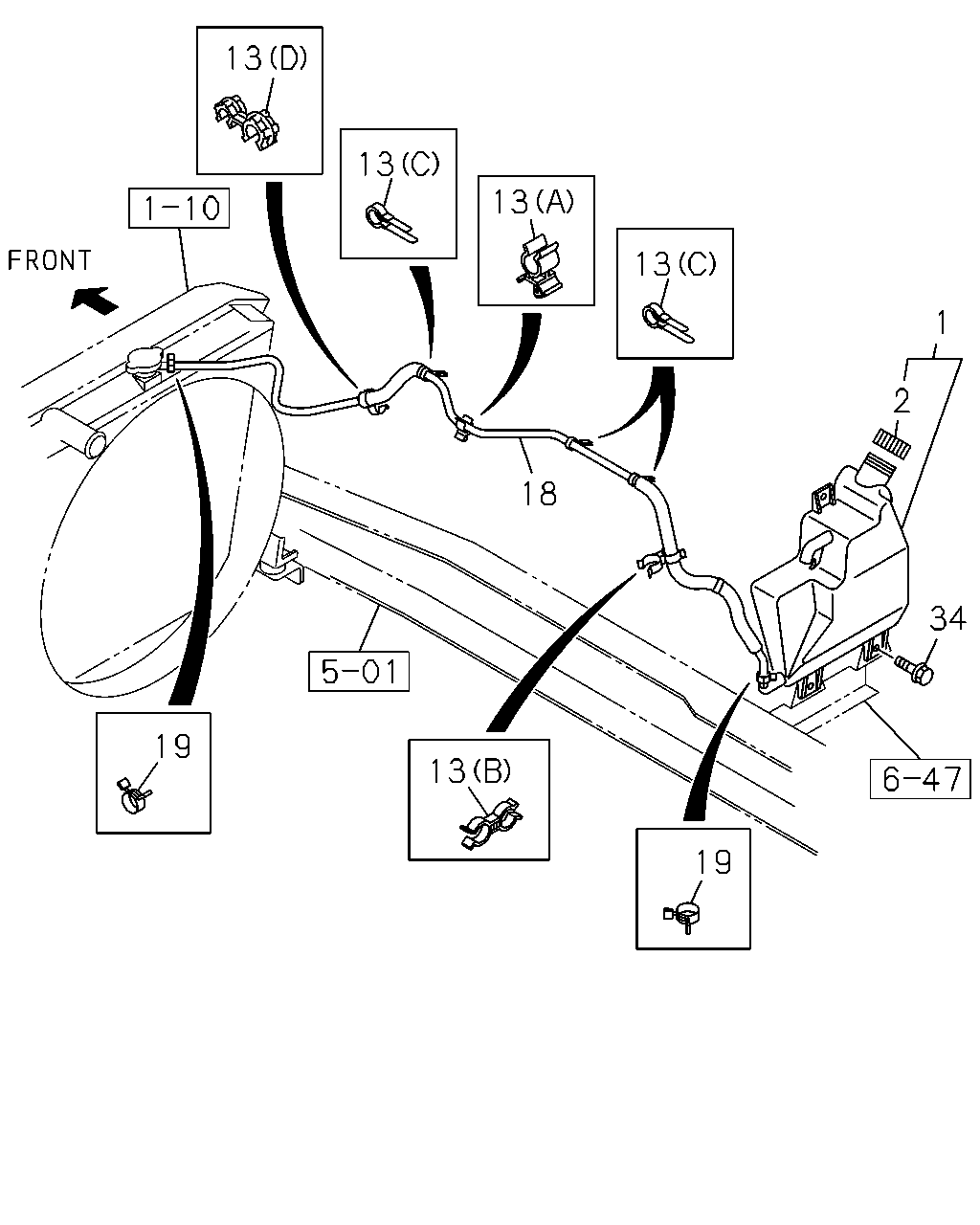

çizim 124573
13 13 13 13 1 2 18 34 19 13 19
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-97387-632-1 01 1 0909-1010
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1011-
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0909-1010
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011-
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 0909-
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=10 & 12 		8-94416-613-0 01 1 0909-
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (B) ID=13.2 & 11.5 		8-97230-081-0 01 1 0909-
13 01.240 CLIP; HOSE,SURGE TANK
(A) ID=12 		8-98029-256-0 02 1 0909-
18 01.240 HOSE; RAD TO SURGE TANK 8-98059-268-0 01 1 0909-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0909-0911
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912-
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0909-

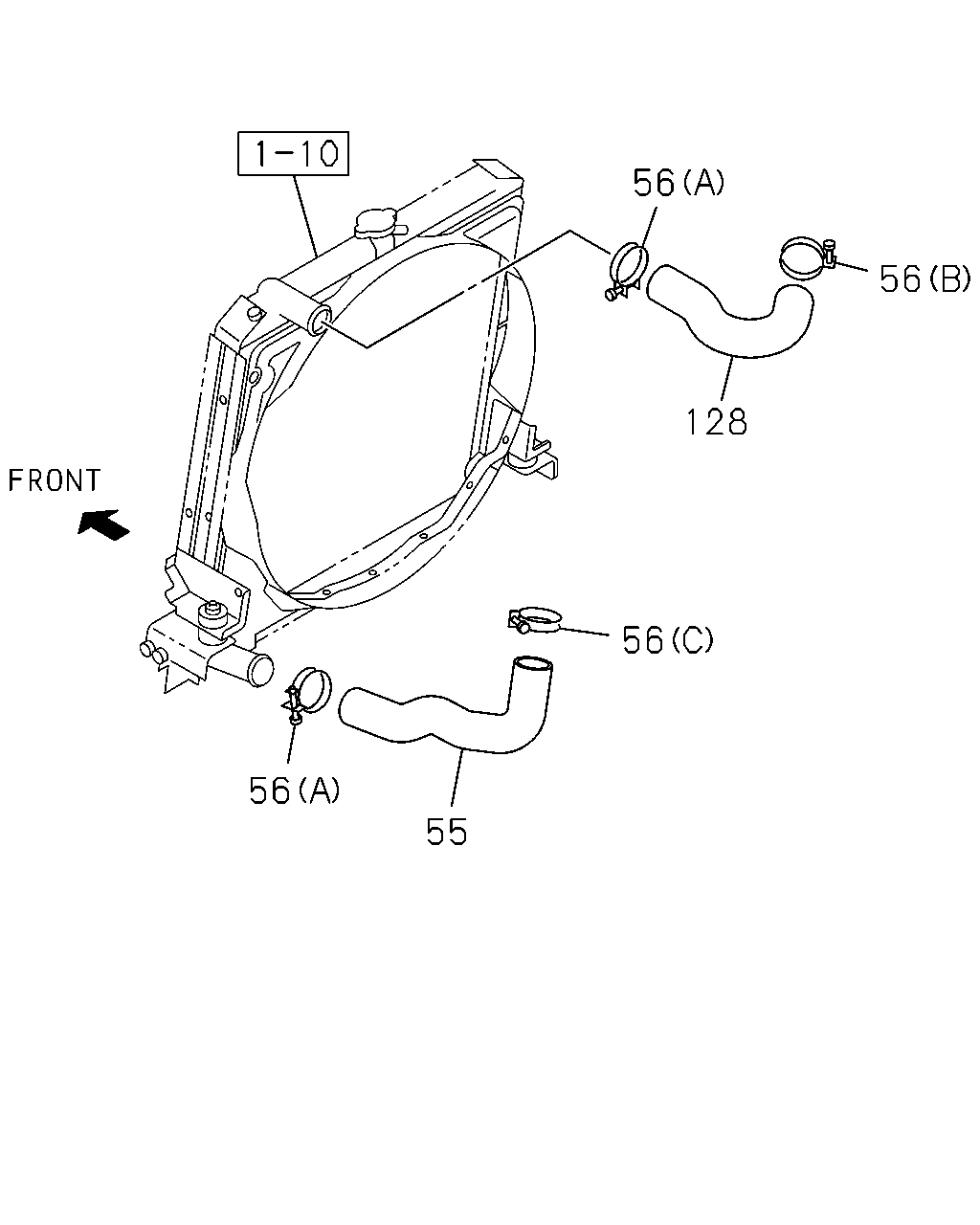

çizim 124587
56 56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-98086-989-0 01 1 0909-1406
55 01.173 HOSE; WATER,RAD OUTLET 8-98277-851-0 01 1 1407-
56 01.166 CLIP; WATER HOSE,RAD
00.413 (B) ID=52 		1-09704-057-0 01 1 0909-
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 0909-
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 0909-
128 01.159 HOSE; WATER,RAD INL 8-98111-764-0 01 1 0909-
