0-33 — FAN AND FAN BELT (#32361) — 27 parça

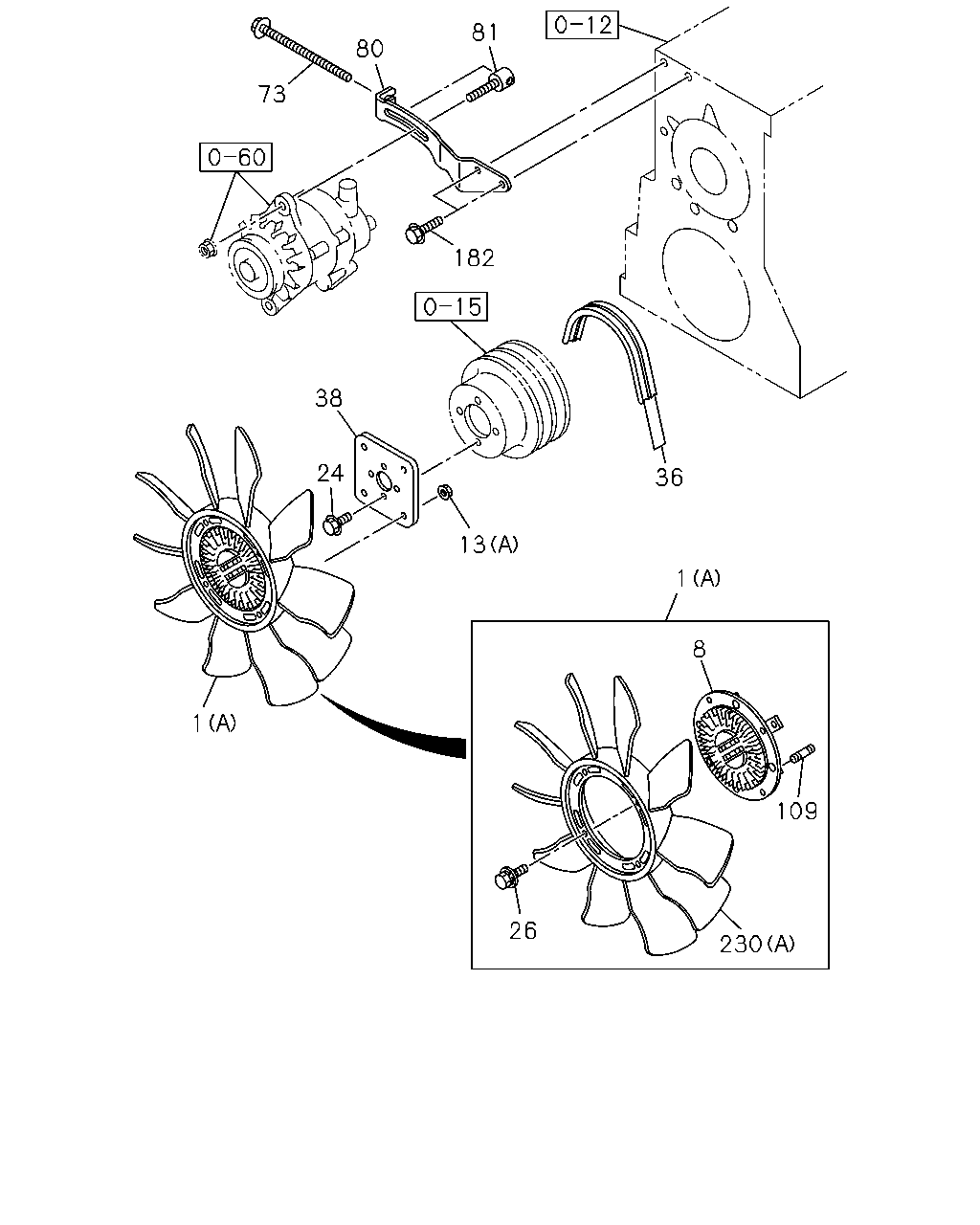

çizim 124621
81 80 73 182 38 24 36 13 1 8 1 109 26 230
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
(B) 		8-98058-494-4 01 1 0909-
1 01.064 FAN; COOLING
(A) 		8-97374-346-0 01 1 0909-
8 01.064 CLUTCH; COOLING FAN 8-97374-861-0 01 1 0909-
13 01.062 NUT; COOLING FAN
(B) 		8-98080-975-0 01 1 0909-
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0909-
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0909-
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0909-
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0909-
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0909-
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0909-
73 02.277 BOLT; GEN TO ADJ PLATE
02.317 M8X130 FLANGE 		8-97172-720-1 01 1 0909-
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0909-
81 02.317 PIECE; SLIDING 8-97257-223-0 01 1 0909-
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0909-
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0909-
230 01.055 FAN; COOLING
(B) 		8-98080-658-1 01 1 0909-
230 01.055 FAN; COOLING
(A) 		8-97330-207-0 01 1 0909-

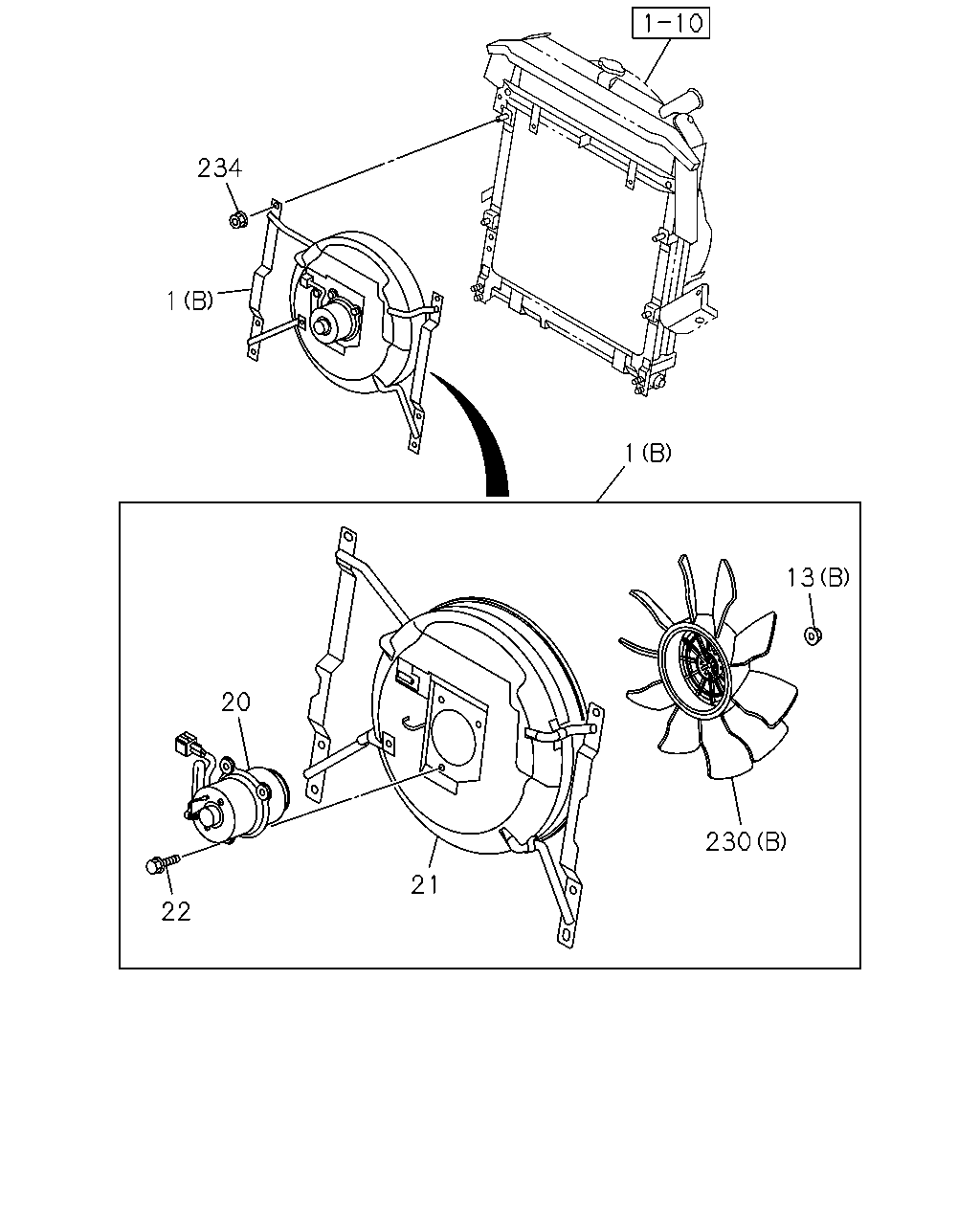

çizim 124622
234 1 1 13 20 230 21 22
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
(B) 		8-98058-494-4 01 1 0909-
1 01.064 FAN; COOLING
(A) 		8-97374-346-0 01 1 0909-
13 01.062 NUT; COOLING FAN
(B) 		8-98080-975-0 01 1 0909-
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0909-
20 01.055 MOTOR; FAN 8-98080-657-1 01 1 0909-
21 01.277 GUIDE; FAN 8-98067-228-1 01 1 0909-
22 01.060 BOLT; MOTOR TO GUIDE
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 03 1 0909-
230 01.055 FAN; COOLING
(B) 		8-98080-658-1 01 1 0909-
230 01.055 FAN; COOLING
(A) 		8-97330-207-0 01 1 0909-
234 01.060 NUT; FAN BRKT
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0909-
