9-01 — TOOLS (#3236) — 54 parça
çizim 3602
102 103 99
BalonParca AdiParca NoAdetTipApplied Date
99 WRENCH; CYL HD BOLT 1-85111-003-0 01 1 9104-
99 WRENCH; CYL HD BOLT 1-85111-003-0 01 1 0108-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 9104-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0108-
103 SPANNER; BOX,OIL PRESSURE 9-85163-102-0 01 1 9104-
103 SPANNER; BOX,OIL PRESSURE 9-85163-102-0 01 1 0108-

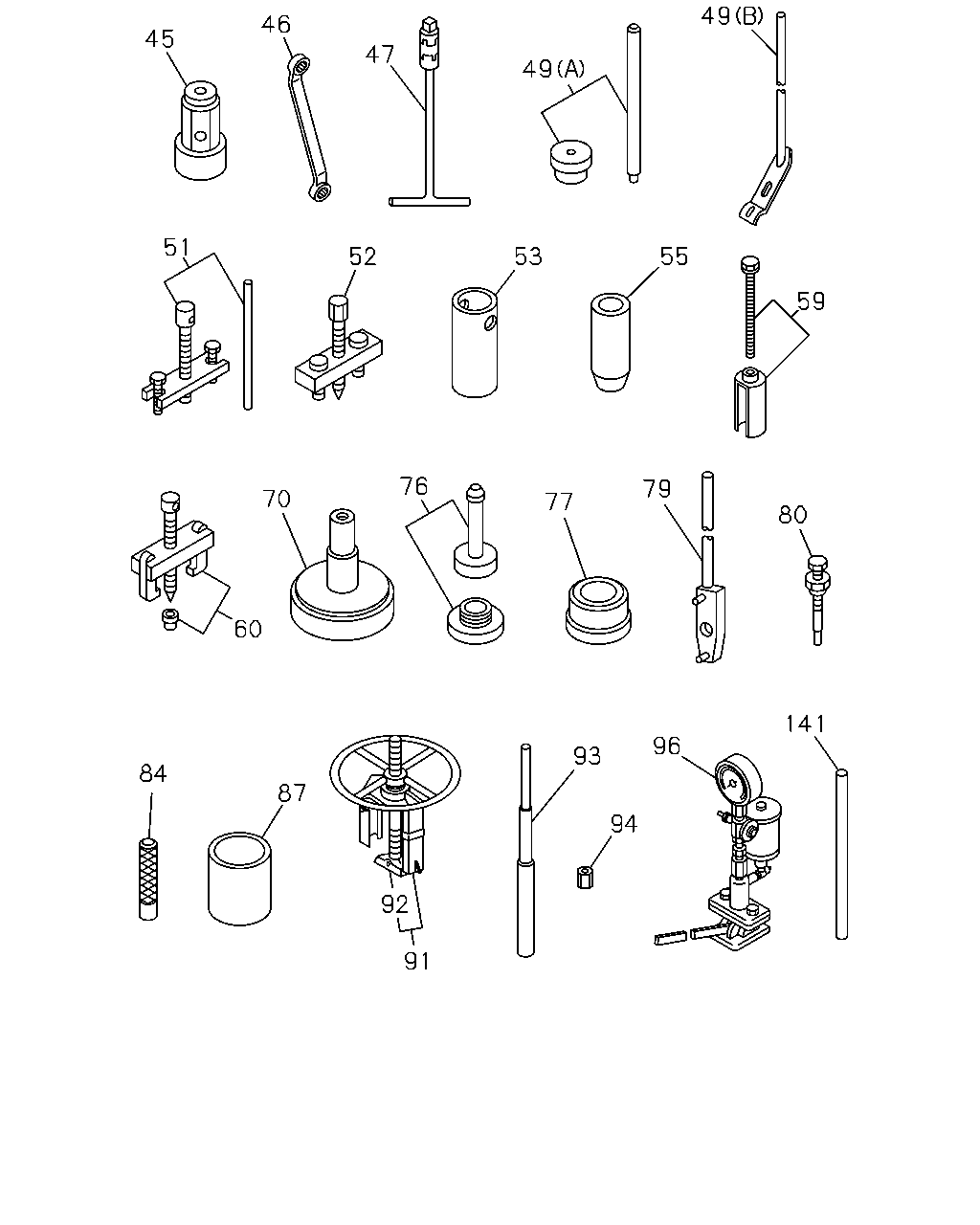

çizim 37270
49 46 45 47 49 51 52 53 55 59 76 79 70 77 80 60 141 96 93 84 87 94 92 91
BalonParca AdiParca NoAdetTipApplied Date
45 WRENCH; FRT NUT 1-85111-001-0 01 1 9104-
45 WRENCH; FRT NUT 1-85111-001-0 01 1 0108-
46 WRENCH; OFFSET,INJ PUMP 1-85112-001-0 01 1 9104-
46 WRENCH; OFFSET,INJ PUMP 1-85112-001-0 01 1 0108-
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-702-0 01 1 9104-
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-702-0 01 1 0108-
49 REPLACER ASM; VALVE
(B) 		1-85235-006-0 01 1 9104-
49 REPLACER ASM; VALVE
(A) 		9-85231-818-0 01 1 9104-
49 REPLACER ASM; VALVE 1-85235-006-0 01 1 0108-
49 REPLACER ASM; VALVE 9-85231-818-0 01 1 0108-
51 PULLER ASM; WATER PUMP 9-85210-120-0 01 1 9104-
51 PULLER ASM; WATER PUMP 9-85210-120-0 01 1 0108-
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9104-
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 0108-
53 PULLER; TAPER BUSHING 9-85210-122-0 01 1 9104-
53 PULLER; TAPER BUSHING 9-85210-122-0 01 1 0108-
55 SETTING TOOL; TIMING GEAR 9-85220-033-0 01 1 9104-
55 SETTING TOOL; TIMING GEAR 9-85220-033-0 01 1 0108-
59 PULLER ASM; TIMING GEAR 9-85210-141-0 01 1 9104-
59 PULLER ASM; TIMING GEAR 9-85210-141-0 01 1 0108-
60 PULLER; TIMING GEAR 9-85210-505-0 01 1 9104-
60 PULLER; TIMING GEAR 9-85210-505-0 01 1 0108-
70 TOOL; SETTING,OIL SEAL 5-85220-044-0 01 1 9104-
70 TOOL; SETTING,OIL SEAL 5-85220-044-0 01 1 0108-
76 TOOL; SETTING,SEAL 9-85220-034-0 01 1 9104-
76 TOOL; SETTING,SEAL 9-85220-034-0 01 1 0108-
77 TOOL; SETTING,CYL LINER 9-85232-554-0 01 1 9104-
77 TOOL; SETTING,CYL LINER 9-85232-554-0 01 1 0108-
79 RETAINER; AUTO TIMER 9-85111-930-0 01 1 9104-
79 RETAINER; AUTO TIMER 9-85111-930-0 01 1 0108-
80 PULLER ASM; AUTO TIMER 9-85210-154-0 01 1 9104-
80 PULLER ASM; AUTO TIMER 9-85210-154-0 01 1 0108-
84 REPLACER; VALVE SEAL 1-85221-005-0 01 1 9104-
84 REPLACER; VALVE SEAL 1-85221-005-0 01 1 0108-
87 TOOL; PISTON 9-85221-172-0 01 1 9104-
87 TOOL; PISTON 9-85221-172-0 01 1 0108-
91 REPLACER ASM; CYL LINER 1-85231-002-0 01 1 0108-
91 REPLACER ASM; CYL LINER 1-85231-003-0 01 1 9104-
91 REPLACER ASM; CYL LINER 9-85232-555-0 01 1 0108-
91 REPLACER ASM; CYL LINER 1-85231-002-0 01 1 0108-
91 REPLACER ASM; CYL LINER 1-85231-003-0 01 1 0108-
91 REPLACER ASM; CYL LINER 9-85232-555-0 01 1 0108-
92 ANKLE; REPLACER,CYL LINER
OD=104.5 		9-85232-557-0 03 1 9104-
92 ANKLE; REPLACER,CYL LINER
OD=104.5 		9-85232-557-0 03 1 0108-
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9104-
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 0108-
141 HANDLE; WRENCH 9-09593-919-0 01 1 9104-
141 HANDLE; WRENCH 9-09593-919-0 01 1 0108-
