Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
9 - Tools
▶
9-01 - TOOLS
▶

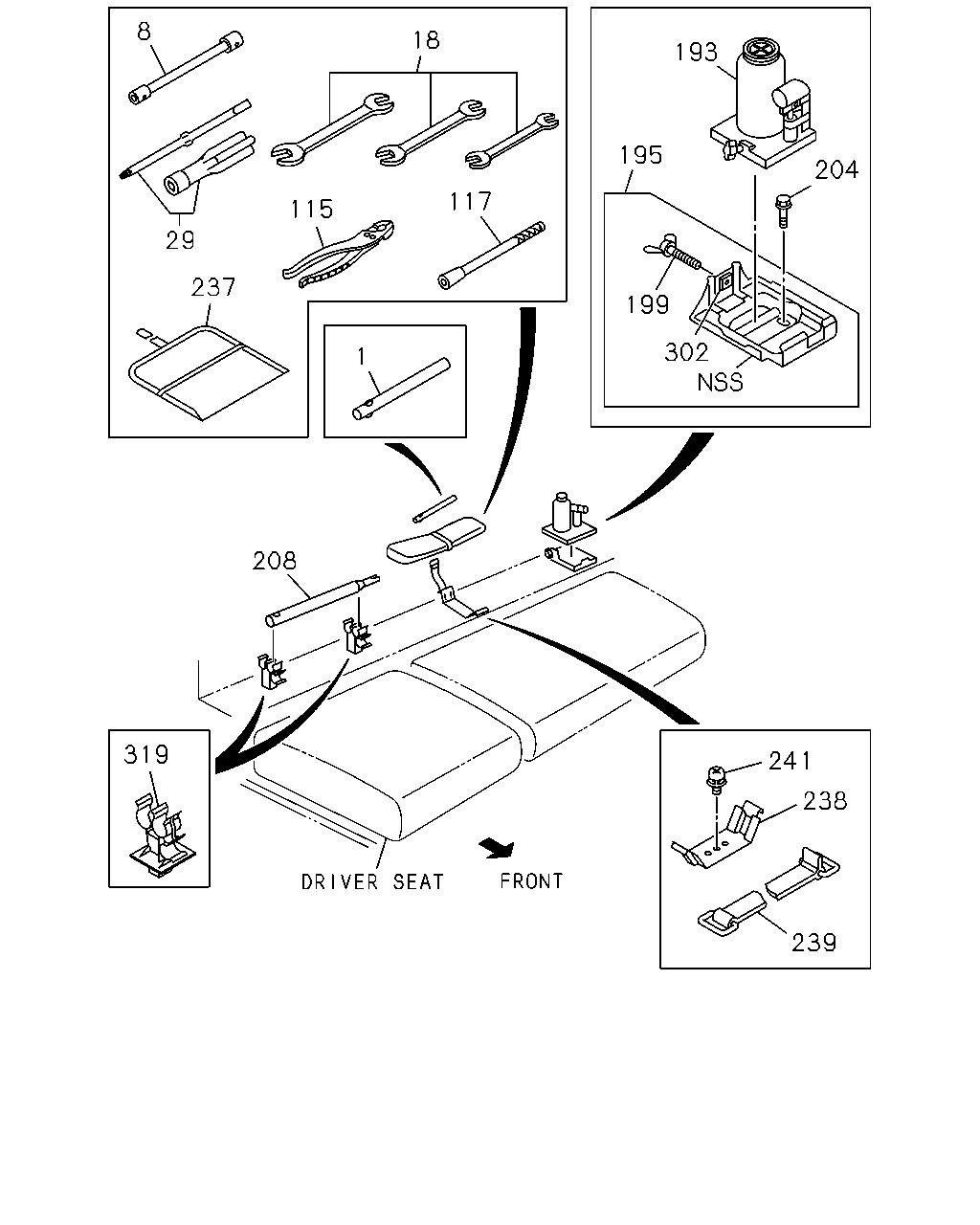

9-01 — TOOLS
(#32345) — 21 parça
8
18
193
195
204
117
115
29
237
199
302
1
208
319
241
238
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
L=280
1-85515-007-0
01
1
0901-1108
1
HANDLE; SPARE TIRE CARRIER
L=280
8-98181-251-0
01
1
1109-
8
WRENCH; WHEEL
B=41X19 L=330 THA
8-94386-490-1
02
1
0901-
18
WRENCH KIT
THA
9-85161-902-0
02
1
0901-
29
DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
02
1
0901-
115
PLIER
THA
5-85171-002-0
01
1
0901-1410
115
PLIER
THA
8-98282-845-0
01
1
1411-
117
WRENCH; VALVE CAP
THA
9-85163-906-1
02
1
0901-
193
JACK ASM
4TON
8-98012-285-0
01
1
0901-
195
BRACKET; JACK
8-98033-737-2
01
1
0901-
199
BOLT; JACK
M8X50 WING
8-98005-537-0
01
1
0901-
204
BOLT; BRKT,JACK
M8X25 FLANGE THA
0-28650-825-0
01
1
0901-1207
204
BOLT; BRKT,JACK
M8X25 FLANGE THA
0-28650-825-0
01
1
1208-
208
HANDLE; JACK
L=580
1-85515-005-1
01
1
0901-1108
208
HANDLE; JACK
L=580
8-98181-249-0
01
1
1109-
237
BAG; TOOL
8-97130-903-1
01
1
0901-
238
SUPPORT; TOOL BAG
8-97994-977-0
01
1
0901-
239
BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0901-
241
SCREW; TOOL BAG SUPPORT
M6X16
0-38050-616-0
01
1
0901-
302
NUT; JACK BRKT
8-98021-556-0
01
1
0901-
319
CLIP; TOOL BAR
8-97853-077-2
02
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
