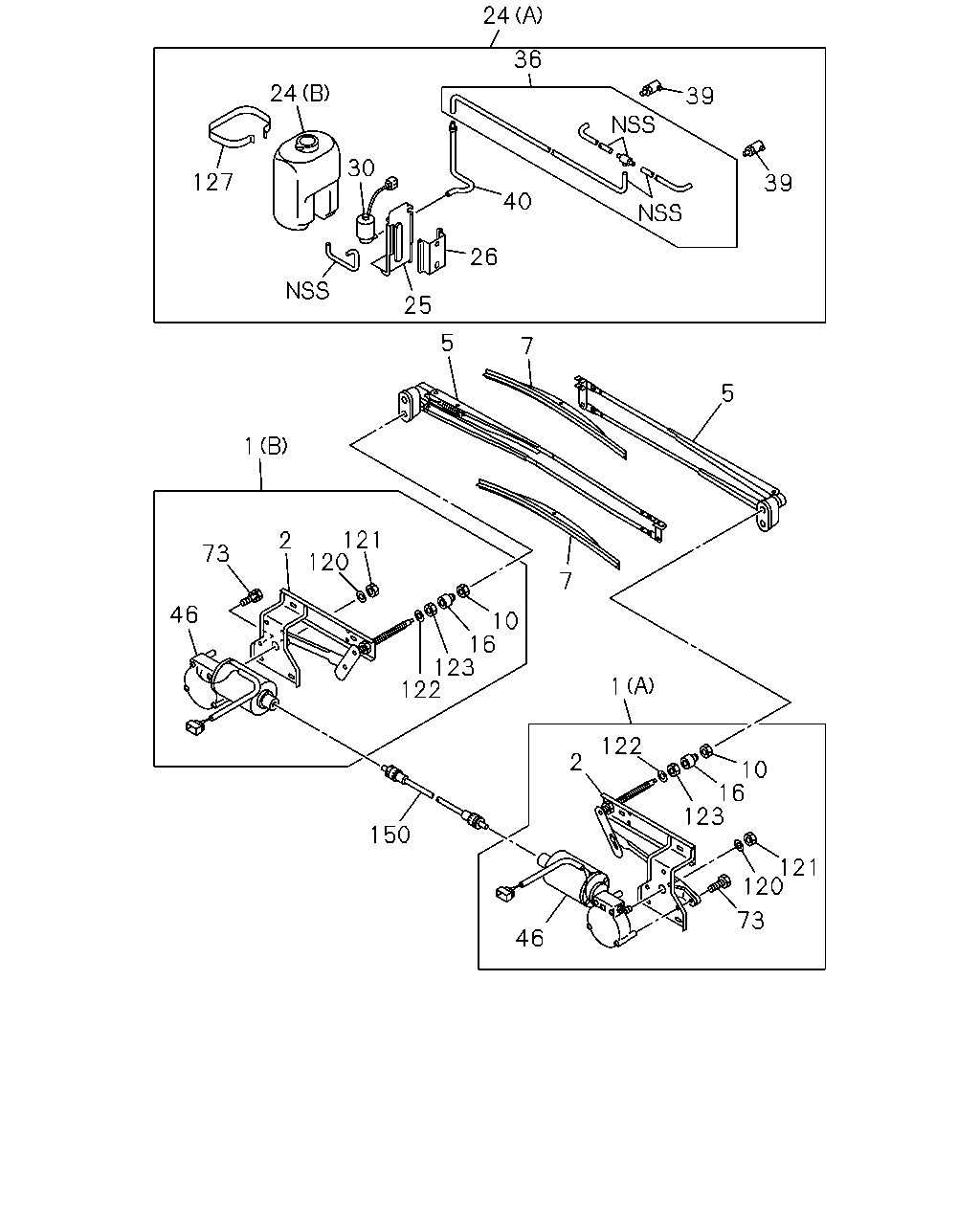

8-80 — WINDSHIELD WIPER AND WASHER (#3234) — 34 parça

24 36 24 39 30 127 39 40 26 25 5 7 5 1 121 120 2 73 7 46 10 16 123 122 1 122 2 10 16 123 150 121 120 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINK ASM; FRT WIPER WIPER MOTOR KIT<ST7> (A)	1-83310-070-0	01	1	9104-
1	LINK ASM; FRT WIPER WIPER MOTOR KIT<ST7> (B)	1-83310-071-0	01	1	9104-
2	LINK; FRT WIPER WIPER MOTOR KIT<ST7>	1-83314-116-0	01	1	9104-
2	LINK; FRT WIPER WIPER MOTOR KIT<ST7>	1-83314-117-0	01	1	9104-
5	ARM; WIPER WIPER MOTOR KIT<ST7>	1-83314-050-0	01	1	9104-0107
5	ARM; WIPER WIPER MOTOR KIT<ST7>	1-83314-050-0	01	1	0108-
5	ARM; WIPER WIPER MOTOR KIT<ST7>	1-83314-051-0	01	1	9104-0107
5	ARM; WIPER WIPER MOTOR KIT<ST7>	1-83314-051-0	01	1	0108-
7	BLADE; WIPER WIPER MOTOR KIT<ST7>	1-83315-024-1	02	1	9104-
9	RUBBER; FRT WIPER BLADE WIPER MOTOR KIT<ST7>	1-83355-007-0	02	1	9104-
10	NUT; WIPER ARM TO WIPER PIVOT WIPER MOTOR KIT<ST7>	1-83318-049-0	02	1	9104-
16	SEAL; BALL JOINT WIPER MOTOR KIT<ST7>	1-83318-048-0	02	1	9104-
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (B)	9-83561-322-0	01	1	9104-9109
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (A)	1-83330-015-0	01	1	9104-9109
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (A)	1-83330-033-0	01	1	9110-
25	BRACKET; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-926-0	01	1	9104-
26	HANGER; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-929-0	01	1	9104-9109
26	HANGER; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-925-0	01	1	9110-
30	MOTOR ASM; FRT WASHER TANK WINDSHIELD WASHER<C11>	9-83561-208-0	01	1	9104-
36	HOSE; WASHER WINDSHIELD WASHER<C11> L=700	9-83561-441-0	01	1	9104-9109
36	HOSE; WASHER WINDSHIELD WASHER<C11> SERVICED BY L=10000	9-09914-906-0	01	1	9110-
39	NOZZLE; WINDSHIELD WASHER WINDSHIELD WASHER<C11>	1-83334-005-0	02	1	9104-9109
39	NOZZLE; WINDSHIELD WASHER WINDSHIELD WASHER<C11>	1-83334-012-0	02	1	9110-
40	JOINT; WASHER HOSE WINDSHIELD WASHER<C11>	9-83565-006-0	01	1	9110-
46	MOTOR ASM; FRT WINDSHIELD WIPER WIPER MOTOR KIT<ST7>	1-83311-058-0	01	1	9104-
46	MOTOR ASM; FRT WINDSHIELD WIPER WIPER MOTOR KIT<ST7>	1-83311-059-0	01	1	9104-
73	BOLT WIPER MOTOR KIT<ST7>	1-83318-079-0	06	1	9104-
120	WASHER; ARM TO BRKT WIPER MOTOR KIT<ST7>	1-83318-045-0	02	1	9104-
121	NUT; ARM TO BRKT WIPER MOTOR KIT<ST7>	1-83318-044-0	02	1	9104-
122	WASHER; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83318-046-0	02	1	9104-
123	NUT; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83318-047-0	01	1	9104-
123	NUT; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83318-050-0	01	1	9104-
127	BAND; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-928-0	01	1	9104-
150	SHAFT; FLEX,WIPER MOTOR TO WIPER WIPER MOTOR KIT<ST7>	1-83123-376-0	01	1	9104-
