8-45 — HEATER PIPING (#32335) — 20 parça

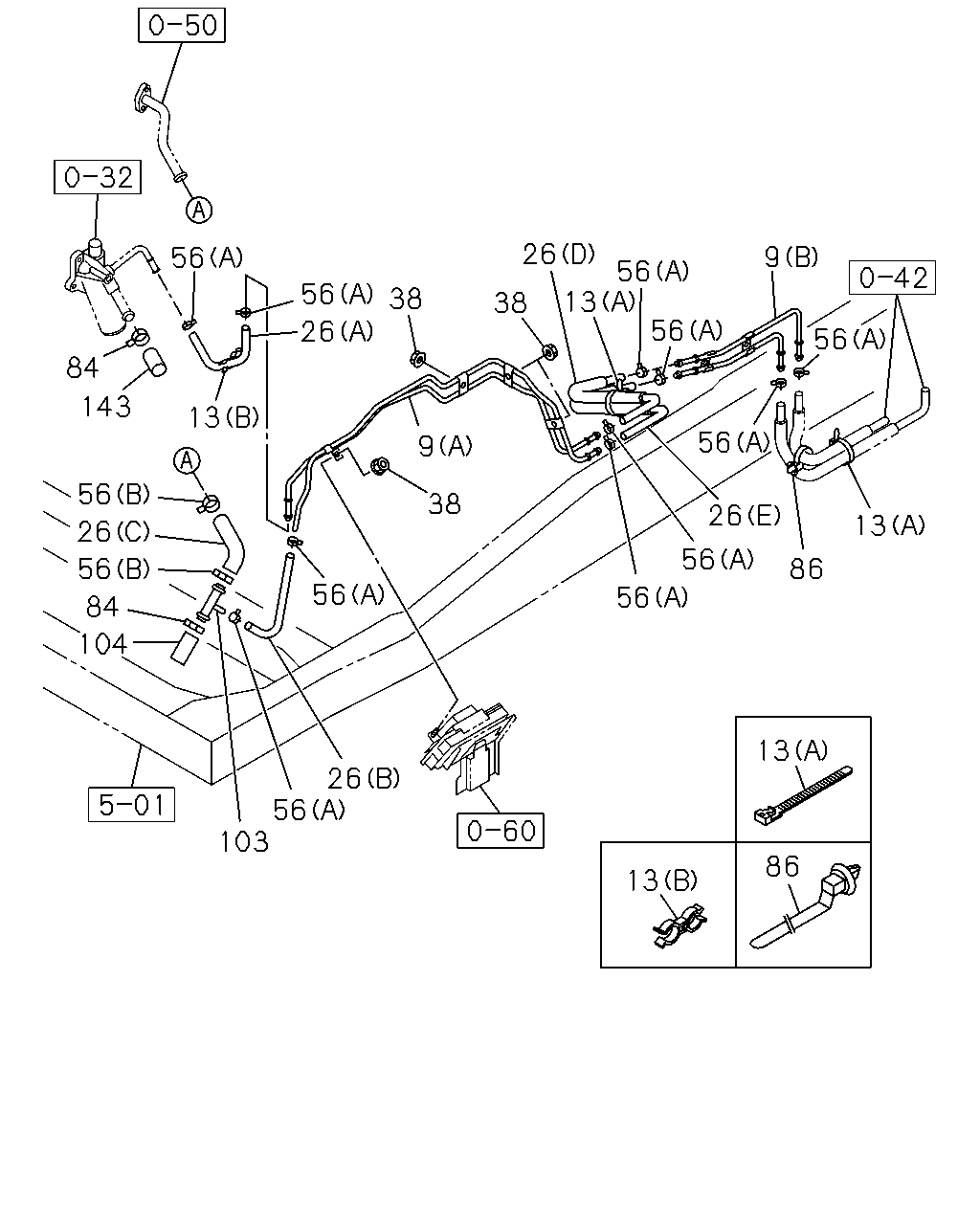

çizim 123746
26 9 56 56 13 56 38 38 56 26 56 84 143 13 56 9 56 38 26 13 26 56 86 56 56 56 84 104 13 26 56 103 86 13
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; HTR
(A) 		8-98052-143-2 01 1 0901-1105
9 PIPE; HTR
(A) 		8-98187-783-0 01 1 1106-
9 PIPE; HTR
(B) 		8-98114-287-2 01 1 0901-
13 CLIP; HTR HOSE
(A) L=250 THA 		5-09707-030-1 02 1 0901-
13 CLIP; HTR HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0901-
26 HOSE; HTR
(A) L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 0901-
26 HOSE; HTR
(C) 		8-97228-061-0 01 1 0901-0902
26 HOSE; HTR
(C) 		8-98144-454-0 01 1 0903-
26 HOSE; HTR
(B) 		8-97378-489-1 01 1 0901-
26 HOSE; HTR
(D) 		8-98114-294-1 01 1 0901-
26 HOSE; HTR
(E) 		8-98114-296-0 01 1 0901-
38 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 05 1 0901-
56 CLAMP; HTR HOSE
(B) ID=22 		8-97359-141-0 03 1 0901-
56 CLAMP; HTR HOSE
(A) ID=13 THA 		8-94238-571-0 10 1 0901-0911
56 CLAMP; HTR HOSE
(A) ID=13 		8-98150-357-0 10 1 0912-
84 CLIP; HTR PIPE
ID=25 		8-94233-115-0 01 1 0901-
86 CLIP; HTR HOSE
L=155 THA 		8-97173-307-0 01 1 0901-
103 CONNECTOR; HOSE 8-97378-346-0 01 1 0901-
104 PLUG; RUBBER,HTR HOSE HOLE 8-94107-793-0 01 1 0901-
143 CAP; HEATER PIPE 8-94107-793-0 01 1 0901-
