◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#32333) — 14 parça
çizim 123718
666 531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0901-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
666 RELAY; STARTER
24V 10A PANASONIC THA 		8-97173-035-1 01 1 0901-1005
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006-

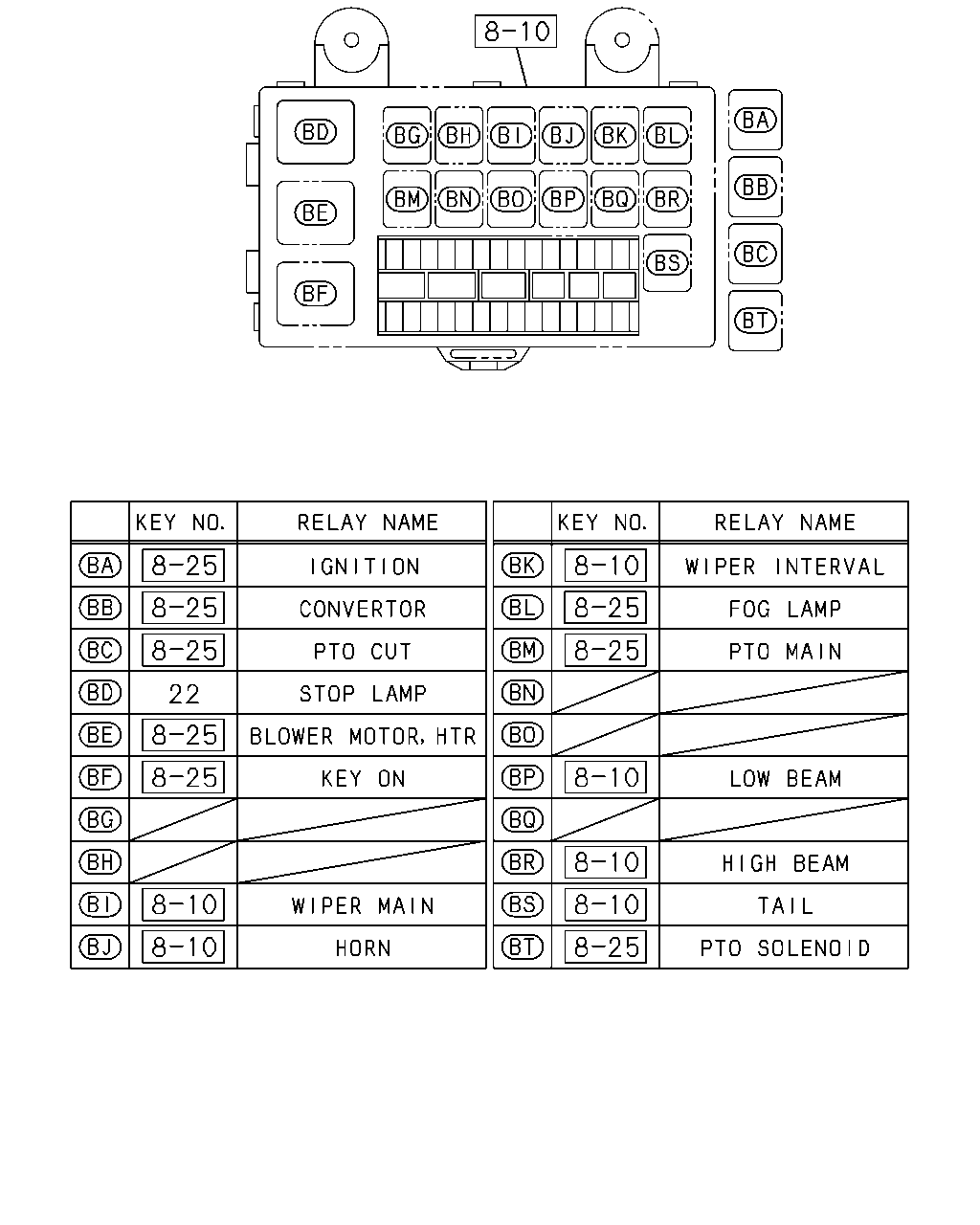

çizim 123725
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0901-

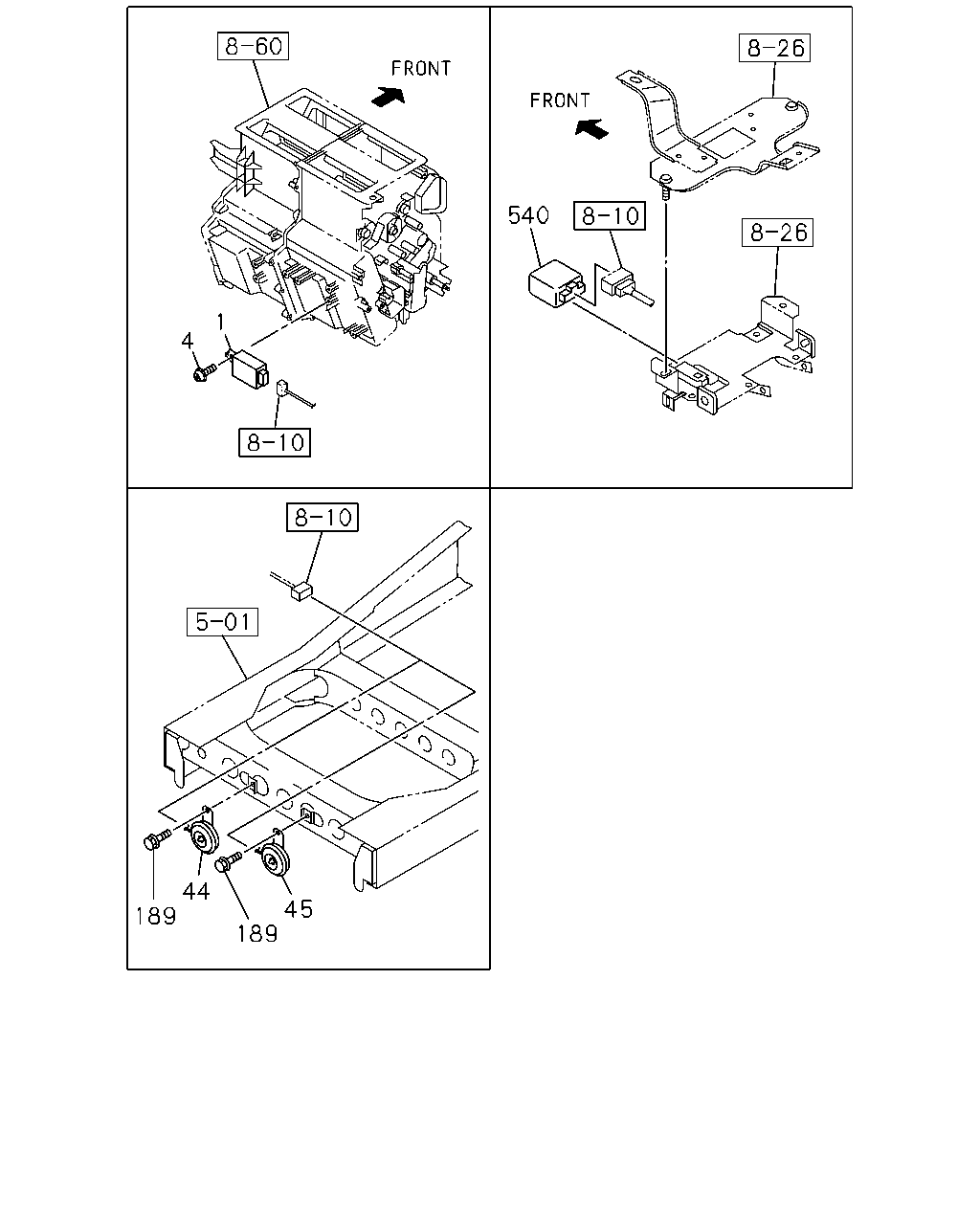

çizim 123727
540 1 4 44 189 45 189
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 0901-
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98022-022-0 01 1 0901-
45 HORN; LOW NOTE 8-98022-023-0 01 1 0901-
189 BOLT; HORN
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0901-
189 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0901-
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0901-1308
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309-

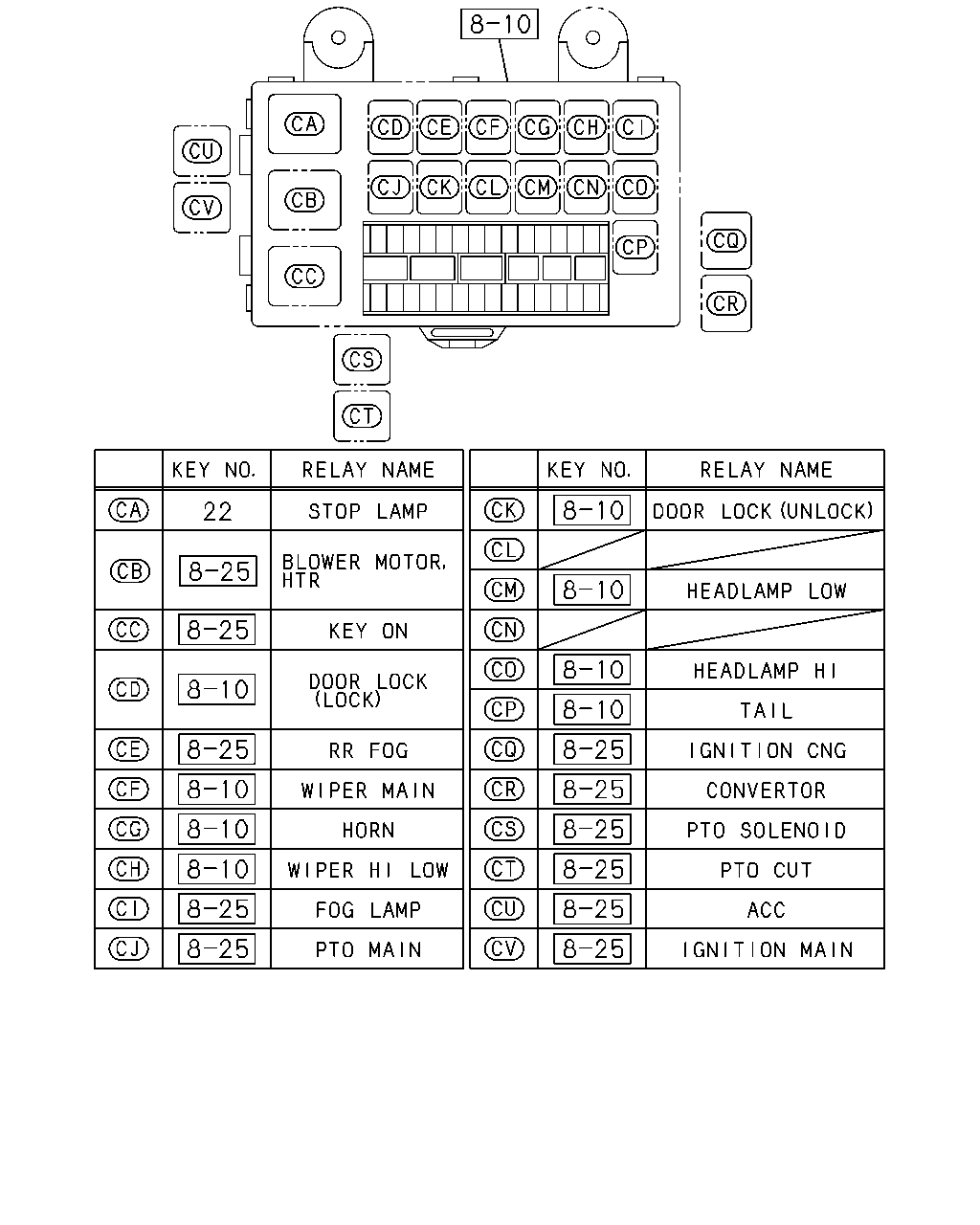

çizim 289417
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0901-
