◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#32329) — 162 parça
çizim 123705
16 16 16 16 513 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (H) L=40.6 THA 		8-97229-357-0 02 1 1004-1104
16 CLIP; HARNESS
(H) L=40.6 THA 		8-97229-357-0 02 1 1105-
16 CLIP; HARNESS
COOLER WO/HEATER<C65> (G) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0901-0912
16 CLIP; HARNESS
(G) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1001-
16 CLIP; HARNESS
(F) L=22 ID=10.5 THA 		8-94327-574-0 01 1 0901-
16 CLIP; HARNESS
(E) ID=12 & 16.5 		8-94400-865-0 01 1 0901-
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0901-
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0901-
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0901-
48 CLIP; FRAME HARNESS
MANUAL TILT CAB<RWZ> (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0901-0901
48 CLIP; FRAME HARNESS
(C) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 09 1 0901-
513 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1003
513 TAPE; SOFT,HARNESS
EXC. VIN MODEL YEAR 2010<VZA> 70X45 		8-97304-372-0 01 1 1004-1104

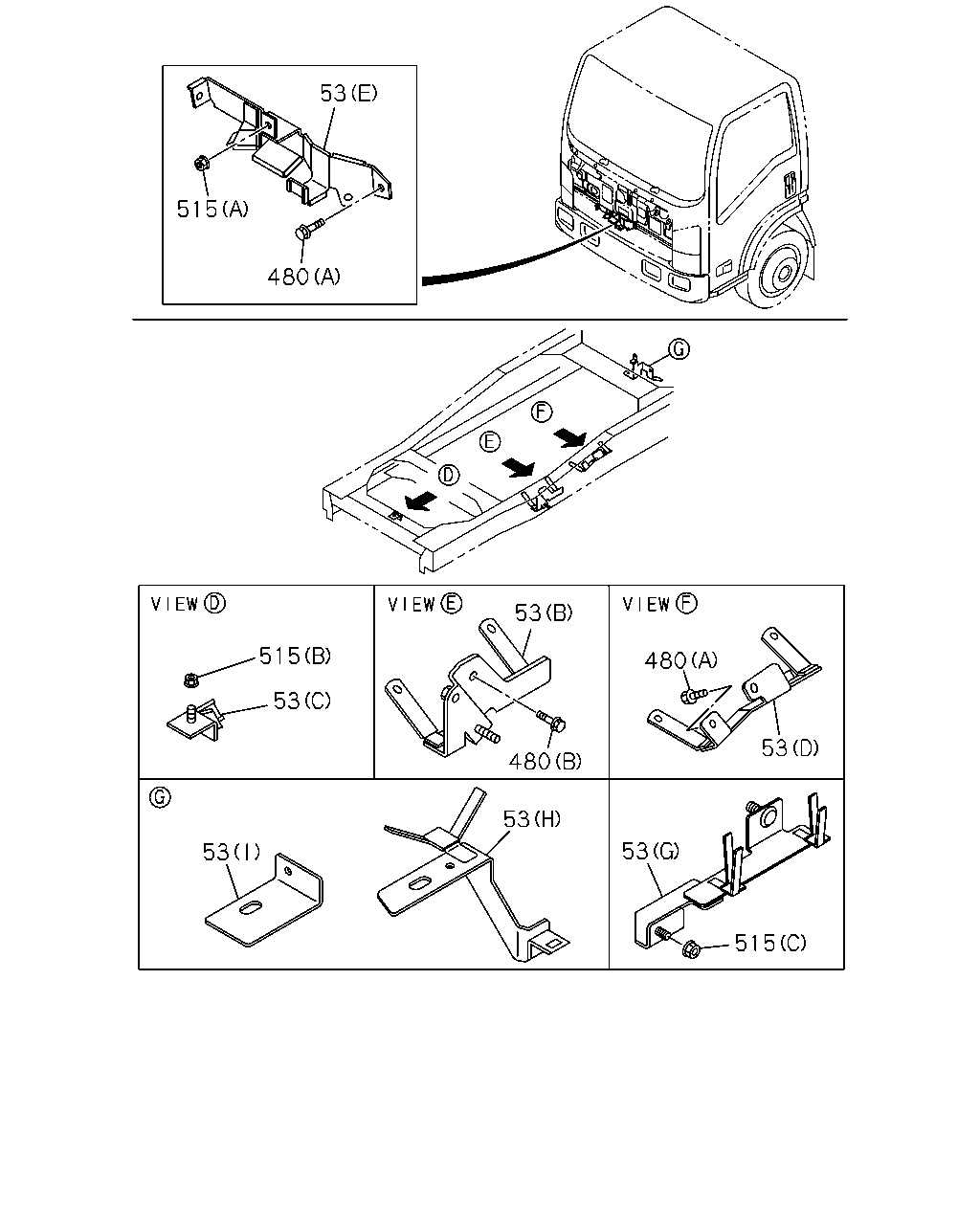

çizim 123707
53 515 480 53 515 480 53 53 480 53 53 53 515
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0901-
53 BRACKET; HARNESS
(D) 		8-98033-918-2 01 1 0901-
53 BRACKET; HARNESS
(E) 		8-98039-984-2 01 1 0901-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0901-
53 BRACKET; HARNESS
(B) 		8-98052-900-1 01 1 0901-
53 BRACKET; HARNESS
(G) 		8-98081-706-0 01 1 0901-
53 BRACKET; HARNESS
(H) 		8-98081-710-0 01 1 0901-
53 BRACKET; HARNESS
(I) 		8-98081-711-0 01 1 0901-
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0901-
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 0901-
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0901-1207
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1208-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 04 1 0901-1207
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 0901-

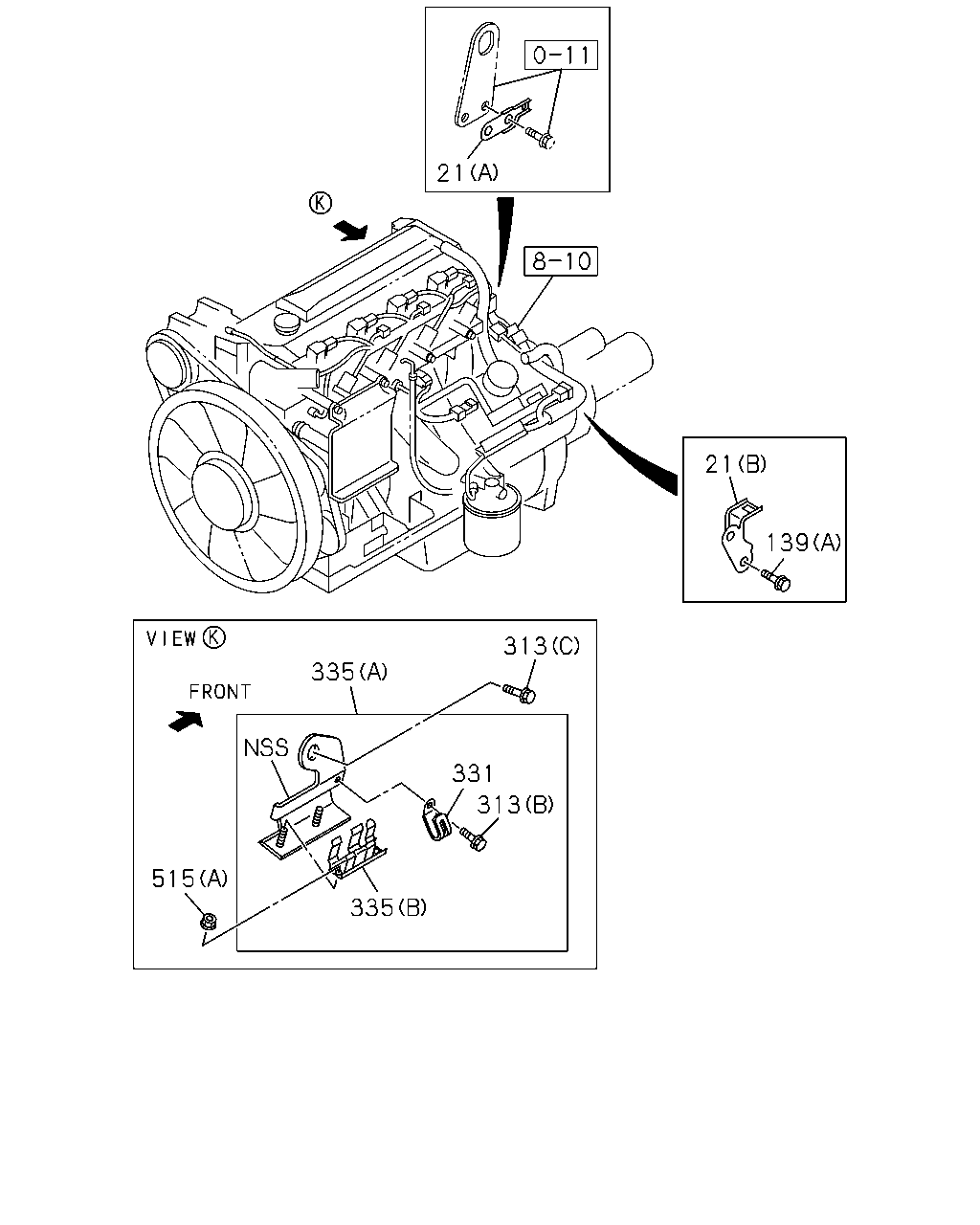

çizim 123711
21 21 139 313 335 331 313 515 335
BalonParca AdiParca NoAdetTipApplied Date
21 BRACKET; ENG HARNESS
(A) 		8-97383-683-0 01 1 0901-
21 BRACKET; ENG HARNESS
(B) 		8-97383-684-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-1207
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1208-
313 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(C) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(D) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
331 CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
335 BRACKET; CONNECTOR
(B) 		8-97262-725-0 01 1 0901-
335 BRACKET; CONNECTOR
(A) 		8-97262-726-0 01 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 04 1 0901-1207
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 0901-
çizim 123715
516 38 313 480 38 139 150 304 313 480 529 313 313 377 377 386 386 139 24 294 515 577 515 525 552 515 552 620
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0901-1409
24 NUT; HARNESS
M6 FLANGE STAINLESS THA 		8-98297-112-0 01 1 1410-
38 BOLT; CLIP,HARNESS
COOLER WO/HEATER<C65> (B) M6X12 FLANGE 		0-28250-612-0 01 1 0901-0912
38 BOLT; CLIP,HARNESS
(B) M6X12 FLANGE 		0-28250-612-0 01 1 1001-
38 BOLT; CLIP,HARNESS
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-1207
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1208-
150 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
294 NUT
M6 W/LK WASHER THA 		8-94424-179-0 01 1 0901-
304 BOLT; ENG HARNESS CLIP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-1002
304 BOLT; ENG HARNESS CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 1003-
313 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(C) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(D) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0901-
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0901-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0901-
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0901-
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 0901-
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0901-1207
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1208-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 04 1 0901-1207
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1208-
515 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 0901-
516 BOLT; HARNESS
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0901-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 0901-
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0901-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 04 1 0901-1207
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-1207
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0901-1207
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 0901-1207
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 1208-
620 WASHER; PL BRKT
ID=15 		0-91614-614-0 01 1 1006-1008

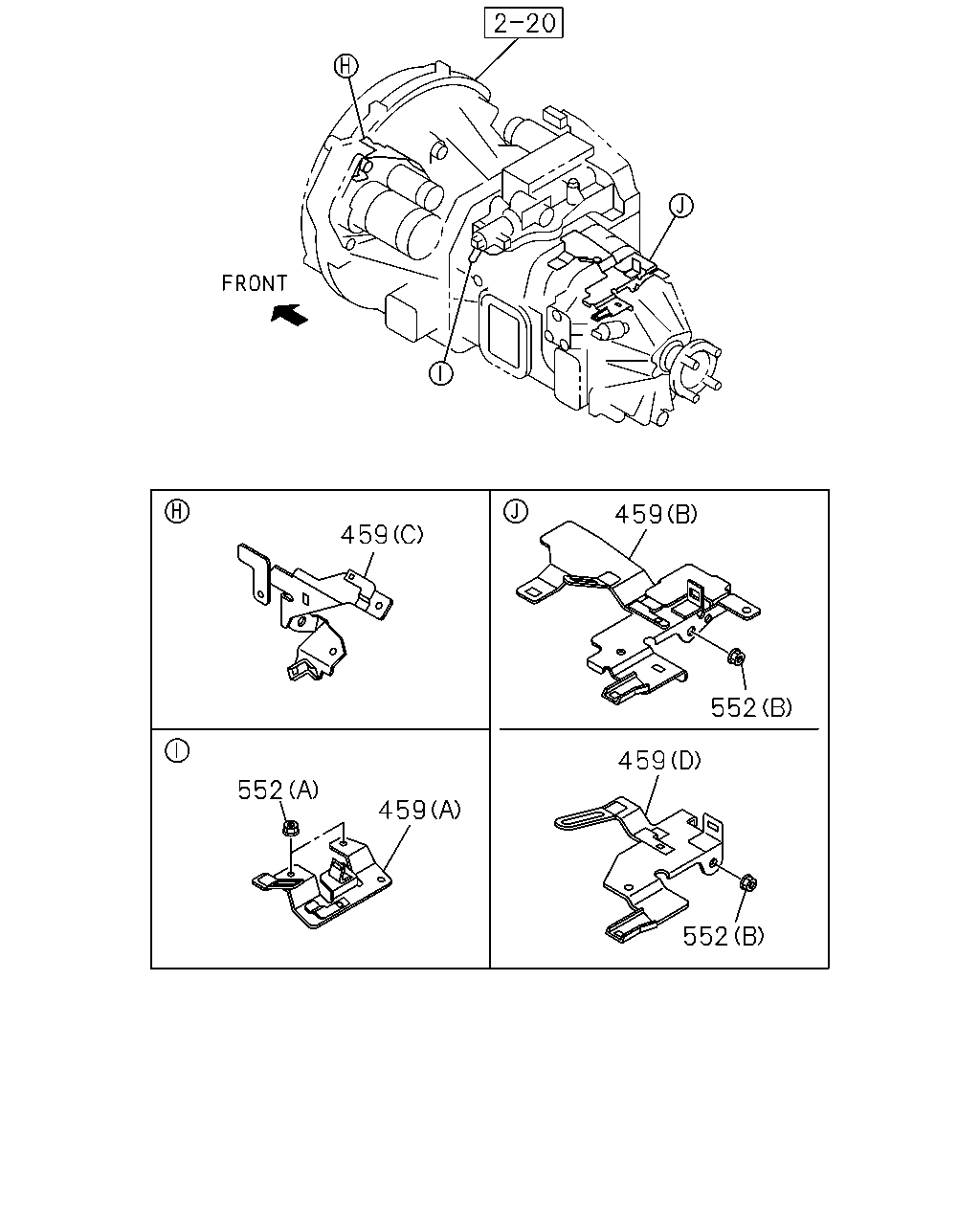

çizim 123730
459 459 552 459 552 459 552
BalonParca AdiParca NoAdetTipApplied Date
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 0901-
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 0901-1109
459 BRACKET; SUPPORT,HARNESS
(D) 		8-98196-974-0 01 1 1110-
459 BRACKET; SUPPORT,HARNESS
(C) 		8-98081-708-0 01 1 0901-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 04 1 0901-1207
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-1207
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1208-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0901-1207

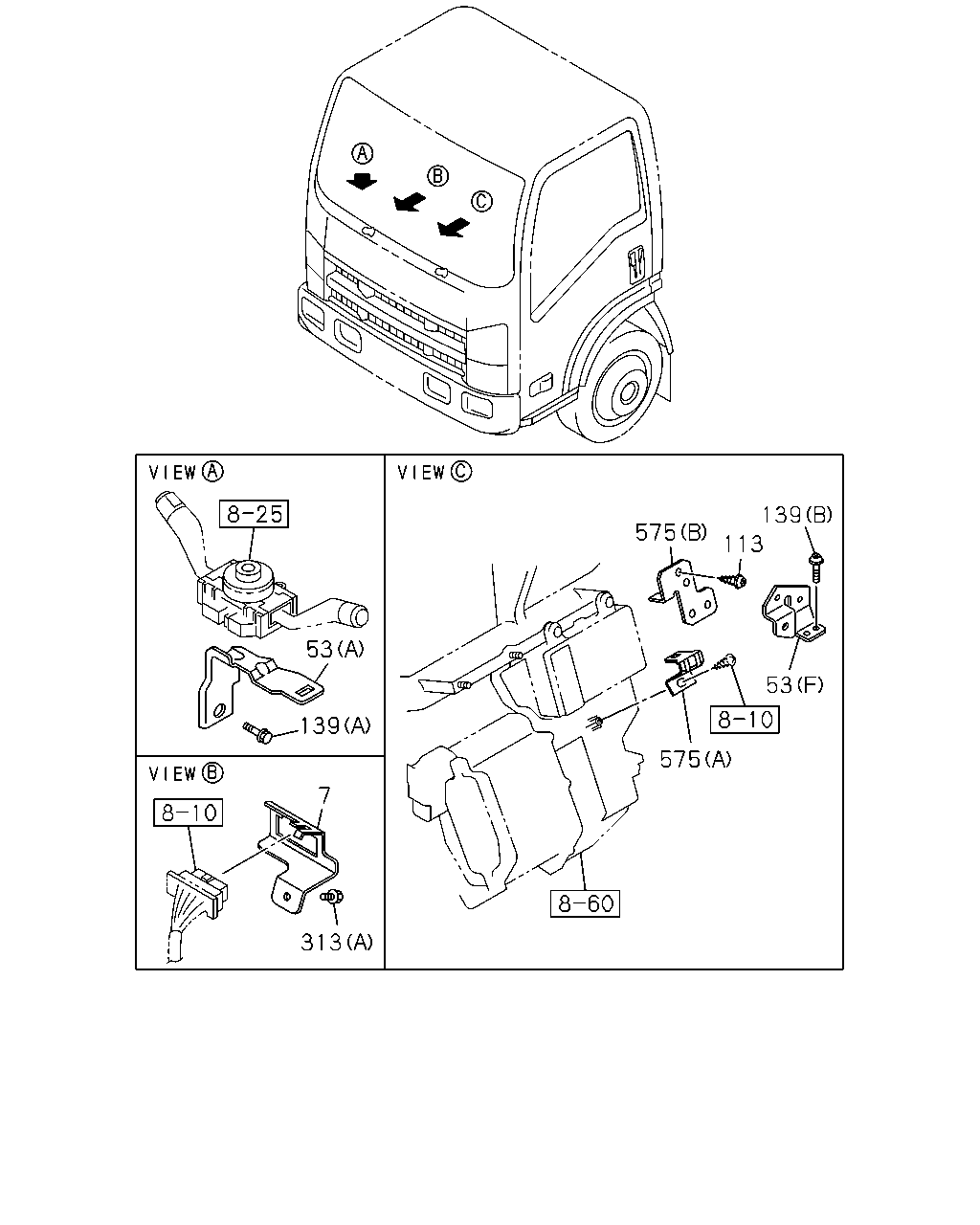

çizim 123739
53 139 7 313 575 139 113 53 575
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98043-070-1 01 1 0901-
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0901-
53 BRACKET; HARNESS
(D) 		8-98033-918-2 01 1 0901-
53 BRACKET; HARNESS
(E) 		8-98039-984-2 01 1 0901-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0901-
53 BRACKET; HARNESS
(B) 		8-98052-900-1 01 1 0901-
53 BRACKET; HARNESS
(G) 		8-98081-706-0 01 1 0901-
53 BRACKET; HARNESS
(H) 		8-98081-710-0 01 1 0901-
53 BRACKET; HARNESS
(I) 		8-98081-711-0 01 1 0901-
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0901-
113 SCREW; HARNESS CONNECTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 HEXALOBULAR SOCKET THA 		8-98177-744-0 01 1 1208-1208
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-1207
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1208-
313 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(C) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(D) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
575 BRACKET; FUSE BOX
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) THA 		1-82698-128-2 01 1 1208-1208
575 BRACKET; FUSE BOX
(A) 		8-98042-656-2 01 1 0901-
çizim 123741
16 22 48 16 22 331 483 570 16 570 22 570 617 48 488 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (H) L=40.6 THA 		8-97229-357-0 02 1 1004-1104
16 CLIP; HARNESS
(H) L=40.6 THA 		8-97229-357-0 02 1 1105-
16 CLIP; HARNESS
COOLER WO/HEATER<C65> (G) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0901-0912
16 CLIP; HARNESS
(G) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1001-
16 CLIP; HARNESS
(F) L=22 ID=10.5 THA 		8-94327-574-0 01 1 0901-
16 CLIP; HARNESS
(E) ID=12 & 16.5 		8-94400-865-0 01 1 0901-
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0901-
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0901-
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0901-
22 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 01 1 0901-
22 CLIP; ENG HARNESS
(B) L=170.3 THA 		1-09987-182-0 03 1 0901-
22 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0901-
48 CLIP; FRAME HARNESS
MANUAL TILT CAB<RWZ> (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0901-0901
48 CLIP; FRAME HARNESS
(C) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 09 1 0901-
331 CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
483 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
483 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0901-
488 CLIP; CABLE,TRAILER
L=250 THA 		5-09707-030-1 01 1 0901-
570 CLIP; HARNESS,PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
570 CLIP; HARNESS,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) L=140 THA 		5-09707-031-1 02 1 0901-
570 CLIP; HARNESS,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) T=4.5 & 9 		8-97371-947-0 01 1 0901-
617 STRAP; BAND
L=140 THA 		8-97920-656-0 01 1 1104-1106
617 STRAP; BAND
L=140 THA 		5-09707-031-1 01 1 1104-1106
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
