Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#32328) — 76 parça
◀
[810A] OTHER PARTS(NO.1) (5 parça)
[810A] REAR FRAME AND TAIL LAMP HARNESS (3 parça)
[810A] DOOR,ROOM,FLOOR HARNESS AND PLUG (11 parça)
[810A] CAB HARNESS (29 parça)
[810A] FRAME HARNESS (16 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] OTHER PARTS(NO.2) (5 parça)

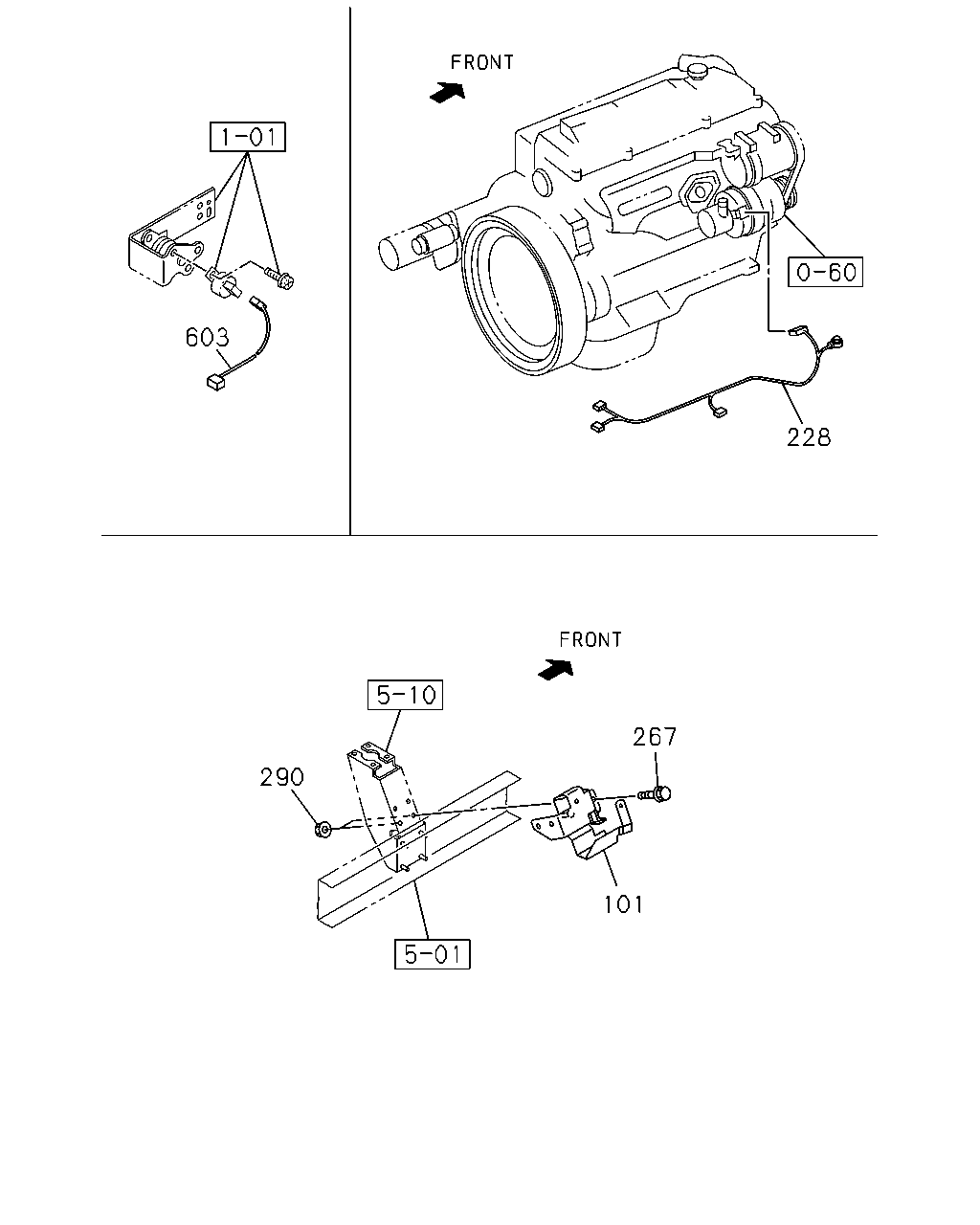

[810A08] (5 parça)
▶
603
228
290
101
267
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BRACKET; HARNESS CONNECTOR
8-98113-887-0
01
1
0901-
228
HARNESS; GEN
THA
8-98113-871-1
01
1
0901-
267
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
0901-
290
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
0901-
603
HARNESS; EXT,TPS
POWER TAKE OFF CONTROL ELECTRIC<7GR> L=2000
8-97223-578-0
01
1
0901-

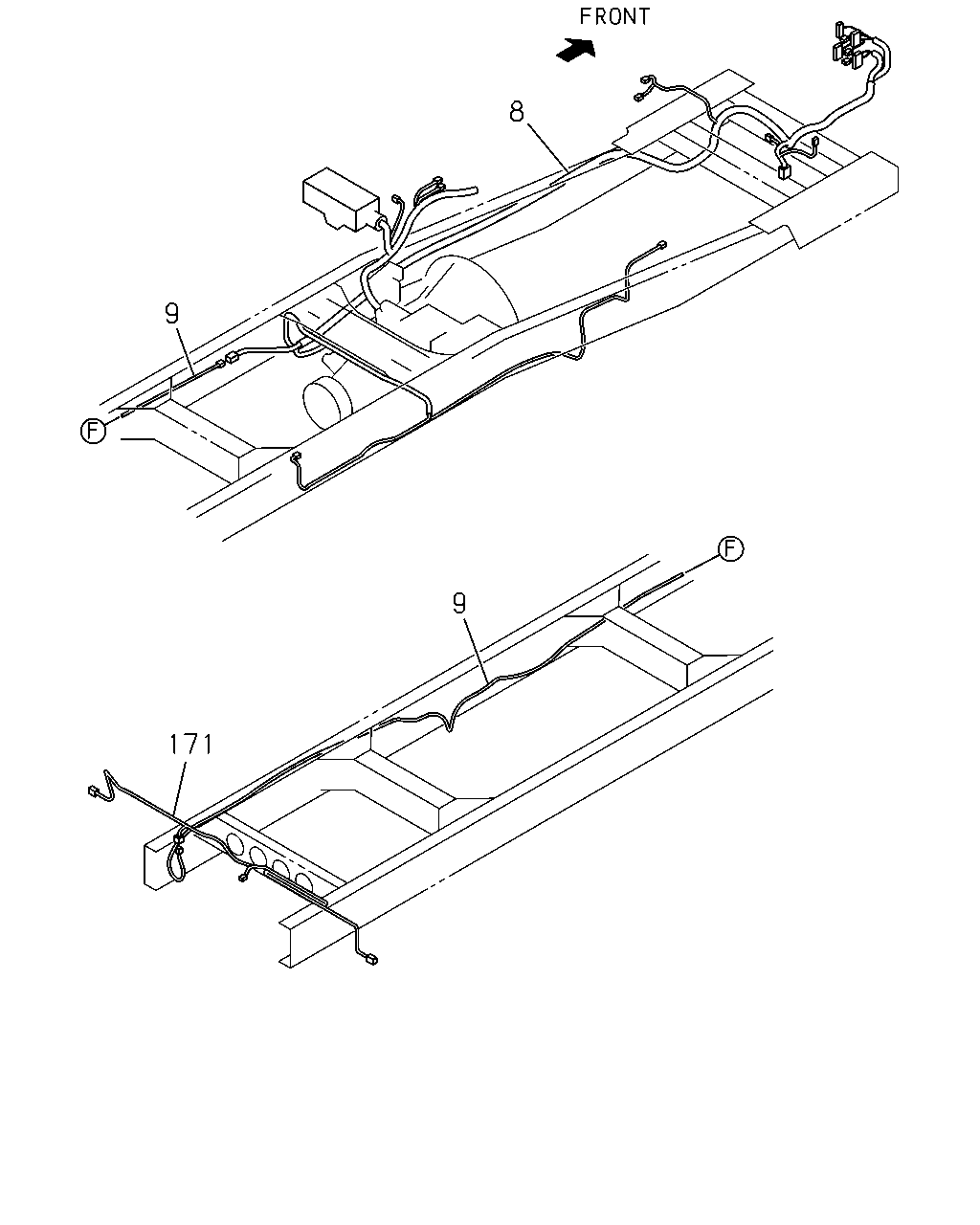

8
9
171
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-98113-867-2
01
1
0901-
9
HARNESS; FRAME,RR
THA
8-97923-865-1
01
1
0901-
171
HARNESS; CABLE,TAIL LAMP
THA
8-98008-095-3
01
1
0901-

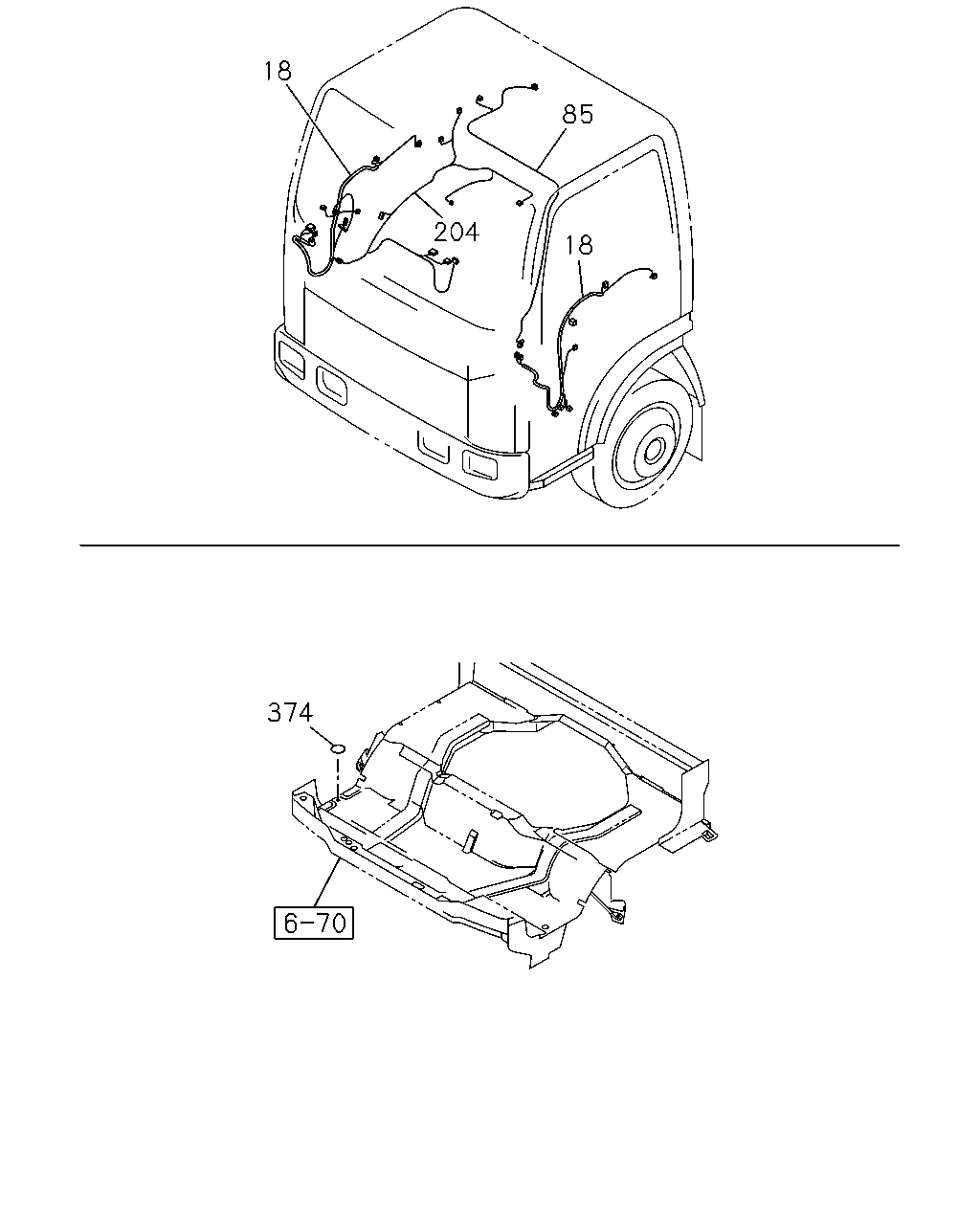

18
85
18
204
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
HARNESS; DOOR
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA
8-98071-075-2
01
1
1004-1104
18
HARNESS; DOOR
THA
8-98071-075-2
01
1
1105-
18
HARNESS; DOOR
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA
8-98071-083-2
01
1
1004-1104
18
HARNESS; DOOR
THA
8-98071-083-2
01
1
1105-
18
HARNESS; DOOR
8-98046-744-2
01
1
0901-1003
18
HARNESS; DOOR
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA>
8-98046-744-2
01
1
1004-1104
18
HARNESS; DOOR
8-98046-749-2
01
1
0901-1003
18
HARNESS; DOOR
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA>
8-98046-749-2
01
1
1004-1104
85
HARNESS; ROOM LAMP
8-98049-963-2
01
1
0901-
204
HARNESS; CABLE,FLOOR
THA
8-98107-499-3
01
1
0901-
374
PLUG; HARNESS CONNECTOR
OD=32 BLACK
8-98031-126-0
01
1
0901-

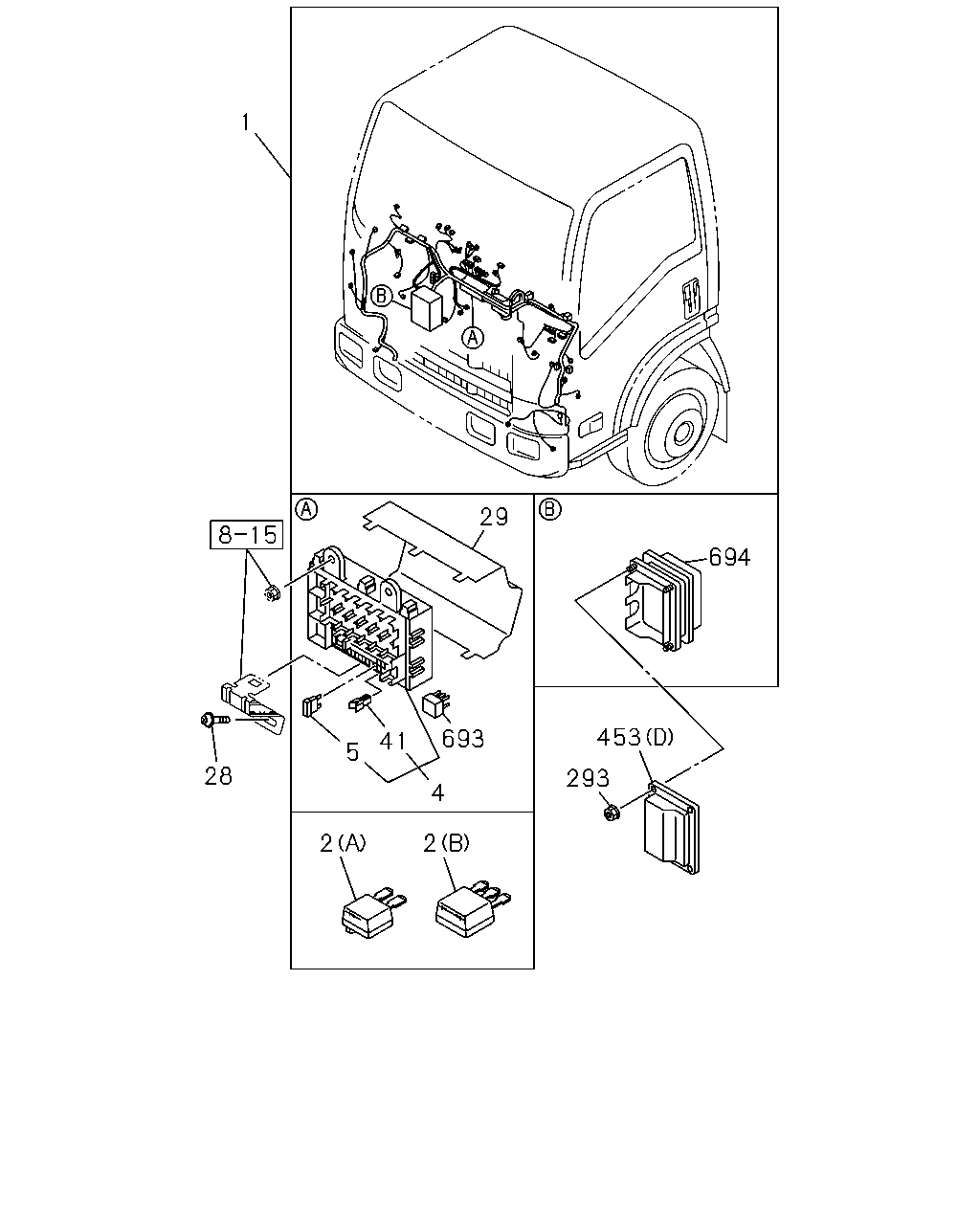

1
29
694
453
693
41
5
28
293
4
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98210-955-0
01
1
1208-1208
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98167-169-0
01
1
1209-
1
HARNESS; CAB
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98210-956-0
01
1
1208-1208
1
HARNESS; CAB
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98167-170-0
01
1
1209-
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> THA
8-98167-169-0
01
1
1004-1104
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98167-169-0
01
1
1105-1207
1
HARNESS; CAB
VIN MODEL YEAR 2010<VZA> EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>,CORNERING LAMP<T87> THA
8-98167-170-0
01
1
1004-1104
1
HARNESS; CAB
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98167-170-0
01
1
1105-1207
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98122-417-1
01
1
0901-1003
1
HARNESS; CAB
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> THA
8-98122-417-1
01
1
1004-1104
1
HARNESS; CAB
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> THA
8-98127-761-0
01
1
0901-1003
1
HARNESS; CAB
CORNERING LAMP<T87> EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>,VIN MODEL YEAR 2010<VZA> THA
8-98127-761-0
01
1
1004-1104
2
DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A THA
8-94422-639-1
AR
1
0901-
2
DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A THA
8-94422-640-1
AR
1
0901-
4
BOX ASM; FUSE,HARNESS
THA
8-98067-619-1
01
1
0901-
5
FUSE; FACIA HARNESS
10A RED THA
8-98054-257-0
AR
1
0901-
5
FUSE; FACIA HARNESS
15A BLUE THA
8-98054-258-0
AR
1
0901-
5
FUSE; FACIA HARNESS
20A YELLOW THA
8-98054-259-0
AR
1
0901-
28
SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0901-
29
COVER; FUSE BOX
THA
8-98056-968-0
01
1
0901-
41
PULLER; FUSE
THA
8-98054-260-0
01
1
0901-
293
NUT
M6 FLANGE THA
0-91180-106-0
04
1
0901-1207
293
NUT
M6 FLANGE THA
0-91180-106-0
04
1
1208-
453
PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
0901-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
04
1
0901-
453
PROTECTOR; HARNESS
(B) THA
8-98031-850-1
01
1
0901-
453
PROTECTOR; HARNESS
(C) THA
8-98031-851-2
01
1
0901-
693
RELAY; FUSE BOX
24V 10A PANASONIC THA
8-97173-035-1
AR
1
0901-
694
BOX ASM; CONNECTOR
THA
8-98057-772-0
01
1
0901-

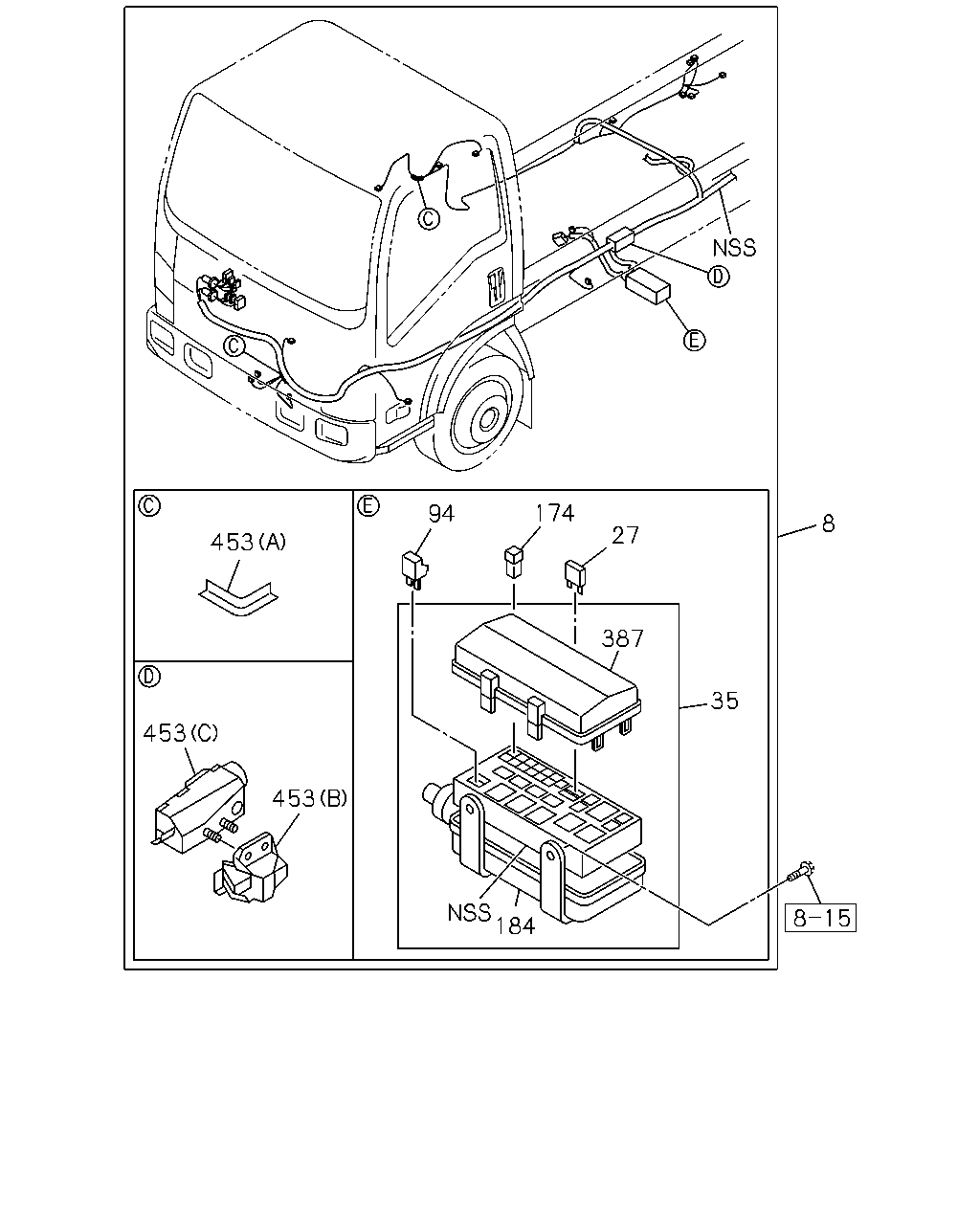

453
453
453
94
174
27
8
387
35
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-98113-867-2
01
1
0901-
27
FUSE UNIT
10A RED THA
8-98054-257-0
AR
1
0901-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
AR
1
0901-
35
BOX; RELAY & FUSE
THA
8-98030-763-0
01
1
0901-
94
DIODE; FRAME HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
01
1
0901-
94
DIODE; FRAME HARNESS
3.0A
8-98005-936-0
02
1
0901-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
AR
1
0901-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
AR
1
0901-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
AR
1
0901-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
AR
1
0901-
184
COVER; RELAY & FUSE BOX
THA
8-98030-766-0
01
1
0901-
387
COVER; RELAY BOX
8-98081-367-0
01
1
0901-
453
PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
0901-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
04
1
0901-
453
PROTECTOR; HARNESS
(B) THA
8-98031-850-1
01
1
0901-
453
PROTECTOR; HARNESS
(C) THA
8-98031-851-2
01
1
0901-

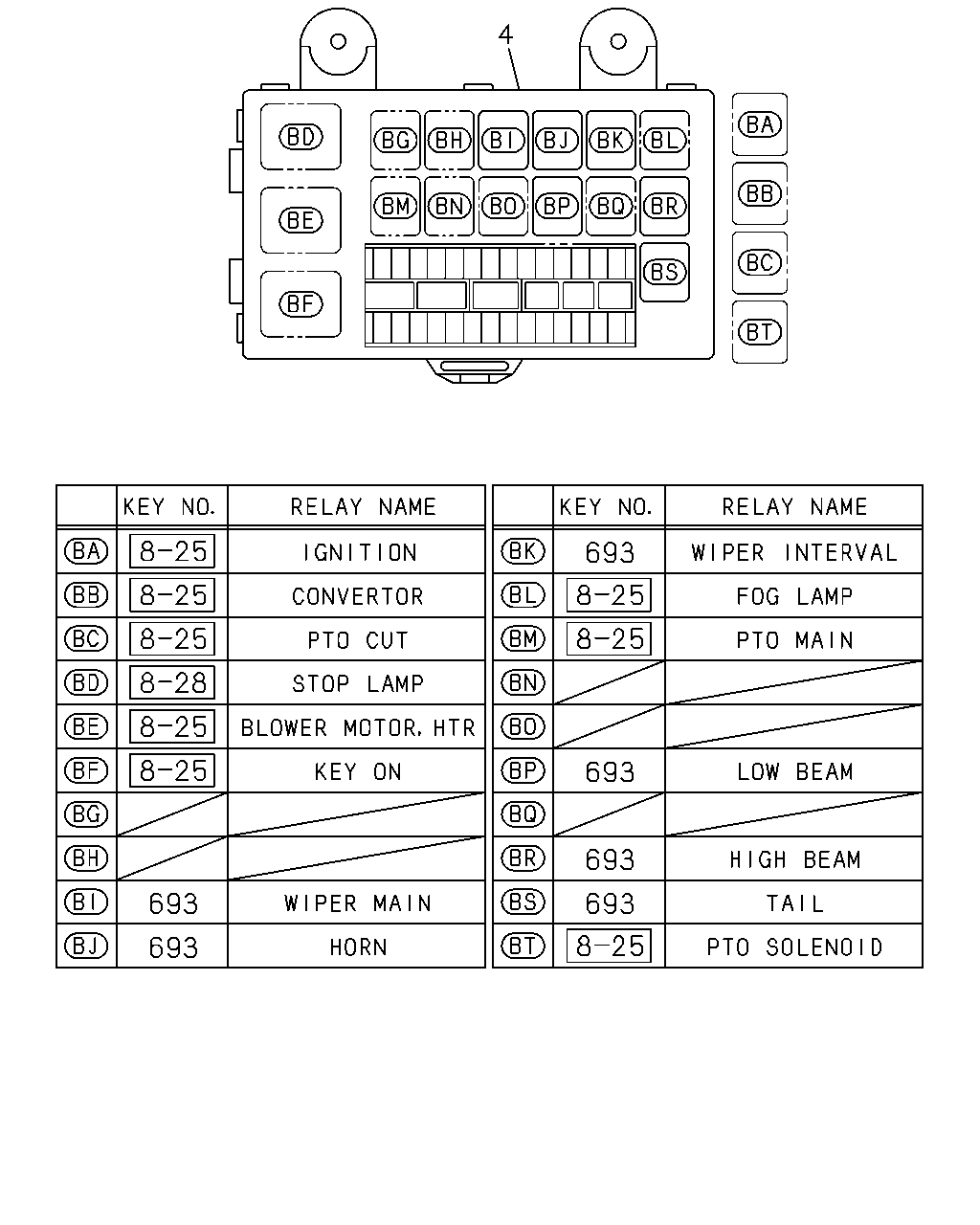

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
THA
8-98067-619-1
01
1
0901-
693
RELAY; FUSE BOX
24V 10A PANASONIC THA
8-97173-035-1
AR
1
0901-

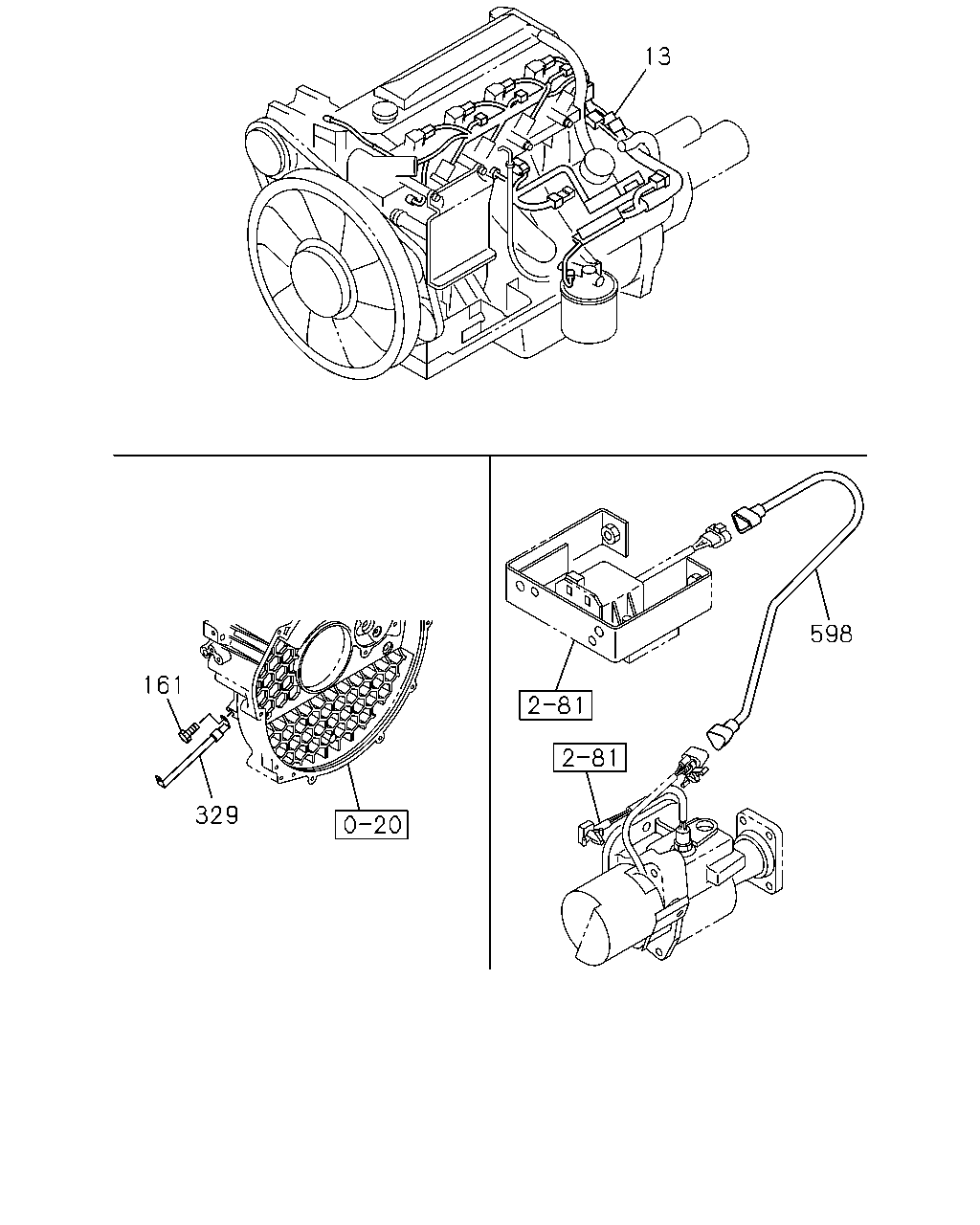

13
161
329
598
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
8-98114-076-0
01
1
0901-1002
13
HARNESS; ENG
8-98157-696-0
01
1
1003-
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
0901-
329
CABLE; ENG TO FRAME
THA
8-97924-805-0
01
1
0901-
598
HARNESS; EXT,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR>
8-98123-454-1
01
1
0901-
13
598
329
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
8-98114-076-0
01
1
0901-1002
13
HARNESS; ENG
8-98157-696-0
01
1
1003-
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
0901-
329
CABLE; ENG TO FRAME
THA
8-97924-805-0
01
1
0901-
598
HARNESS; EXT,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR>
8-98123-454-1
01
1
0901-
