Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

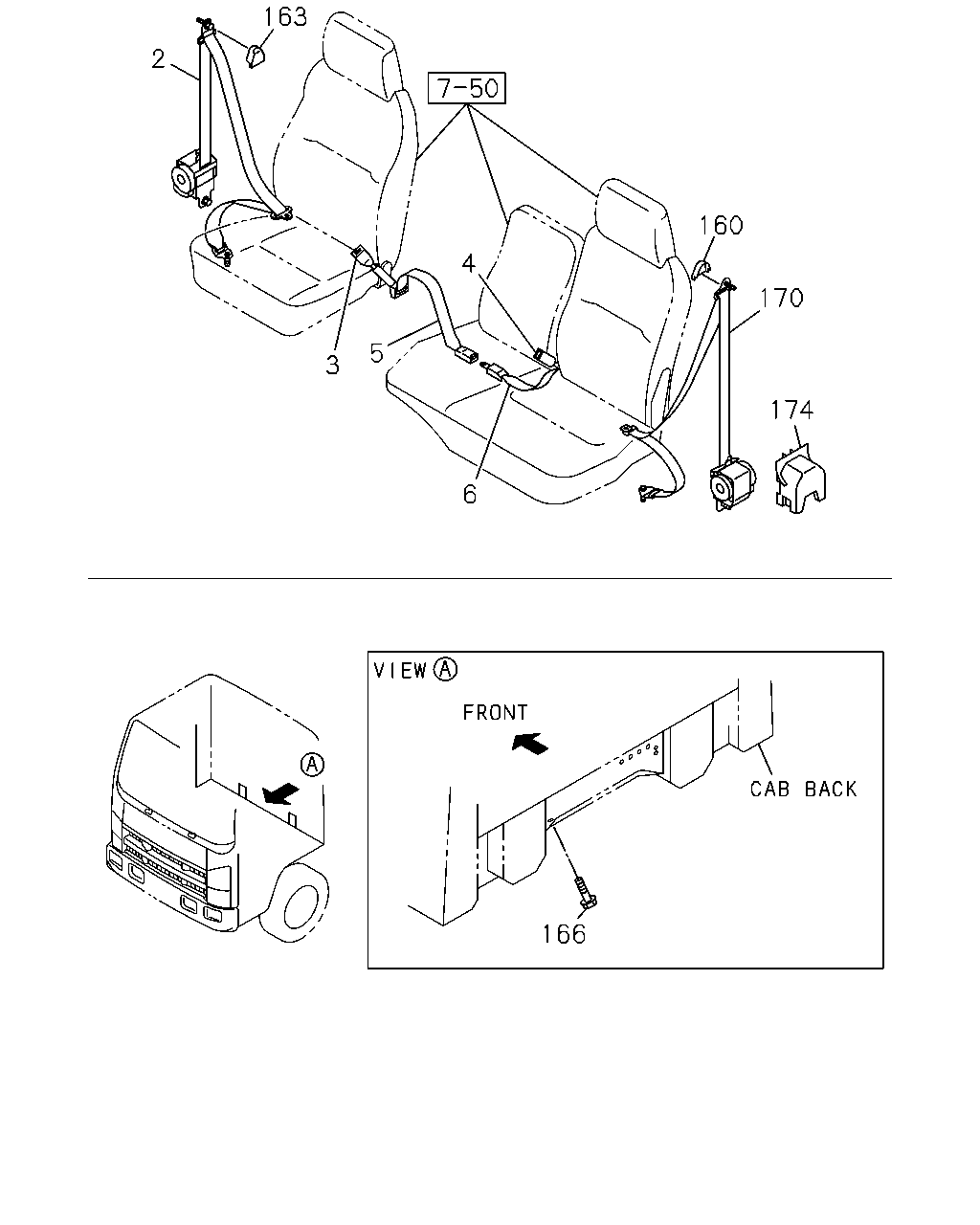

7-60 — SEAT BELT
(#32324) — 20 parça
163
2
160
4
170
5
3
174
6
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97405-180-5
01
1
0901-0906
2
BELT; SEAT,TONGUE SIDE
GRAY THA
8-97417-607-0
01
1
0907-1112
2
BELT; SEAT,TONGUE SIDE
GRAY THA
8-97423-503-0
01
1
1201-
3
BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-1
01
1
0901-0906
3
BELT; SEAT,BUCKLE SIDE
GRAY THA
8-97417-606-0
01
1
0907-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97405-178-0
01
1
0901-0906
4
BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY THA
8-97417-610-0
01
1
0907-
5
BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97405-182-1
01
1
0901-0906
5
BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA
8-97417-608-0
01
1
0907-
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97405-183-2
01
1
0901-0906
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY THA
8-97417-609-0
01
1
0907-1112
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY THA
8-97423-504-0
01
1
1201-
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
0901-
163
COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
0901-
166
BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA
0-28050-820-0
02
1
0901-1207
166
BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA
0-28050-820-0
02
1
1208-
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97405-180-5
01
1
0901-0906
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA
8-97417-607-0
01
1
0907-1112
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA
8-97423-503-0
01
1
1201-
174
COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
0901-
