◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#32323) — 49 parça

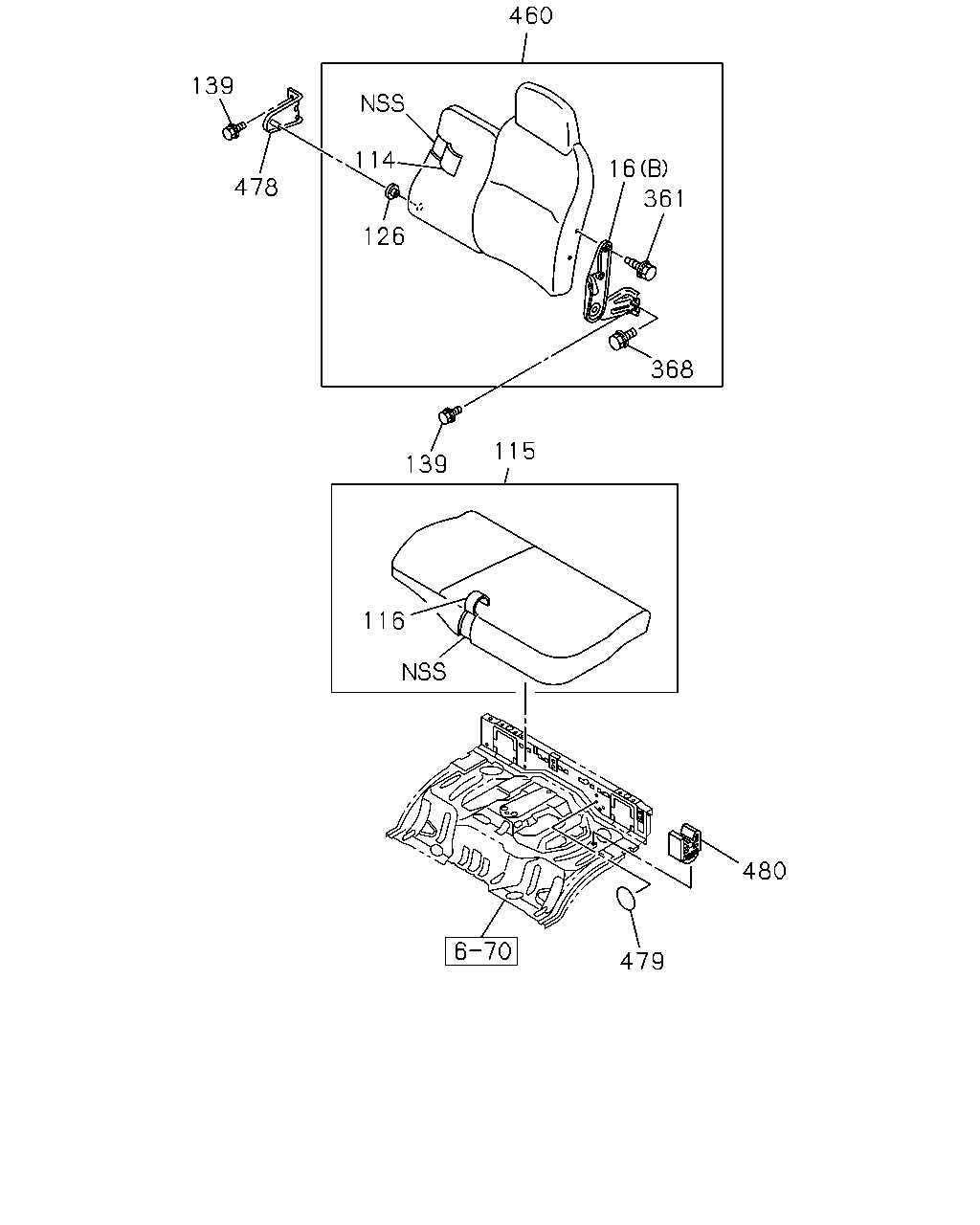

çizim 123694
460 139 114 16 478 361 126 368 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0901-
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0901-
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-277-0 01 1 1209-
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-477-0 01 1 0901-1002
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-477-0 01 1 1004-1104
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97924-743-0 01 1 0901-1002
115 CUSHION ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-743-0 01 1 1004-1104
115 CUSHION ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-270-0 01 1 1004-1104
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97925-270-0 01 1 1105-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97925-275-0 01 1 1209-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97924-744-0 01 1 0901-1002
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-744-0 01 1 1004-1104
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 01 1 1209-
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 01 1 0901-
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER THA 		8-98031-841-0 03 1 0901-
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 02 1 1209-
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 02 1 0901-
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 01 1 1209-
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 01 1 0901-
460 BACK ASM; PASSENGER SEAT
THA 		8-97924-465-2 01 1 0901-1002
460 BACK ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-465-2 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-272-0 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
THA 		8-97925-272-0 01 1 1105-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-186-0 01 1 0901-
479 PLUG; HINGE
OD=25 BLACK THA 		1-76798-019-0 02 1 0901-
480 CLIP; CUSHION 8-94279-977-0 05 1 0901-

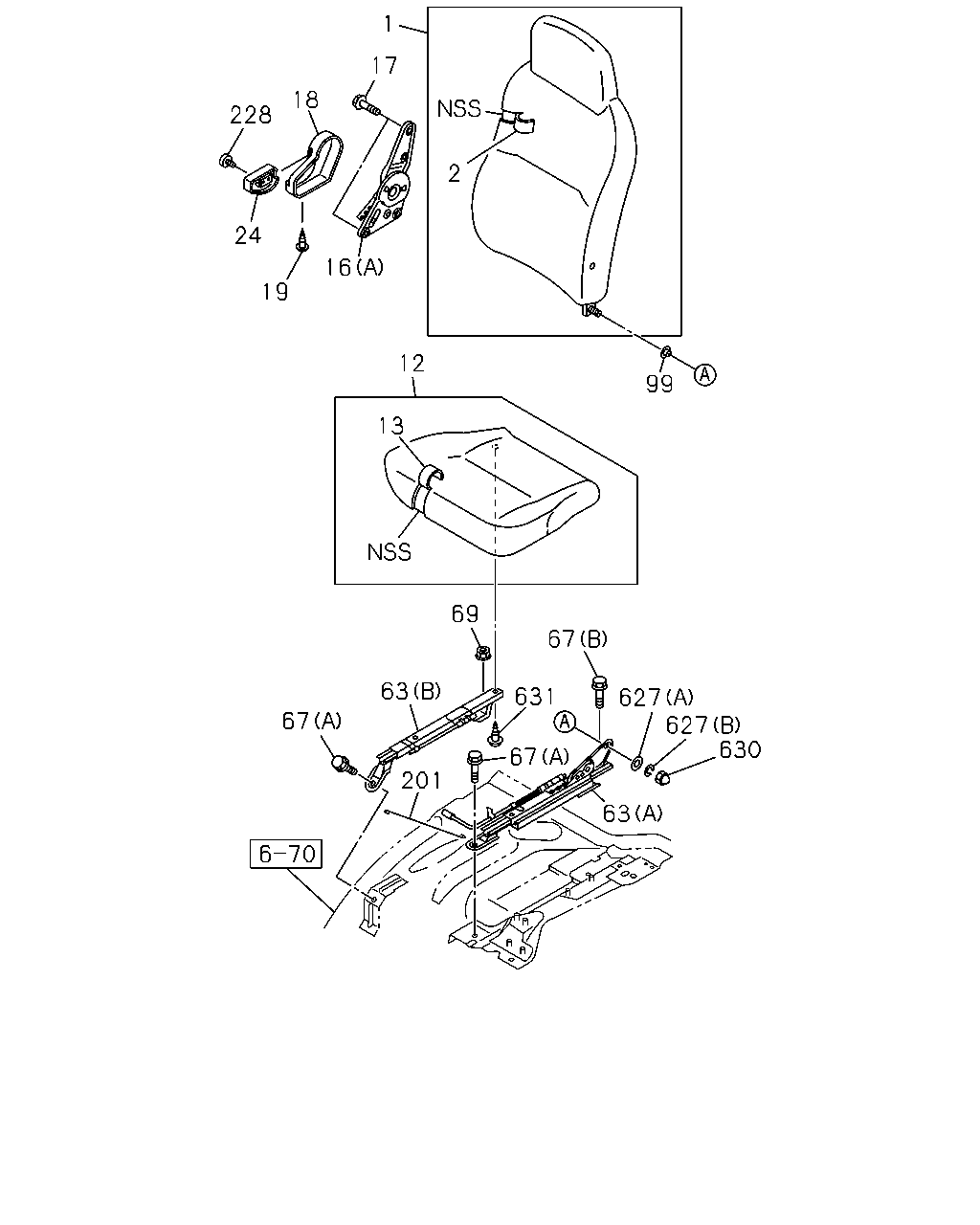

çizim 123698
1 17 18 228 2 24 16 19 12 99 13 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
THA 		8-97924-733-0 01 1 0901-
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-740-0 01 1 0901-
12 CUSHION; SEAT,FRT
THA 		8-97924-741-1 01 1 0901-
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-742-0 01 1 0901-
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0901-
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0901-
17 BOLT; RECLINING
M10X20 THA 		8-98062-661-0 04 1 0901-
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 0901-
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 0901-
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 0901-
63 ADJUSTER; SEAT SLIDE
(A) INNER THA 		8-97382-800-2 01 1 0901-
63 ADJUSTER; SEAT SLIDE
(B) OUTER THA 		8-97382-801-1 01 1 0901-
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0901-
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0901-
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0901-
99 BUSHING; SEAT BACK
THA 		8-98112-751-0 01 1 0901-
201 CABLE; ADJ
THA 		8-98003-086-1 01 1 0901-
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 0901-
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 0901-
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 0901-
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 0901-
631 BOLT; ADJ,SEAT
M8X25 W/LK WASHER THA 		8-98062-658-0 02 1 0901-
631 BOLT; ADJ,SEAT
M8X32 W/LK WASHER THA 		8-98062-659-0 02 1 0901-
