7-40 — INSTRUMENT PANEL AND BOX (#32320) — 125 parça

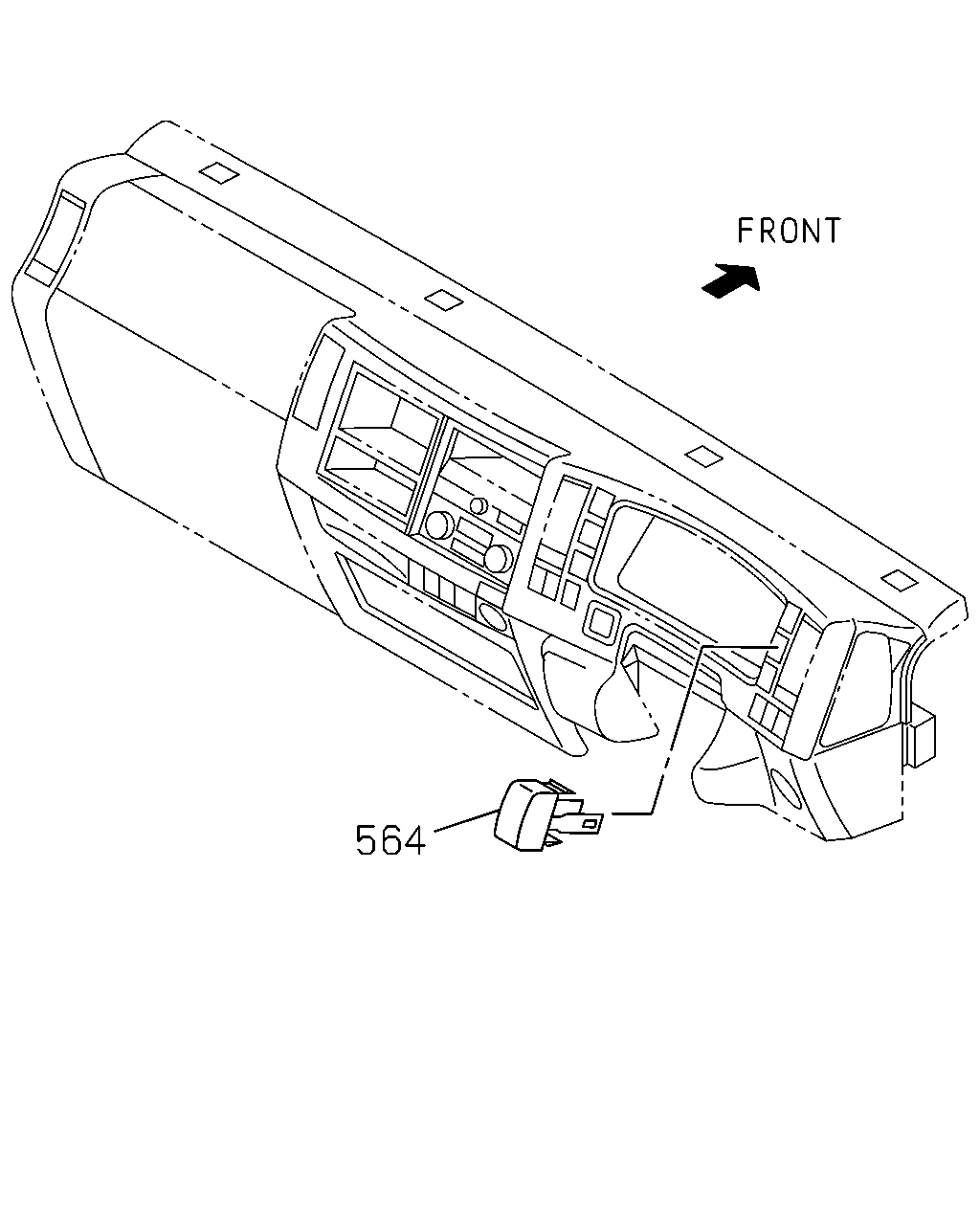

çizim 123682
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW 8-98025-954-1 03 1 0901-

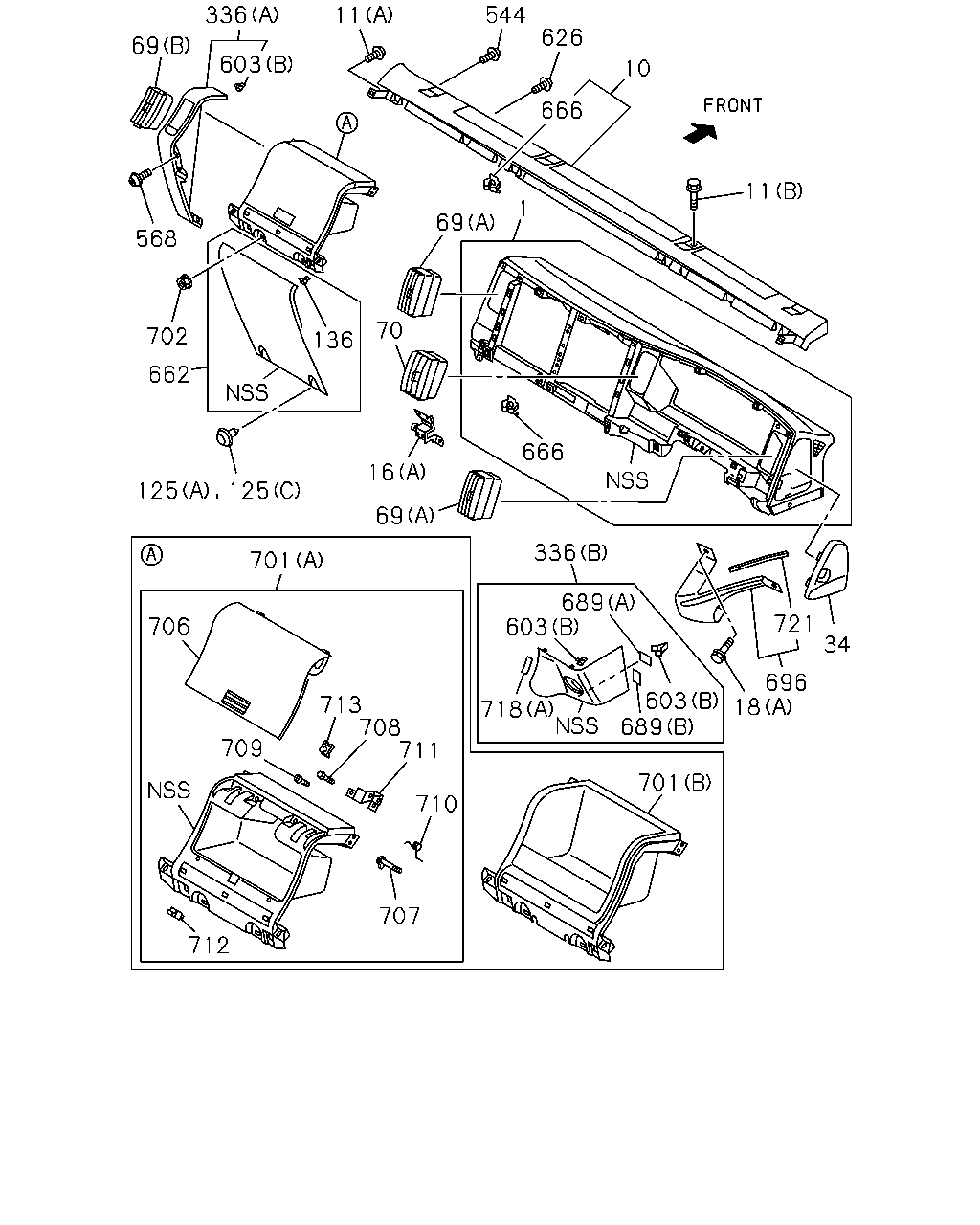

çizim 123706
336 544 11 626 69 603 10 666 11 1 69 568 70 702 136 662 666 16 125 125 69 336 701 689 603 721 706 34 696 18 603 689 713 708 711 718 709 701 710 707 712
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 0901-
10 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0901-1003
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0901-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0901-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0901-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0901-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0901-
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0901-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0901-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0901-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0901-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0901-1011
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012-
136 CLIP; INST COVER 8-98021-271-0 05 1 0901-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0901-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0901-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0901-
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0901-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0901-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0901-
662 COVER; LWR,INST PANEL
GRAY 		8-97414-903-1 01 1 0901-
666 INSERT; INST PANEL 8-98037-629-0 17 1 0901-1003
666 INSERT; INST PANEL 8-98037-629-0 15 1 1004-
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0901-
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0901-
696 BRACKET; KNEE 8-97589-189-4 01 1 0901-1211
696 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-090-1 01 1 1105-
701 TRAY; INST
(A) GRAY 		8-97406-268-4 01 1 0901-1104
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97406-268-4 01 1 1105-
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 0901-1207
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1208-
706 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0901-1104
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97409-510-0 01 1 1105-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0901-1104
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1105-1311
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0901-1104
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1105-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 0901-1104
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING THA 		0-71040-516-0 04 1 1105-
710 SPRING; TRAY INST LID 8-98034-986-0 01 1 0901-1104
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1105-1311
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-398-0 01 1 1312-
710 SPRING; TRAY INST LID 8-98034-987-0 01 1 0901-1104
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1105-1311
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-399-0 01 1 1312-
711 HOLDER ASM; LID 8-98034-928-0 01 1 0901-1104
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1105-1311
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-396-0 01 1 1312-
711 HOLDER ASM; LID 8-98034-929-0 01 1 0901-1104
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1105-1311
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-397-0 01 1 1312-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0901-1104
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1105-
713 NUT; TRAY INST LID
M5 		1-09984-196-0 04 1 0901-1104
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5 		1-09984-196-0 04 1 1105-1311
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5 THA 		8-97926-400-0 04 1 1312-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0901-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0901-1211
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

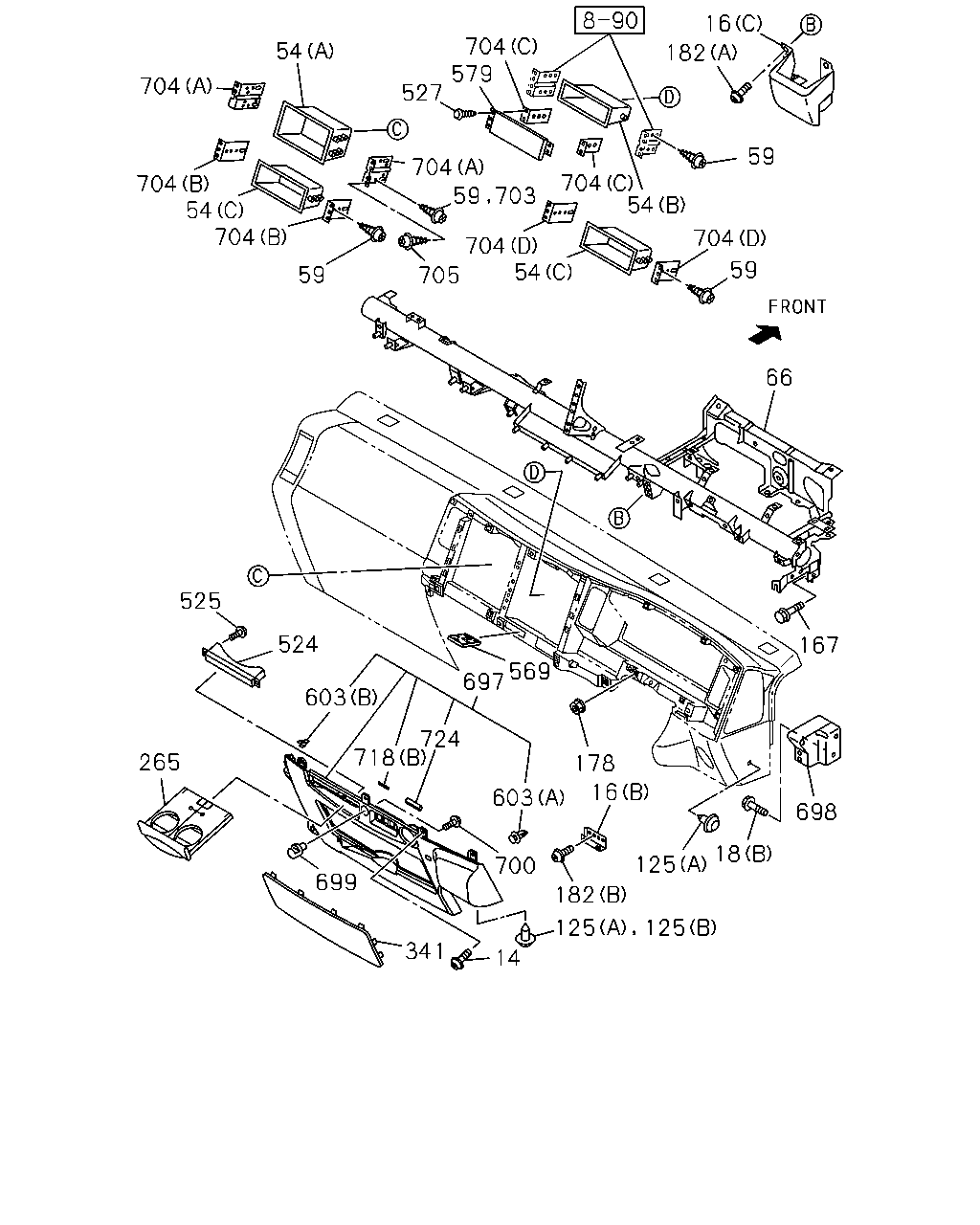

çizim 123708
14 341 125 125 182 700 125 18 16 698 178 603 718 724 697 569 167 603 524 525 265 66 59 704 54 704 59 182 16 704 579 704 527 59 703 704 54 705 59 704 54 704 704 54 699
BalonParca AdiParca NoAdetTipApplied Date
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0901-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0901-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0901-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0901-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0901-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0901-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0901-0910
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0911-
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) H=69.8 BLACK 		8-97408-865-3 01 1 0911-
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0901-
66 REINFORCEMENT; INST PANEL 8-98105-263-4 01 1 0901-1204
66 REINFORCEMENT; INST PANEL 8-98199-356-0 01 1 1205-1211
66 REINFORCEMENT; INST PANEL 8-98199-364-1 01 1 1212-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0901-1011
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0901-
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 0901-1207
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 1208-
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 0901-
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0901-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0901-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97406-265-3 01 1 0901-1205
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0901-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0901-
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> DARK GRAY 		8-97098-326-0 01 1 0901-
569 HOLDER; CARD 8-97410-276-1 01 1 0901-
579 COVER; INST PNL
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> BLACK 		8-97408-909-0 01 1 0901-0911
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0901-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0901-
697 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0901-1205
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0901-
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0901-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0901-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0901-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D) 		8-98107-549-0 02 1 0912-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0901-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0901-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) 		8-98073-822-0 02 1 0901-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0901-
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0901-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0901-
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-
