◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#32318) — 88 parça

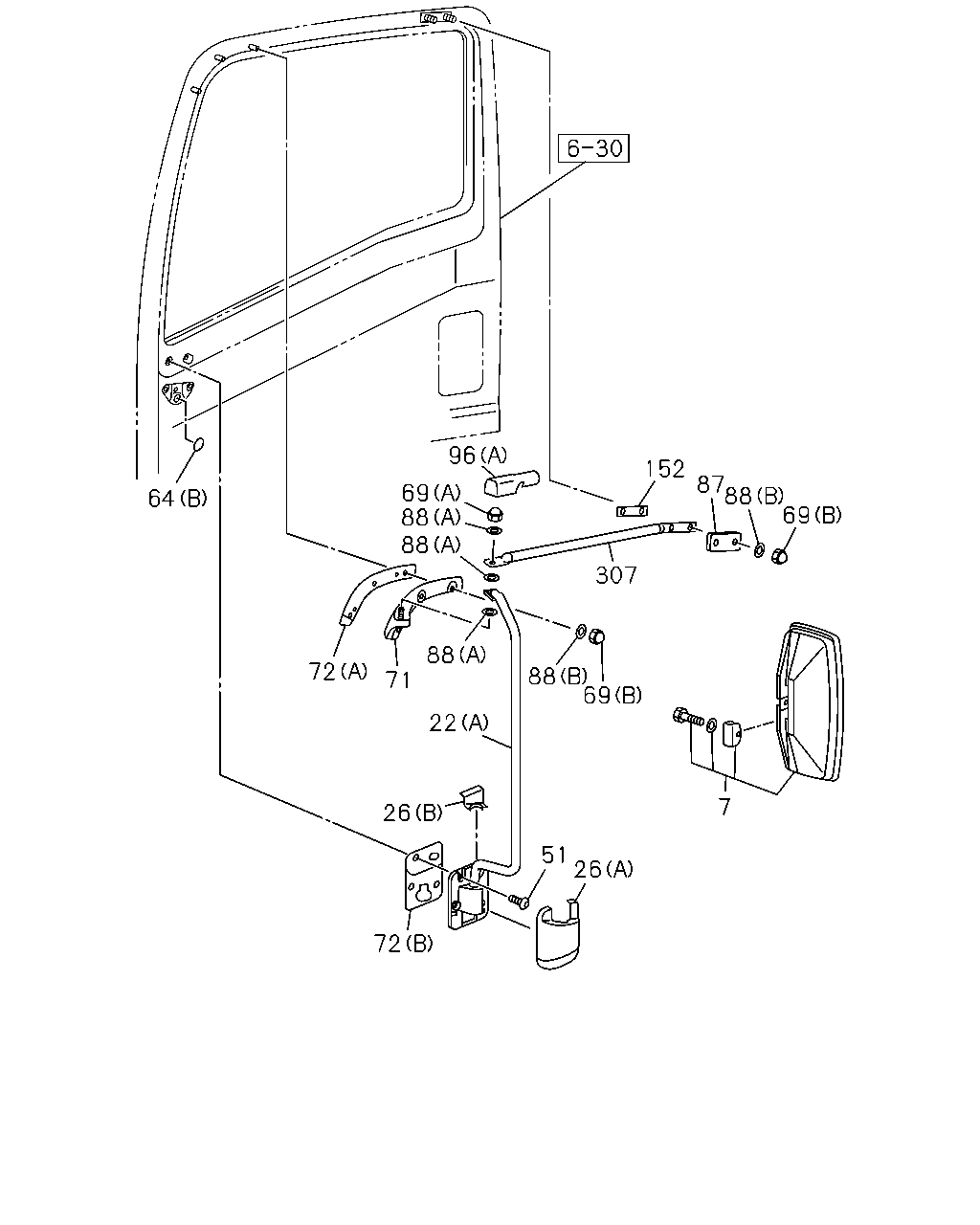

çizim 123680
96 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 0901-1011
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 1012-1104
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 0901-1011
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 1012-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-082-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0901-1104
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 		8-97310-216-1 08 1 0901-1104
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0901-1104
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0901-1104
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0901-1104
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0901-1104
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 0901-1104
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 0901-1104
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0901-1104
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0901-1104
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0901-1104
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 0901-1104
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0901-1104
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-1104
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0901-1003
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105-
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 0901-1104
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 0901-1104
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 0901-1104

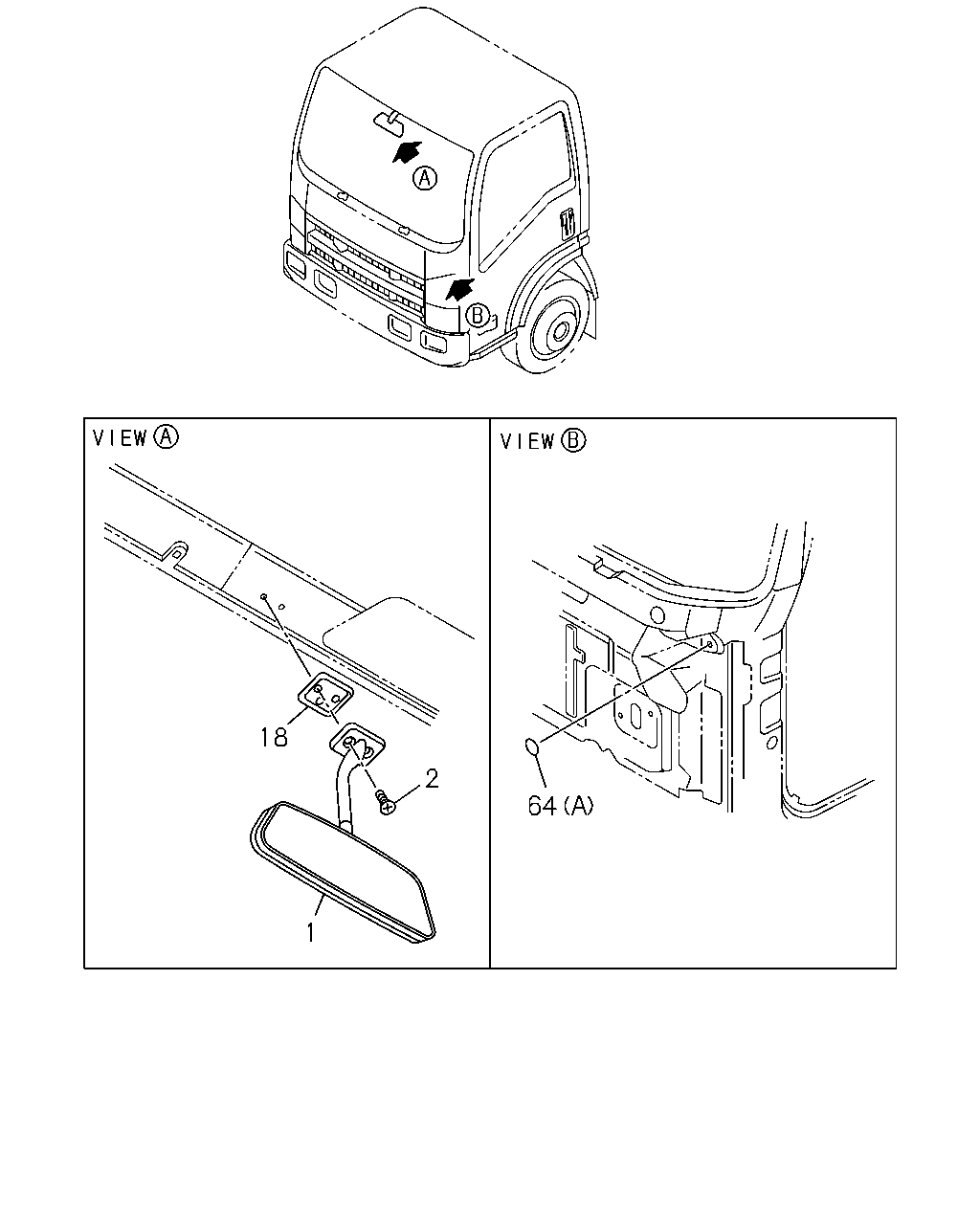

çizim 123732
18 2 64 1
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 0901-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0901-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0901-1003
18 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1004-1004
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1005-
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) OD=25 BLACK THA 		1-76798-019-0 02 1 0901-1104
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=52 BLACK THA 		1-76798-041-0 02 1 0901-1104

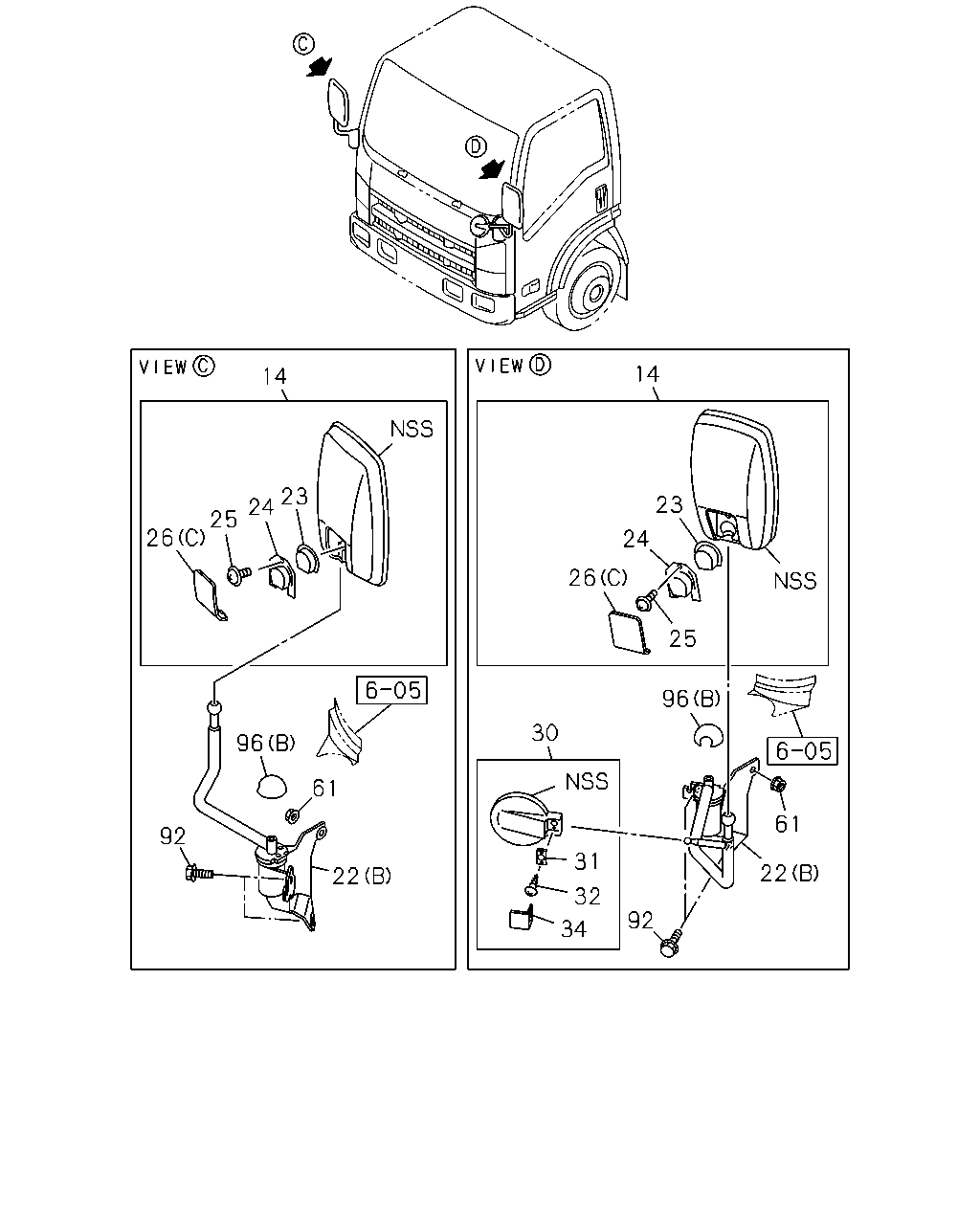

çizim 123762
14 14 23 24 23 25 26 24 26 25 96 30 96 61 61 92 31 22 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105-
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-082-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0901-1104
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1105-
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1105-
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1105-
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1105-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1105-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1105-
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 04 1 1105-
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0901-1003
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
