Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

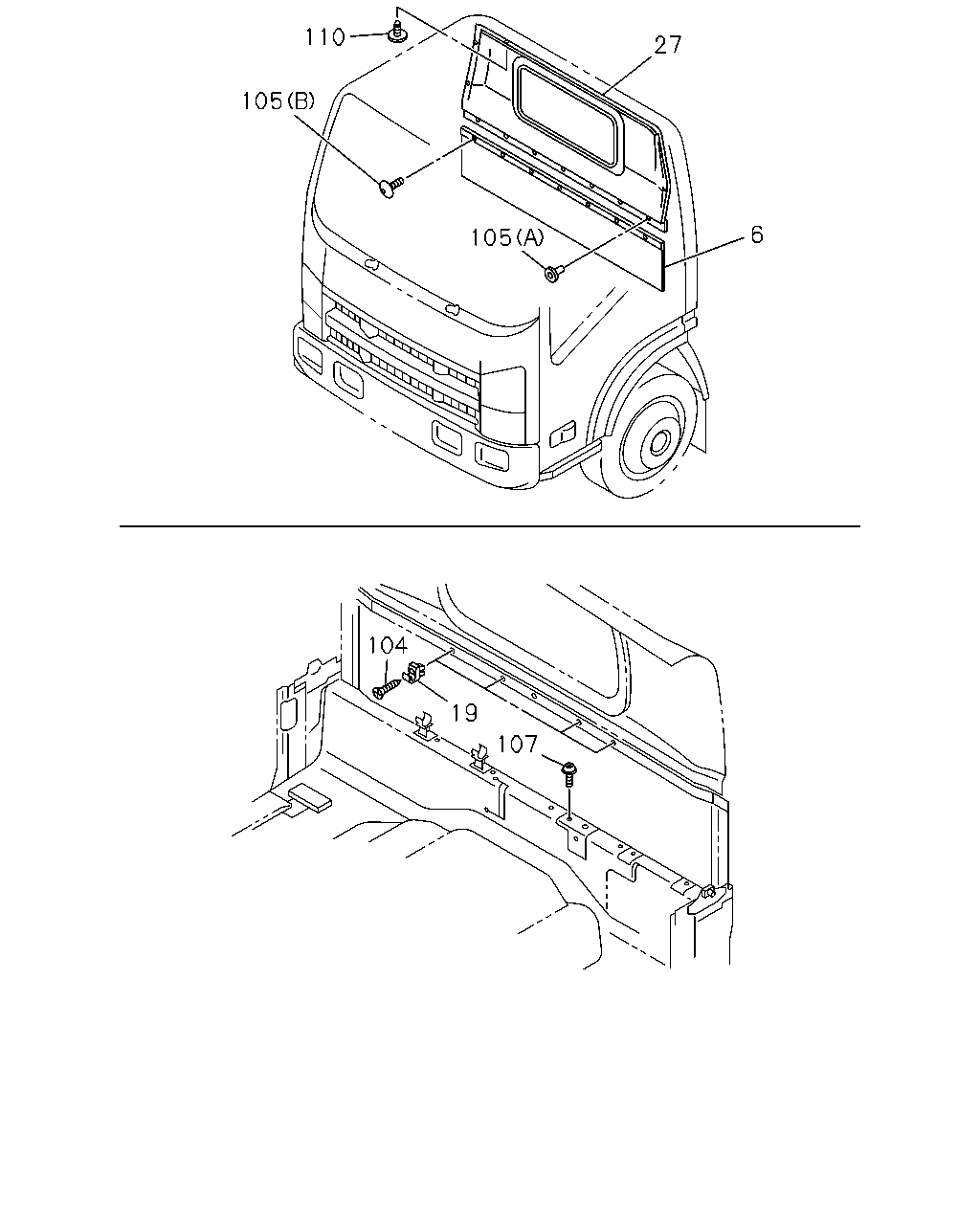

6-84 — BACK TRIM
(#32314) — 12 parça
110
27
105
6
105
104
19
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
MAT; SILENCER,CAB BACK
THA
8-97924-653-0
01
1
0901-
19
HOOK; RET
GRAY
8-97406-042-0
04
1
0901-
27
COVER; TRIM,BACK
DARK GRAY
8-97406-430-1
01
1
0901-1003
27
COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY
8-97406-430-2
01
1
1004-1104
104
SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
04
1
0901-
105
CLIP; BACK TRIM
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) GRAY
8-97405-295-0
04
1
1004-1104
105
CLIP; BACK TRIM
(B) GRAY
8-97405-295-0
04
1
1105-
105
CLIP; BACK TRIM
(A)
8-98033-680-0
04
1
0901-1003
105
CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> (A)
8-98033-680-0
04
1
1004-1104
107
SCREW; BRKT
M6X16
0-38050-616-0
01
1
0901-
110
CLIP; TRIM COVER
GRAY
8-97406-433-0
04
1
0901-1003
110
CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> GRAY
8-97406-433-0
04
1
1004-1104
