Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶

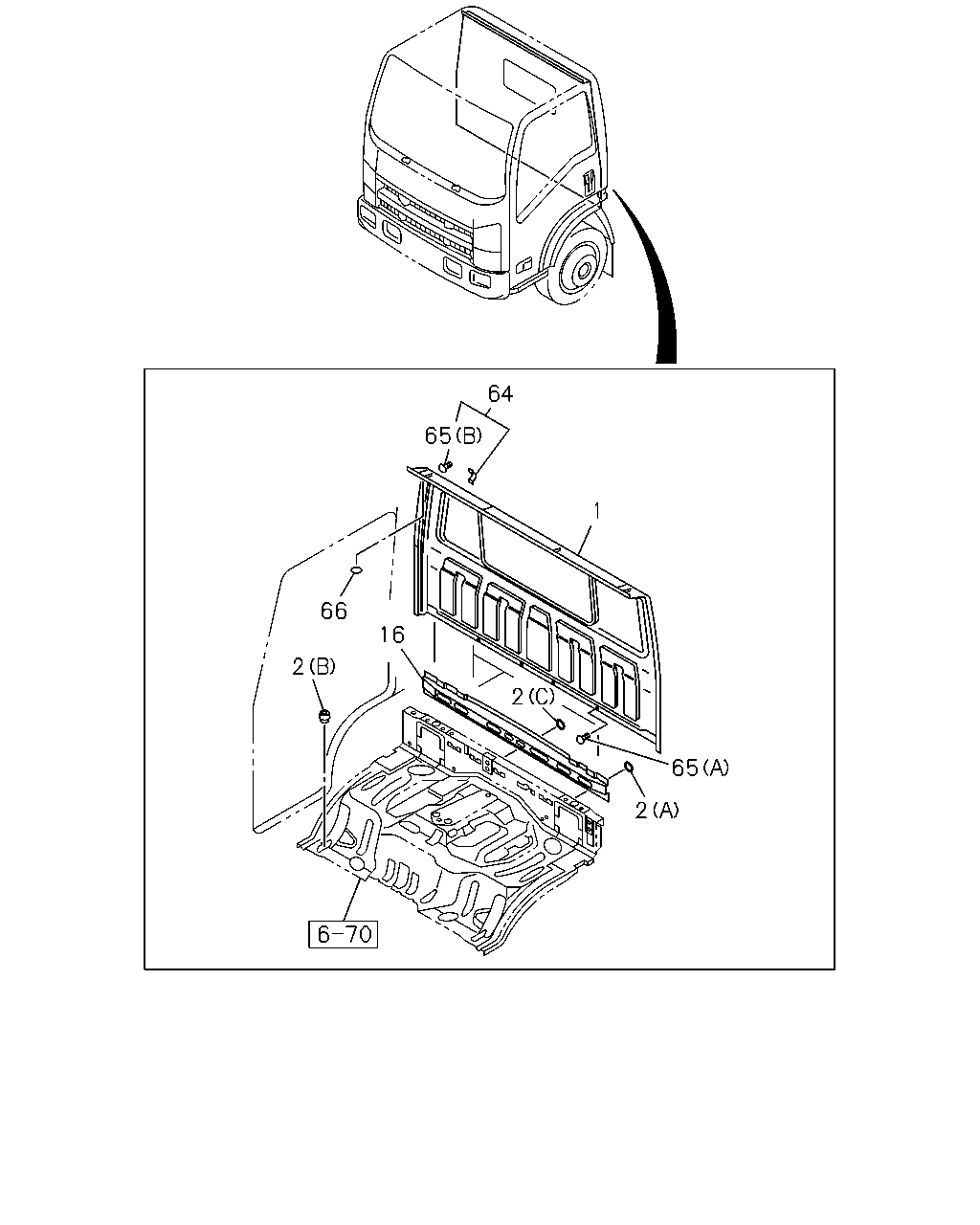

6-80 — BACK PANEL
(#32312) — 16 parça
64
65
1
66
16
2
2
65
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; BACK OUTER
THA
8-97584-300-3
01
1
0901-
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK THA
1-76798-019-0
02
1
0901-
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1
8-97898-423-0
04
1
0901-
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK
8-98031-126-0
08
1
0901-
16
REINFORCEMENT; BACK OUTER PNL
THA
8-97584-607-3
01
1
0901-
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
0901-1207
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
1208-
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
1208-
65
STUD; BACK PANEL
(B) THA
8-94389-701-0
01
1
0901-
65
STUD; BACK PANEL
(A) M6X12
8-98013-112-0
04
1
0901-
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE<951> COAT HOOK<S9M> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE
8-98059-421-0
03
1
1005-1104
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE<951> EXC. COAT HOOK<S9M>,VIN MODEL YEAR 2010<VZA>, INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE
8-98059-421-0
04
1
1005-1104
66
SEAL; BACK PANEL
BODY COLOR TRANS BLUE<999> COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK
5-76777-036-0
03
1
1004-1004
66
SEAL; BACK PANEL
BODY COLOR TRANS BLUE<999> COAT HOOK<S9M> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK
5-76777-036-0
03
1
1005-1104
66
SEAL; BACK PANEL
BODY COLOR TRANS BLUE<999> EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK
5-76777-036-0
04
1
1004-1004
66
SEAL; BACK PANEL
BODY COLOR TRANS BLUE<999> EXC. COAT HOOK<S9M>,VIN MODEL YEAR 2010<VZA>, INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK
5-76777-036-0
04
1
1005-1104
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
