Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

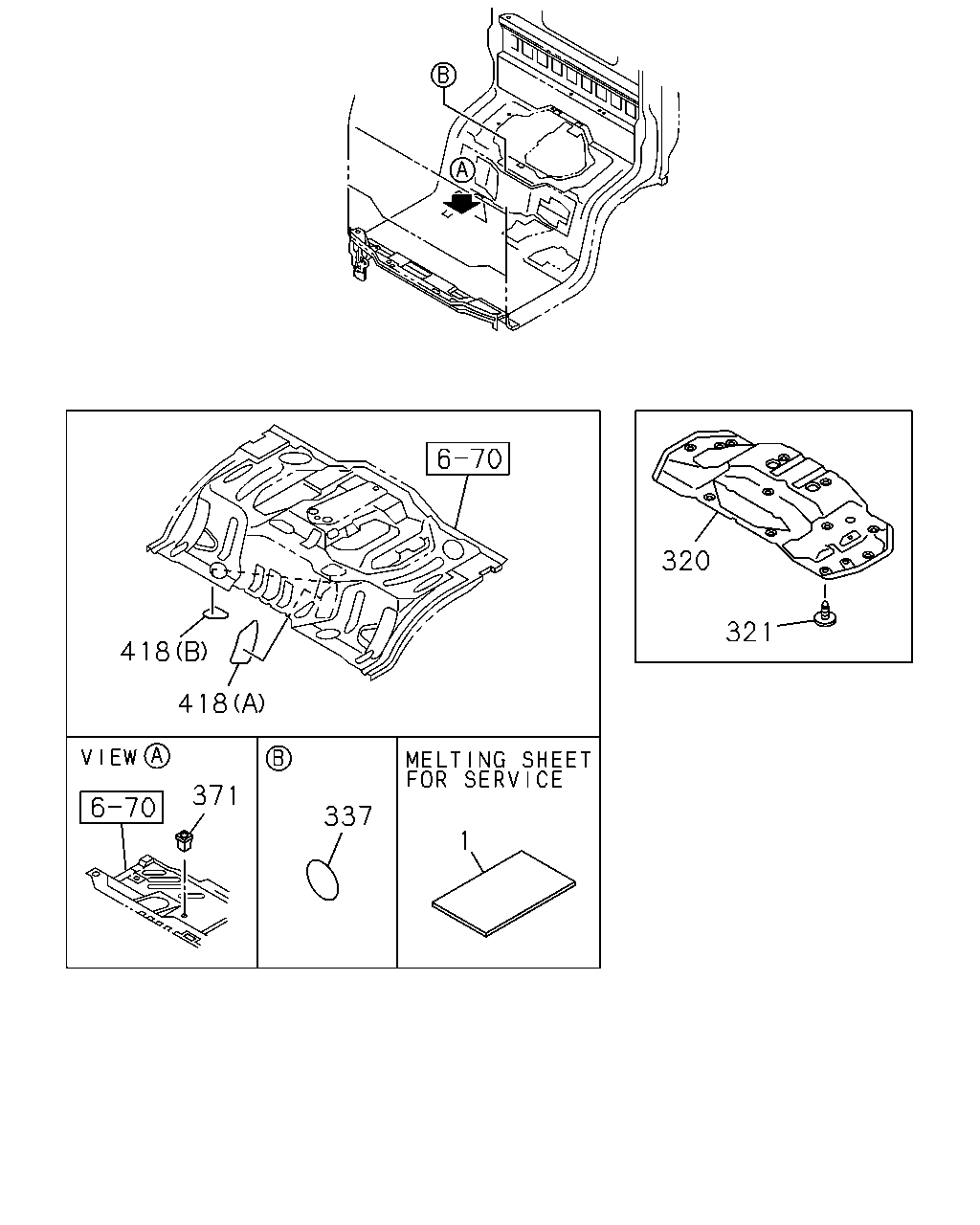

6-76 — FLOOR EQUIPMENT AND SEALING
(#32310) — 15 parça
320
321
418
418
371
337
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
0901-
320
INSULATOR; FLOOR,FRT
THA
8-97924-156-0
01
1
0901-1405
320
INSULATOR; FLOOR,FRT
THA
8-98285-271-0
01
1
1406-
321
CLIP; INSULATOR,FLOOR
ID=6.2 L=11.4 THA
8-97808-623-0
14
1
0901-
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
04
1
0901-
337
SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
08
1
0901-
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK
8-94279-714-0
02
1
0901-
418
SEAL; PROTECTOR
(A) THA
8-98090-191-1
01
1
0901-
418
SEAL; PROTECTOR
(A) THA
8-98090-192-1
01
1
0901-
418
SEAL; PROTECTOR
(B) THA
8-98138-274-0
01
1
0901-1212
418
SEAL; PROTECTOR
(B) THA
8-98138-274-0
02
1
1301-1302
418
SEAL; PROTECTOR
(B) THA
8-98138-274-1
01
1
1303-
418
SEAL; PROTECTOR
(B) THA
8-98138-275-0
01
1
0901-1212
418
SEAL; PROTECTOR
(B) THA
8-98138-275-0
02
1
1301-1302
418
SEAL; PROTECTOR
(B) THA
8-98138-275-1
01
1
1303-
