◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

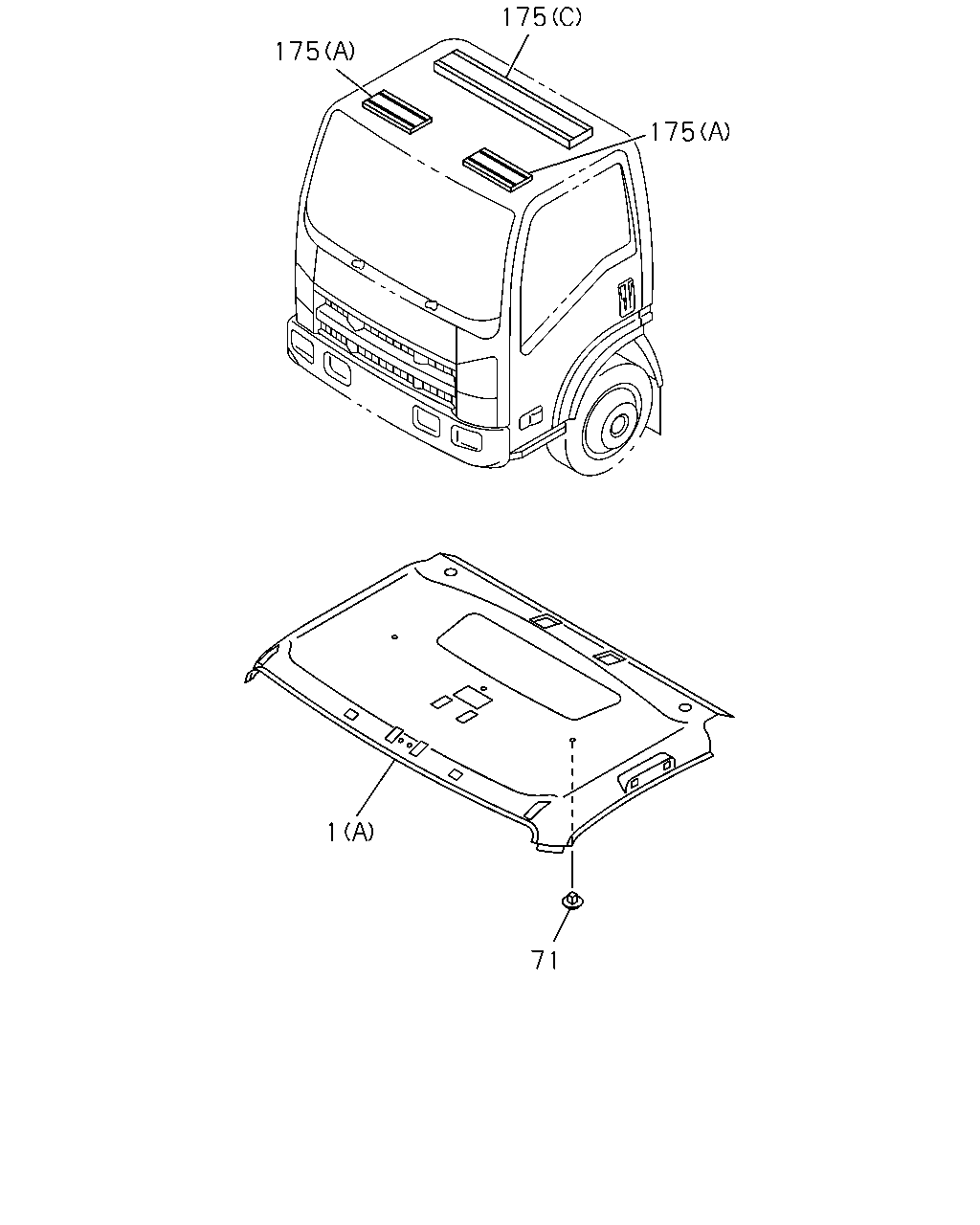

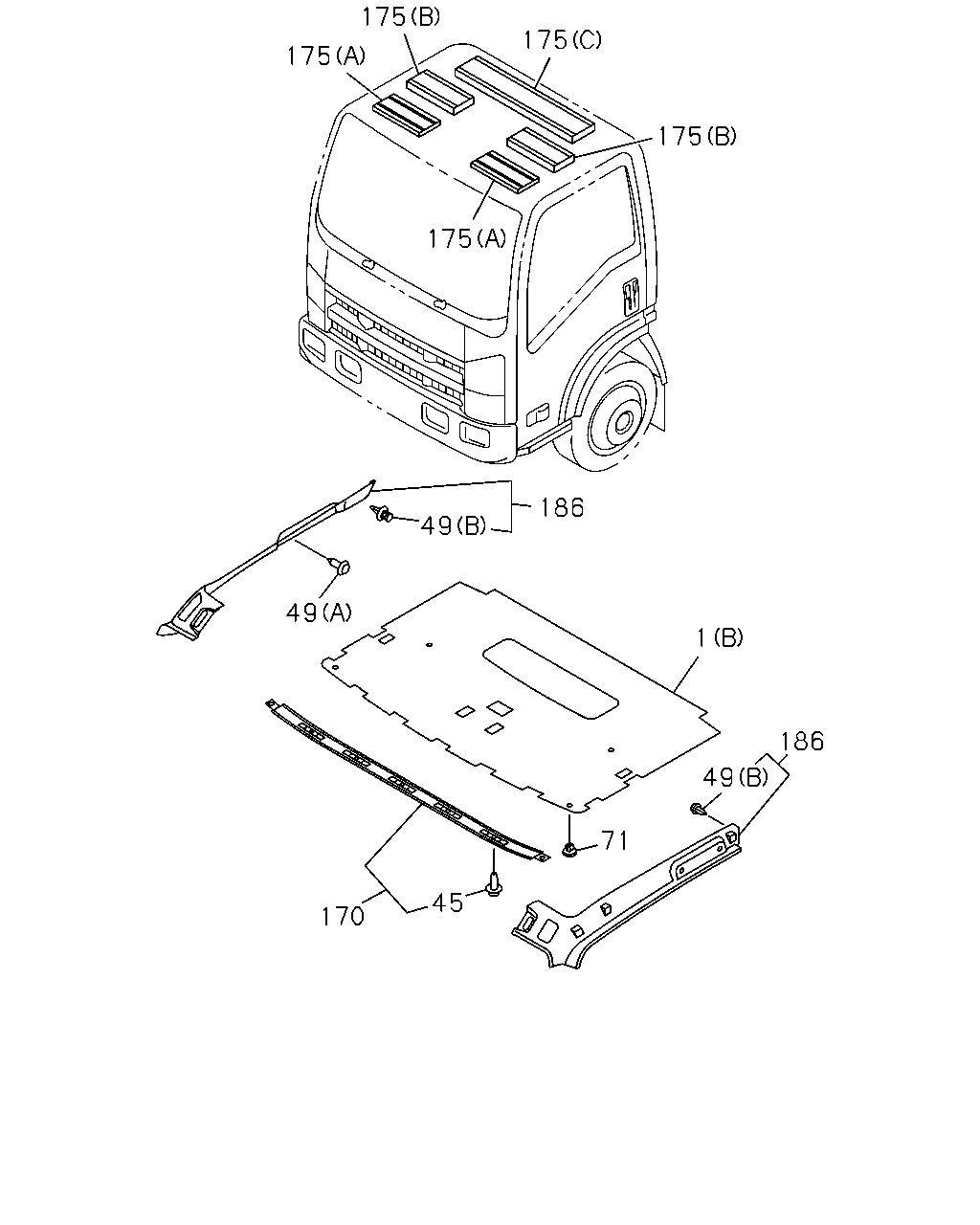

6-66 — HEAD LINING AND TRIM (#32307) — 112 parça

175 175 175 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-280-5	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-280-6	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-282-5	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY THA	8-97406-282-6	01	1	1005-1104
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-277-4	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1004-1004
1	LINING; HD VIN MODEL YEAR 2010<VZA> HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97409-859-1	01	1	1005-1104
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1105-1211
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97425-050-0	01	1	1212-
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1004-1004
1	LINING; HD VIN MODEL YEAR 2010<VZA> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-284-4	01	1	1005-1104
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1105-1211
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY THA	8-97425-043-0	01	1	1212-
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1004-1004
71	FASTENER; HD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0901-1003
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1004-1004
71	FASTENER; HD LINING COAT HOOK<S9M> VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1105-
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1004-1004
71	FASTENER; HD LINING VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1005-1104
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1005-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1105-
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1004-1004
71	FASTENER; HD LINING VIN MODEL YEAR 2010<VZA> EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1005-1104
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1005-1104
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1105-
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1004-1004
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1004-1005
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1006-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1004
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1005
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1006-1104
175	CUSHION; HEAD LINING (C) THA	8-97924-863-0	01	1	0901-1003
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1004
175	CUSHION; HEAD LINING SUNVISOR PASSENGER SIDE<D20> VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1010
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1010
175	CUSHION; HEAD LINING VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1011-1104
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1011-1104
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0901-1005
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	1006-1104

175 175 175 175 175 186 49 49 1 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-280-5	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-280-6	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97406-282-5	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY THA	8-97406-282-6	01	1	1005-1104
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-277-4	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1004-1004
1	LINING; HD VIN MODEL YEAR 2010<VZA> HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97409-859-1	01	1	1005-1104
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-859-1	01	1	1105-1211
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97425-050-0	01	1	1212-
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1004-1004
1	LINING; HD VIN MODEL YEAR 2010<VZA> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-284-4	01	1	1005-1104
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1005-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-284-4	01	1	1105-1211
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY THA	8-97425-043-0	01	1	1212-
45	CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1004-1004
45	CLIP; FINISHER EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1005-1104
49	CLIP; TRIM COVER EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	1101-1104
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1004-1004
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1004-1004
49	CLIP; TRIM COVER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1005-1104
49	CLIP; TRIM COVER EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1005-1104
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1004-1004
71	FASTENER; HD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0901-1003
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1004-1004
71	FASTENER; HD LINING COAT HOOK<S9M> VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1005-1104
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	1105-
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1004-1004
71	FASTENER; HD LINING VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1005-1104
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1005-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1105-
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1004-1004
71	FASTENER; HD LINING VIN MODEL YEAR 2010<VZA> EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1005-1104
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1005-1104
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1105-
170	FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97406-296-4	01	1	1004-1004
170	FINISHER; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97406-296-4	01	1	1005-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1004-1004
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1004-1005
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98037-299-3	02	1	1006-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1004
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1005
175	CUSHION; HEAD LINING EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1006-1104
175	CUSHION; HEAD LINING (C) THA	8-97924-863-0	01	1	0901-1003
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1004
175	CUSHION; HEAD LINING SUNVISOR PASSENGER SIDE<D20> VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1010
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1004-1010
175	CUSHION; HEAD LINING VIN MODEL YEAR 2010<VZA> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1011-1104
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-97924-863-0	01	1	1011-1104
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0901-1005
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	1006-1104
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-2	01	1	1004-1004
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-2	01	1	1005-1104
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-2	01	1	1004-1004
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-2	01	1	1005-1104
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	1004-1004
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	1004-1004
186	TRIM; ROOM,CANT RAIL SIDE EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	1005-1104

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
