Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#32298) — 28 parça
◀

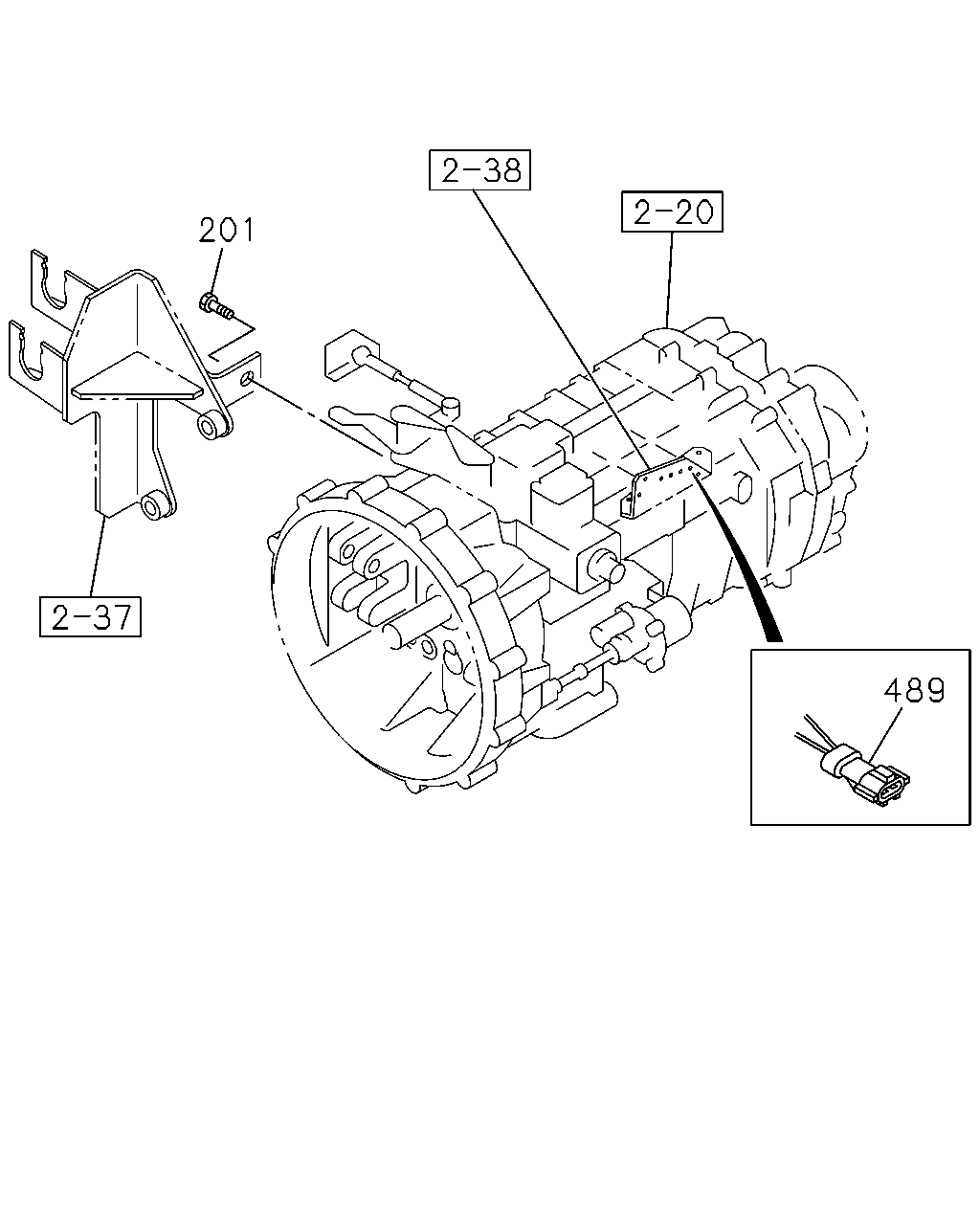

[236A] TRANSMISSION SIDE (2 parça)

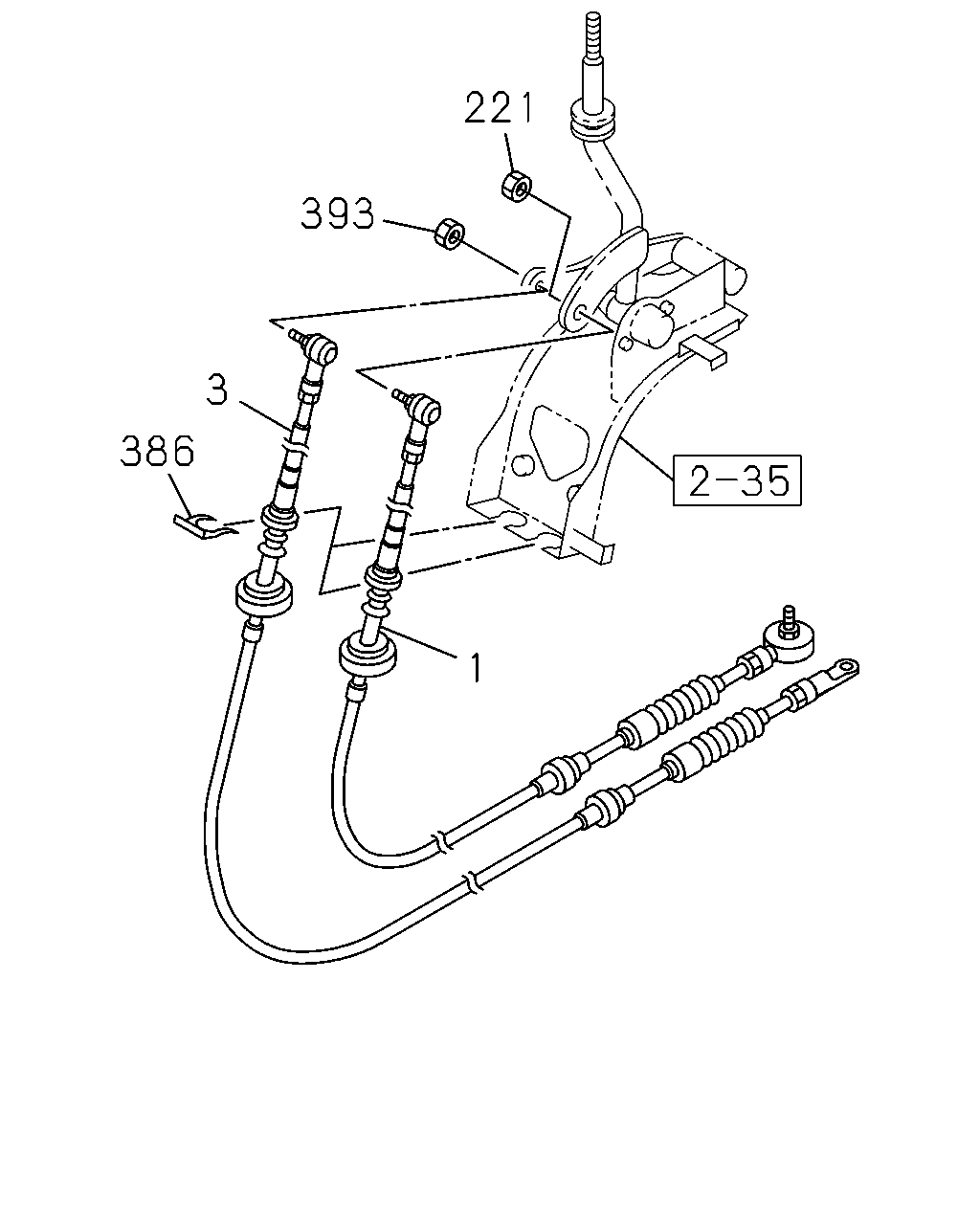

[236A] CAB SIDE (7 parça)

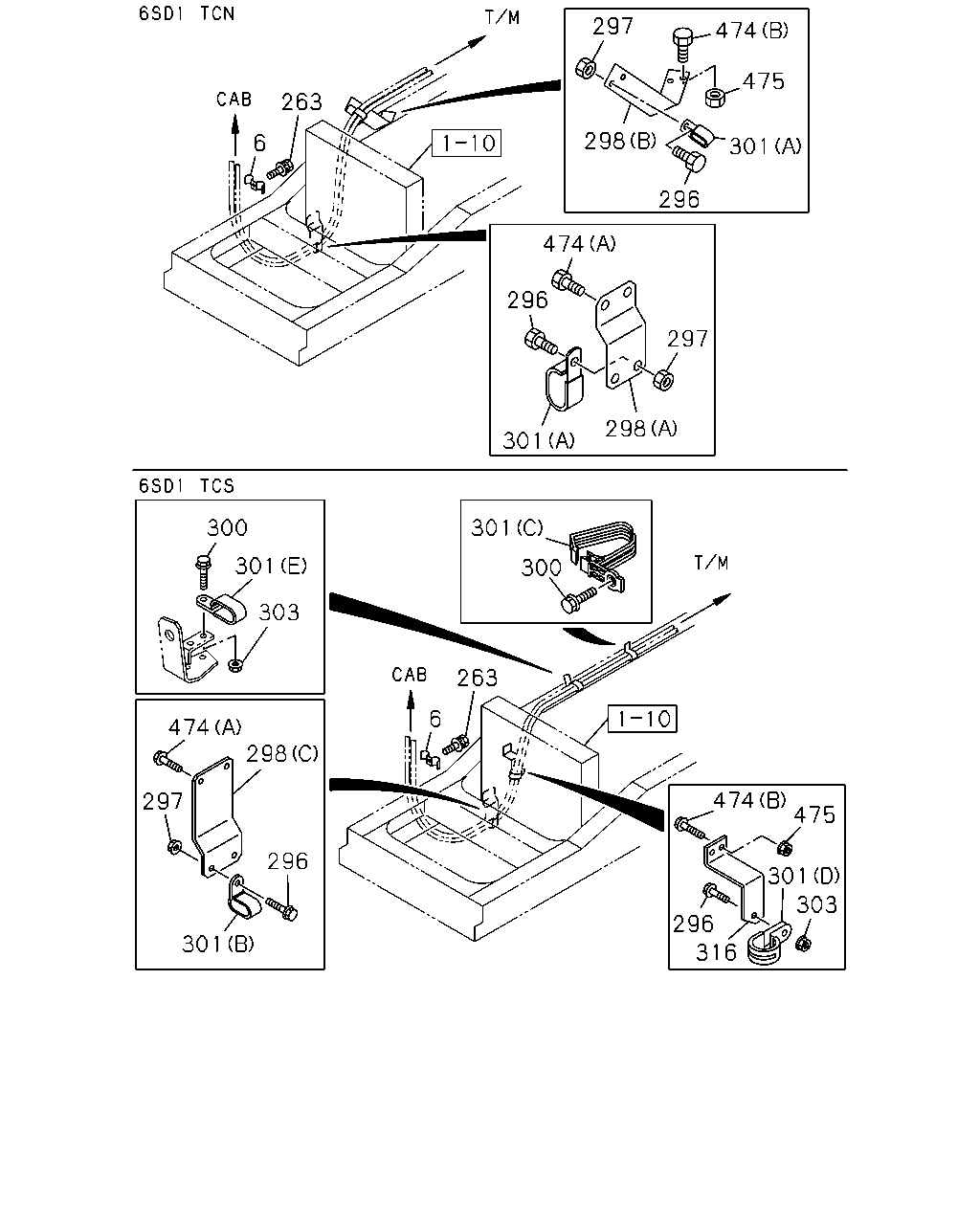

[236A] FRAME SIDE (19 parça)
▶
201
489
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
201
BOLT; BRKT
M10X20 FLANGE
0-28781-020-0
01
1
0202-
489
CONNECTOR
2P MALE RED THA
8-94447-499-0
02
1
0202-
221
393
3
386
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG<31L> L=3575 THA
8-97510-005-0
01
1
0202-
1
CABLE; SHIFT,TRANS CONT
6SD1 TCS ENG<83L> L=3745 THA
8-97921-821-0
01
1
0208-
3
CABLE; SELECT,TRANS CONT
6SD1 TCN ENG<31L> L=3475 THA
8-97510-009-0
01
1
0202-
3
CABLE; SELECT,TRANS CONT
6SD1 TCS ENG<83L> L=3645 THA
8-97921-822-0
01
1
0208-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0202-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0202-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
0202-
297
474
475
263
298
6
301
296
474
296
297
298
301
300
301
301
300
303
263
6
474
298
474
475
297
296
301
303
296
301
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 THA
1-09700-739-0
01
1
0202-
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0202-
296
BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE
0-28080-816-0
02
1
0202-
297
NUT; CLIP
6SD1 TCN ENG<31L> M8 FLANGE
0-91150-108-0
02
1
0202-
297
NUT; CLIP
6SD1 TCS ENG<83L> M8 FLANGE
0-91150-108-0
01
1
0208-
298
BRACKET
6SD1 TCN ENG<31L> (A)
1-47477-519-2
01
1
0202-
298
BRACKET
6SD1 TCN ENG<31L> (B)
1-47477-520-0
01
1
0202-
298
BRACKET
6SD1 TCS ENG<83L> (C)
1-47479-233-0
01
1
0208-
300
BOLT; CLIP
6SD1 TCS ENG<83L> M8X25 FLANGE
0-28680-825-0
02
1
0208-
301
CLIP; WIRE
6SD1 TCN ENG<31L> (A) ID=11X2 L=16
9-09535-026-0
02
1
0202-
301
CLIP; WIRE
6SD1 TCS ENG<83L> (B) ID=11 & 11 L=20
1-09700-871-0
01
1
0208-
301
CLIP; WIRE
6SD1 TCS ENG<83L> (C) THA
1-09701-220-0
01
1
0208-
301
CLIP; WIRE
6SD1 TCS ENG<83L> (D) ID=26 L=26
1-09701-236-0
01
1
0208-
301
CLIP; WIRE
6SD1 TCS ENG<83L> (E) ID=11X2 L=16
9-09535-026-0
01
1
0208-
303
NUT; CLIP
6SD1 TCS ENG<83L> M8 FLANGE
0-91150-108-0
02
1
0208-
316
BRACKET; CLIP
6SD1 TCS ENG<83L>
1-47479-305-0
01
1
0208-
474
BOLT; BRKT
(B) M8X30 FLANGE
0-28680-830-0
02
1
0202-
474
BOLT; BRKT
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0202-
475
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0202-
