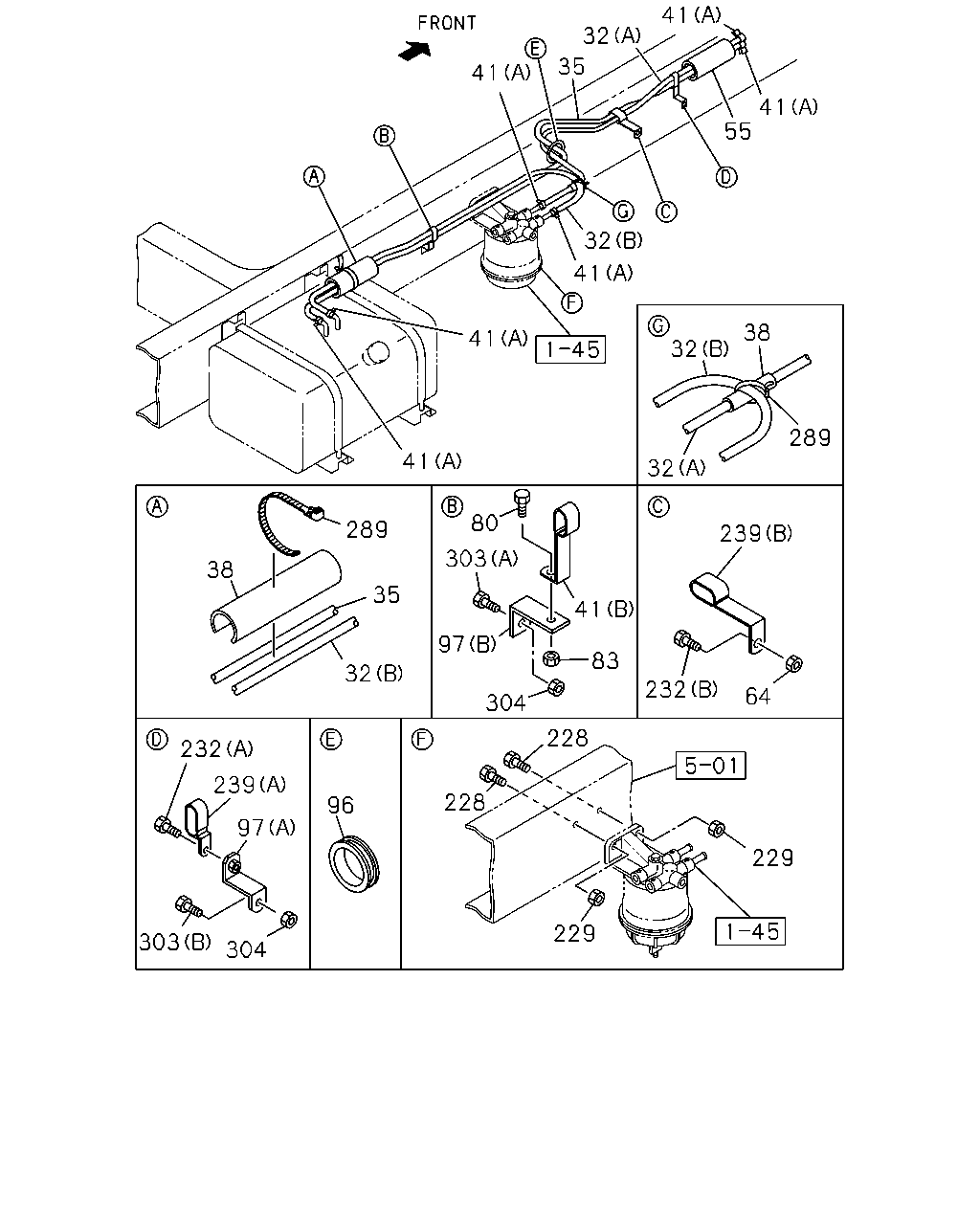

32 |
PIPE; DELIVERY,FUEL TANK
(A)
THA
|
8-97910-627-0 |
01 |
1 |
0202-0203 |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
THA
|
8-97910-619-1 |
01 |
1 |
0204- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
THA
|
8-97910-625-0 |
01 |
1 |
0202-0203 |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
THA
|
8-97910-622-0 |
01 |
1 |
0204- |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
THA
|
8-97910-625-0 |
01 |
1 |
0208- |
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
THA
|
8-97910-628-0 |
01 |
1 |
0202-0203 |
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
THA
|
8-97910-623-0 |
01 |
1 |
0204- |
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
THA
|
8-97921-838-0 |
01 |
1 |
0208- |
|
● |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=500
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0202- |
● |
● |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
ID=29 OD=39 L=40
|
1-09337-013-0 |
01 |
1 |
0205- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=14X2 H=30 L=25
THA
|
1-09701-101-0 |
01 |
1 |
0202- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
THA
|
1-09704-102-0 |
06 |
1 |
0202- |
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
L=200
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0202- |
● |
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0202- |
● |
● |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0202- |
● |
● |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0208-0405 |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0406- |
● |
● |
| |
96 |
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0202- |
● |
● |
| |
97 |
BRACKET; CLIP
(B)
L=60
|
1-47476-217-0 |
01 |
1 |
0202-0204 |
● |
|
| |
97 |
BRACKET; CLIP
(B)
L=90 B=25
|
1-47475-530-0 |
01 |
1 |
0205- |
● |
● |
| |
97 |
BRACKET; CLIP
(A)
|
1-47476-200-0 |
01 |
1 |
0202- |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0202- |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0202- |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0202- |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
(B)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0202- |
● |
● |
| |
239 |
CLIP; FUEL PIPE
(A)
H=15 ID=14
|
1-09700-744-0 |
01 |
1 |
0202- |
● |
● |
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X2 H=30 L=25
THA
|
1-09701-101-0 |
01 |
1 |
0202- |
● |
● |
| |
289 |
CLIP; BAND,HOSE
L=250
THA
|
5-09707-030-1 |
01 |
1 |
0202-0204 |
● |
|
| |
289 |
CLIP; BAND,HOSE
L=250
THA
|
5-09707-030-1 |
02 |
1 |
0205- |
● |
● |
| |
303 |
BOLT; BRKT
(A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0202- |
● |
● |
| |
303 |
BOLT; BRKT
(B)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0202- |
● |
● |
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0202- |
● |
● |
