1-01 — ACCELERATOR PEDAL AND CONTROL (#32275) — 129 parça

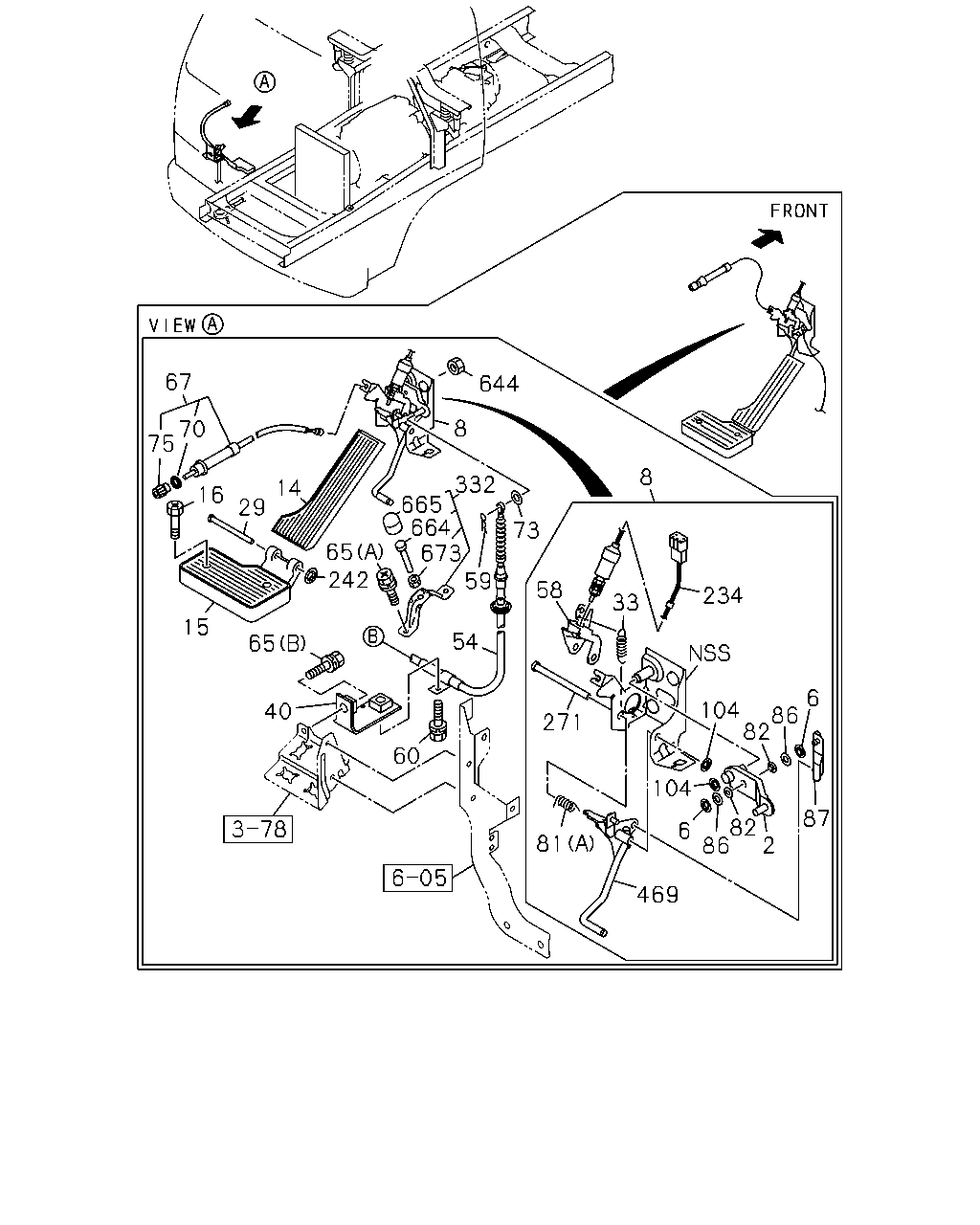

67 644 8 70 75 332 8 14 16 665 664 673 59 29 73 65 242 58 234 33 15 54 65 6 104 86 82 40 271 60 104 87 82 6 81 469 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	0202-	●
2	LEVER; ENG CONT	1-71907-500-1	01	1	0208-		●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0202-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0202-	●
8	LINK ASM; ENG CONT	1-71907-161-9	01	1	0208-		●
14	PAD; PEDAL,ACCEL THA	8-97915-953-0	01	1	0202-	●	●
15	STAND; HEEL,ACCEL PEDAL THA	1-73907-266-2	01	1	0202-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0202-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0202-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0202-	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0202-	●	●
54	CABLE; ENG CONT L=2546.5 THA	8-97914-779-1	01	1	0202-	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0208-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0202-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0202-	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0202-	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-	●	●
67	CABLE ASM; IDLE CONT L=399 THA	1-73998-912-3	01	1	0202-0204	●
67	CABLE ASM; IDLE CONT L=315 THA	1-73908-423-0	01	1	0205-	●
70	NUT; CONT CABLE THA	1-73908-045-1	01	1	0202-	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0202-	●
75	KNOB ASM; IDLING CONT THA	8-97137-504-0	01	1	0202-0204	●
75	KNOB ASM; IDLING CONT THA	1-73908-409-0	01	1	0205-	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0202-0207	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0208-	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0208-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0202-	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0208-		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0202-	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0202-	●
104	NUT; ENG CONT D=17.5 THA	8-94368-617-0	02	1	0202-	●
104	NUT; ENG CONT D=17.5 THA	8-94368-617-0	01	1	0208-		●
234	SWITCH; ACCEL	1-82380-114-2	01	1	0202-	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	0208-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0202-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0202-	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0208-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0202-	●	●
469	LEVER ASM	1-71907-209-5	01	1	0202-	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0202-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0202-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0202-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0202-	●	●

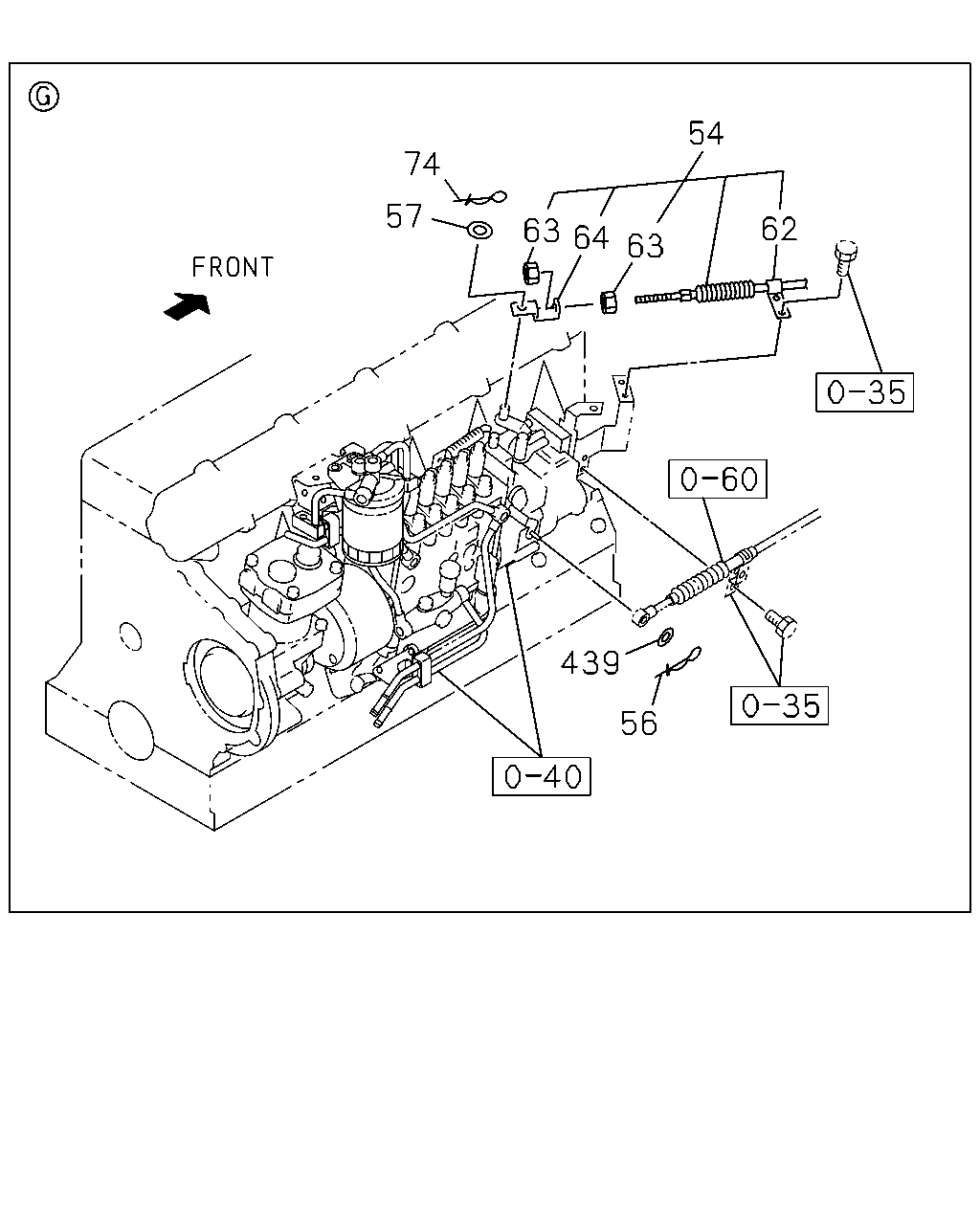

54 74 57 62 63 64 63 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2546.5 THA	8-97914-779-1	01	1	0202-	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0208-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0202-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0202-	●
62	CLIP; ENG CONT CABLE THA	8-97921-645-0	01	1	0202-	●
63	NUT; LOCK,BRKT THA	8-97921-646-0	02	1	0202-	●
64	BRACKET; ENG CONT CABLE THA	8-97921-647-0	01	1	0202-	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	0202-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0202-	●	●

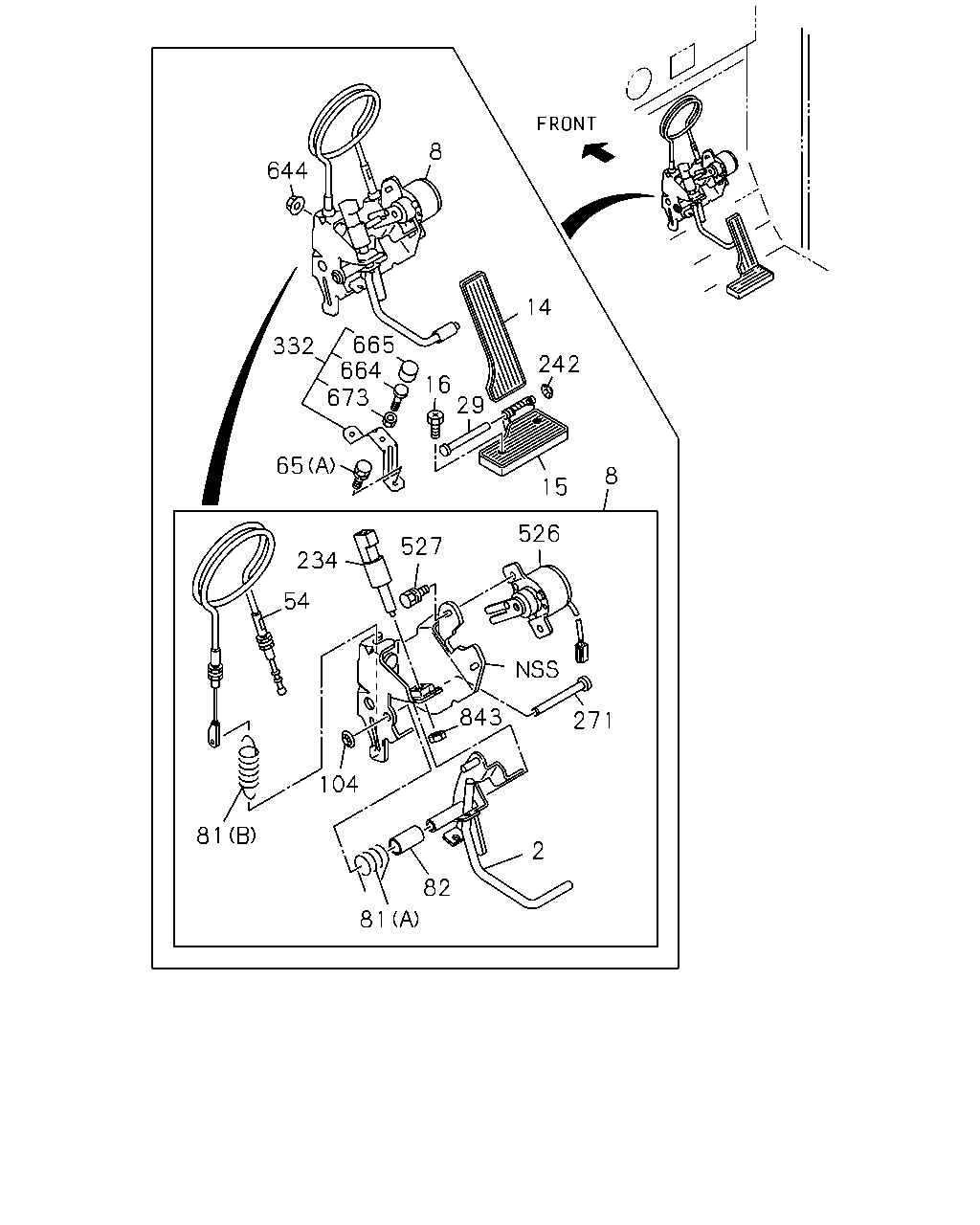

8 644 14 665 664 673 332 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	0202-	●
2	LEVER; ENG CONT	1-71907-500-1	01	1	0208-		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0202-	●
8	LINK ASM; ENG CONT	1-71907-161-9	01	1	0208-		●
14	PAD; PEDAL,ACCEL THA	8-97915-953-0	01	1	0202-	●	●
15	STAND; HEEL,ACCEL PEDAL THA	1-73907-266-2	01	1	0202-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0202-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0202-	●	●
54	CABLE; ENG CONT L=2546.5 THA	8-97914-779-1	01	1	0202-	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0208-		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0202-	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0202-0207	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0208-	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0208-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0202-	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0208-		●
104	NUT; ENG CONT D=17.5 THA	8-94368-617-0	02	1	0202-	●
104	NUT; ENG CONT D=17.5 THA	8-94368-617-0	01	1	0208-		●
234	SWITCH; ACCEL	1-82380-114-2	01	1	0202-	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	0208-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0202-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0202-	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0208-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0202-	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0208-		●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER THA	8-94139-963-0	02	1	0208-		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0202-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0202-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0202-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0202-	●	●
843	NUT M12	9-99111-412-0	01	1	0208-		●

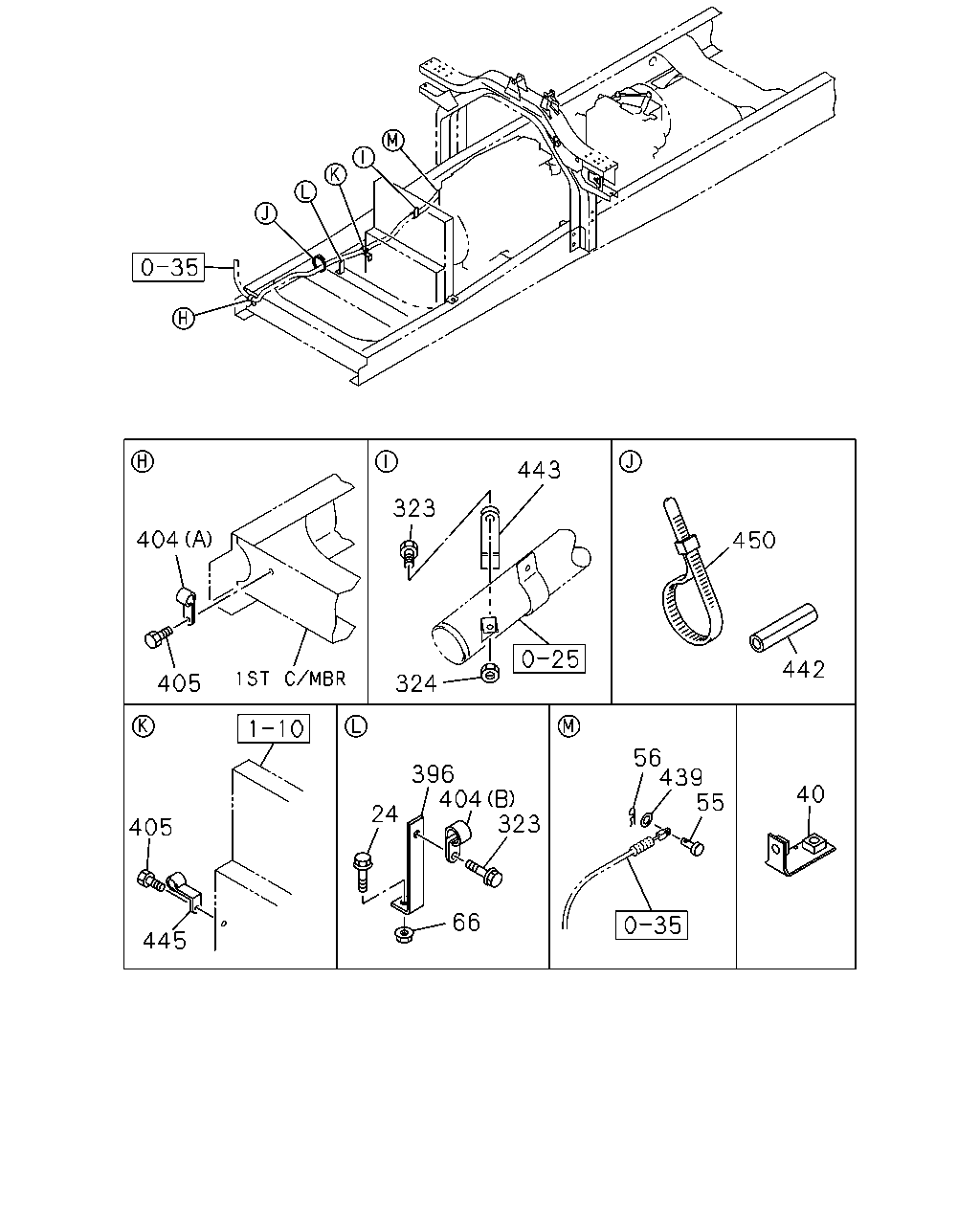

443 323 404 450 442 40 324 56 439 55 396 404 323 40 24 405 66 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0208-		●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0202-	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0208-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0202-	●	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0208-		●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0202-	●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	0208-		●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0208-		●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0208-		●
396	BRACKET; CLIP L=75	1-47478-323-0	01	1	0208-		●
404	CLIP; CABLE (A) ID=11 L=16	9-09525-025-0	01	1	0208-		●
404	CLIP; CABLE (B) ID=13 L=32	9-09525-265-0	01	1	0208-		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0202-	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0208-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0202-	●	●
442	SLEEVE; RUBBER,OIL PIPE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-	●
442	SLEEVE; RUBBER,OIL PIPE ID=29 OD=39 L=40	1-09337-013-0	01	1	0208-		●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0202-	●
443	CLIP; CABLE ID=11 L=16	9-09525-025-0	01	1	0208-		●
445	CLIP; RAD	1-09700-082-0	01	1	0202-	●
445	CLIP; RAD ID=11 L=16	9-09525-025-0	01	1	0208-		●
450	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0202-0207	●
450	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0208-	●	●
450	CLIP; BAND L=140	5-09707-031-1	01	1	0202-	●

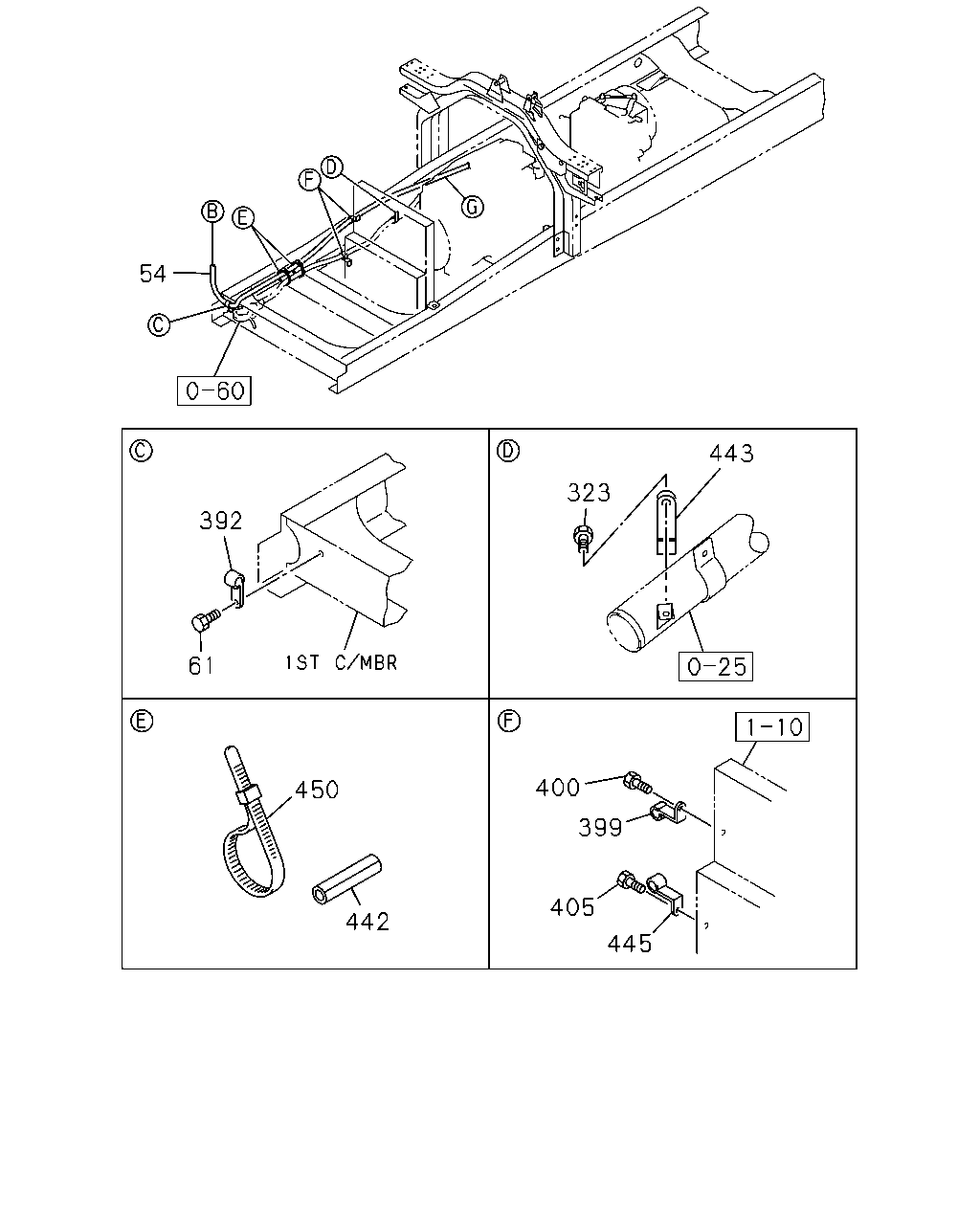

54 443 323 392 61 400 450 399 405 442 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2546.5 THA	8-97914-779-1	01	1	0202-	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0208-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	0202-	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0202-	●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	0208-		●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0208-		●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	0202-	●
399	CLIP; CABLE,RAD SIDE ID=9 L=25 H=45	1-09700-867-0	01	1	0202-	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0202-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0202-	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0208-		●
442	SLEEVE; RUBBER,OIL PIPE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-	●
442	SLEEVE; RUBBER,OIL PIPE ID=29 OD=39 L=40	1-09337-013-0	01	1	0208-		●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0202-	●
443	CLIP; CABLE ID=11 L=16	9-09525-025-0	01	1	0208-		●
445	CLIP; RAD	1-09700-082-0	01	1	0202-	●
445	CLIP; RAD ID=11 L=16	9-09525-025-0	01	1	0208-		●
450	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0202-0207	●
450	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0208-	●	●
450	CLIP; BAND L=140	5-09707-031-1	01	1	0202-	●
