Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#32274) — 30 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
◀

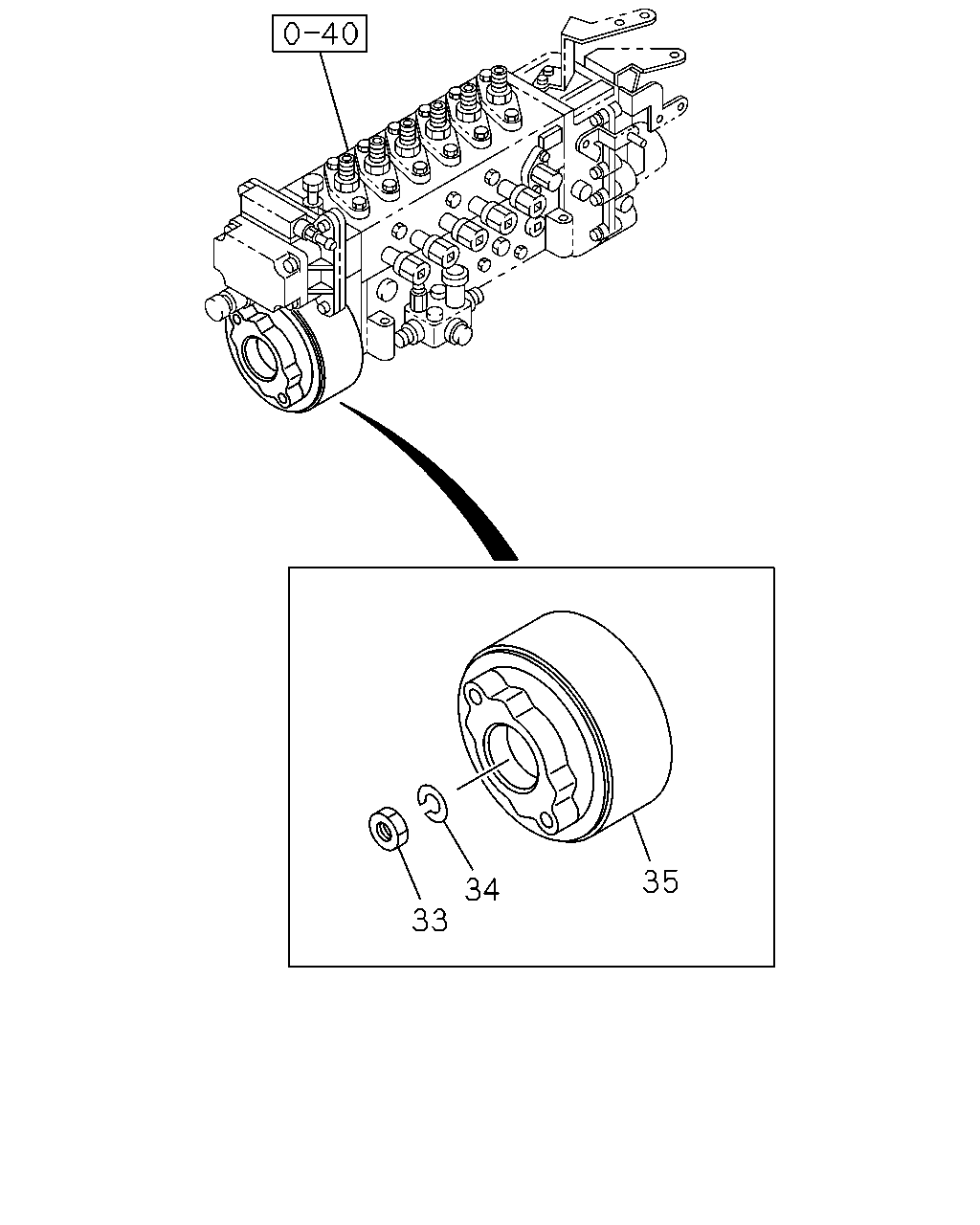

[087A] DAMPER (8 parça)
[087A] COMPONENT;COUPLING (22 parça)
▶
35
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
NUT; DAMPER
1-19179-020-0
01
1
0202-0207
●
33
NUT; DAMPER
1-19179-020-0
01
1
0208-0409
●
●
33
NUT; DAMPER
1-19179-020-0
01
1
0410-
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0202-0207
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0208-0409
●
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0410-
●
35
DAMPER ASM; INJ PUMP
1-15744-014-1
01
1
0202-0409
●
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0208-
●
14
6
20
13
10
9
5
2
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0202-0207
●
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0208-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0202-0207
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0208-
●
●
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0202-0207
●
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0208-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-221-0
01
1
0202-0207
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-221-0
01
1
0208-
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0202-0207
●
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0208-
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0202-0207
●
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0208-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0202-0207
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0208-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0202-0207
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0208-
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0202-0207
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0208-
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0202-0207
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0208-
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0202-0207
●
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0208-
●
●
