0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#32266) — 73 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
◀

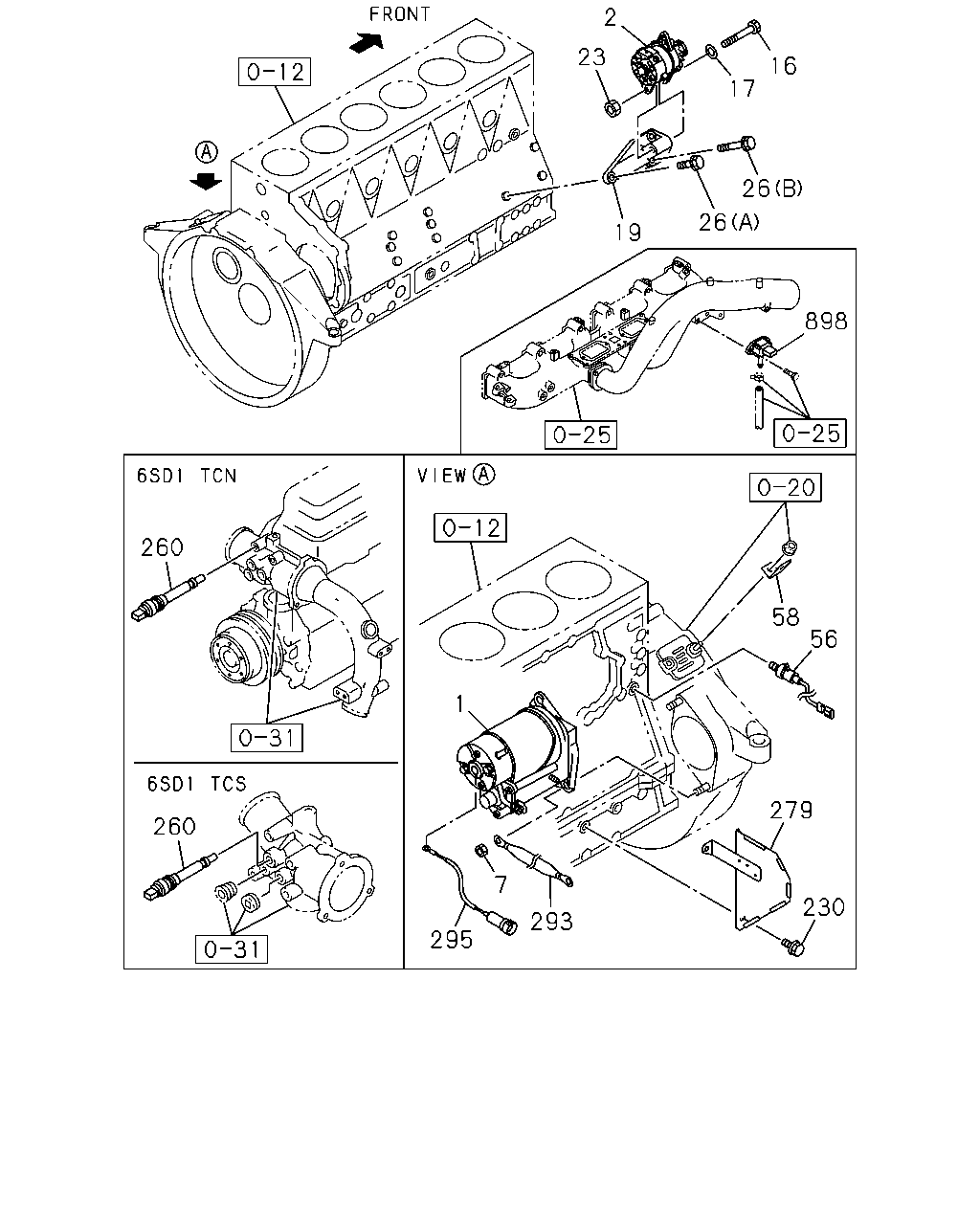

[060A] STARTER,GEN AND WATER TEMP SENSOR (41 parça)

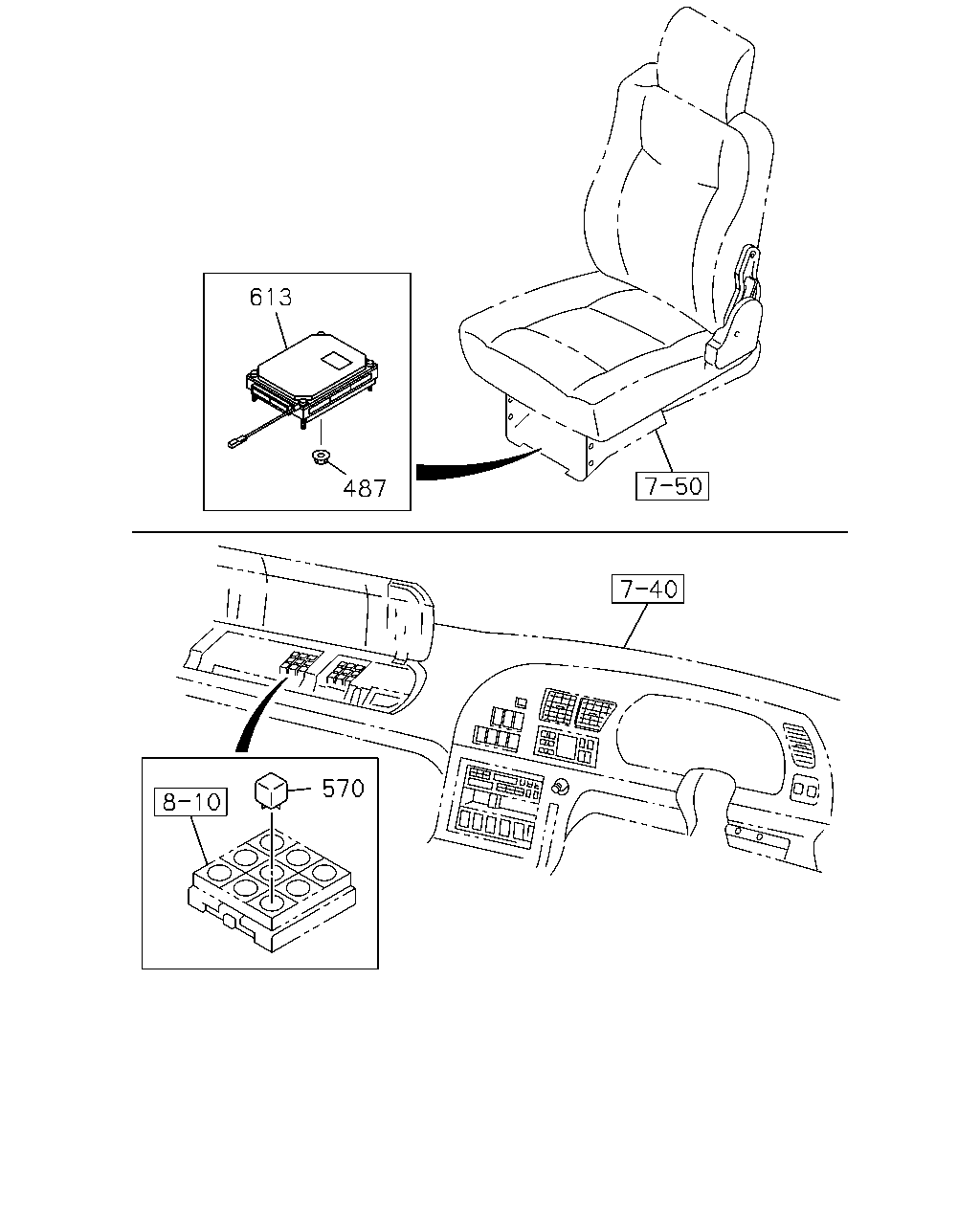

[060A] ENG CONT UNIT AND EXH SHUTTER RELAY (4 parça)

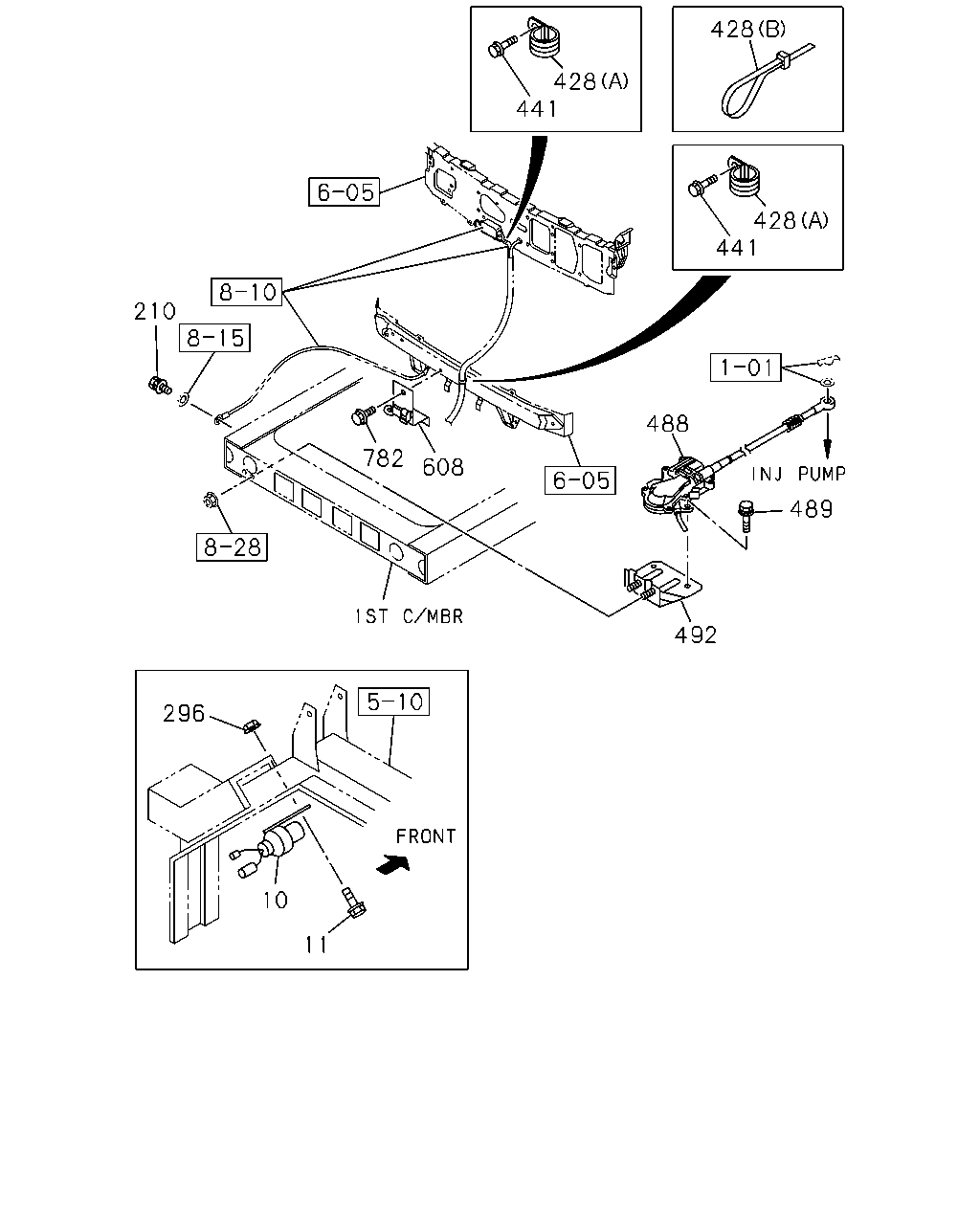

[060A] ENGINE ELECTRICAL CONTROL PARTS (17 parça)

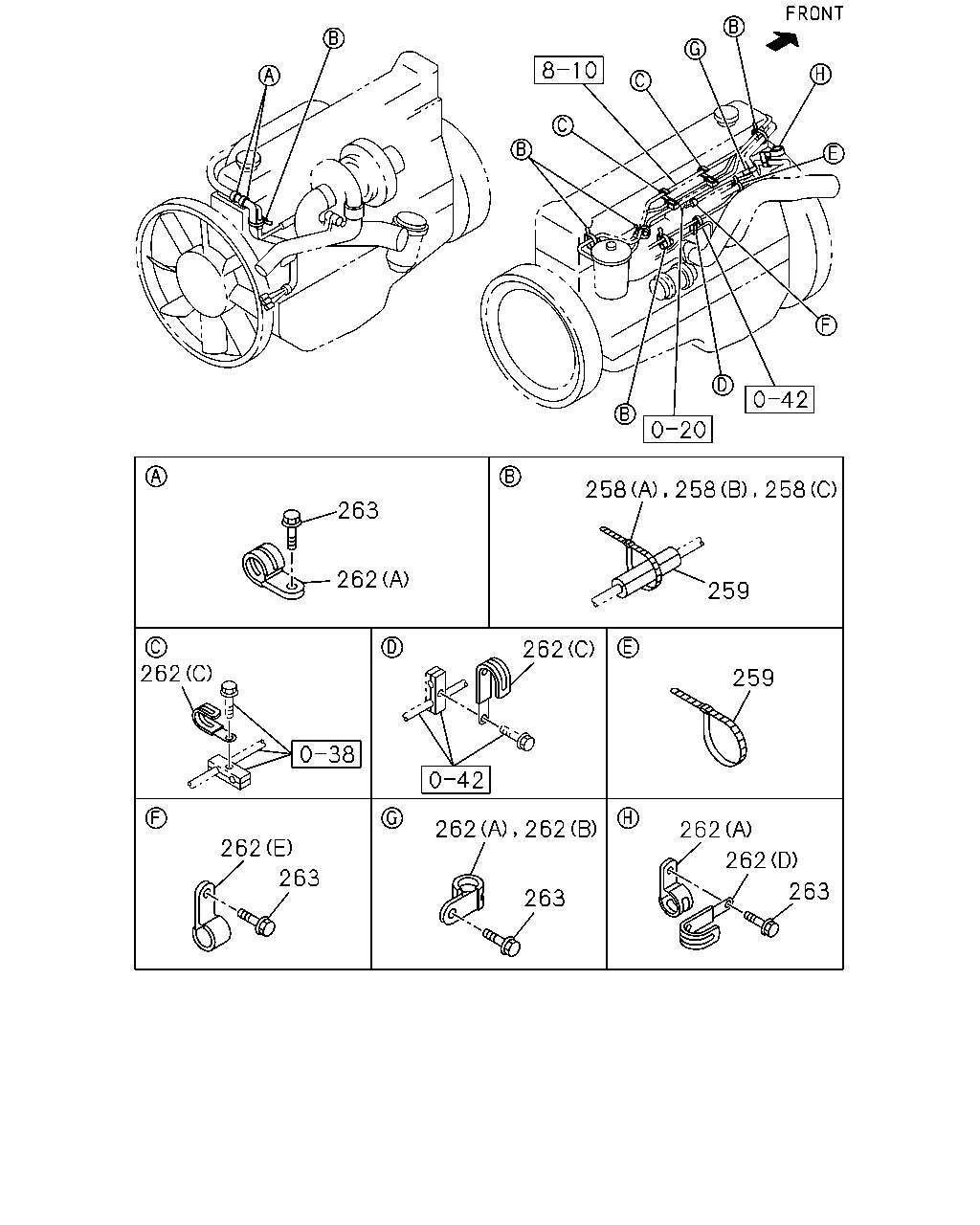

[060A] SLEEVE,CLIP AND BOLT;ENG SIDE (11 parça)
▶
2
23
16
17
26
26
19
898
260
58
56
1
279
260
7
230
293
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 45A THA
8-97917-337-1
01
1
0202-0207
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 45A THA
8-97917-337-1
01
1
0208-
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA
8-97913-530-2
01
1
0202-
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO
1-81200-482-1
01
1
0208-
●
7
NUT; STARTER
M14 FLANGE
0-91160-114-0
02
1
0406-
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
0202-0207
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
0208-0401
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
04
1
0402-0403
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
06
1
0404-0405
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
04
1
0406-
●
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
0208-
●
●
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
0202-0207
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0208-
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0202-0207
●
19
BRACKET; GEN
THA
8-97916-654-0
01
1
0202-0207
●
19
BRACKET; GEN
THA
8-97916-654-0
01
1
0208-
●
●
19
BRACKET; GEN
1-19711-038-0
01
1
0208-
●
●
19
BRACKET; GEN
1-19711-038-0
01
1
0208-
●
23
NUT; GEN
M14 FLANGE
0-91160-114-0
02
1
0406-
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0208-
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0202-0207
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
03
1
0404-
●
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28181-040-0
01
1
0202-0207
●
26
BOLT; GEN BRKT
(B) M10X70 FLANGE
0-28181-070-0
02
1
0202-0207
●
26
BOLT; GEN BRKT
(B) M10X70 FLANGE
0-28181-070-0
02
1
0208-
●
●
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28181-040-0
01
1
0208-
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
0202-0207
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
0208-
●
●
58
BRACKET; CLIP
L=55
1-47475-304-0
01
1
0202-0207
●
58
BRACKET; CLIP
L=55
1-47475-304-0
01
1
0208-
●
●
230
BOLT; HEAT PROTECTOR
M10X16 FLANGE
0-28181-016-0
02
1
0202-0207
●
230
BOLT; HEAT PROTECTOR
M10X16 FLANGE
0-28181-016-0
02
1
0208-
●
●
260
SENSOR; WATER TEMP
1-80210-005-0
01
1
0202-0207
●
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0208-
●
●
279
PROTECTOR; STARTER
1-14181-292-0
01
1
0202-0207
●
279
PROTECTOR; STARTER
1-14181-292-0
01
1
0208-
●
●
293
CABLE; STARTER EARTH
L=550
1-82650-239-0
01
1
0202-0207
●
293
CABLE; STARTER EARTH
L=550
1-82650-239-0
01
1
0208-
●
●
295
HARNESS; STARTER
1-82640-527-0
01
1
0202-0207
●
295
HARNESS; STARTER
THA
1-82640-527-1
01
1
0208-
●
●
898
SENSOR; BOOST
1-80220-005-0
01
1
0208-
●
613
487
570
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0202-
●
●
570
RELAY; EXH SHUTTER
ELECTRONIC GOV RED4<Q4F> 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0208-
●
613
CONTROL UNIT; ENG
1-80110-441-0
01
1
0202-
●
613
CONTROL UNIT; ENG
1-80110-849-1
01
1
0208-
●
428
428
441
428
441
488
782
608
489
492
296
10
11
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0202-
●
●
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0202-
●
●
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0202-
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0202-
●
●
428
CLIP; HARNESS
(B) L=300 THA
1-09707-001-1
03
1
0202-0207
●
428
CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) L=300 THA
1-09707-001-1
03
1
0208-
●
●
428
CLIP; HARNESS
(A) ID=35 L=50 THA
1-09701-214-0
02
1
0202-
●
●
428
CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (A) L=300 THA
1-09707-001-1
05
1
0208-
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0202-
●
●
488
STOPPER; ENG
1-82840-150-1
01
1
0202-0207
●
488
STOPPER; ENG
EXC. ELECTRONIC GOV RED4<Q4F>
1-82840-150-1
01
1
0208-
●
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0202-0207
●
●
489
BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED4<Q4F> M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0208-
●
●
492
BRACKET; ENG STOPPER
THA
1-82849-089-1
01
1
0202-0207
●
492
BRACKET; ENG STOPPER
EXC. ELECTRONIC GOV RED4<Q4F> THA
1-82849-089-1
01
1
0208-
●
●
608
SENSOR; TEMP
1-83544-031-0
01
1
0208-
●
782
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0208-
●
258
263
262
259
262
262
259
262
262
262
262
263
263
263
258
258
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
258
SLEEVE; RUBBER OIL PIPE
(A) ID=6 L=30
5-09360-352-0
02
1
0208-
●
258
SLEEVE; RUBBER OIL PIPE
(B) ID=18 OD=22 L=25
8-94412-773-0
05
1
0208-
●
258
SLEEVE; RUBBER OIL PIPE
(C) ID=10 OD=14 L=30
9-09956-682-0
01
1
0208-
●
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250 THA
5-09707-030-1
03
1
0208-
●
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
06
1
0208-
●
262
CLIP; HARNESS
(A) ID=31 L=35
1-09700-329-1
05
1
0208-
●
262
CLIP; HARNESS
(B) ID=28 L=32
1-09701-107-1
01
1
0208-
●
262
CLIP; HARNESS
(C) ID=21 L=47.5 THA
8-94178-108-0
03
1
0208-
●
262
CLIP; HARNESS
(D) ID=18 L=44 THA
8-94225-185-0
01
1
0208-
●
262
CLIP; HARNESS
(E) ID=11 L=20
9-09525-035-0
01
1
0208-
●
263
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
06
1
0208-
●
