0-42 — FUEL PUMP AND PIPE (#32262) — 66 parça

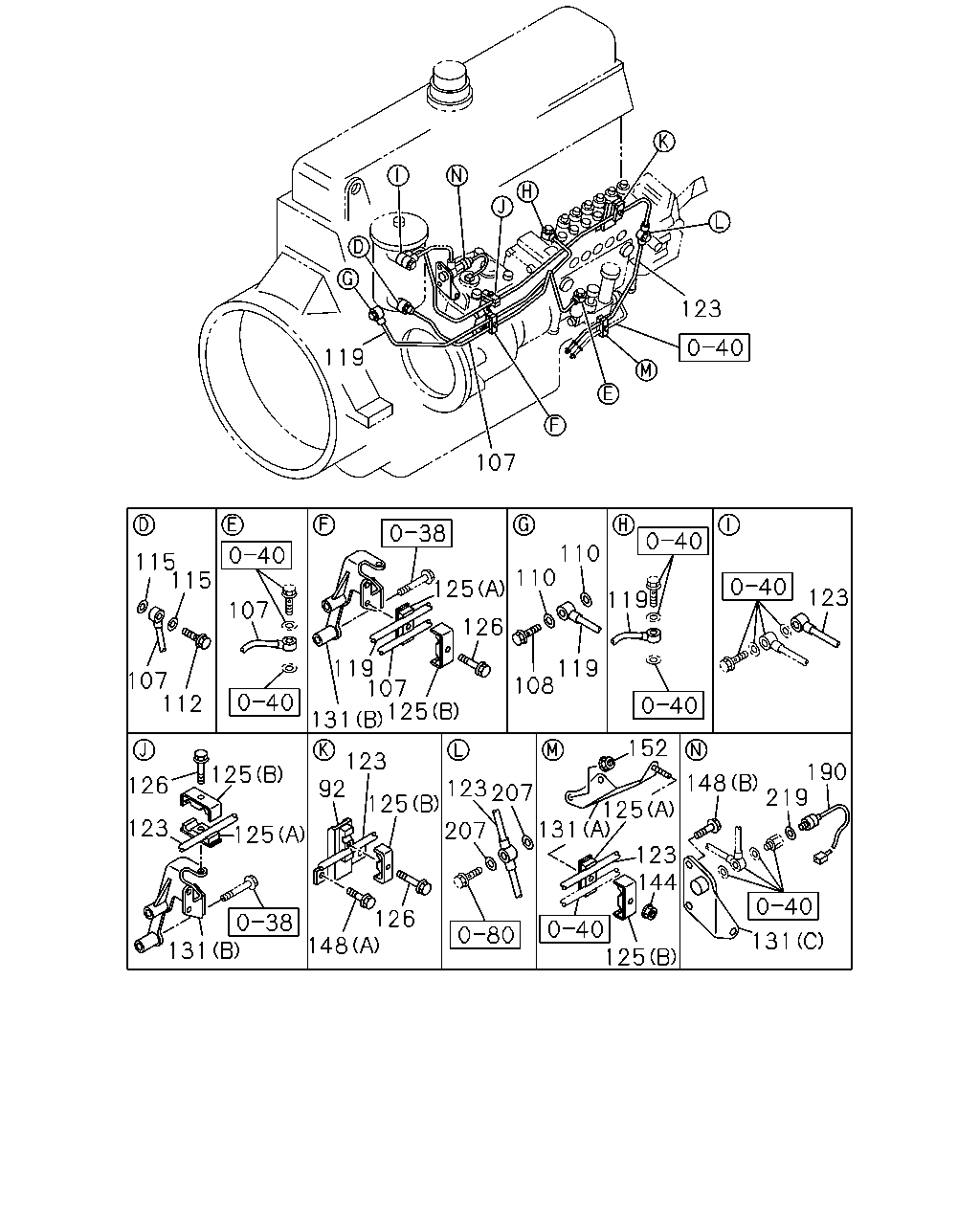

123 119 107 110 110 115 115 125 123 119 107 126 119 107 125 131 119 108 107 112 152 123 92 190 148 219 125 126 123 207 125 207 125 123 131 125 123 144 131 126 125 131 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	BRACKET; FUEL PIPE	1-15419-432-0	01	1	0208-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	0202-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0208-	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0202-0207		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0208-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0207		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0202-0207		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0208-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0207		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	0202-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-765-0	01	1	0208-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	0202-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0208-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0202-0207		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0208-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	0202-		●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	04	1	0208-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	04	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-437-0	01	1	0202-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-670-0	01	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-683-0	01	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-695-0	01	1	0208-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0202-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0208-	●
148	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	02	1	0208-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	0208-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0202-0207		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0208-	●	●
190	SENSOR; FUEL TEMP	1-81535-040-3	01	1	0208-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0202-		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0208-	●

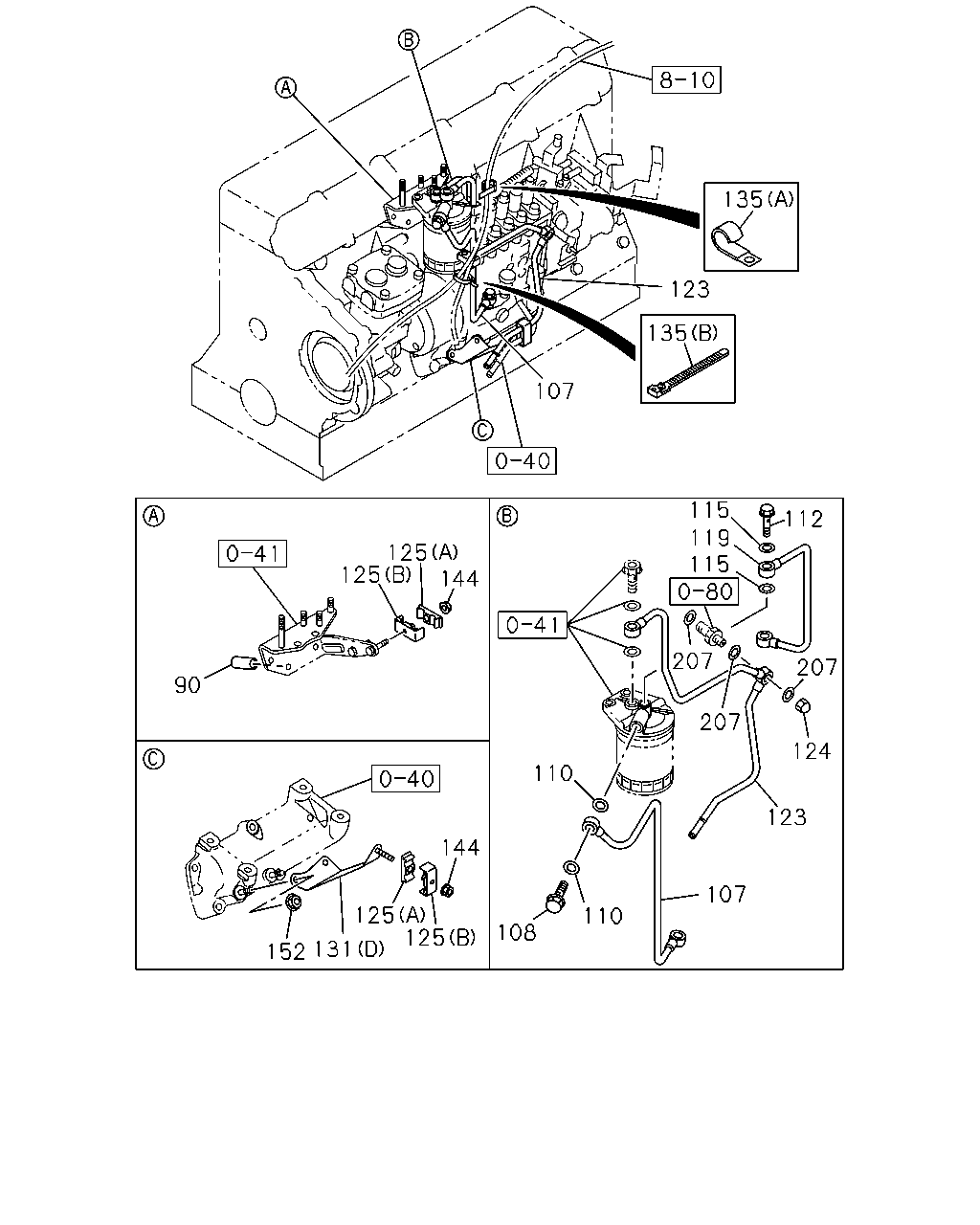

135 123 135 107 115 119 115 112 125 125 144 207 207 90 207 124 110 123 144 107 125 125 110 108 131 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	TUBE; DIST L=43	1-14149-048-1	01	1	0202-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	0202-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0208-	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0202-0207		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0208-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0207		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0202-0207		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0208-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0207		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	0202-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-765-0	01	1	0208-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	0202-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0208-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0202-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0202-0207		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0208-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	0202-		●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	04	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-437-0	01	1	0202-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-670-0	01	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-683-0	01	1	0208-	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-695-0	01	1	0208-	●
135	CLIP; HARNESS (B) L=140	5-09707-031-1	01	1	0202-		●
135	CLIP; HARNESS (A) L=110	8-94149-419-0	01	1	0202-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0202-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0208-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0202-0207		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0208-	●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0202-		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0208-	●
