Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#32253) — 52 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
◀

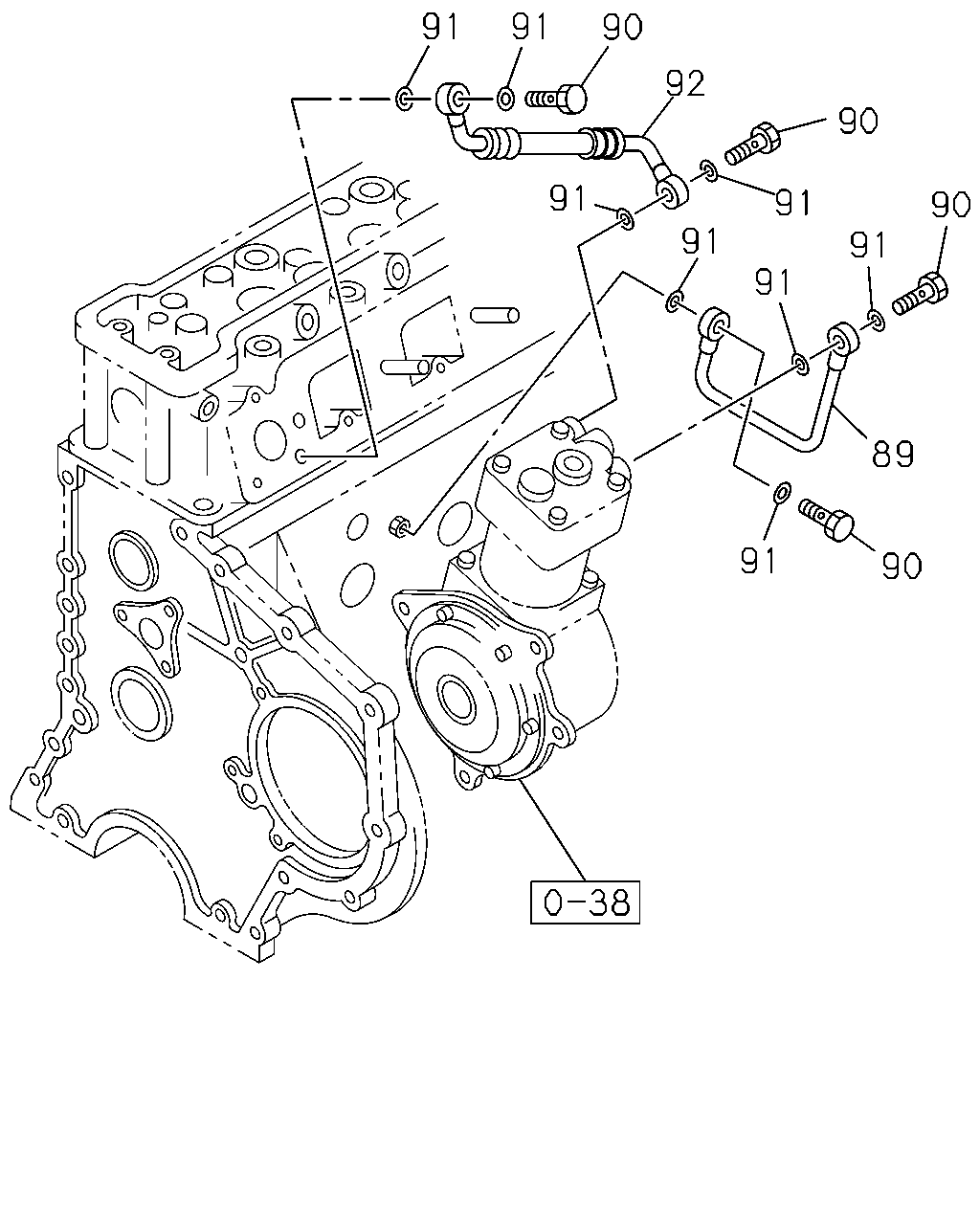

[032A] WATER,AIR CMPR (8 parça)

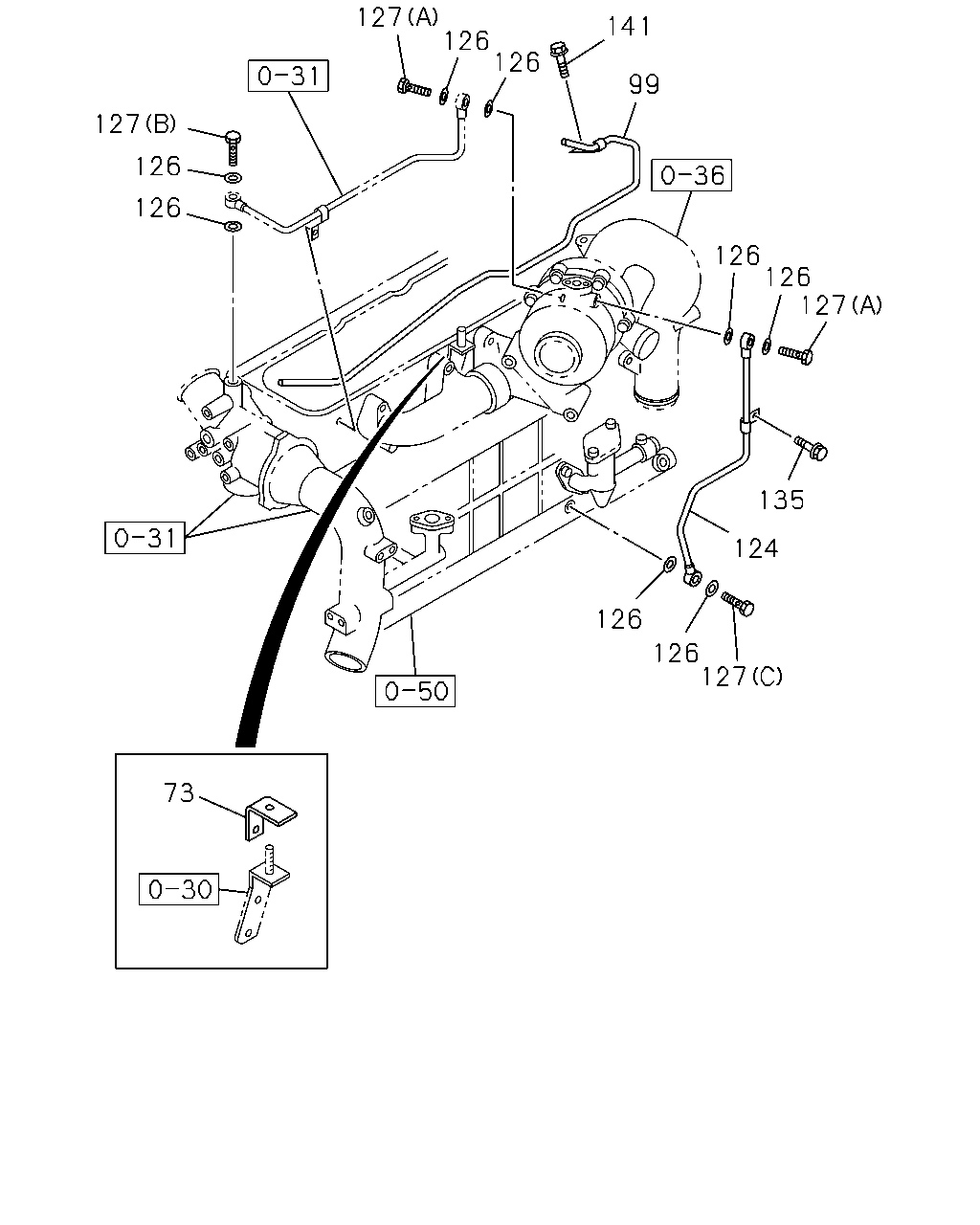

[032A] 6SD1 TCN;WATER OVERFLOW (16 parça)

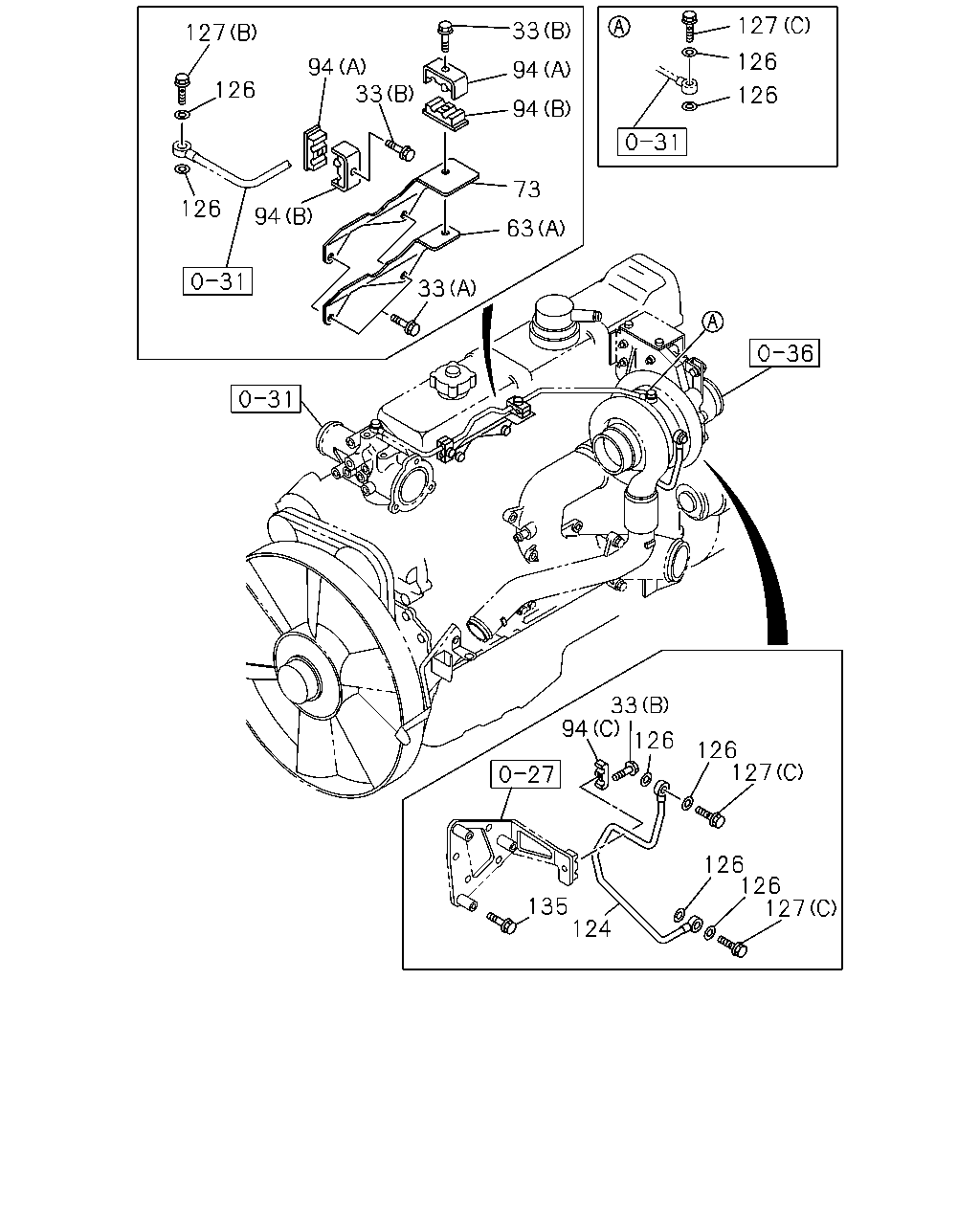

[032A] 6SD1 TCS;BRACKET AND PIPE NO.1 (20 parça)

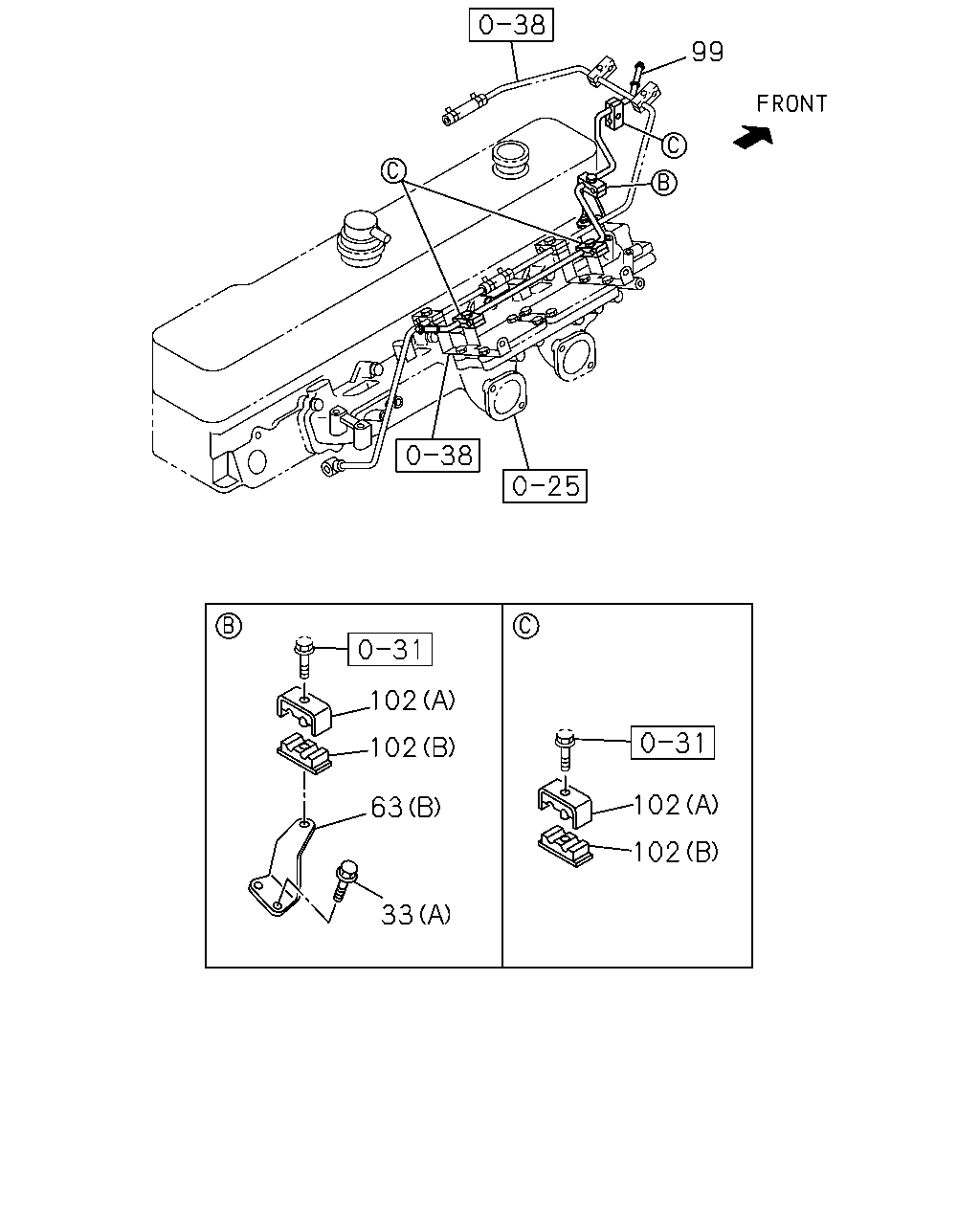

[032A] 6SD1 TCS;BRACKET AND PIPE NO.2 (8 parça)
▶
91
91
90
92
90
91
91
90
91
91
91
89
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
PIPE; WATER,AIR CMPR,IN
1-13721-409-0
01
1
0202-
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-903-0
01
1
0208-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0202-0207
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0208-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0202-0207
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0208-
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-201-0
01
1
0202-0207
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-201-0
01
1
0208-
●
●
127
126
126
141
99
127
126
126
126
126
127
135
124
126
126
127
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
PROTECTOR; HEAT,WATER PIPE
1-14181-293-0
01
1
0202-
●
73
PROTECTOR; HEAT,WATER PIPE
1-14181-325-0
01
1
0208-
●
99
PIPE; WATER,OVERFLOW
1-13721-629-0
01
1
0202-
●
99
PIPE; WATER,OVERFLOW
1-13711-843-0
01
1
0208-
●
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-738-1
01
1
0202-
●
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-948-0
01
1
0208-
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0202-0207
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0208-
●
●
127
BOLT; EYE
(A) M14X31
1-09675-191-0
02
1
0202-
●
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0202-0207
●
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0208-
●
●
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
01
1
0202-
●
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
03
1
0208-
●
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0202-0207
●
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0208-
●
●
141
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
01
1
0202-
●
127
33
127
126
94
33
94
126
126
94
73
126
94
63
33
33
94
126
126
127
126
126
127
135
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
04
1
0208-
●
33
BOLT; BRKT
(B) M6X40 FLANGE
0-28680-640-0
03
1
0208-
●
63
BRACKET; WATER PIPE
(A)
1-13319-057-0
01
1
0208-
●
63
BRACKET; WATER PIPE
(B)
1-13729-089-0
01
1
0208-
●
73
PROTECTOR; HEAT,WATER PIPE
1-14181-293-0
01
1
0202-
●
73
PROTECTOR; HEAT,WATER PIPE
1-14181-325-0
01
1
0208-
●
94
CLIP; WATER PIPE
(A)
1-09701-230-1
02
1
0208-
●
94
CLIP; WATER PIPE
(B)
1-09701-231-1
02
1
0208-
●
94
CLIP; WATER PIPE
(C)
1-09701-265-1
01
1
0208-
●
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-738-1
01
1
0202-
●
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-948-0
01
1
0208-
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0202-0207
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0208-
●
●
127
BOLT; EYE
(A) M14X31
1-09675-191-0
02
1
0202-
●
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0202-0207
●
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0208-
●
●
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
01
1
0202-
●
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
03
1
0208-
●
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0202-0207
●
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0208-
●
●
99
102
102
102
63
102
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
04
1
0208-
●
33
BOLT; BRKT
(B) M6X40 FLANGE
0-28680-640-0
03
1
0208-
●
63
BRACKET; WATER PIPE
(A)
1-13319-057-0
01
1
0208-
●
63
BRACKET; WATER PIPE
(B)
1-13729-089-0
01
1
0208-
●
99
PIPE; WATER,OVERFLOW
1-13721-629-0
01
1
0202-
●
99
PIPE; WATER,OVERFLOW
1-13711-843-0
01
1
0208-
●
102
CLIP; WATER HOSE
(A)
1-09701-172-2
04
1
0208-
●
102
CLIP; WATER HOSE
(B)
1-09701-173-1
04
1
0208-
●
