Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

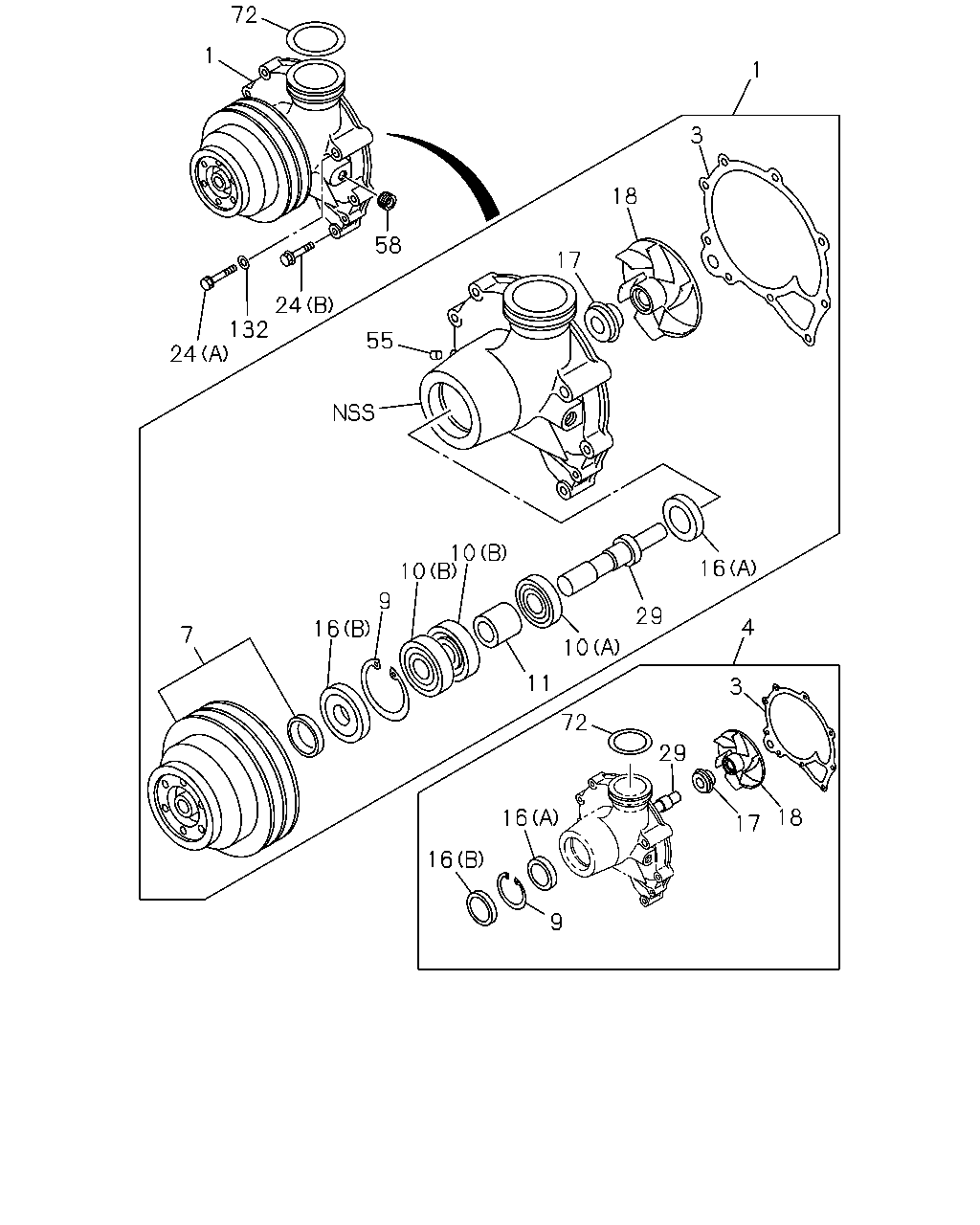

0-30 — WATER PUMP AND CORROSION RESISTOR
(#32251) — 47 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
◀

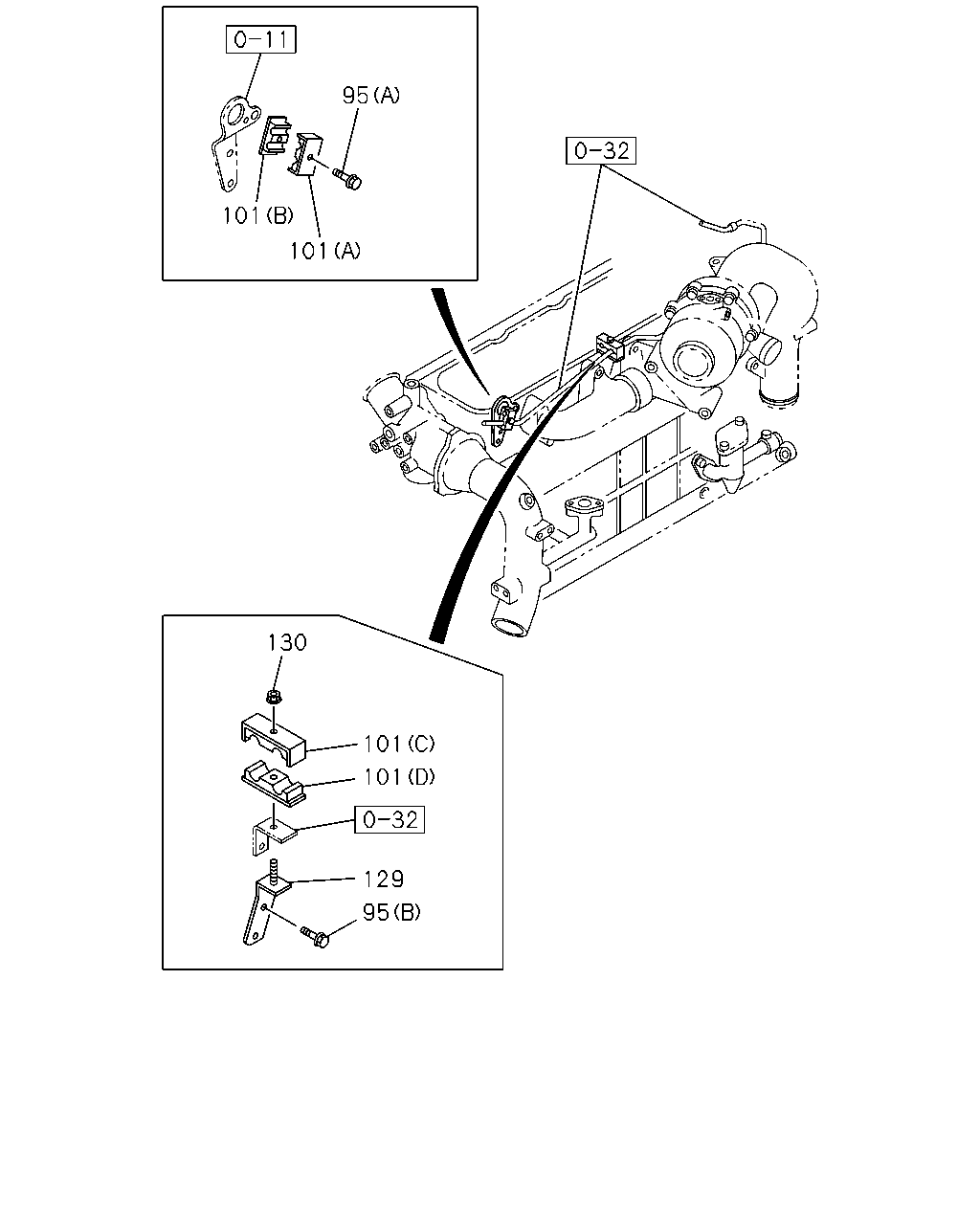

[030A] CLIP AND BRACKET (8 parça)
[030A] COMPONENT AND REPAIR KIT (39 parça)
▶
95
101
101
130
101
101
129
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
95
BOLT; BRKT
(A) M6X35 FLANGE
0-28080-635-0
01
1
0202-
●
95
BOLT; BRKT
(B) M8X16 FLANGE
0-28080-816-0
02
1
0202-
●
101
CLIP; WATER PIPE
(A)
1-09701-172-2
01
1
0202-
●
101
CLIP; WATER PIPE
(B)
1-09701-173-1
01
1
0202-
●
101
CLIP; WATER PIPE
(C)
1-09701-230-1
01
1
0202-
●
101
CLIP; WATER PIPE
(D)
1-09701-231-1
01
1
0202-
●
129
BRACKET; CLIP
1-13319-038-0
01
1
0202-
●
130
NUT; CLIP
M6 FLANGE
0-91150-106-0
01
1
0202-
●
72
1
1
3
18
58
17
24
132
55
24
10
10
16
9
16
29
4
7
10
11
3
72
29
18
16
17
16
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
1-13650-002-2
01
1
0202-
●
1
PUMP ASM; WATER,W/GASKET
1-13650-159-1
01
1
0208-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-018-0
01
1
0202-0207
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-018-1
01
1
0208-
●
●
4
REPAIR KIT; WATER PUMP
1-87812-019-1
01
1
0202-
●
4
REPAIR KIT; WATER PUMP
1-87811-884-1
01
1
0208-
●
7
PULLEY; WATER PUMP
2-GROOVE
1-13641-174-0
01
1
0202-
●
7
PULLEY; WATER PUMP
1-13641-217-0
01
1
0208-
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0202-0207
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0208-
●
●
10
BEARING; WATER PUMP
(B)
1-09800-155-0
02
1
0202-0207
●
10
BEARING; WATER PUMP
(B)
1-09800-155-0
02
1
0208-
●
●
10
BEARING; WATER PUMP
(A)
1-09800-196-0
01
1
0202-0207
●
10
BEARING; WATER PUMP
(A)
1-09800-196-0
01
1
0208-
●
●
11
SPACER; BRG,WATER PUMP
1-13634-029-0
01
1
0202-
●
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
0208-
●
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
0202-0207
●
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
0208-
●
●
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
0202-0207
●
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
0208-
●
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0202-0207
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0208-
●
●
18
IMPELLER; WATER PUMP
1-13621-052-0
01
1
0202-
●
18
IMPELLER; WATER PUMP
1-13621-056-0
01
1
0208-
●
24
BOLT; WATER PUMP
(A) M10X70
0-16806-070-0
02
1
0202-
●
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50140-845-0
07
1
0202-
●
24
BOLT; WATER PUMP
(A) M10X95
0-16806-095-0
02
1
0208-
●
24
BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER
0-50140-835-0
01
1
0208-
●
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50140-845-0
06
1
0208-
●
29
SHAFT; WATER PUMP
1-13631-079-0
01
1
0202-
●
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
0208-
●
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
0202-0207
●
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
0208-
●
●
58
PLUG; HTR
PT3/8 T=8.0
1-09605-066-0
01
1
0202-
●
58
PLUG; HTR
PT3/4
9-09204-526-0
01
1
0208-
●
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-307-0
01
1
0202-
●
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-342-0
01
1
0208-
●
132
WASHER; PL,WATER PUMP
ID=10.5 OD=18
9-09160-510-0
02
1
0202-0207
●
132
WASHER; PL,WATER PUMP
ID=10.5 OD=18
9-09160-510-0
02
1
0208-
●
●
