Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

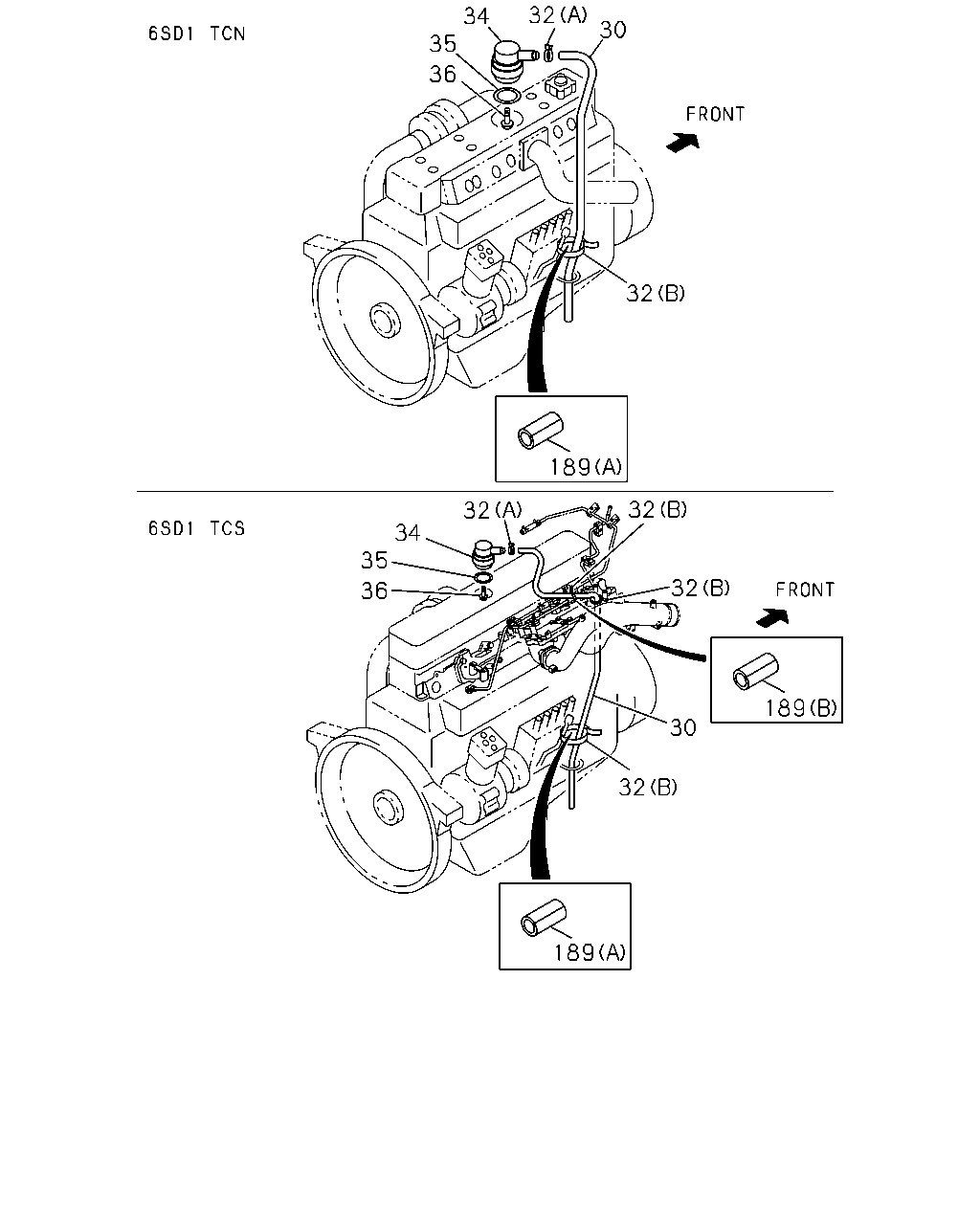

0-28 — VENTILATION SYSTEM
(#32250) — 15 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
32
34
35
30
36
32
189
32
32
34
35
32
36
189
30
32
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-0
01
1
0202-0207
●
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-0
01
1
0208-
●
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0202-0207
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0208-
●
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
02
1
0202-
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
03
1
0208-
●
34
VENTILATOR
1-11740-172-2
01
1
0202-0207
●
34
VENTILATOR
1-11740-172-2
01
1
0208-
●
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0202-0207
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0208-
●
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0202-0207
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0208-
●
●
189
SLEEVE; RUBBER
(A) ID=10 OD=14 L=30
9-09956-682-0
02
1
0202-
●
189
SLEEVE; RUBBER
(B) ID=6 L=30
5-09360-352-0
01
1
0208-
●
189
SLEEVE; RUBBER
(A) ID=10 OD=14 L=30
9-09956-682-0
01
1
0208-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
