Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶

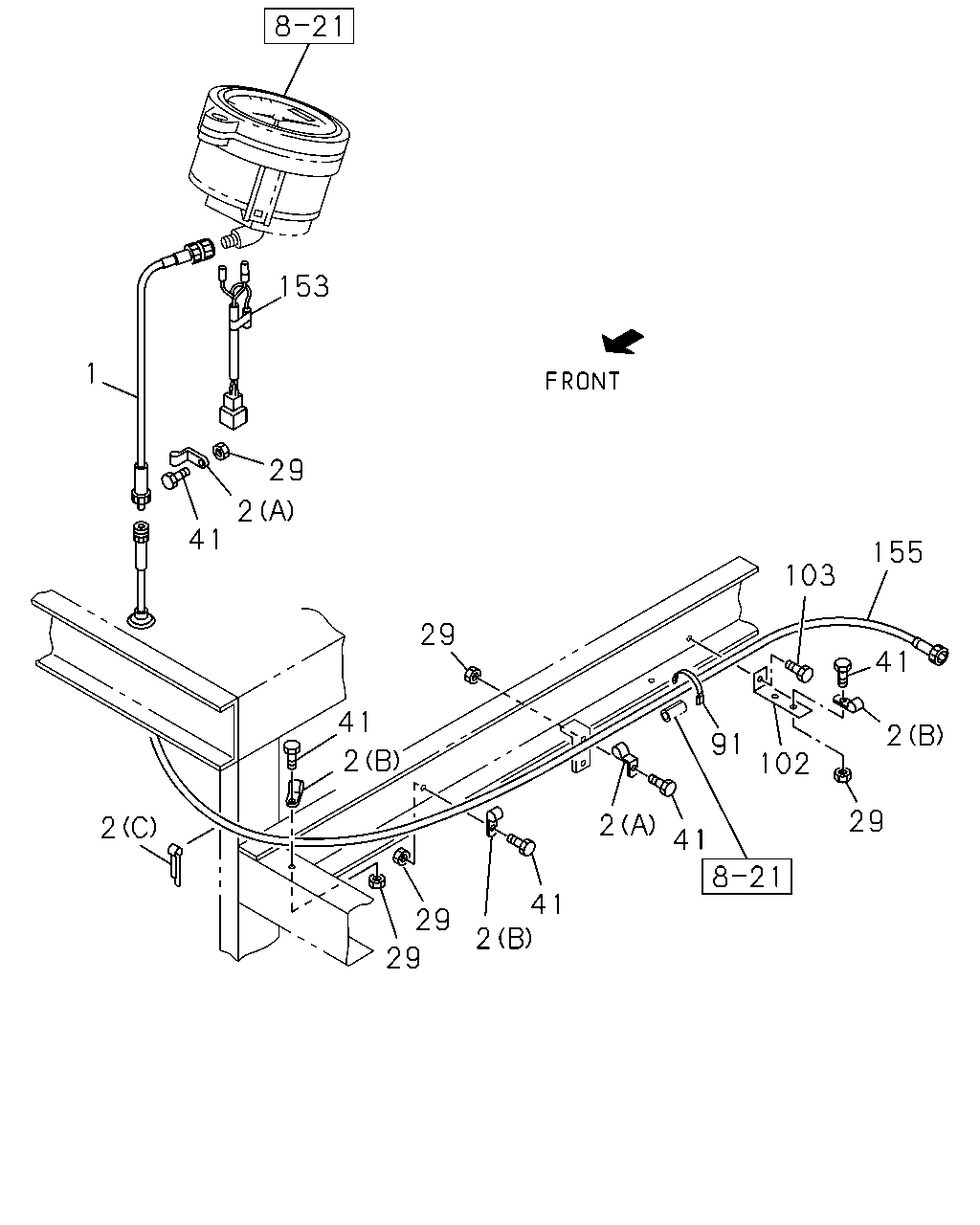

8-20 — METER CABLE
(#3225) — 13 parça
153
1
29
2
41
155
103
29
41
41
2
91
102
2
29
2
2
41
41
2
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; FLEX,SPD TO CONN
L=350
1-83123-258-1
01
1
9104-
2
CLIP; FLEX SHAFT
(A) ID=11 H=34 L=27
1-09701-023-0
01
1
9104-
2
CLIP; FLEX SHAFT
(B) ID=11 L=20
9-09525-035-0
04
1
9104-
2
CLIP; FLEX SHAFT
(C) ID=11 L=41
1-09700-403-0
01
1
9104-
29
NUT; CLIP,METER FLEX SHAFT
M8
9-09110-408-0
05
1
9104-
41
BOLT; METER FLEX SHAFT
M8X25 W/LK WASHER
9-01900-825-0
05
1
9104-9204
41
BOLT; METER FLEX SHAFT
M8X25 W/LK WASHER
0-50040-825-0
05
1
9205-
91
CLIP; BAND
L=140
5-09707-031-1
02
1
9104-
102
BRACKET; CLIP
1-47475-730-0
01
1
9104-
103
BOLT; BRKT
M8X25 W/LK WASHER
9-01900-825-0
01
1
9104-9204
103
BOLT; BRKT
M8X25 W/LK WASHER
0-50040-825-0
01
1
9205-
153
HARNESS; SPEEDOMETER
1-83118-144-1
01
1
9104-
155
SHAFT; FLEX,CONN TO TRANS
L=2950
1-83123-870-0
01
1
9104-
