Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#32248) — 72 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
◀

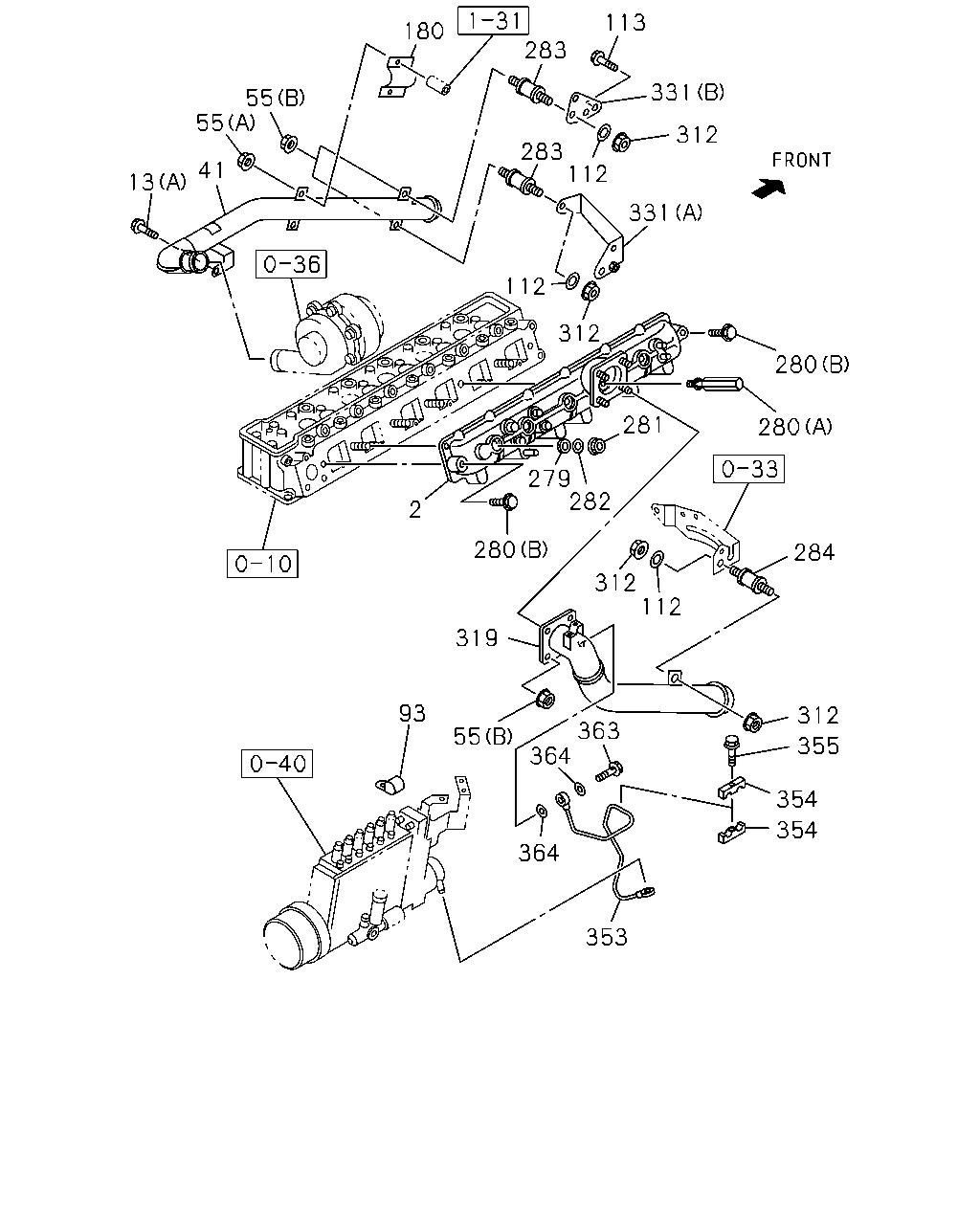

[025A] 6SD1 TCN;COVER,PIPE AND BRKT (33 parça)

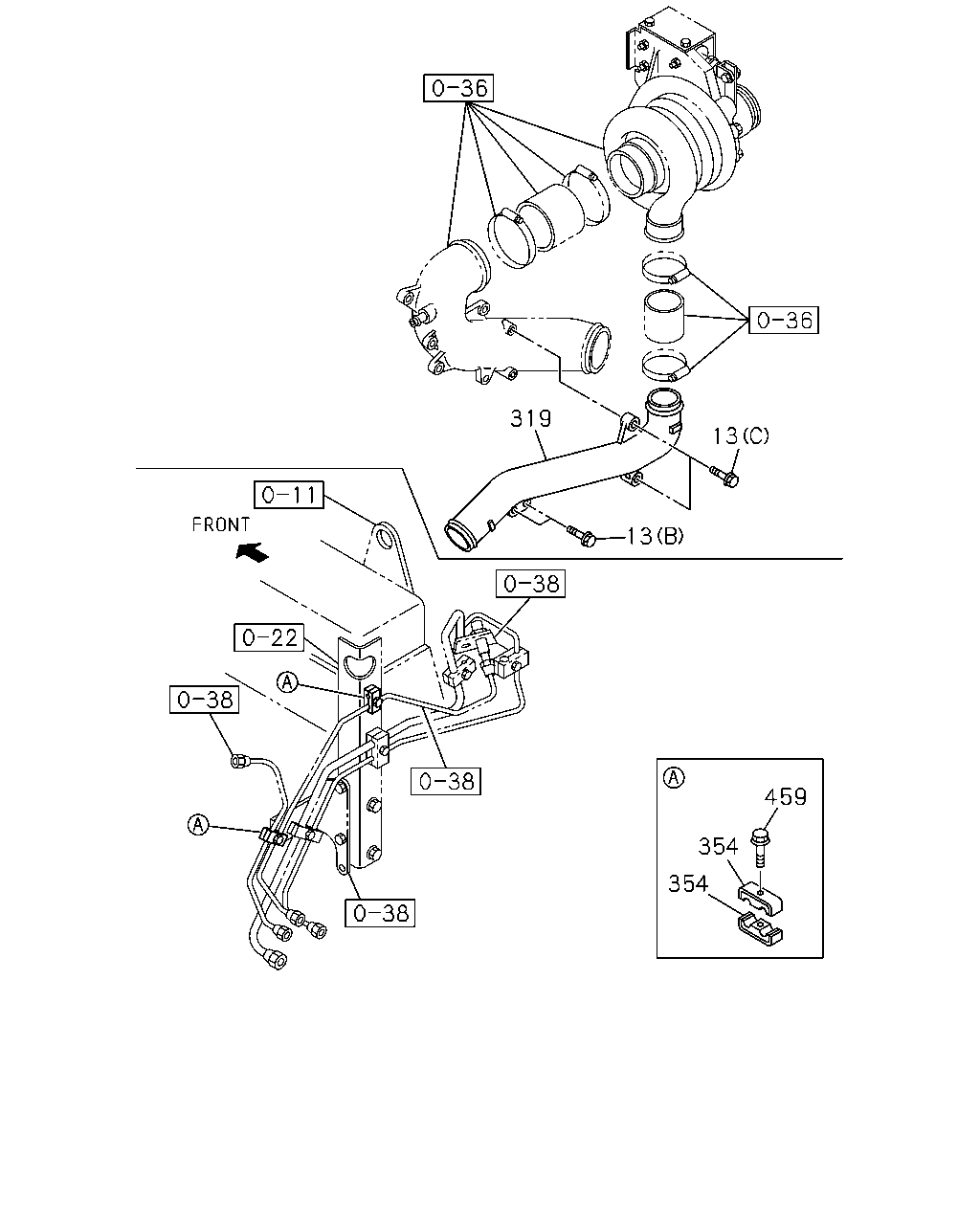

[025A] 6SD1 TCS;PIPE,INLET TO TURBOCHARGER (8 parça)
[025A] 6SD1 TCN;COMPONENT INLET COVER (7 parça)

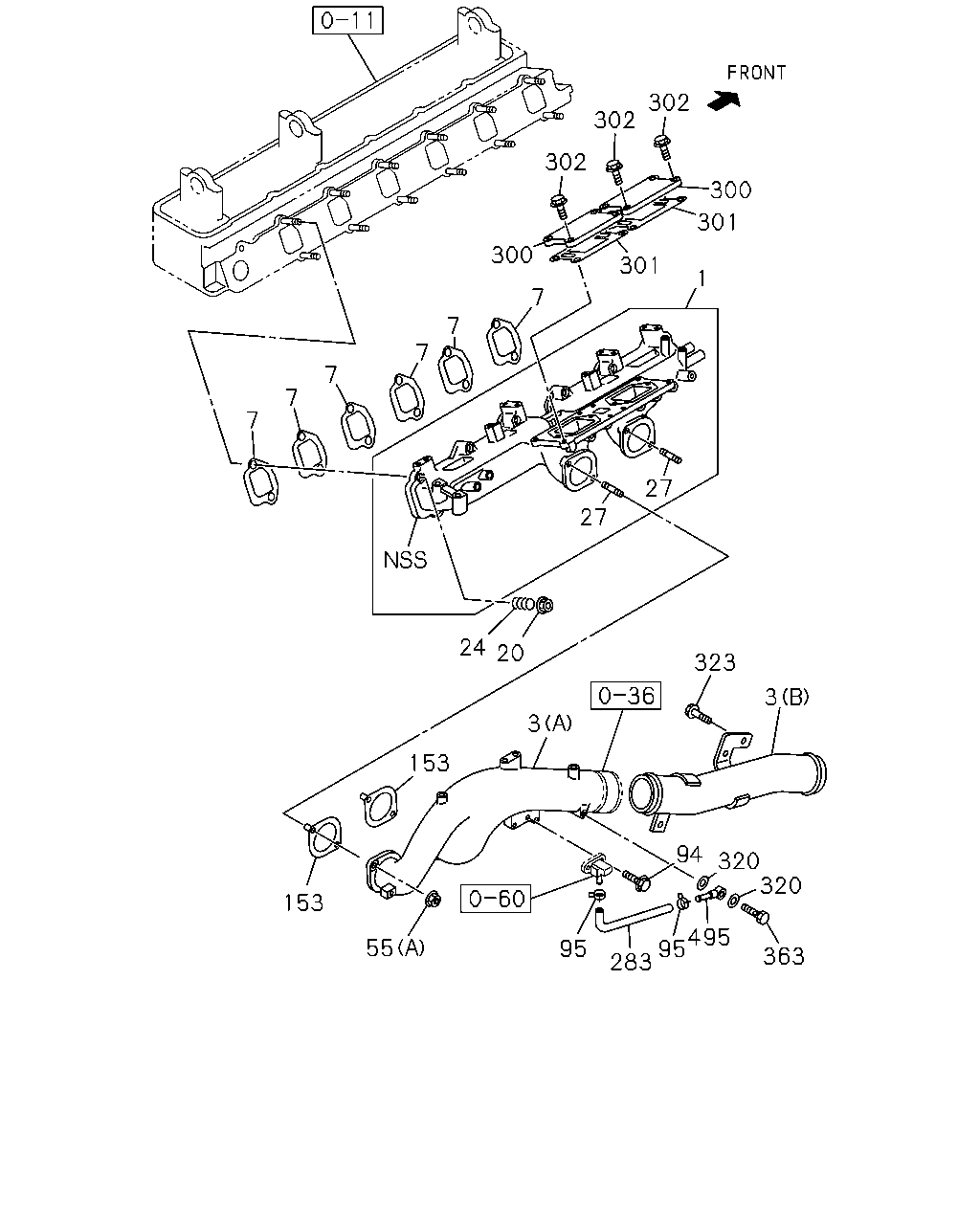

[025A] 6SD1 TCS FIXING;MANIF (24 parça)
▶
113
180
283
331
55
55
312
283
112
41
13
331
112
312
280
281
280
279
282
2
280
284
312
112
319
93
312
363
364
55
355
354
354
364
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; INL
1-14110-603-0
01
1
0202-
●
13
BOLT; INL MANIF
(A) M10X85 FLANGE
8-97020-251-0
01
1
0202-
●
13
BOLT; INL MANIF
(B) M8X35 FLANGE
0-28680-835-0
02
1
0208-
●
13
BOLT; INL MANIF
(C) M8X40 FLANGE
0-28680-840-0
02
1
0208-
●
41
DUCT; INT COVER
1-14134-146-2
01
1
0202-
●
55
NUT; INL PIPE
(B) M8 FLANGE
0-91150-108-0
07
1
0202-
●
55
NUT; INL PIPE
(A) M10 FLANGE
0-91150-110-0
02
1
0202-
●
55
NUT; INL PIPE
(A) M10 FLANGE
0-91150-110-0
04
1
0208-
●
93
CLIP; HARNESS
ID=24 L=32 THA
1-09700-766-1
01
1
0202-
●
112
WASHER; PL
ID=8.4 OD=26
9-09164-808-0
03
1
0202-
●
113
BOLT; STAY
M8X16 FLANGE
0-28080-816-0
02
1
0202-
●
180
PROTECTOR; HEAT
1-14181-286-0
01
1
0202-
●
279
GASKET; FIX NUT,INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-046-0
04
1
0202-
●
280
BOLT; INL COVER
(B) M8X45 FLANGE
0-28080-845-0
02
1
0202-
●
280
BOLT; INL COVER
(A) M8X28.5
1-09009-125-1
01
1
0202-
●
281
NUT; INL COVER
1-11175-011-1
04
1
0202-
●
282
WASHER; PL,INL CVR FIX
ID=12.5
1-09503-186-0
04
1
0202-
●
283
RUBBER
8-94394-268-1
02
1
0202-
●
283
RUBBER
1-14119-435-0
01
1
0208-
●
284
RUBBER; INL PIPE MTG
8-94394-268-1
01
1
0202-
●
312
NUT; MTG RUBBER
M8 FLANGE
0-91150-108-0
03
1
0202-
●
319
DUCT; INL,TURBOCHARGER
1-14134-238-1
01
1
0202-
●
319
DUCT; INL,TURBOCHARGER
1-14134-455-1
01
1
0208-
●
331
STAY; INL DUCT
(A)
1-13719-088-0
01
1
0202-
●
331
STAY; INL DUCT
(B)
1-14119-389-0
01
1
0202-
●
353
PIPE; AIR,BOOST
1-19192-953-0
01
1
0202-
●
354
CLIP; AIR PIPE
ID=15 L=30
1-09701-132-1
02
1
0202-
●
354
CLIP; AIR PIPE
1-09701-240-0
04
1
0208-
●
355
BOLT; CLIP,AIR PIPE
M6X35 FLANGE
0-28080-635-0
01
1
0202-
●
363
BOLT; EYE
1-09675-184-0
01
1
0202-
●
363
BOLT; EYE
M8X24
1-09675-206-0
01
1
0208-0306
●
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
0307-
●
364
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA
1-09630-083-0
02
1
0202-
●
319
13
13
459
354
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
BOLT; INL MANIF
(A) M10X85 FLANGE
8-97020-251-0
01
1
0202-
●
13
BOLT; INL MANIF
(B) M8X35 FLANGE
0-28680-835-0
02
1
0208-
●
13
BOLT; INL MANIF
(C) M8X40 FLANGE
0-28680-840-0
02
1
0208-
●
319
DUCT; INL,TURBOCHARGER
1-14134-238-1
01
1
0202-
●
319
DUCT; INL,TURBOCHARGER
1-14134-455-1
01
1
0208-
●
354
CLIP; AIR PIPE
ID=15 L=30
1-09701-132-1
02
1
0202-
●
354
CLIP; AIR PIPE
1-09701-240-0
04
1
0208-
●
459
BOLT; CLIP FIX
M6X35 FLANGE
0-28680-635-0
02
1
0208-
●
2
228
161
228
18
221
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; INL
1-14110-603-0
01
1
0202-
●
18
SCREW; PLATE,INL CVR
1-09054-019-0
08
1
0202-
●
161
STUD; BRKT,INJ PUMP
M8X20 L=32
9-04110-820-0
02
1
0202-
●
221
PLATE; INL COVER
1-14119-261-0
04
1
0202-
●
228
STUD; INL COVER
(A) M8X20 L=32
9-04110-820-0
02
1
0202-
●
228
STUD; INL COVER
(B) M8X25 L=37
9-04110-825-0
04
1
0202-
●
228
STUD; INL COVER
(C) M8X60 L=72
9-04110-860-0
01
1
0202-
●
302
302
302
300
301
300
301
1
7
7
7
7
7
7
27
27
24
20
323
3
3
153
94
320
320
153
495
95
283
55
95
363
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
1-14110-596-1
01
1
0208-
●
3
DUCT; INT
(A)
1-14134-400-2
01
1
0208-
●
3
DUCT; INT
(B)
1-14134-454-1
01
1
0208-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-091-0
06
1
0208-
●
20
NUT; INL MANIF
M8 FLANGE
0-91150-108-0
12
1
0208-
●
24
SPRING; INL MANIF
8-94393-858-0
12
1
0208-
●
27
STUD; INL MANIF
M10X25 L=40
9-04411-025-0
04
1
0208-
●
55
NUT; INL PIPE
(B) M8 FLANGE
0-91150-108-0
07
1
0202-
●
55
NUT; INL PIPE
(A) M10 FLANGE
0-91150-110-0
02
1
0202-
●
55
NUT; INL PIPE
(A) M10 FLANGE
0-91150-110-0
04
1
0208-
●
94
BOLT
M6X12 FLANGE
0-28080-612-0
02
1
0208-
●
95
CLIP; RUBBER HOSE
ID=11 WHITE
5-09707-005-1
02
1
0208-
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-097-0
02
1
0208-
●
283
RUBBER
8-94394-268-1
02
1
0202-
●
283
RUBBER
1-14119-435-0
01
1
0208-
●
300
COVER; INL MANIF
1-11749-208-0
02
1
0208-
●
301
GASKET; INL MANIF COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-16185-004-0
02
1
0208-
●
302
BOLT; INL MANIF COVER
M10X30 FLANGE
0-28181-030-0
08
1
0208-
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
02
1
0208-
●
323
BOLT; DUCT
M8X30 FLANGE
0-28680-830-0
02
1
0208-
●
363
BOLT; EYE
1-09675-184-0
01
1
0202-
●
363
BOLT; EYE
M8X24
1-09675-206-0
01
1
0208-0306
●
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
0307-
●
495
PIPE; BOOST SENSOR
8-94428-807-0
01
1
0208-
●
