◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#3224) — 153 parça

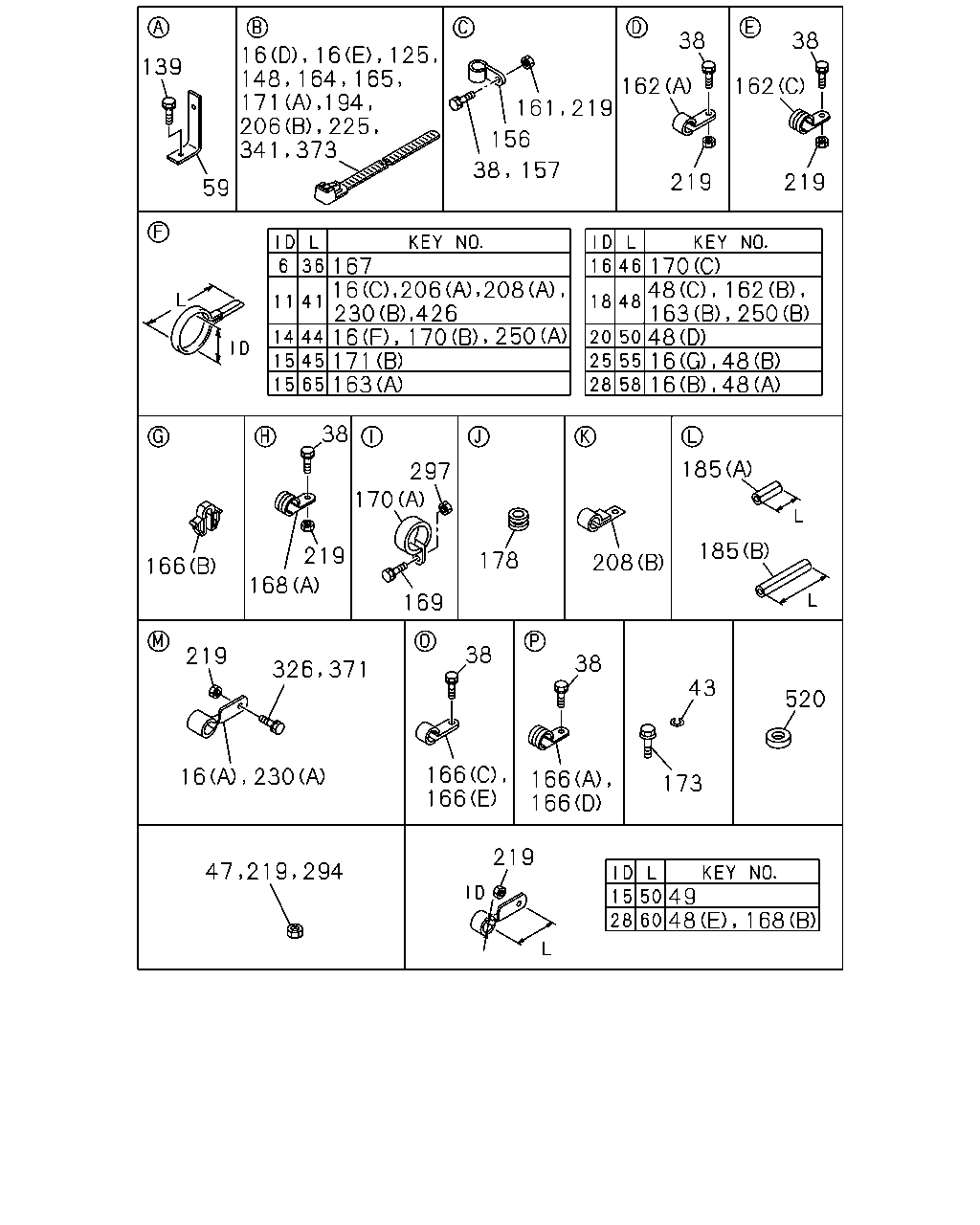

çizim 3194
38 38 16 16 125 171 194 139 162 162 156 38 157 219 219 59 48 162 167 16 171 163 38 185 297 170 185 219 178 208 166 168 169 38 219 38 43 520 166 166 16 230 166 166 173 219 168 148 164 165 206 225 341 373 16 206 208 230 426 170 250 161 219 170 163 250 48 16 48 48 16 326 371 47 219 294 48 49
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=13 L=50 		1-09700-027-1 01 1 9104-
16 CLIP; HARNESS
(A) ID=13 L=50 		1-09700-027-1 02 1 9104-0107
16 CLIP; HARNESS
(A) ID=13 L=50 		1-09700-027-1 02 1 0108-
16 CLIP; HARNESS
(B) ID=28 L=58 		1-09700-400-0 02 1 9104-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 9104-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 9104-0107
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0108-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 04 1 9104-0107
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 04 1 0108-
16 CLIP; HARNESS
(E) L=140 		5-09707-031-1 01 1 9104-0107
16 CLIP; HARNESS
(E) L=140 		5-09707-031-1 01 1 0108-
16 CLIP; HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 9104-
16 CLIP; HARNESS
(G) ID=25 L=55 		9-09917-573-0 02 1 9104-0107
16 CLIP; HARNESS
(G) ID=25 L=55 		9-09917-573-0 02 1 0108-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9104-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-0107
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 04 1 0108-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 06 1 9104-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 06 1 9205-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9104-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-
43 WASHER; LK,HARNESS
ID=6.1 		9-09150-506-0 01 1 9104-
47 NUT; GEN TERMINAL
M6 		9-09110-406-0 01 1 9104-
47 NUT; GEN TERMINAL
M8 		9-09110-408-0 02 1 9104-0107
47 NUT; GEN TERMINAL
M8 		9-09110-408-0 02 1 0108-
48 CLIP; FRAME HARNESS
(A) ID=28 L=58 		1-09700-400-0 02 1 9104-0107
48 CLIP; FRAME HARNESS
(A) ID=28 L=58 		1-09700-400-0 02 1 0108-
48 CLIP; FRAME HARNESS
(E) ID=28 L=60 		1-09700-585-1 02 1 9104-
48 CLIP; FRAME HARNESS
(C) ID=18 L=48 		9-09917-429-0 13 1 9104-0107
48 CLIP; FRAME HARNESS
(C) ID=18 L=48 		9-09917-429-0 13 1 0108-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 23 1 9104-0107
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 23 1 0108-
48 CLIP; FRAME HARNESS
(B) ID=25 L=55 		9-09917-573-0 05 1 9104-0107
48 CLIP; FRAME HARNESS
(B) ID=25 L=55 		9-09917-573-0 05 1 0108-
49 CLIP; GEN HARNESS
ID=15 L=50 		1-09700-804-0 01 1 9104-0107
49 CLIP; GEN HARNESS
ID=15 L=50 		1-09700-804-0 01 1 0108-
59 BRACKET; FRAME HARNESS 1-38329-061-0 02 1 9104-0107
59 BRACKET; FRAME HARNESS 1-38329-061-0 02 1 0108-
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-1 02 1 9104-0107
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-1 02 1 0108-
139 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9104-9204
139 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-0107
139 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 0108-
148 CLIP; BAND,HEADLAMP HARNESS
L=250 		5-09707-030-1 04 1 9104-0107
148 CLIP; BAND,HEADLAMP HARNESS
L=250 		5-09707-030-1 04 1 0108-
156 CLIP; ELEC PANEL STAY
ID=19 L=20 		9-09525-835-0 01 1 9104-0107
156 CLIP; ELEC PANEL STAY
ID=19 L=20 		9-09525-835-0 01 1 0108-
157 BOLT; ELEC PANEL STAY
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
157 BOLT; ELEC PANEL STAY
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-0107
157 BOLT; ELEC PANEL STAY
M8X25 W/LK WASHER 		0-50040-825-0 01 1 0108-
161 NUT; ELEC PANEL STAY
M8 		9-09110-408-0 01 1 9104-0107
161 NUT; ELEC PANEL STAY
M8 		9-09110-408-0 01 1 0108-
162 CLIP; SW HARNESS
(A) ID=9 L=50 		9-09524-885-0 01 1 9104-0107
162 CLIP; SW HARNESS
(A) ID=9 L=50 		9-09524-885-0 01 1 0108-
162 CLIP; SW HARNESS
(C) ID=16 L=50 		9-09525-586-0 02 1 9104-0107
162 CLIP; SW HARNESS
(C) ID=16 L=50 		9-09525-586-0 02 1 0108-
162 CLIP; SW HARNESS
(B) ID=18 L=48 		9-09917-429-0 02 1 9104-0107
162 CLIP; SW HARNESS
(B) ID=18 L=48 		9-09917-429-0 02 1 0108-
163 CLIP; METER HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 9104-0107
163 CLIP; METER HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 0108-
163 CLIP; METER HARNESS
(B) ID=18 L=48 		9-09917-429-0 01 1 9104-0107
163 CLIP; METER HARNESS
(B) ID=18 L=48 		9-09917-429-0 01 1 0108-
164 CLIP; BAND METER HARNESS
L=250 		5-09707-030-1 01 1 9104-0107
164 CLIP; BAND METER HARNESS
L=250 		5-09707-030-1 01 1 0108-
165 CLIP; BAND COMB SW
L=250 		5-09707-030-1 02 1 9104-0107
165 CLIP; BAND COMB SW
L=250 		5-09707-030-1 02 1 0108-
166 CLIP; HARNESS CLU SW
(D) ID=19 L=25 		1-09700-614-0 01 1 9104-9304
166 CLIP; HARNESS CLU SW
(C) ID=19 L=25 		1-09700-515-1 01 1 9305-
166 CLIP; HARNESS CLU SW
(E) ID=19 L=28 		9-09525-855-0 01 1 9104-9510
166 CLIP; HARNESS CLU SW
(A) ID=19 L=28 		9-09525-856-0 01 1 9511-
166 CLIP; HARNESS CLU SW
(B) 		1-09987-106-0 01 1 9104-
167 CLIP; HARNESS ACCEL & STOP
ID=6 L=36 		9-09917-423-0 02 1 9104-0107
167 CLIP; HARNESS ACCEL & STOP
ID=6 L=36 		9-09917-423-0 02 1 0108-
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 04 1 9104-9311
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 03 1 9312-
168 CLIP; DASH HARNESS
(B) ID=28 L=60 		1-09700-585-1 01 1 9312-0107
168 CLIP; DASH HARNESS
(B) ID=28 L=60 		1-09700-585-1 01 1 0108-
169 BOLT; ELEC HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
169 BOLT; ELEC HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-0107
169 BOLT; ELEC HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
170 CLIP; ELEC HARNESS
(A) ID=48 L=36 		5-09700-329-0 02 1 9104-0107
170 CLIP; ELEC HARNESS
(A) ID=48 L=36 		5-09700-329-0 02 1 0108-
170 CLIP; ELEC HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9104-0107
170 CLIP; ELEC HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0108-
170 CLIP; ELEC HARNESS
(C) ID=16 L=46 		9-09917-428-0 04 1 9104-0107
170 CLIP; ELEC HARNESS
(C) ID=16 L=46 		9-09917-428-0 04 1 0108-
171 CLIP; STARTER HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9104-0107
171 CLIP; STARTER HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 0108-
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 01 1 9104-0107
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 01 1 0108-
173 BOLT; STARTER EARTH
M10X30 FLANGE 		0-28081-030-0 01 1 9104-0107
173 BOLT; STARTER EARTH
M10X30 FLANGE 		0-28081-030-0 01 1 0108-
178 GROMMET; HARNESS
ID=11 OD=14 T=17 		9-09956-004-0 01 1 9104-0107
178 GROMMET; HARNESS
ID=11 OD=14 T=17 		9-09956-004-0 01 1 0108-
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 9104-0107
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 0108-
185 SLEEVE; RUBBER
(A) ID=15 OD=19 L=20 		1-09337-007-0 01 1 9104-0107
185 SLEEVE; RUBBER
(A) ID=15 OD=19 L=20 		1-09337-007-0 01 1 0108-
185 SLEEVE; RUBBER
(B) L=60 		5-15419-011-0 01 1 9104-0107
185 SLEEVE; RUBBER
(B) L=60 		5-15419-011-0 01 1 0108-
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 9104-0107
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0108-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9104-0107
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0108-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 03 1 9104-0107
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 03 1 0108-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 9104-
208 CLIP; HARNESS,MAG VLV
(B) ID=11 L=30 		1-09700-511-0 01 1 9104-
219 NUT
M8 		9-09110-408-0 04 1 9104-0107
219 NUT
M8 		9-09110-408-0 04 1 0108-
219 NUT
M8 		9-09110-408-0 01 1 9104-
219 NUT
M8 		9-09110-408-0 06 1 9104-
219 NUT
M10 		9-09110-510-0 01 1 9104-0107
219 NUT
M10 		9-09110-510-0 01 1 0108-
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-1 03 1 9104-0107
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-1 03 1 0108-
230 CLIP; C/MBR HARNESS
(A) ID=13 L=50 		1-09700-027-1 01 1 9104-0107
230 CLIP; C/MBR HARNESS
(A) ID=13 L=50 		1-09700-027-1 01 1 0108-
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9104-0107
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0108-
250 CLIP; END CROSS
(A) ID=14 L=44 		9-09917-427-0 02 1 9104-0107
250 CLIP; END CROSS
(A) ID=14 L=44 		9-09917-427-0 02 1 0108-
250 CLIP; END CROSS
(B) ID=18 L=48 		9-09917-429-0 03 1 9104-0107
250 CLIP; END CROSS
(B) ID=18 L=48 		9-09917-429-0 03 1 0108-
294 NUT
M8 		9-09110-408-0 04 1 9104-0107
294 NUT
M8 		9-09110-408-0 04 1 0108-
297 NUT; HARNESS ELEC PANEL
M8 		9-09110-408-0 02 1 9104-0107
297 NUT; HARNESS ELEC PANEL
M8 		9-09110-408-0 02 1 0108-
326 BOLT; HARNESS 4TH C/MBR
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
326 BOLT; HARNESS 4TH C/MBR
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-
341 CLIP; BAND,STARTER RELAY
L=140 		5-09707-031-1 01 1 9104-0107
341 CLIP; BAND,STARTER RELAY
L=140 		5-09707-031-1 01 1 0108-
371 BOLT; GEN HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
371 BOLT; GEN HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-0107
371 BOLT; GEN HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 0108-
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 9104-0107
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 0108-
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-1 01 1 9104-0107
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-1 01 1 0108-
426 CLIP; HARNESS,PARKING SW
ID=11 L=41 		1-09700-403-0 03 1 9104-0107
426 CLIP; HARNESS,PARKING SW
ID=11 L=41 		1-09700-403-0 03 1 0108-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9301-0107
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 0108-

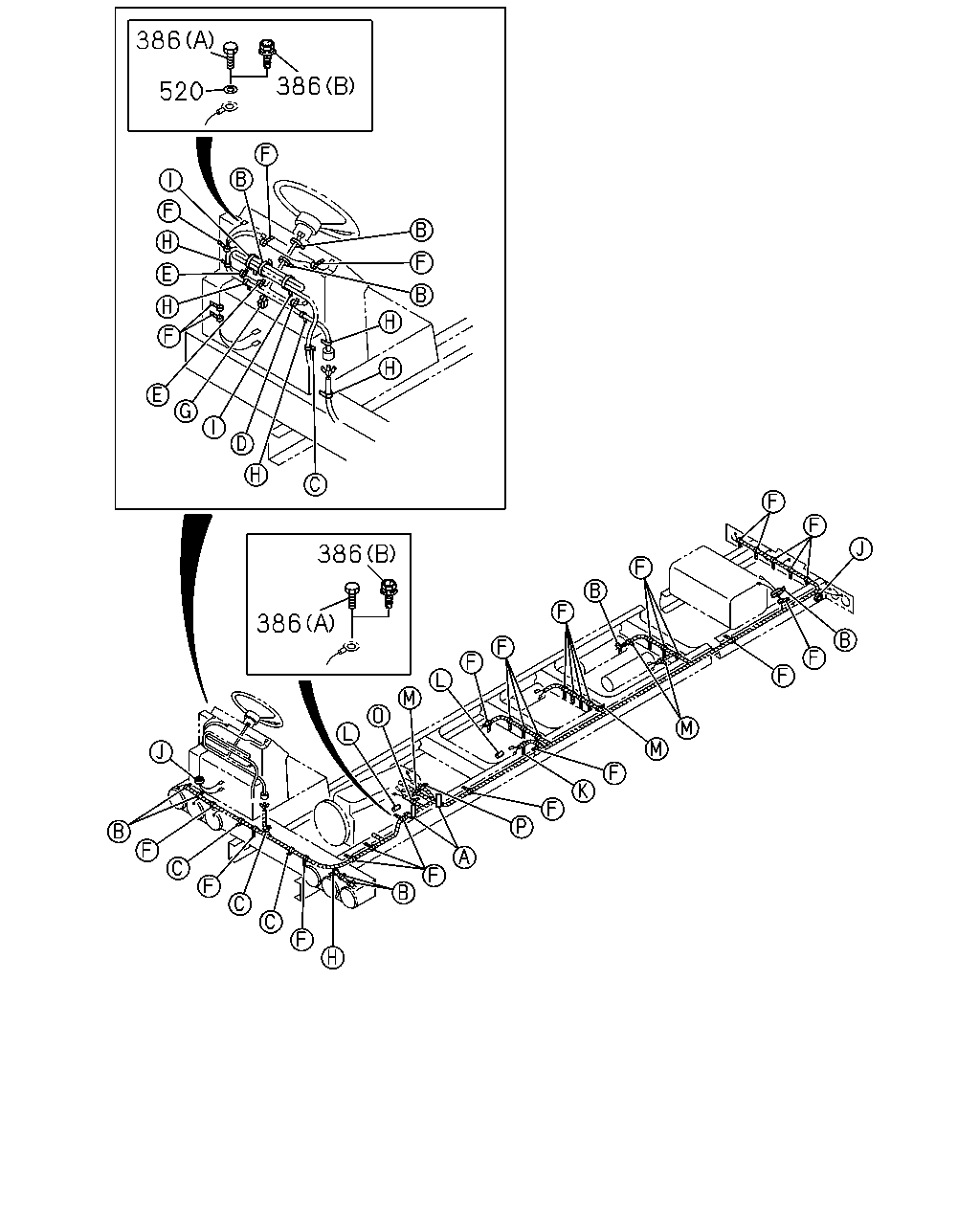

çizim 4095
386 386 520 386 386
BalonParca AdiParca NoAdetTipApplied Date
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9104-9204
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9212
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9301-0107
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0108-
386 BOLT; GRAND HARNESS
(A) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
386 BOLT; GRAND HARNESS
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9212
386 BOLT; GRAND HARNESS
(B) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9301-0107
386 BOLT; GRAND HARNESS
(B) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 0108-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9301-0107
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 0108-
