4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32230) — 14 parça

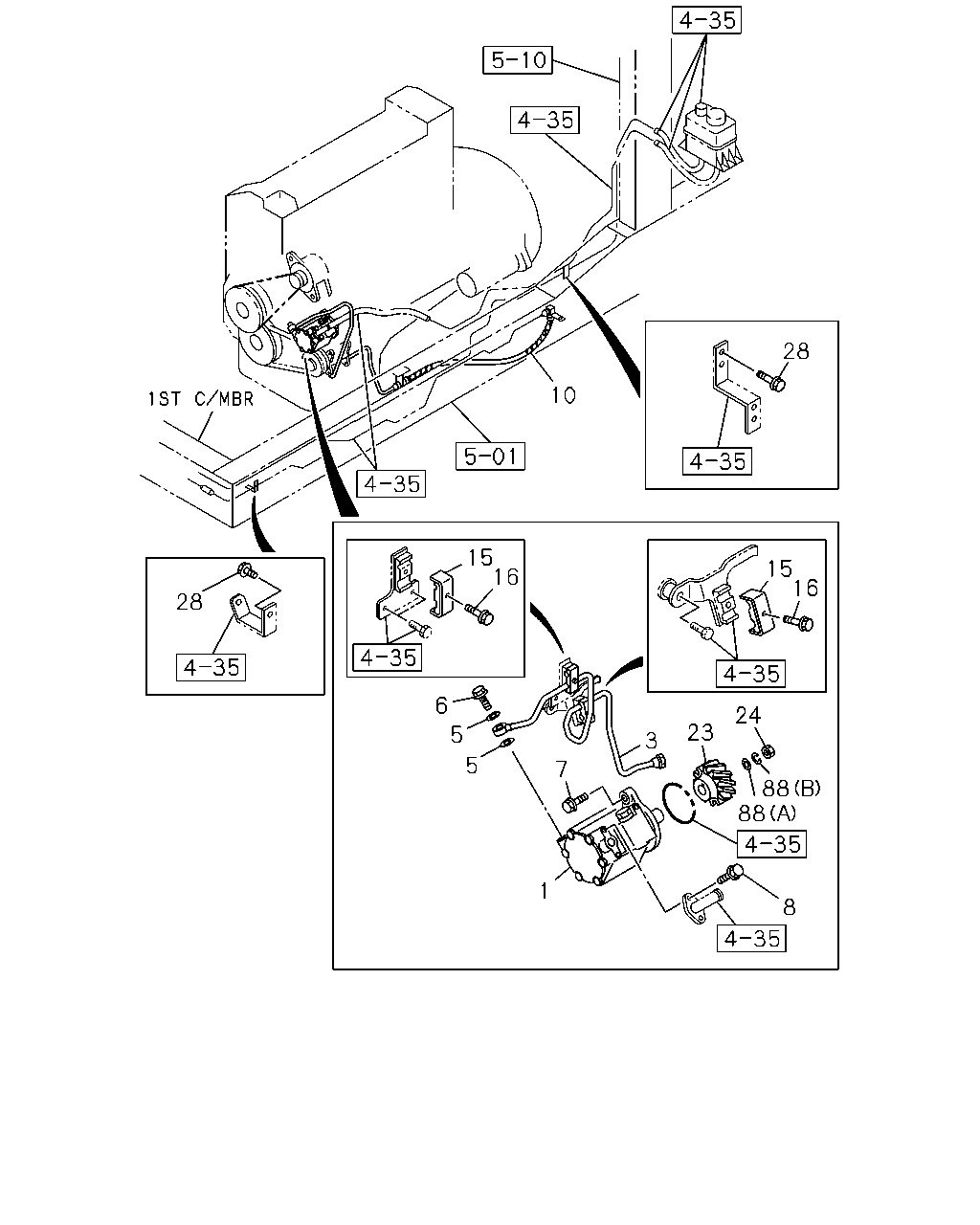

çizim 89392
28 10 15 16 15 16 28 6 24 23 5 3 5 7 88 88 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-616-3 01 1 0603-
3 PIPE; OIL,CHARGE,P/S 1-13314-057-0 01 1 0603-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0603-
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 0603-
7 BOLT; OIL PUMP,P/S
M10X130 FLANGE 		0-28156-013-0 02 1 0603-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0603-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=430 		1-09365-045-0 01 1 0603-
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 0603-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 0603-
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 0603-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0603-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28650-830-0 02 1 0603-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0603-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0603-
