Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶

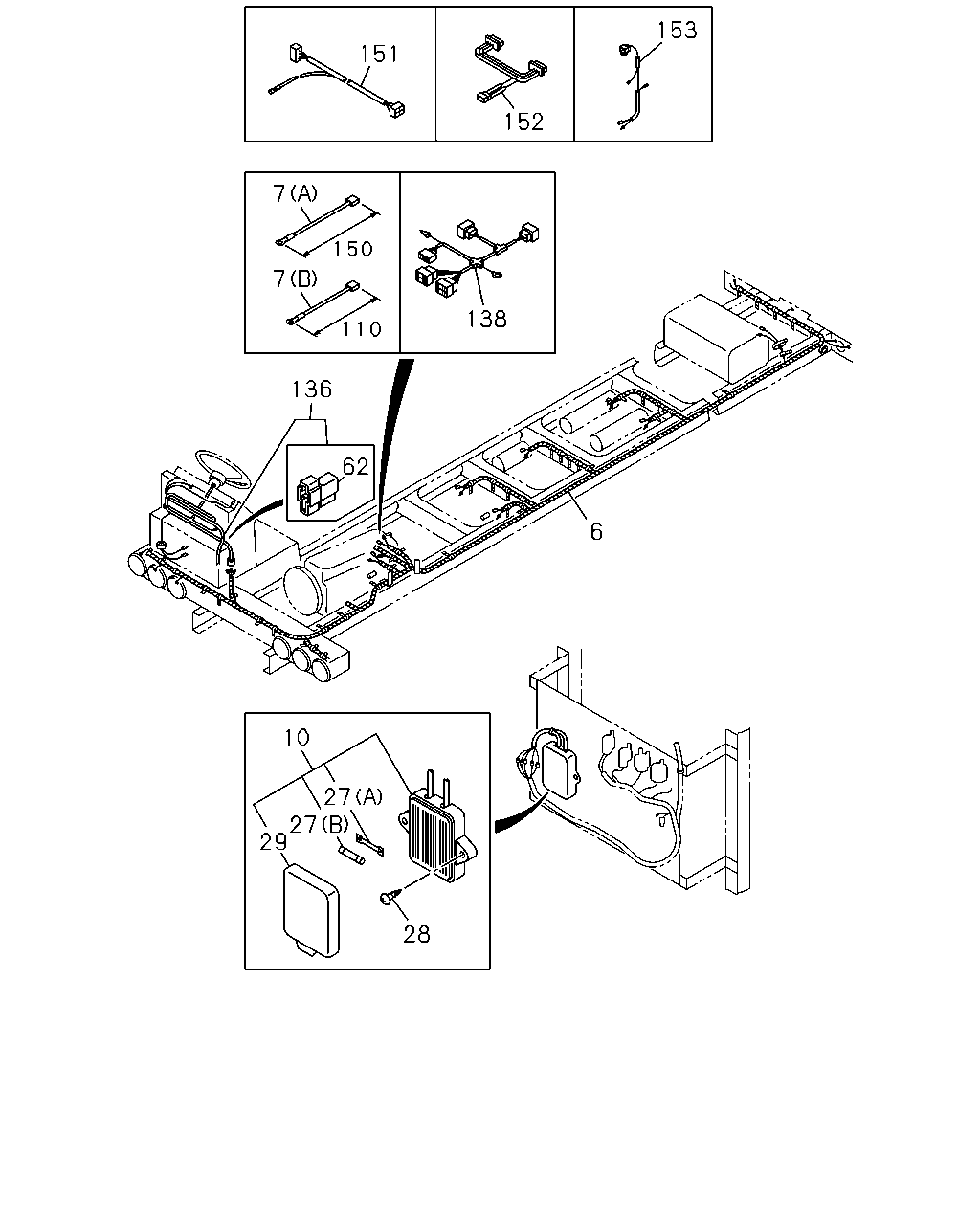

8-10 — WIRING HARNESS AND FUSE
(#3223) — 22 parça
153
151
152
7
7
138
136
62
6
10
27
27
29
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82636-745-2
01
1
9104-
7
LINK ASM; FUSIBLE
(B)
1-82659-005-0
01
1
9104-
7
LINK ASM; FUSIBLE
(A)
1-82659-031-1
01
1
9104-0107
7
LINK ASM; FUSIBLE
1-82659-031-1
01
1
0108-
10
BOX; FUSE,HARNESS
1-82510-192-3
01
1
9104-0107
10
BOX; FUSE,HARNESS
1-82510-192-3
01
1
0108-
27
FUSE UNIT
(A) 30A
1-82516-001-0
06
1
9104-0107
27
FUSE UNIT
30A
1-82516-001-0
06
1
0108-
27
FUSE UNIT
(B) 10A YELLOW
9-82941-136-0
13
1
9104-0107
27
FUSE UNIT
10A YELLOW
9-82941-136-0
13
1
0108-
27
FUSE UNIT
(B) 15A BLUE
9-82941-137-0
20
1
9104-0107
27
FUSE UNIT
15A BLUE
9-82941-137-0
20
1
0108-
28
SCREW; FUSE BOX
M6X25 W/LK WASHER
9-03910-625-0
02
1
9104-0107
28
SCREW; FUSE BOX
M6X25 W/LK WASHER
9-03910-625-0
02
1
0108-
29
COVER; FUSE BOX
1-82513-011-0
01
1
9104-0107
29
COVER; FUSE BOX
1-82513-011-0
01
1
0108-
62
DIODE; HARNESS
2P 2.5A
8-94136-639-0
02
1
9104-
136
HARNESS; DASH
1-82624-313-1
01
1
9104-
138
HARNESS; SUB HTR
HEATER&DEFROSTER(C41)
1-82623-513-0
01
1
9104-
151
HARNESS; DEFROSTER
AUXILIARY HEATER<C36>
1-82621-467-0
01
1
9104-
152
HARNESS; WIPER
WIPER MOTOR KIT<ST7>
1-82621-295-0
01
1
9104-
153
HARNESS; WASHER TANK
WINDSHIELD WASHER<C11>
1-82620-467-0
01
1
9104-
