4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#32229) — 130 parça
◀

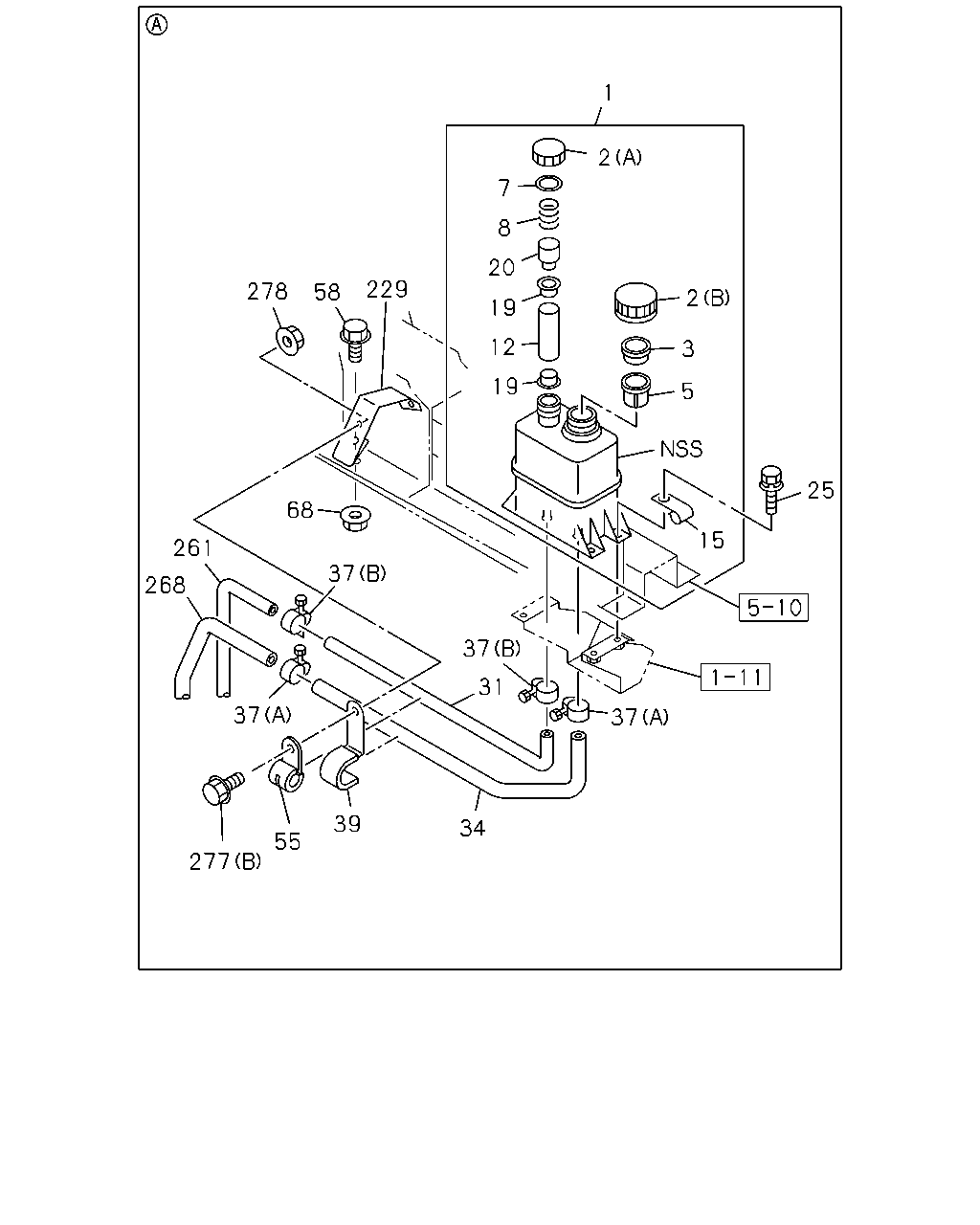

[435A] TANK ASM (30 parça)

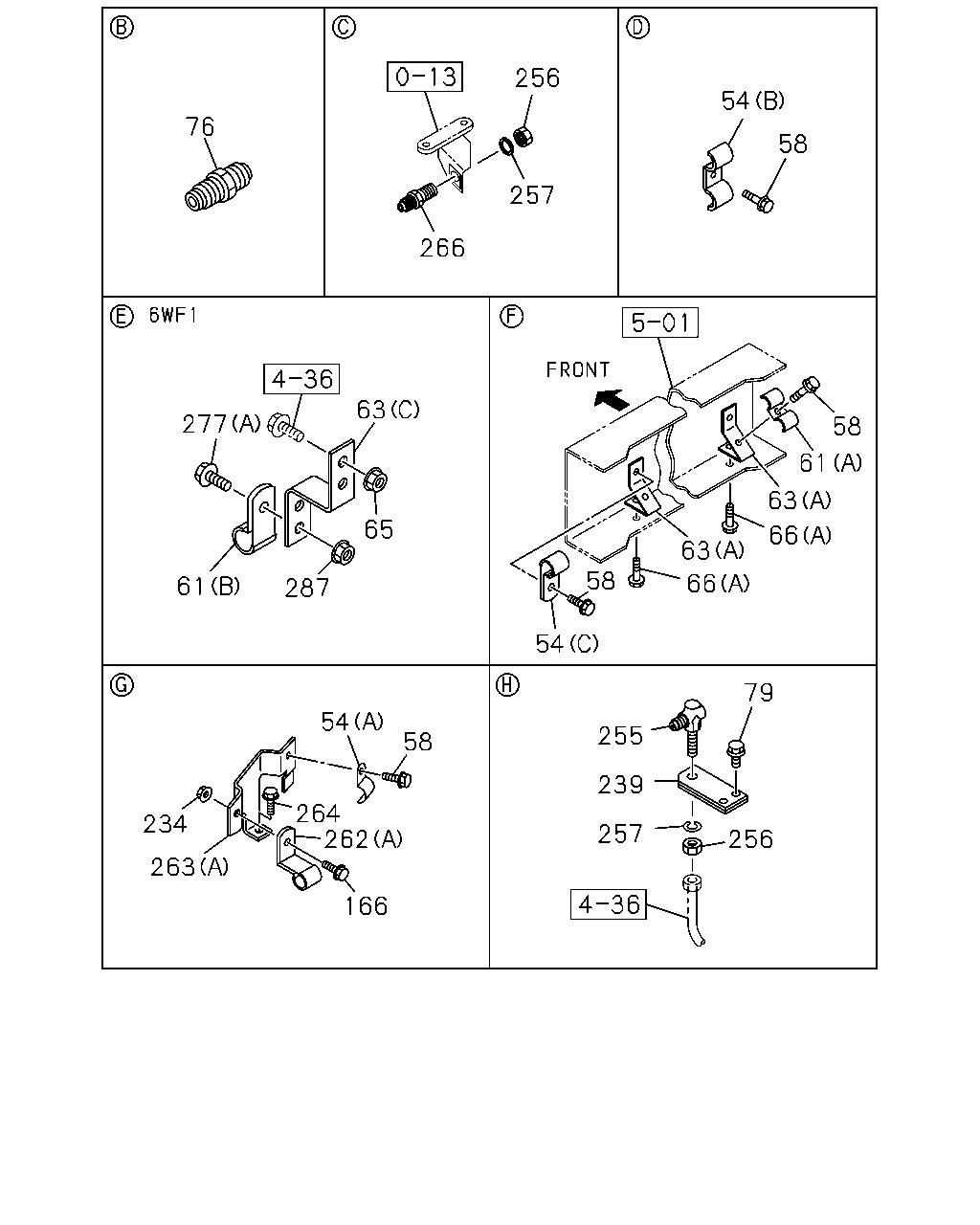

[435A] CLIP,BRACKET AND OTHER PARTS NO.2 (45 parça)

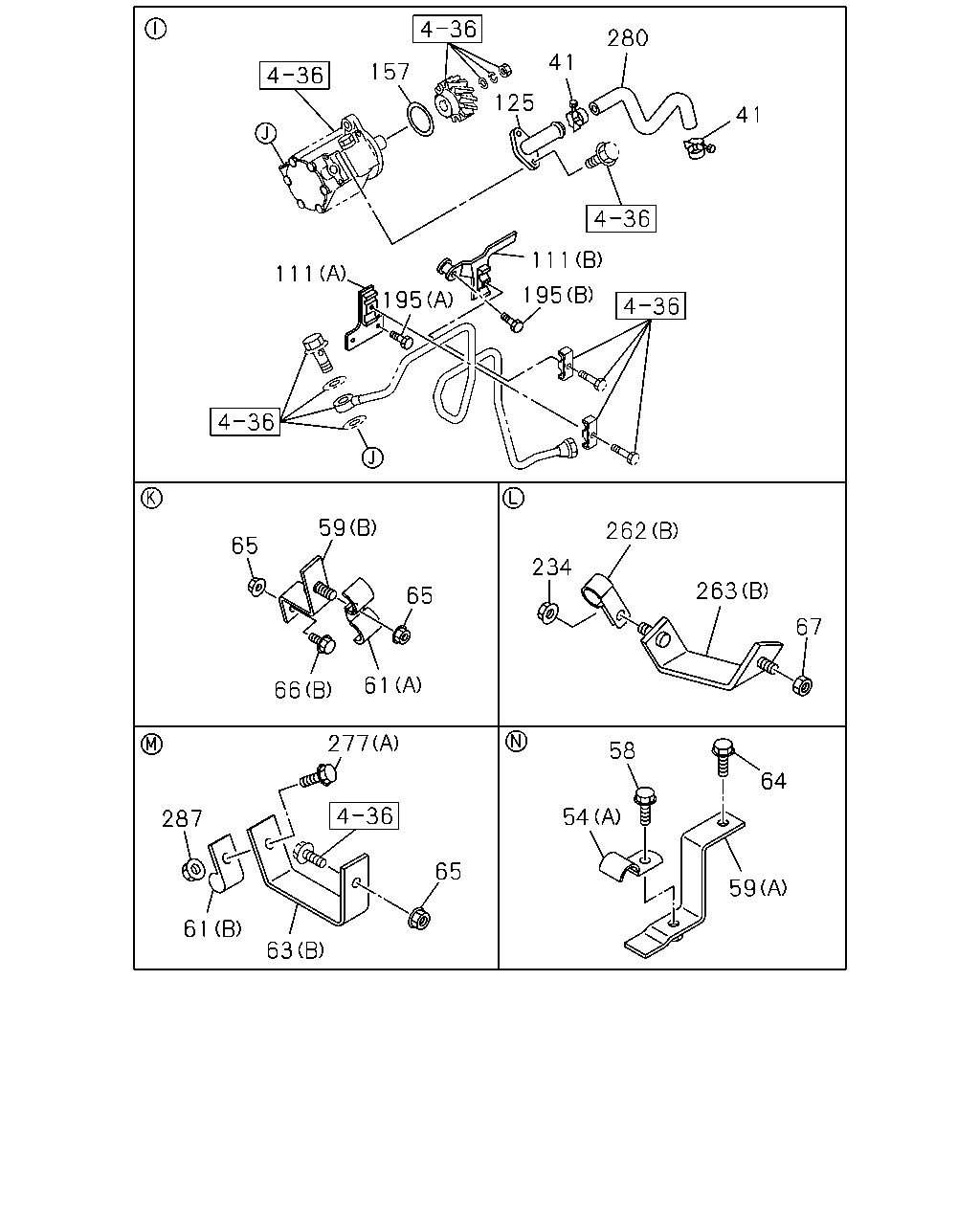

[435A] CLIP,BRACKET AND OTHER PARTS NO.1 (44 parça)

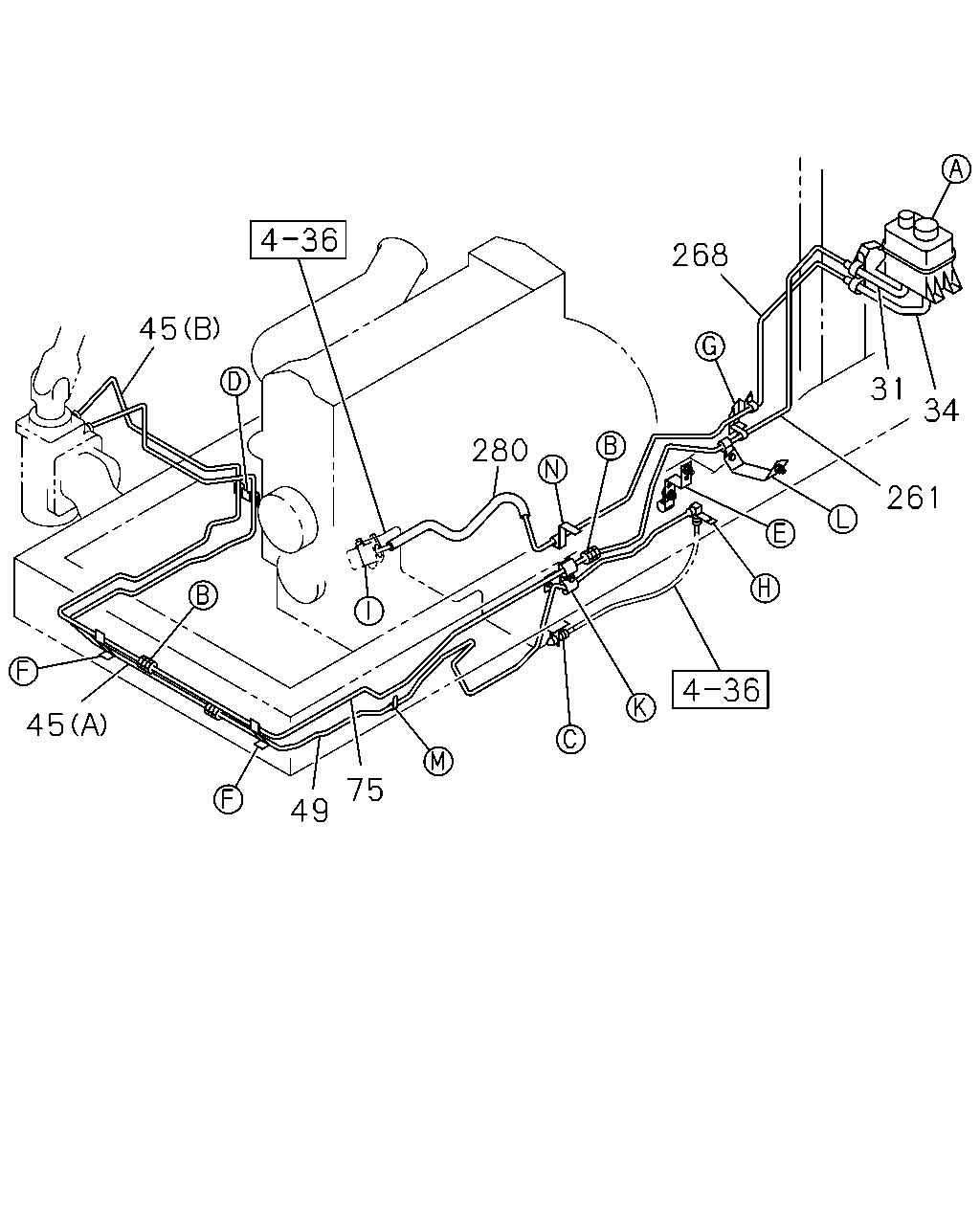

[435A] PIPING (11 parça)
▶
1
2
7
8
20
229
278
58
2
1
12
3
19
5
25
68
15
261
37
268
37
31
37
37
39
34
55
277
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
1-21210-235-1
01
1
0603-
2
CAP; OIL TANK,P/S
(A) WO/GAUGE
1-21241-003-6
01
1
0603-
2
CAP; OIL TANK,P/S
(B) W/GAUGE
1-21241-006-4
01
1
0603-
3
GASKET; OIL TANK,P/S
1-21249-006-2
01
1
0603-
5
STRAINER; OIL TANK,P/S
1-21235-006-1
01
1
0603-
7
RING; GASKET,OIL TANK,P/S
1-21249-005-0
01
1
0603-
8
SPRING; OIL TANK,P/S
1-09580-599-0
01
1
0603-
12
FILTER; MICROBON,OIL TANK,P/S
1-21235-004-1
01
1
0603-
15
PLATE; FILTER,OIL TANK
1-21249-016-0
04
1
0603-
19
SEAT; OIL TANK
1-21262-001-0
02
1
0603-
20
HOLDER; FILTER,OIL TANK,P/S
1-21239-001-2
01
1
0603-
25
BOLT; OIL TANK BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0603-
31
HOSE; P/S OIL TANK,INL
1-21114-284-0
01
1
0603-
34
HOSE; P/S OIL TANK,OUTLET
1-21114-283-0
01
1
0603-
37
CLIP; HOSE,P/S
(A) ID=38
9-09915-041-1
02
1
0603-
37
CLIP; HOSE,P/S
(B) ID=28
9-09915-672-1
02
1
0603-
39
CLIP; FLEX HOSE
ID=32 L=75
1-09700-702-0
01
1
0603-
55
CLIP; P/S RUBBER HOSE
ID=28 L=30
1-09700-607-1
01
1
0603-
58
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
06
1
0603-
58
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0603-
58
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
0603-
68
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
01
1
0603-0603
68
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
01
1
0604-
229
BRACKET; HOSE,POWER STRG
1-21464-407-1
01
1
0603-
261
PIPE; OIL,UNION TO HOSE
L=1031
1-21117-048-0
01
1
0603-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1315
1-21116-855-0
01
1
0603-
277
BOLT; HOSE CLIP
(A) M8X20 FLANGE
0-28650-820-0
03
1
0603-
277
BOLT; HOSE CLIP
(B) M10X25 FLANGE
0-28651-025-0
01
1
0603-
278
NUT; HOSE CLIP
M10 FLANGE
0-91150-210-0
01
1
0603-0603
278
NUT; HOSE CLIP
M10 FLANGE
0-91180-210-0
01
1
0604-
280
41
157
125
41
111
111
195
195
59
262
65
234
263
65
67
61
66
277
58
64
54
287
65
59
61
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
CLIP; HOSE,P/S
ID=38
9-09915-041-1
02
1
0603-
54
CLIP; OIL PIPE
(A) ID=23.6 L=35
1-09700-634-0
02
1
0603-
54
CLIP; OIL PIPE
(B) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
54
CLIP; OIL PIPE
(C) ID=16 L=20
9-09525-535-0
01
1
0603-0606
54
CLIP; OIL PIPE
(C) ID=16 L=20
0-95235-535-0
01
1
0607-
58
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
06
1
0603-
58
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0603-
58
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
0603-
59
BRACKET; CLIP,OIL PIPE
(A)
1-47477-145-0
01
1
0603-
59
BRACKET; CLIP,OIL PIPE
(B)
1-47477-669-1
01
1
0603-
61
CLIP; OIL PIPE
(B) ID=16 L=20
9-09525-535-0
05
1
0603-0606
61
CLIP; OIL PIPE
(B) ID=16 L=20
0-95235-535-0
05
1
0607-
61
CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
61
CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
63
BRACKET; CLIP,P/S
(C)
1-47475-963-1
01
1
0603-
63
BRACKET; CLIP,P/S
(B)
1-47477-193-0
01
1
0603-
63
BRACKET; CLIP,P/S
(A)
1-47477-621-1
02
1
0603-
64
BOLT; CLIP BRKT
M8X20 FLANGE
0-28050-820-0
01
1
0603-
65
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0603-0603
65
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0604-
66
BOLT; BRKT,OIL PIPE
(A) M8X25 FLANGE
0-28650-825-0
02
1
0603-
66
BOLT; BRKT,OIL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
0603-
66
BOLT; BRKT,OIL PIPE
(B) M8X30 FLANGE
0-28650-830-0
02
1
0603-
67
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0603-0603
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0604-
111
BRACKET; OIL PIPE
(A)
1-13345-186-0
01
1
0603-
111
BRACKET; OIL PIPE
(B)
1-13345-187-0
01
1
0603-
125
CONNECTOR; P/S PUMP
1-13313-532-0
01
1
0603-
157
GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6
1-09623-421-0
01
1
0603-
195
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0603-
195
BOLT; BRKT
(B) M10X35 FLANGE
0-28151-035-0
01
1
0603-
234
NUT; PIPE CLIP,P/S
M8 FLANGE
0-91150-108-0
02
1
0603-0603
234
NUT; PIPE CLIP,P/S
M8 FLANGE
0-91180-108-0
02
1
0604-
262
CLIP; P/S PIPE
(A) ID=15 H=24 L=20
1-09700-606-0
01
1
0603-
262
CLIP; P/S PIPE
(B) ID=16 L=20
9-09525-535-0
01
1
0603-0606
262
CLIP; P/S PIPE
(B) ID=16 L=20
0-95235-535-0
01
1
0607-
263
BRACKET; P/S PIPE
(A)
1-47476-483-2
01
1
0603-
263
BRACKET; P/S PIPE
(B)
1-47477-597-3
01
1
0603-
277
BOLT; HOSE CLIP
(A) M8X20 FLANGE
0-28650-820-0
03
1
0603-
277
BOLT; HOSE CLIP
(B) M10X25 FLANGE
0-28651-025-0
01
1
0603-
280
HOSE; P/S OIL PUMP,INL
1-21117-301-0
01
1
0603-0603
280
HOSE; P/S OIL PUMP,INL
1-21117-831-0
01
1
0604-0604
280
HOSE; P/S OIL PUMP,INL
1-21117-301-0
01
1
0605-
287
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0603-0603
287
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0604-
256
54
76
58
257
266
63
277
58
61
63
65
63
58
66
61
287
54
79
54
255
58
239
264
262
234
257
256
263
166
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CLIP; OIL PIPE
(A) ID=23.6 L=35
1-09700-634-0
02
1
0603-
54
CLIP; OIL PIPE
(B) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
54
CLIP; OIL PIPE
(C) ID=16 L=20
9-09525-535-0
01
1
0603-0606
54
CLIP; OIL PIPE
(C) ID=16 L=20
0-95235-535-0
01
1
0607-
58
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
06
1
0603-
58
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0603-
58
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
0603-
61
CLIP; OIL PIPE
(B) ID=16 L=20
9-09525-535-0
05
1
0603-0606
61
CLIP; OIL PIPE
(B) ID=16 L=20
0-95235-535-0
05
1
0607-
61
CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
61
CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
63
BRACKET; CLIP,P/S
(C)
1-47475-963-1
01
1
0603-
63
BRACKET; CLIP,P/S
(B)
1-47477-193-0
01
1
0603-
63
BRACKET; CLIP,P/S
(A)
1-47477-621-1
02
1
0603-
65
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0603-0603
65
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0604-
66
BOLT; BRKT,OIL PIPE
(A) M8X25 FLANGE
0-28650-825-0
02
1
0603-
66
BOLT; BRKT,OIL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
0603-
66
BOLT; BRKT,OIL PIPE
(B) M8X30 FLANGE
0-28650-830-0
02
1
0603-
76
UNION; OIL PIPE
M22
9-09233-015-1
02
1
0603-0607
76
UNION; OIL PIPE
M22 L=51
0-92123-015-0
02
1
0608-
79
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
0603-
166
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0603-
234
NUT; PIPE CLIP,P/S
M8 FLANGE
0-91150-108-0
02
1
0603-0603
234
NUT; PIPE CLIP,P/S
M8 FLANGE
0-91180-108-0
02
1
0604-
239
BRACKET; FLEX HOSE
1-47476-679-4
01
1
0603-
255
UNION; FLEX HOSE
M22 & M22 ELBOW
1-09654-163-1
01
1
0603-
256
NUT; UNION
M22
0-91111-522-0
01
1
0603-
256
NUT; UNION
M22
0-91111-522-0
01
1
0603-
257
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0603-0603
257
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0603-0603
257
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
257
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
262
CLIP; P/S PIPE
(A) ID=15 H=24 L=20
1-09700-606-0
01
1
0603-
262
CLIP; P/S PIPE
(B) ID=16 L=20
9-09525-535-0
01
1
0603-0606
262
CLIP; P/S PIPE
(B) ID=16 L=20
0-95235-535-0
01
1
0607-
263
BRACKET; P/S PIPE
(A)
1-47476-483-2
01
1
0603-
263
BRACKET; P/S PIPE
(B)
1-47477-597-3
01
1
0603-
264
BOLT; PIPE BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0603-
266
UNION; OIL PIPE,P/S
M20 & M22 STRAIGHT
1-09654-167-1
01
1
0603-
277
BOLT; HOSE CLIP
(A) M8X20 FLANGE
0-28650-820-0
03
1
0603-
277
BOLT; HOSE CLIP
(B) M10X25 FLANGE
0-28651-025-0
01
1
0603-
287
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0603-0603
287
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0604-
268
45
31
34
280
261
45
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
HOSE; P/S OIL TANK,INL
1-21114-284-0
01
1
0603-
34
HOSE; P/S OIL TANK,OUTLET
1-21114-283-0
01
1
0603-
45
PIPE; OIL,P/S UNIT TO UNION
(A) L=1671
1-21117-842-0
01
1
0603-
45
PIPE; OIL,P/S UNIT TO UNION
(B) L=1249
1-21117-843-0
01
1
0603-
49
PIPE; OIL,FLEX HOSE TO UNION
L=1701
1-21117-568-0
01
1
0603-
75
PIPE; OIL,P/S,UNION TO UNION
L=1815
1-21117-076-0
01
1
0603-
261
PIPE; OIL,UNION TO HOSE
L=1031
1-21117-048-0
01
1
0603-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1315
1-21116-855-0
01
1
0603-
280
HOSE; P/S OIL PUMP,INL
1-21117-301-0
01
1
0603-0603
280
HOSE; P/S OIL PUMP,INL
1-21117-831-0
01
1
0604-0604
280
HOSE; P/S OIL PUMP,INL
1-21117-301-0
01
1
0605-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
