◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#32225) — 198 parça
çizim 89688
391 380 287 291 292 390 185 360 434
BalonParca AdiParca NoAdetTipApplied Date A B C D
185 COLLAR; SHIFT FORK 1-41379-004-0 02 1 0603- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0603- ● ● ● ●
291 ROD; PUSH 1-48263-006-0 02 1 0603- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0603- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-008-0 02 1 0603- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-087-0 01 1 0603- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0603- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0603- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0603- ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-141-0 02 1 0603- ● ● ● ●

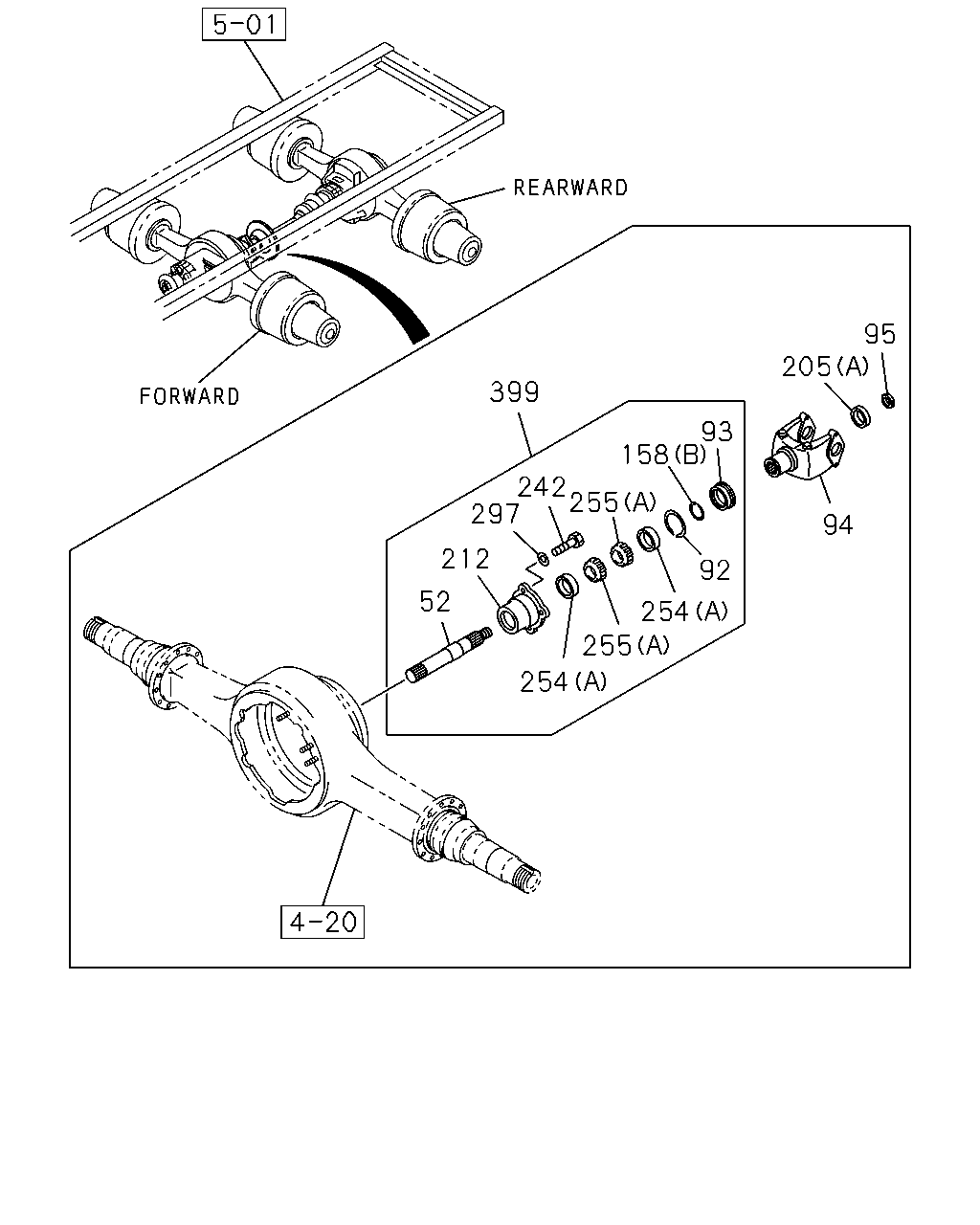

çizim 89716
95 205 399 93 158 242 255 297 94 212 92 52 254 255 254
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 SHAFT; OUTPUT 1-41343-031-0 01 1 0603- ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0603- ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 0603- ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 0603- ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-040-0 01 1 0603- ● ● ● ●
158 RING; SNAP
(B) 		1-41349-162-0 01 1 0603- ● ● ● ●
158 RING; SNAP
(A) 		1-41519-085-0 01 1 0603- ● ● ● ●
205 WASHER; PL
(A) 		1-41219-040-0 01 1 0603- ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0603- ● ● ● ●
212 COVER 1-41519-049-0 01 1 0603- ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0603- ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0603- ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-030-0 01 1 0603- ● ● ● ●

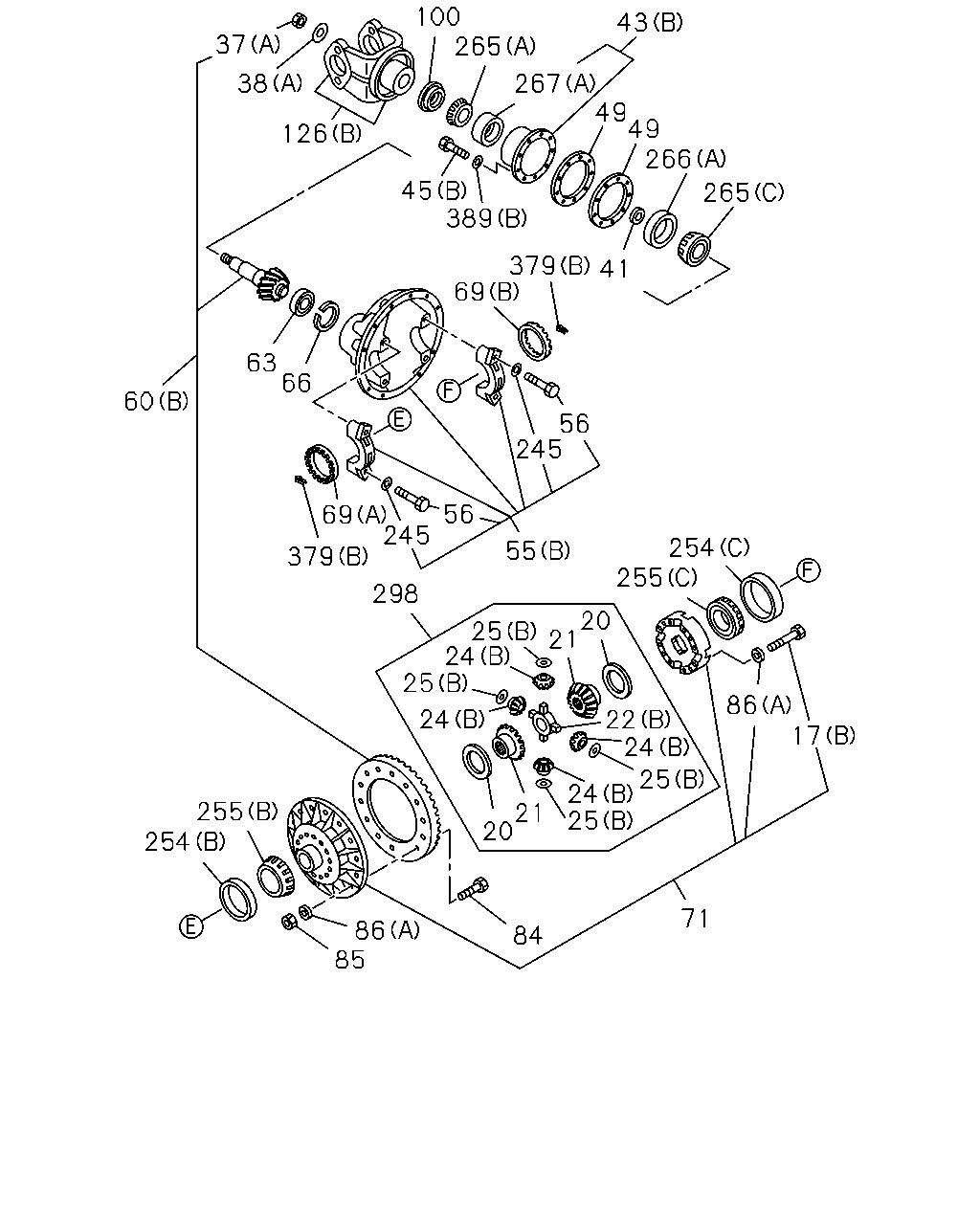

çizim 106460
100 265 43 37 38 267 49 49 266 126 45 389 265 379 41 69 63 66 60 56 245 56 69 245 254 255 55 379 298 20 21 25 24 25 86 17 24 22 24 25 24 25 255 254 21 20 71 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
17 BOLT; DIFF CAGE SETTING
(A) 		1-41329-085-0 08 1 0603- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-41519-037-0 24 1 0603- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 04 1 0603- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 04 1 0603- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-025-0 01 1 0603- ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-054-0 02 1 0603- ● ● ● ●
24 GEAR; PINION,DIFF
(A) 		1-41211-238-0 04 1 0603- ● ● ● ●
24 GEAR; PINION,DIFF
(B) 		1-41551-035-0 08 1 0603- ● ● ● ●
25 WASHER; THRUST,PINION
(B) 		1-41552-037-0 08 1 0603- ● ● ● ●
25 WASHER; THRUST,PINION
(A) 		1-41552-041-0 04 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-123-0 01 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(C) 		1-41219-130-0 01 1 0603- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 02 1 0603- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-129-0 01 1 0603- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0603- ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-098-0 01 1 0603- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0603- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0603- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0603- ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0603- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-126-0 01 1 0603- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-060-0 01 1 0603- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 08 1 0603- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-648-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-655-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-649-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-657-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-656-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-660-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/9 		1-41210-658-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/9 		1-41210-661-0 01 1 0603- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0603- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0603- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-040-0 03 1 0603- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-049-0 01 1 0603- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 02 1 0603- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 24 1 0603- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0603- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 48 1 0603- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-037-0 08 1 0603- ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0603- ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0603- ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-375-0 01 1 0603- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 08 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-033-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 02 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-128-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-088-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-032-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-089-0 01 1 0603- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-127-0 01 1 0603- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41349-050-0 02 1 0603- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-032-0 02 1 0603- ● ● ● ●
379 PIN; SPLIT
(A) 		1-41129-012-0 01 1 0603- ● ● ● ●
379 PIN; SPLIT
(B) 		1-41129-013-0 03 1 0603- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41159-009-0 08 1 0603- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0603- ● ● ● ●

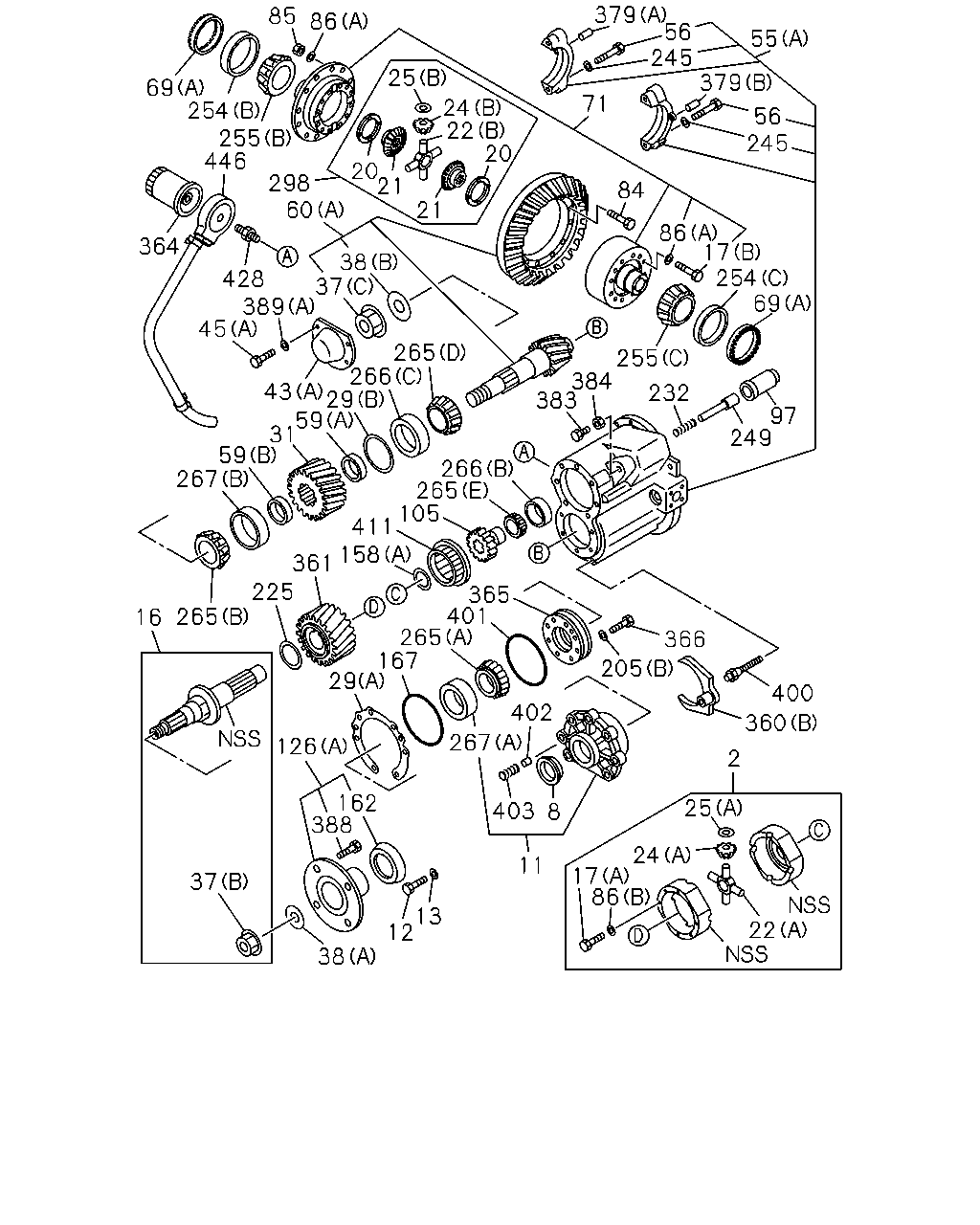

çizim 106461
379 56 245 379 85 86 55 25 69 254 255 446 71 24 22 20 56 245 20 21 298 60 84 21 86 17 254 69 364 38 37 428 389 45 265 266 29 59 31 59 267 255 384 383 43 232 97 249 266 265 105 411 158 361 225 265 365 401 265 167 16 366 205 29 400 402 360 267 126 2 162 388 25 403 8 24 17 86 11 37 22 13 12 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 DIFF ASM; INTER,FINAL 1-41510-306-0 01 1 0603- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 0603- ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41321-028-0 01 1 0603- ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-058-0 07 1 0603- ● ● ● ●
13 WASHER; COVER TO CASE 1-41159-009-0 07 1 0603- ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-031-0 01 1 0603- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		1-41329-085-0 08 1 0603- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-41519-037-0 24 1 0603- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 04 1 0603- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 04 1 0603- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-025-0 01 1 0603- ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-054-0 02 1 0603- ● ● ● ●
24 GEAR; PINION,DIFF
(A) 		1-41211-238-0 04 1 0603- ● ● ● ●
24 GEAR; PINION,DIFF
(B) 		1-41551-035-0 08 1 0603- ● ● ● ●
25 WASHER; THRUST,PINION
(B) 		1-41552-037-0 08 1 0603- ● ● ● ●
25 WASHER; THRUST,PINION
(A) 		1-41552-041-0 04 1 0603- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0603- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0603- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0603- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0603- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0603- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0603- ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-426-0 01 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-123-0 01 1 0603- ● ● ● ●
37 NUT; DRIVING PINION
(C) 		1-41219-130-0 01 1 0603- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 02 1 0603- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-129-0 01 1 0603- ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-098-0 01 1 0603- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0603- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0603- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0603- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-126-0 01 1 0603- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-060-0 01 1 0603- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 08 1 0603- ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-126-0 01 1 0603- ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-362-0 01 1 0603- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-648-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-655-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-649-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-657-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-656-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-660-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/9 		1-41210-658-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/9 		1-41210-661-0 01 1 0603- ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-040-0 03 1 0603- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-049-0 01 1 0603- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 02 1 0603- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 24 1 0603- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0603- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 48 1 0603- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-037-0 08 1 0603- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0603- ● ● ● ●
105 GEAR; SIDE 1-41561-122-0 01 1 0603- ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0603- ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-375-0 01 1 0603- ● ● ● ●
158 RING; SNAP
(B) 		1-41349-162-0 01 1 0603- ● ● ● ●
158 RING; SNAP
(A) 		1-41519-085-0 01 1 0603- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 0603- ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0603- ● ● ● ●
205 WASHER; PL
(A) 		1-41219-040-0 01 1 0603- ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0603- ● ● ● ●
225 WASHER; THRUST 1-41349-160-0 01 1 0603- ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0603- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 08 1 0603- ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0603- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0603- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-033-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 02 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-128-0 01 1 0603- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-088-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-032-0 01 1 0603- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-089-0 01 1 0603- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-127-0 01 1 0603- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41349-050-0 02 1 0603- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-032-0 02 1 0603- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-008-0 02 1 0603- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-087-0 01 1 0603- ● ● ● ●
361 GEAR; DRIVE 1-41351-040-0 01 1 0603- ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0603- ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0603- ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0603- ● ● ● ●
379 PIN; SPLIT
(A) 		1-41129-012-0 01 1 0603- ● ● ● ●
379 PIN; SPLIT
(B) 		1-41129-013-0 03 1 0603- ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0603- ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0603- ● ● ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 0603- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41159-009-0 08 1 0603- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0603- ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0603- ● ● ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 0603- ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0603- ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0603- ● ● ● ●
411 SLEEVE; CLU 1-41519-086-0 01 1 0603- ● ● ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 0603- ● ● ● ●
446 ADAPTER ASM; OIL RETURN 1-41389-021-0 01 1 0603- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
