◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#32224) — 34 parça

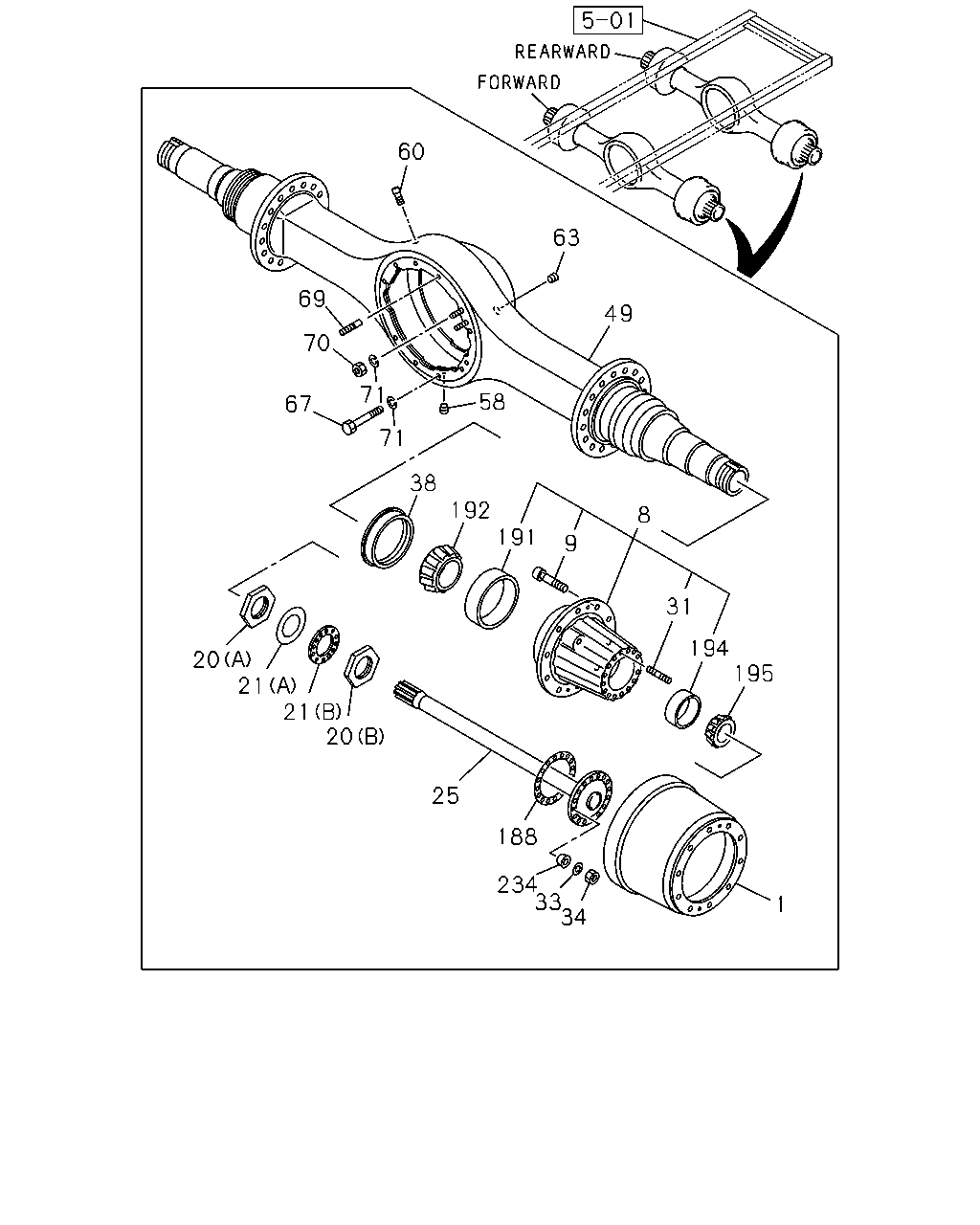

çizim 89715
60 63 69 49 70 71 58 67 71 38 192 191 8 9 31 194 195 20 21 21 20 25 188 234 33 34 1
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-379-0 04 1 0603-
8 HUB; RR AXLE
DISC WHEEL AL<SDM> 		1-42311-130-0 04 1 0603-
8 HUB; RR AXLE
EXC. DISC WHEEL AL<SDM> 		1-42311-131-0 04 1 0603-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> 		1-42339-032-0 40 1 0603-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> 		1-42339-031-0 40 1 0603-
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 04 1 0603-
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 04 1 0603-
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 04 1 0603-
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 04 1 0603-
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=951 		1-42171-557-0 02 1 0603-
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=1120 		1-42171-558-0 02 1 0603-
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0603-
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0603-
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0603-
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 04 1 0603-
49 CASE; RR AXLE
FORWARD 		1-42190-269-0 01 1 0603-
49 CASE; RR AXLE
REARWARD 		1-42190-270-0 01 1 0603-
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0603-
60 BREATHER; RR AXLE CASE 1-09893-028-0 03 1 0603-
63 PLUG; OIL FILLER,AXLE CASE 1-42129-054-0 02 1 0603-
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0603-
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 08 1 0603-
69 STUD; AXLE CASE
REARWARD L=120.65 		1-42119-184-0 04 1 0603-
69 STUD; AXLE CASE
FORWARD L=76.45 		1-42119-210-0 02 1 0603-
69 STUD; AXLE CASE
FORWARD L=107.95 		1-42119-211-0 03 1 0603-
70 NUT; CARRIER 1-42179-005-0 16 1 0603-
71 WASHER; LK,FINAL DRIVE SETTING
FORWARD 		1-41229-168-0 12 1 0603-
71 WASHER; LK,FINAL DRIVE SETTING
REARWARD 		1-41229-361-0 12 1 0603-
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0603-
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0603-
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0603-
194 CUP; BRG,HUB OUTER 1-42179-024-0 04 1 0603-
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0603-
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0603-
