Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

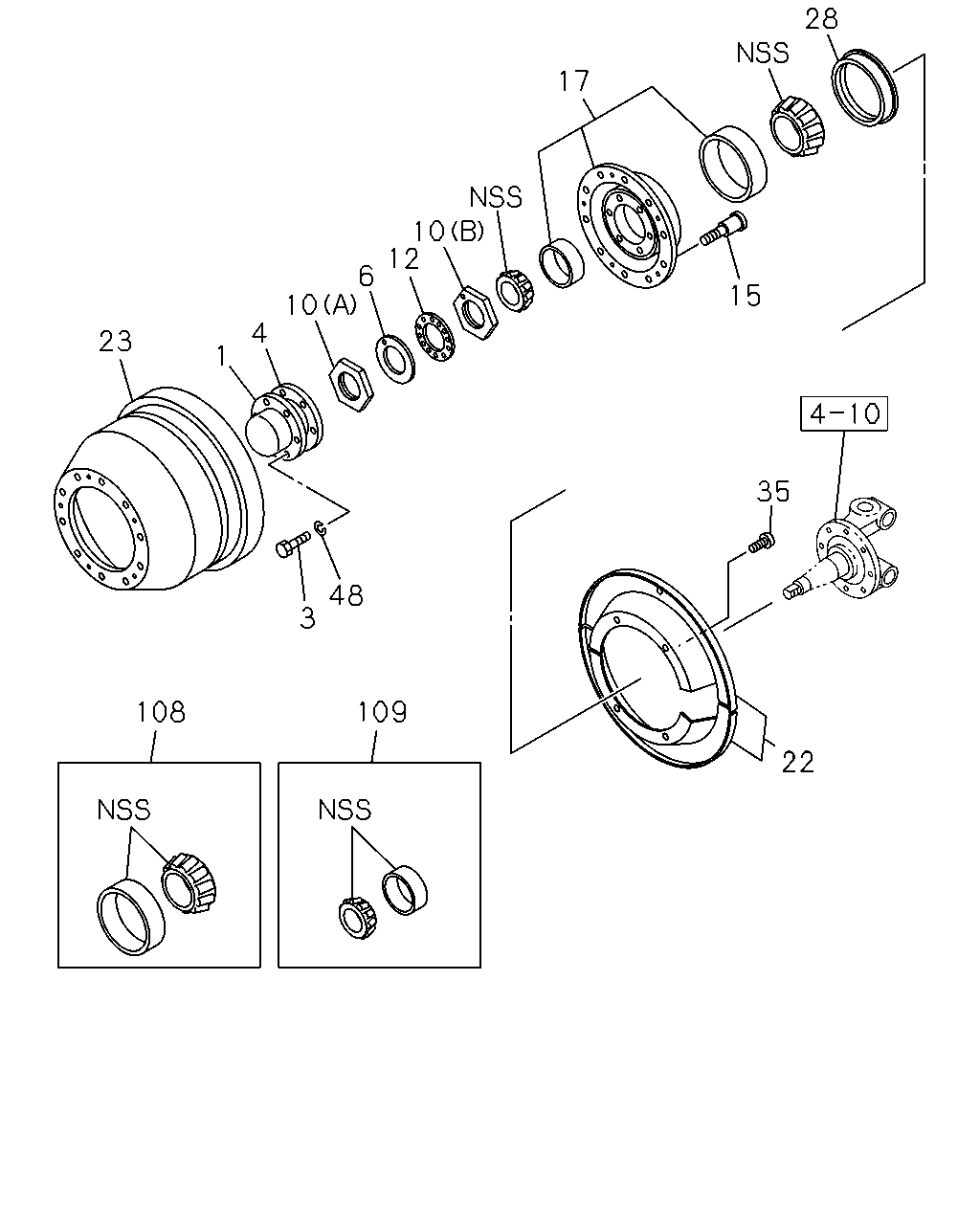

4-11 — FRONT HUB AND DRUM OR ROTOR
(#32223) — 16 parça
22
35
109
108
48
3
15
28
17
10
12
6
10
4
1
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-024-0
02
1
0603-
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0603-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0603-
6
WASHER; LK,FRT HUB
1-42329-007-0
02
1
0603-
10
NUT; FRT HUB BRG
(A)
1-42329-006-0
02
1
0603-
10
NUT; FRT HUB BRG
(B)
1-42329-009-0
02
1
0603-
12
WASHER; LK,FRT HUB BRG
1-42329-008-0
02
1
0603-
15
PIN; WHEEL,FRT AXLE
1-42337-061-0
20
1
0603-
17
HUB; FRT AXLE
1-42312-158-0
02
1
0603-
22
COVER SET; FRT BRK DRUM
1-47151-708-0
02
1
0603-
23
DRUM; BRK,FRT
1-42315-378-0
02
1
0603-
28
SEAL; OIL,FRT HUB
1-09625-636-0
02
1
0603-
35
BOLT; DRUM COVER
1-47159-176-0
12
1
0603-
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0603-
108
BEARING SET; HUB,INNER
1-85573-010-0
02
1
0603-
109
BEARING SET; HUB,OUTER
1-85573-011-0
02
1
0603-
