3-78 — FIXING PARTS; AIR PIPING (#32218) — 133 parça

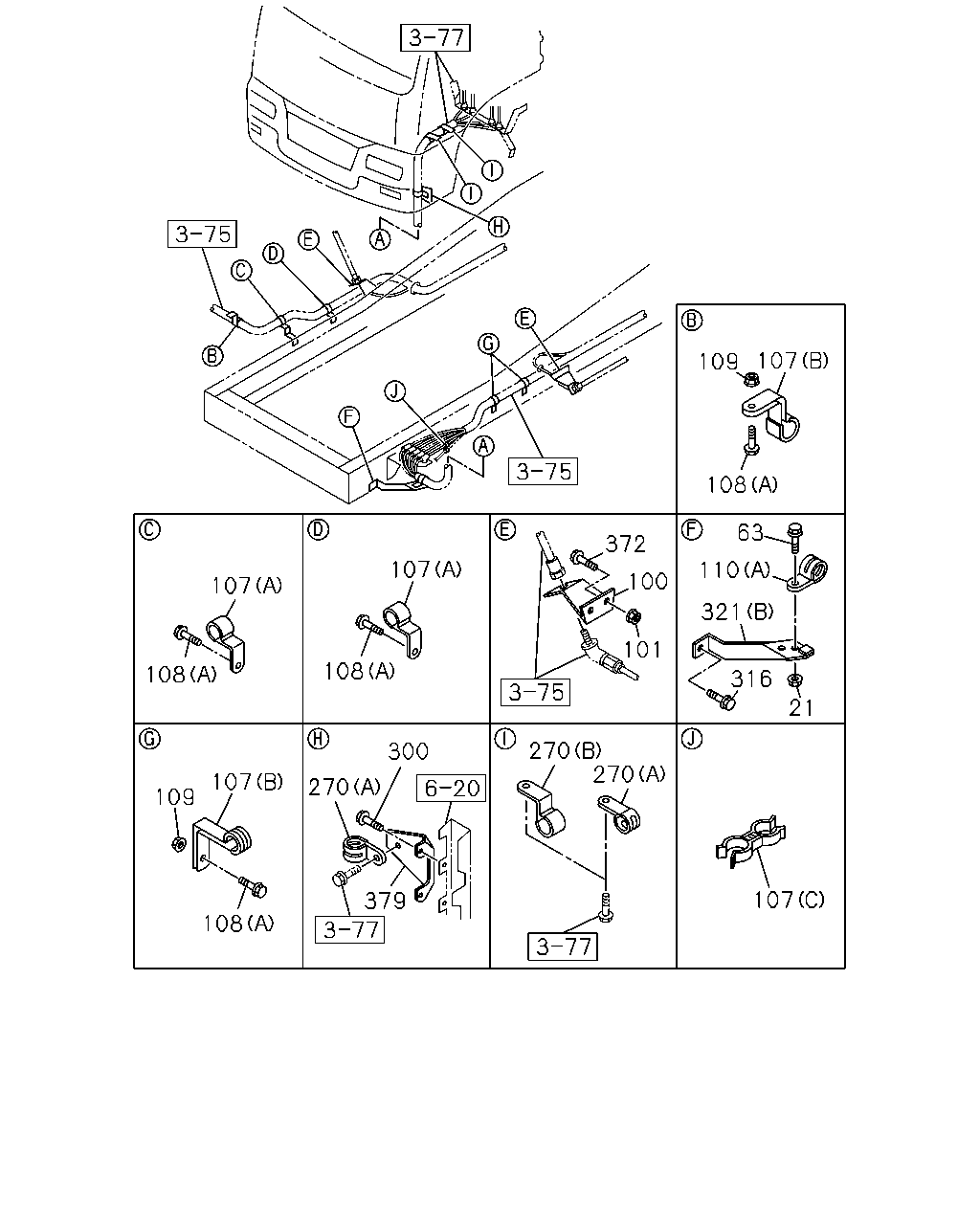

108 63 372 107 110 100 107 321 101 108 108 316 21 270 270 300 107 270 109 107 379 108 109 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0603-0603
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0603-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0603-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0603-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0603-0603
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0603-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0603-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0603-
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0603-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0603-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0603-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0603-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0603-0603
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0603-0603
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=140	5-09707-031-1	01	1	0603-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0603-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0603-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0603-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0603-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0603-
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0603-
321	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0603-
321	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	01	1	0603-
321	BRACKET; CLIP (B)	1-47477-810-0	01	1	0603-0609
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0603-

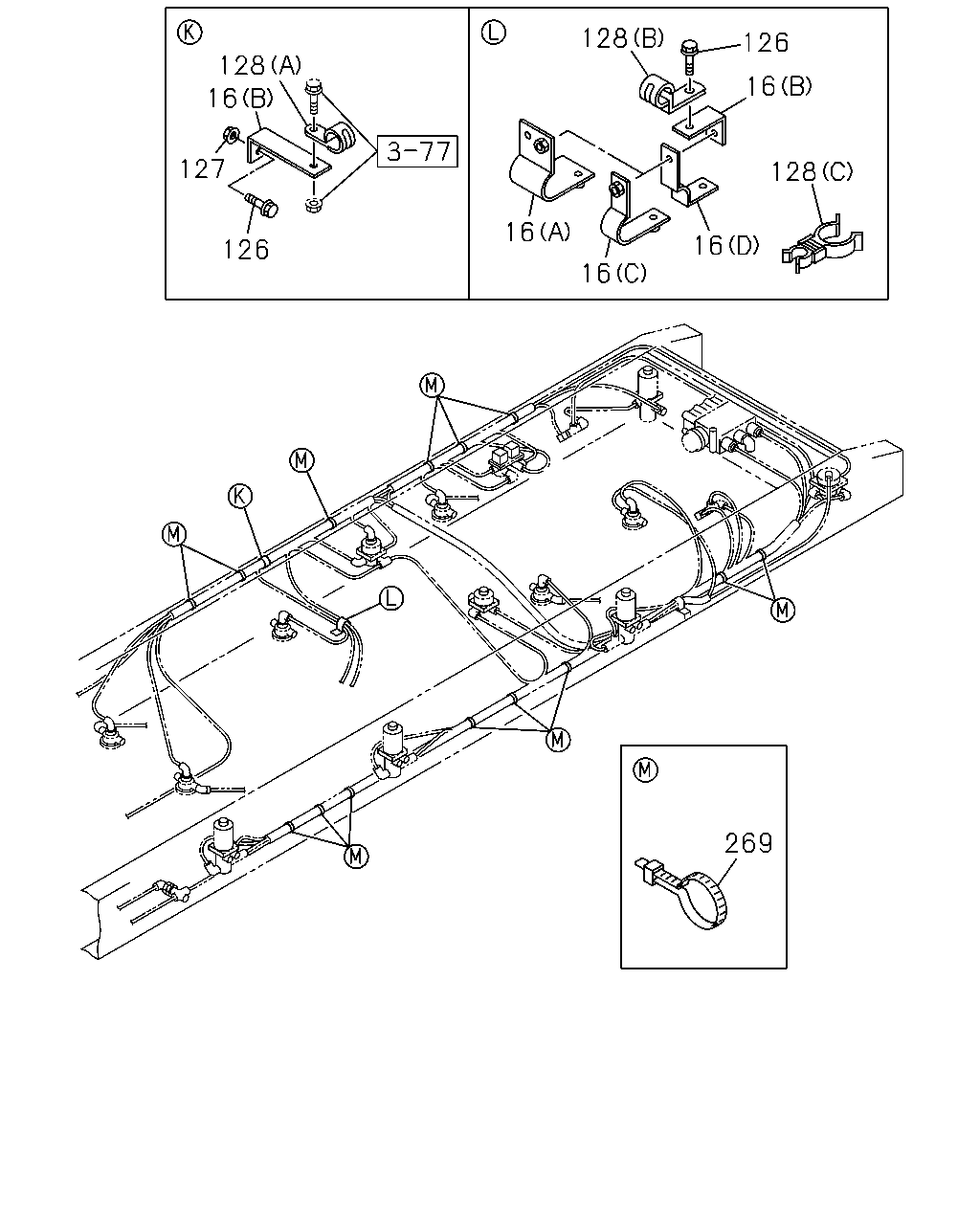

128 126 128 16 16 127 128 16 16 126 16 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (D)	1-47478-588-0	02	1	0603-
16	BRACKET; PIPE CLIP (C)	1-47478-589-0	01	1	0603-
16	BRACKET; PIPE CLIP (A)	1-47479-249-0	01	1	0603-
16	BRACKET; PIPE CLIP (B) L=95	1-82699-085-0	02	1	0603-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0603-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0603-0603
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
128	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	04	1	0603-
128	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0603-
128	CLIP; NYLON TUBE (C) ID=11.8 & 7.5	1-09709-182-0	02	1	0603-
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	43	1	0603-

108 370 295 109 11 110 110 22 22 321 34 297 110 110 316 266 286 294 76 128 286 80 266 369 22 81 78 79 133 372 266 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0603-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0603-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	02	1	0603-
22	BRACKET; CLIP (C) L=225	1-47477-646-3	01	1	0603-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0603-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0603-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0603-
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	02	1	0603-
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0603-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0603-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0603-0603
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0603-
81	BRACKET; CLIP (B) L=125	1-47477-975-1	01	1	0603-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0603-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0603-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0603-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0603-0603
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0603-0603
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=140	5-09707-031-1	01	1	0603-
128	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	04	1	0603-
128	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0603-
128	CLIP; NYLON TUBE (C) ID=11.8 & 7.5	1-09709-182-0	02	1	0603-
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0603-
266	CLIP; NYLON TUBE (B) ID=25 H=30 L=35	1-09700-875-0	01	1	0603-
266	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0603-
266	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	02	1	0603-
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	43	1	0603-
286	CLIP; NYLON TUBE (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0603-
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	0603-
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0603-0603
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0603-0603
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0603-0603
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0603-
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0603-
321	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0603-
321	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	01	1	0603-
321	BRACKET; CLIP (B)	1-47477-810-0	01	1	0603-0609
369	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0603-
370	BRACKET; PIPE CLIP	1-47477-669-1	01	1	0603-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-

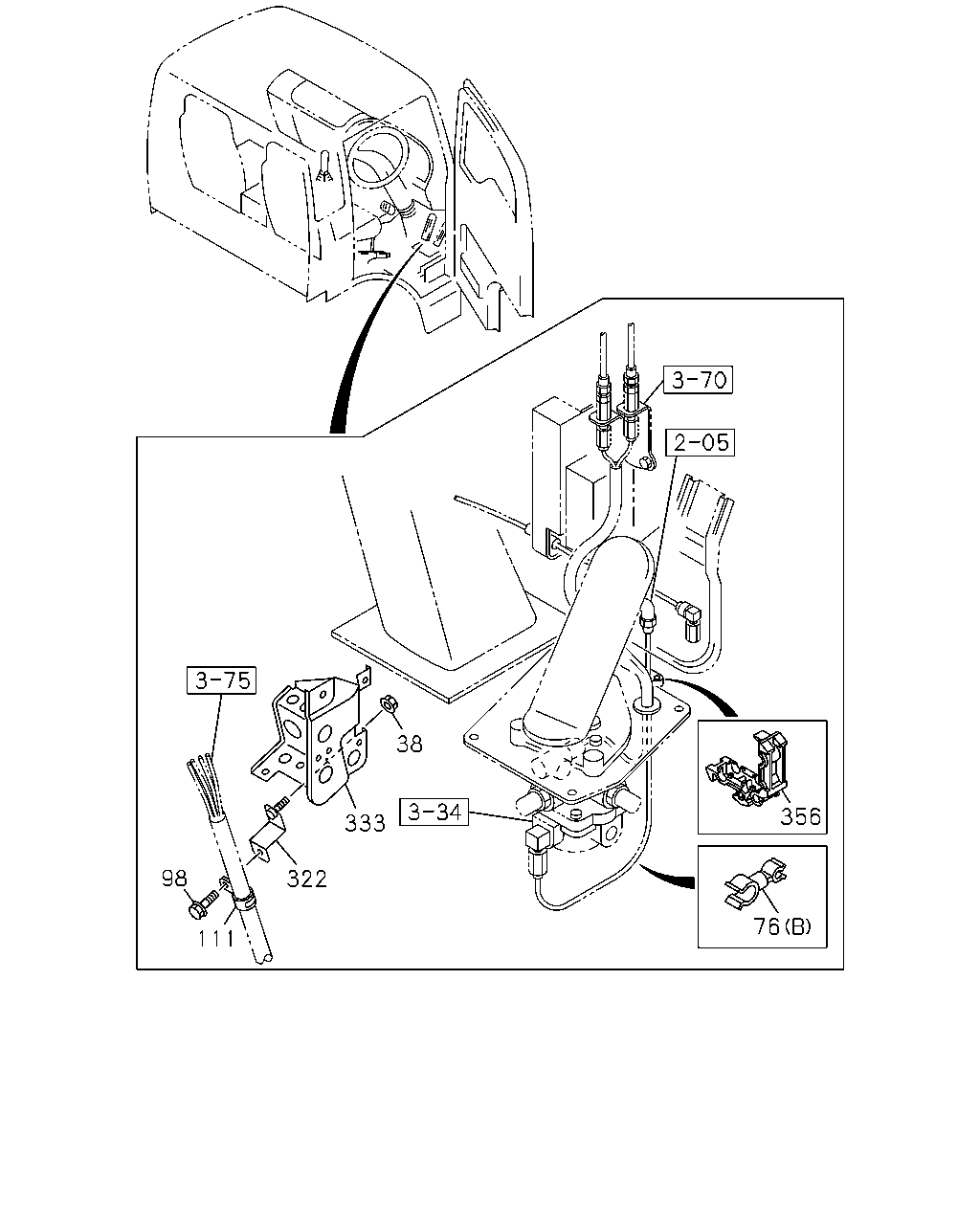

38 356 333 98 322 76 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0603-0603
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0603-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0603-
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	02	1	0603-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0603-
111	CLIP; AIR PIPE ID=32 L=50	1-09701-055-1	01	1	0603-
322	BRACKET; CLIP	1-79996-659-1	01	1	0603-0702
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0603-0702
333	BRACKET; BRK AIR PIPE	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE	1-79907-150-0	01	1	0802-
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) BLACK	8-94222-876-0	01	1	0603-

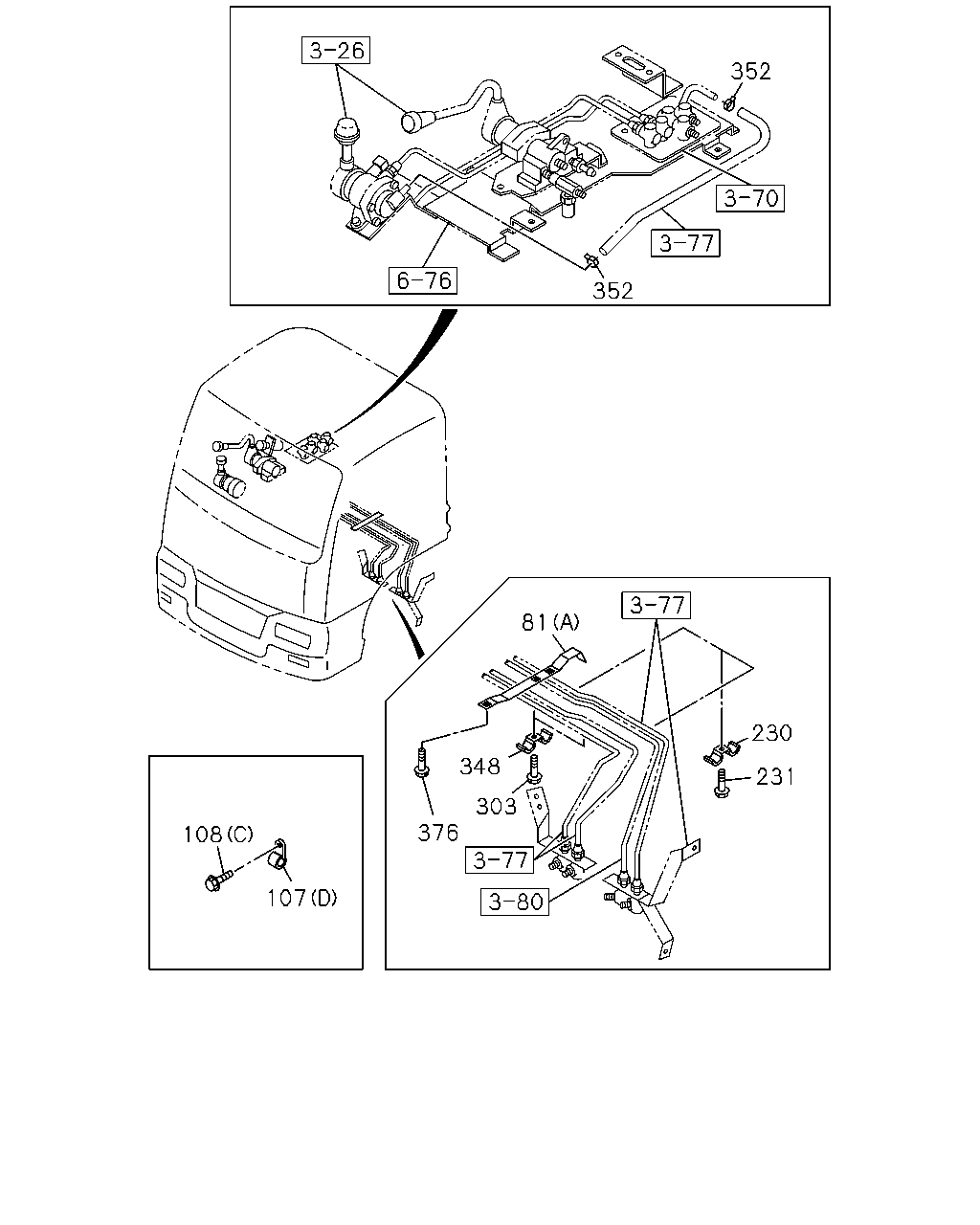

352 352 81 230 348 231 303 376 108 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0603-
81	BRACKET; CLIP (B) L=125	1-47477-975-1	01	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0603-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0603-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0603-
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0603-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0603-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0603-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0603-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0603-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0603-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0603-
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
